Manual de utilizare in Limba Engleza
Statie radio CB
Alan 48 Excel Multi

Advertisement

Table of Contents
loading

Related Manuals for Midland Alan 48 Excel Multi

Summary of Contents for Midland Alan 48 Excel Multi

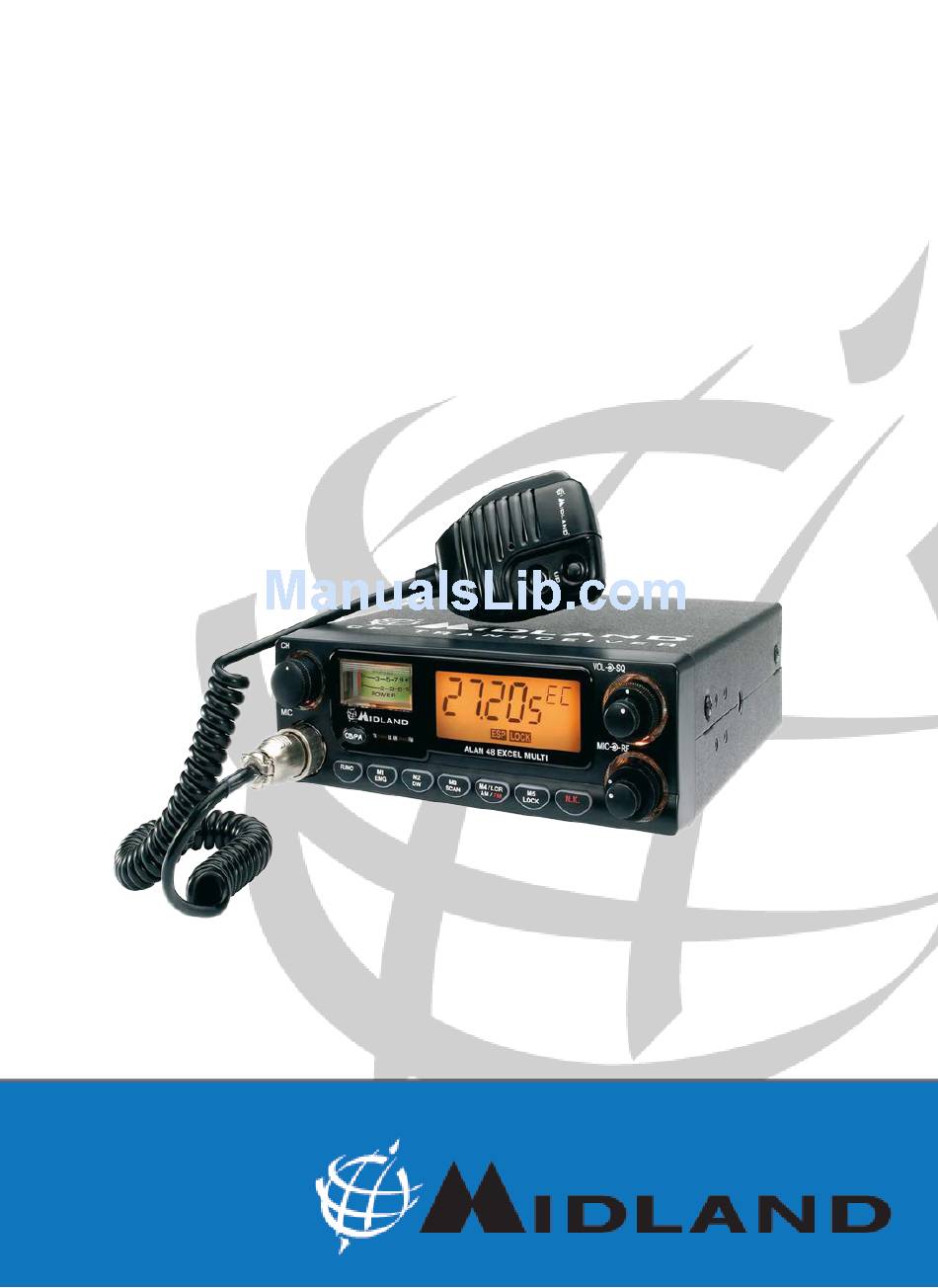

  • Page 1 Manual de utilizare in Limba Engleza Statie radio CB Alan 48 Excel Multi...

  • Page 2: Table Of Contents

    Function and location of the controls ............ 3 Installation .................... 7 Power supply ..................7 Installing an antenna................7 How to use your ALAN 48 EXCEL MULTI ..........8 Frequency band selection..............8 Frequency band chart ................ 8 Specifications ..................9...

  • Page 3: Introduction

    ALAN 48 EXCEL MULTI is a mobile transceiver whose main feature is the possibility to select any of the European CB bands with an easy and quick operation. ALAN 48 EXCEL MULTI is equipped with the “ESP2” (noise reducer device) that reduces considerably the audio noises up to 95%, allowing a clear communication even when the signal is disturbed.

  • Page 4: Function And Location Of The Controls

    FUNCTION AND LOCATION OF THE CONTROLS FRONT PANEL 5 7 9 30 3 5 10 POWER LOCK SCAN CB/PA RX AM FUNC M4/LCR N.K. SCAN AM/FM LOCK 1. Channel selector: it permits the manual channel selection. 2. Microphone jack: insert the mic connector into this jack. 3.
  • Page 5 5. “AM/FM” Indicator It indicates the operative mode. FM: red LED; AM: green LED. 6. “RX/TX” Indicator LED indicating receiving or trasmitting mode. RX: green LED; TX: red LED. 7. “CB/PA” Selector In the “CB” position, the unit operates as a transceiver. You can use the PA (public address) function only if you connect a speaker to the PA jack (“PA”...
  • Page 6 memory and “SCAN” function activation. In this case, you can automatically seek for a busy channel: • turn the squelch clockwise until the background noise is no longer heard; • press the “M3 - SCAN” button: “SCAN” will be shown on the display and the transceiver will automatically scan all the channels until a carrier is being received.

  • Page 7: Rear Panel

    REAR PANEL S-METER ANTENNA 19. Antenna connector (SO239 connector type). 20. S.Meter jack: it allows an external “s meter” connection. 21. “PA” jack: by connecting with an external loudspeaker, you can use the unit as an audio-amplifier. 22. ”EXT” jack: external loudspeaker jack (the internal loudspeaker is excluded). 23.

  • Page 8: Installation

    INSTALLATION Safety and convenience are the primary consideration for mounting any piece of mobile equipment. All controls must be readily available to the operator without interfering with the movements necessary for safe operation of the vehicle. Set the proper position in the car to install the transceiver using the supplied supporting bracket or eventually the slide bracket.

  • Page 9: How To Use Your Alan 48 Excel Multi

    HOW TO OPERATE WITH YOUR ALAN 48 EXCEL MULTI 1. Screw the microphone plug into the microphone jack. 2. Make sure your antenna is securely connected to the antenna connector. 3. Make sure the SQUELCH control is turned fully conterclockwise.

  • Page 10: Specifications

    SPECIFICATIONS GENERAL Channels ............40 FM (see the Frequency band chart) Frequency Range ..............26.565 - 27.99125 MHz Frequency Control ....................PLL Operating Temperature Range ..............-10°/+55° C DC input voltage ................13.2/24 Vdc ±15% Size ..................150(L) x 45(H) x 175(D)mm Weight ........................1Kg RECEIVER Receiving system ............Dual conversion superheterodyne Intermediate frequency ..........
