NLC‐100SH Installation and troubleshooting
NETAFIM LANDSCAPE CONTROLLERS
NLC-100SH
INSTALLATION & TROUBLESHOOTING MANUAL
NLC-100SH
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NLC-100SH and is the answer not in the manual?

Questions and answers

Summary of Contents for Netafim NLC-100SH

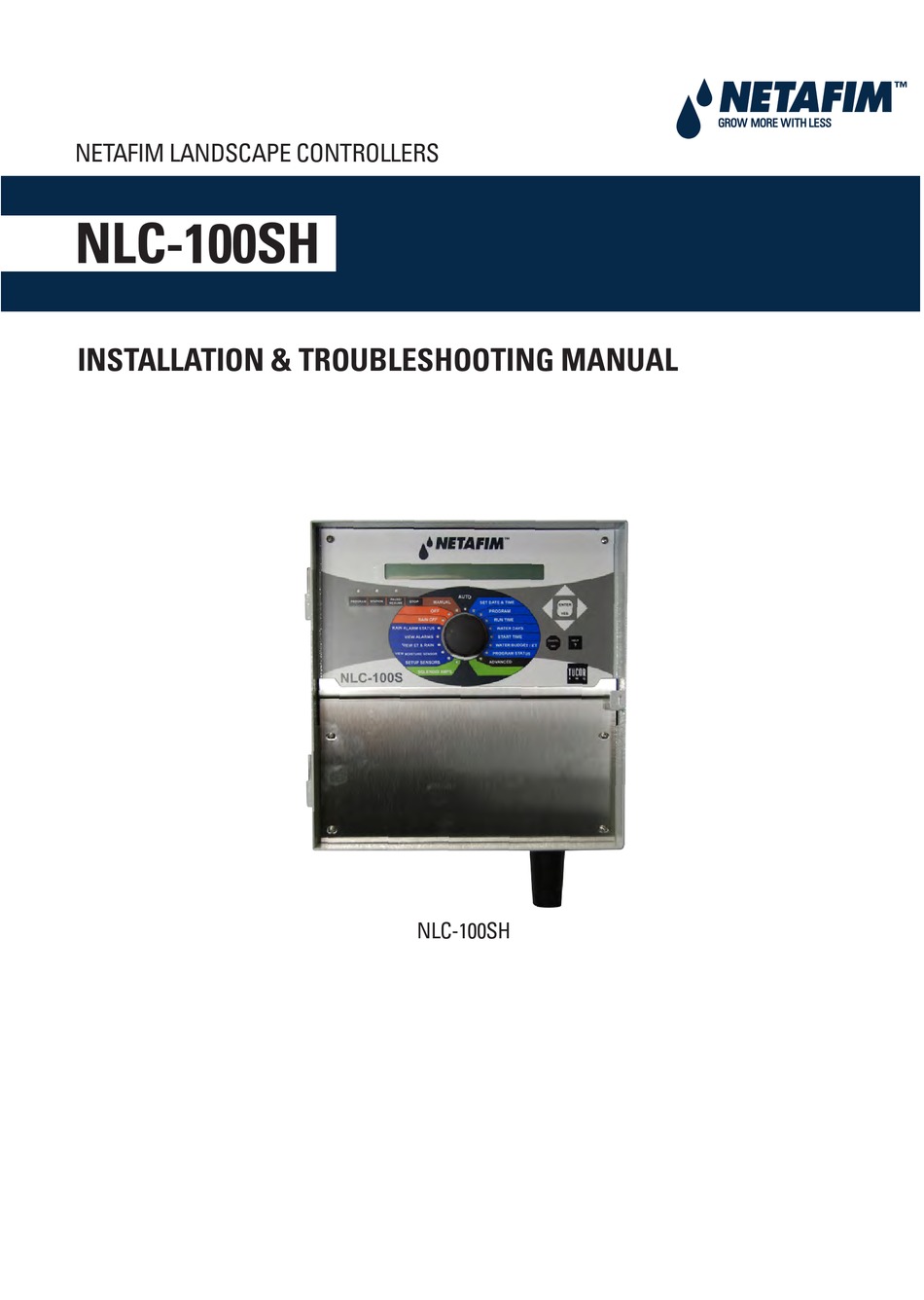

  • Page 1 NLC‐100SH Installation and troubleshooting  NETAFIM LANDSCAPE CONTROLLERS NLC-100SH INSTALLATION & TROUBLESHOOTING MANUAL NLC-100SH...
  • Page 2 NLC‐100SH Installation and troubleshooting  Copyright January 2014. All rights reserved. No part of this publication may  be reproduced, stored in a retrieval system, or transmitted in any form or  by any means electronic, mechanical, photocopying, recording or  otherwise without the prior permission of the publisher. Netafim USA 5470 E. Home Ave. Fresno, CA  93727 Phone: (888) 638‐2346 (559) 453‐6800 Fax:  (559) 453‐6803 Email: communications@netafimusa.com 450-230-0006/A...
  • Page 3: Table Of Contents

    NLC‐100SH Installation and troubleshooting  Table of Contents Chapter 1: Introducing NLC‐100SH .................. 7 The Two‐wire Technology ................7 Two‐wire layout: ..................7 Conventional layout:  ................8 The Controller  ..................8 Irrigation Features  ..................9 Chapter 2: System Installation .................... 11 Mounting the Controller  ................11 Marking up the mounting holes  ............. 12 Connecting the Controller  ................14 Grounding the Controller  ............... 14 Connecting the conventional field wires  ............15 Connecting Two‐wire with shared Common ..........16 Connecting pure Two‐wire  ................17 Connecting Master valve and Flow sensor via Two‐wire  ....... 18 Programming of decoders and master valve ...
  • Page 4 NLC‐100SH Installation and troubleshooting  Setting the Hourly Max. Rain and Rain Alarm Level  ........ 40 Connecting a Flow Sensor  ................44 Enabling Flow Sensor Input (pulses) .............. 45 Enabling flow sensor pulse input in the NLC ........... 45 Configuring for Flow Sensor Input ..............46 Selecting Sensor Type ................47 Using a built‐in calibration profile  ............47 Setting the Flow Sensor Adjustment ............51 Adjusting the flow sensor input .............. 51 Viewing the Current Flow  ................52 Connecting an Alarm ..................54 Connecting a Moisture sensor  ..............55 Connecting, Configuring and Using Moisture Sensors  ........55 Connecting and configuring a moisture sensor ........56 Assigning an ID to a soil moisture sensor  ..........56 Configuring a soil moisture sensor  ............60 Chapter 3: System activation ....................
  • Page 5 NLC‐100SH Installation and troubleshooting  Test run  ......................75 DIP switches ....................76 LED Number patterns ..................76 Act/Err LED codes  ..................77 Glossary  ......................79...
  • Page 6 NLC‐100SH Installation and troubleshooting ...
  • Page 7: Chapter 1: Introducing Nlc-100Sh

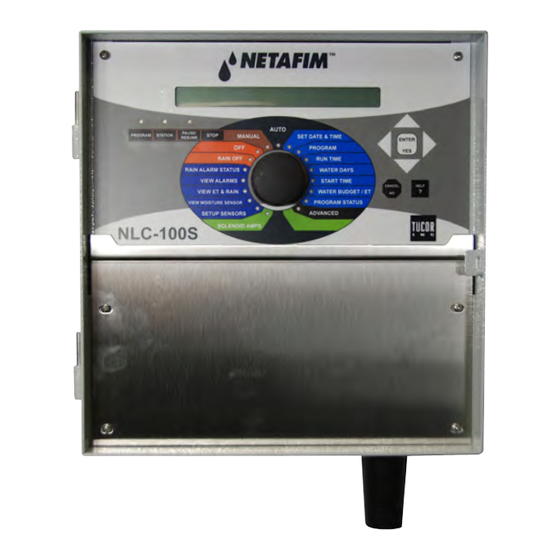

    NLC‐100SH Installation and troubleshooting  Chapter 1: Introducing NLC‐100SH The NLC is a microprocessor based irrigation control system. A central  controller and up to 100 field stations comprise a complete system. In  addition the controller will accept input from several external sensors in  order to adjust its irrigation to the local weather conditions. The NLC controls up to 100 solenoids attached to valves or relays via the  built‐in connection board and three expansion boards.  In addition communication between the controller’s 3D and the stations  happens over a two‐wire path. Depending on the signal from the  controller’s 3D, the stations each activate or deactivate a valve. The  controller’s 3D signals to the stations based on configurable schedules,  eliminating the need for human interaction when the park, garden or other  surroundings need watering ‐ once set up, the NLC runs on its own. The Two‐wire Technology The NLC uses two‐wire transmission technology to tell the stations when to  act. This means that instead of laying out a cable to each individual valve,  just one or two single cables are laid out, and the stations all connect to the  same cable(s): Two‐wire layout:...
  • Page 8: Conventional Layout

    NLC‐100SH Installation and troubleshooting  In contrast, this is how the above system would look using a conventional  irrigation system that needs a dedicated cable to each individual valve: Conventional layout: The two‐wire technology has several obvious advantages over a  conventional system: • Ease of installation:You are only handling one roll of wire. • Ease of expansion: When you need to add a station in the field, you  don't have to dig in a new cable and risk damaging the existing web  of cables already in the ground ‐ you simply attach the new station  to the existing cable. Cost reduction: You save money on expensive copper cable ‐ using 20%  compared to traditional cabling. The Controller The heart of a NLC based system is the controller. This is a microprocessor  controlled device that stores your irrigation programs and NLC individual  stations in the field when to activate their valve(s).
  • Page 9: Irrigation Features

    NLC‐100SH Installation and troubleshooting  Irrigation Features Here are the main features that the NLC utilizes to help you automate your  irrigation: • Controls up to 100 solenoids attached to valves or relays via the  built‐in connection board and three expansion boards. • Provides ET corrected irrigation for optimal adjusted water  consumption. • Measures water flow and raises alarms or halts irrigation on  unexpected flow. • Allows for 10 independent irrigation programs. In addition there is  a fixed test program that activates all 100 stations in turn. • A program can activate up to 100 stations in named order. • Each station can run for up to 17:59:50 (In fact, you can boost this  even further by increasing the "water budget". • Each program can activate a one or more booster pumps in addition  to the stations. • Master valves and booster pumps will be activated in parallel in all  connection and expansion boards. • All programs have 12 start times per day. • All programs can run simultaneously (to capacity of the transformer  anc connection board). • You configure each program to run on any selection of days in a 14  day period, or on odd/even dates. • You can activate one or more valves or programs manually while  one or more programs are running, up to a total of 12  simultaneously running valves. • A master valve can be selected that will open when any program or  station is run.You typically assign master valve status to the valve ...
  • Page 10 NLC‐100SH Installation and troubleshooting ...
  • Page 11: Chapter 2: System Installation

    NLC‐100SH Installation and troubleshooting  Chapter 2: System Installation Mounting the Controller Though the NLC is designed to resist both rain and direct sun light, you  should place it in a friendlier environment if possible. Installing the NLC  inside a utility room or a shed is the perfect solution, but if this is not  possible, try to place it somewhere dry and out of sight. Furthermore, make sure that you place the controller in a location that  meets these requirements: • The controller must have access to 120 VAC. • You must be able to connect all cables to the controller at the  location. • To minimize electromagnetic interference, make sure that the  controller is placed at least 15 feet away from any high‐draw motors  like air conditioners, refrigerators, pool pumps etc. Once you've designated a suitable location for the controller, you're ready  to mount it on the wall ‐ or whatever vertical surface you have chosen.  Here's what you are going to need in order to mount the controller  properly: • A screw driver that matches the above screws. • A pen or a marker to mark up where to put the screws. • If you're mounting the controller on a concrete wall you will need  an electric drill. Before you start mounting the controller you should remove the lower  front plate inside the controller cabinet.
  • Page 12: Marking Up The Mounting Holes

    NLC‐100SH Installation and troubleshooting  Marking up the mounting holes 1 Make sure the bracket is in level. Mark up the mounting holes.
  • Page 13 NLC‐100SH Installation and troubleshooting  Use a pen to put marks on the wall through the hole in the back of  the controller cabinet. If you're placing the controller on a concrete wall, take down the  controller, drill out the hole, put in the wall anchor, and put back the  controller on the wall. Fasten the screw in the wall through the holes in the back of the  controller cabinet.
  • Page 14: Connecting The Controller

    NLC‐100SH Installation and troubleshooting  Now the controller should be mounted firmly on the wall. After mounting  the controller, it's time to connect the power and connect boards ‐ follow  the instructions in the next section to do this. Connecting the Controller Grounding the Controller To secure your NLC against lightning, you must ensure that the controller  is grounded through a ground rod connected to the ground lugs. Warning You will void the warranty by not grounding your NLC properly.
  • Page 15: Connecting The Conventional Field Wires

    NLC‐100SH Installation and troubleshooting  Connecting the conventional field wires...
  • Page 16: Connecting Two-Wire With Shared Common

    NLC‐100SH Installation and troubleshooting  Connecting Two‐wire with shared Common...
  • Page 17: Connecting Pure Two-Wire

    NLC‐100SH Installation and troubleshooting  Connecting pure Two‐wire...
  • Page 18: Connecting Master Valve And Flow Sensor Via Two-Wire

    NLC‐100SH Installation and troubleshooting  Connecting Master valve and Flow sensor via  Two‐wire For more information turn to Enabling Flow Sensor Input (pulses) on page 45...
  • Page 19: Programming Of Decoders And Master Valve

    NLC‐100SH Installation and troubleshooting  Programming of decoders and master valve Connect the decoder or master valve to the 3D programming connectors.  Proceed to For decoders or For master valve.
  • Page 20: For Decoders

    NLC‐100SH Installation and troubleshooting  For decoders 1 Push the Prog button  once. The ST LED will be lit. Manually activate the  desired station on the  controller for at least 1  sec. For example, activate  station 1 to assign id 1 to  the decoder. Proceed to  the next decoder. For master valve 1 Push the Prog button  twice. The MV LED wil be  lit. Activate any station  (connected to 3D) on the  controller for at least 1 sec  to assign the decoder as  master valve.
  • Page 21: Connecting Sensors

    NLC‐100SH Installation and troubleshooting  Connecting Sensors The NLC takes input from different sensor types: ET devices, rain sensors,  flow sensors and regular auxiliary alarms. This sections shows you how to  connect these sensors to the controller. Connecting an ET Device The NLC supports ET in two ways: 1. "ET Enabled" mode in which the controller just lets an external device  tell it when to irrigate and when to stay passive. In this mode the controller  supports two ET devices: WR‐7 and WR100i. To make the controller receive  instructions from an ET device, connect the "ET enable A" from the device  to the green terminals labeled "ET." 2. "ET Pulses" mode where you connect a weather station that  continuously tells the controller how much water is evaporating.  Combined with the input from a rain sensor the controller will then on its  own figure out how much to irrigate. Running in this mode you still just  connect the weather station to the ET terminals. M202 M203 M204 M205...
  • Page 22: Using A Connected Device (Weather Station)

    NLC‐100SH Installation and troubleshooting  Important! Be aware of the polarity when you connect devices  to the NLC: Connect plus to plus and minus to minus or you  won't see the expected behavior from the connected devices. Using a Connected Device (Weather Station) Connecting an ET device on‐site gives you the most accurate adjustments  as the ET device will monitor the exact weather condition right where  irrigation will take place. Important! If for some reason your weather stations fails and  does not provide any input for the NLC the controller will fall  back on historical ET data and use these instead. The same goes  in case of a power failure ‐ the controller will use the historical  data for the part of today that lies before the power failure, and  then use real‐time ET data from when it is powered up again.  Bottom line: you should always enter a set of historical ET data  even when running with a connected weather station. Configuring ET Input 1 Before moving on, make sure you have connected the ET device.  Turn the dial to  ADVANCED...
  • Page 23 NLC‐100SH Installation and troubleshooting  AUTO PAUSE/ STOP MANUAL SET DATE & TIME RESUME PROGRAM RAIN OFF RUN TIME RAIN ALARM STATUS WATER DAYS VIEW ALARMS START TIME VIEW ET & RAIN WATER BUDGET / ET PROGRAM STATUS VIEW MOISTURE SENSOR ADVANCED SETUP SENSORS SOLENOID AMPS Now the display looks like this: Use the item selectors to select ...
  • Page 24 NLC‐100SH Installation and troubleshooting  Select  . Now the display will look like this: 6. Device Setup Select  . Now the display will look like this: 1. ET Input Method Use the item selectors to select  and push  Local Weather Station the  button. ENTER...
  • Page 25 NLC‐100SH Installation and troubleshooting  Select  from the menu and push the  3. ET Base Setup ENTER button. Now you'll see the following screen: Note: See the NLC 100 User Manual for more information about  Base ET. For each program, use the item selectors to determine how many  inches of water the program will provide when running at a 100%  water budget. The controller needs this in order to re‐calculate run  times based on ET corrections. Push the  button to save the value. ENTER Push the CANCEL button once to return to the main Intelliset™ menu. 10 Use the item selectors to select  and  2. ET Limits (Min and Max) push the  button. Now you'll see the following screen: ENTER...
  • Page 26 NLC‐100SH Installation and troubleshooting  11 Now use the item selectors to determine the two values and push  to save your settings:  ENTER •  The ET figure must exceed this value in order for the  Minimum ET: controller to irrigate at all. •  If the ET balance for a program exceeds this value, the  Maximum ET: program will only irrigate to that limit, and the remaining water will  be added to the ET figure for the following day. 12 Turn the dial to SETUP SENSORS: AUTO PAUSE/ STOP MANUAL SET DATE & TIME RESUME PROGRAM RAIN OFF RUN TIME RAIN ALARM STATUS WATER DAYS VIEW ALARMS START TIME VIEW ET &...
  • Page 27 NLC‐100SH Installation and troubleshooting  13 Use the item selectors to select  and push the  button. 1. ET ENTER Now the display looks like this: 14 Now you can choose between four settings: ET device (Pulses) Select this if you use a connected ET device that provides dynamic ET data  for the controller (Tipping rain bucket.) ET enabled (N/O or N/C) If your ET device simply tells the controller whether to irrigate or not, you  need to tell the controller if the input is normally open (N/O) or normally  closed (N/C). Whenever the device is then in the opposite mode, the  controller will hold its irrigation. This is typically a WR7 Receiver.
  • Page 28 NLC‐100SH Installation and troubleshooting  Disabled Don't use the ET input. Use the item selectors to locate the setting you want and if you chose  anything but ET device (Pulses), push the ENTER button to save your selection  and the SENSORS button to exit sensor configuration. If you chose ET device (Pulses), you need to tell the controller how many  inches to the current ET figure per pulse it receives ‐ please proceed to the  next step (default setting is 0.01".) 15 Turn the dial to ADVANCED AUTO PAUSE/ STOP MANUAL SET DATE & TIME RESUME PROGRAM RAIN OFF RUN TIME RAIN ALARM STATUS WATER DAYS VIEW ALARMS START TIME WATER BUDGET / ET VIEW ET & RAIN PROGRAM STATUS VIEW MOISTURE SENSOR ADVANCED...
  • Page 29 NLC‐100SH Installation and troubleshooting  16 Use the item selectors to select  and push the  3. Intelliset ENTER button. Now you'll see the following screen: 17 Select   Now the display will look like this: 6. Device Setup.
  • Page 30: Checking The Current Aggregated Et And Rain

    NLC‐100SH Installation and troubleshooting  18 Select  Now you'll see  2. ET and Rain Inch/Pulse Settings. something like this: 19 Use the item selectors to set your values and push the  button  ENTER to save your settings. Checking the Current Aggregated ET and Rain Every now and then you might want to check out how much rain has fallen  or how much water has evaporated ‐ the NLC has a screen that shows you  the accumulated values in real time: Reading current aggregated ET and Rain figures 1 Turn the dial to  ADVANCED...
  • Page 31 NLC‐100SH Installation and troubleshooting  AUTO PAUSE/ STOP MANUAL SET DATE & TIME RESUME PROGRAM RAIN OFF RUN TIME RAIN ALARM STATUS WATER DAYS VIEW ALARMS START TIME VIEW ET & RAIN WATER BUDGET / ET PROGRAM STATUS VIEW MOISTURE SENSOR ADVANCED SETUP SENSORS SOLENOID AMPS Now the display looks like this: Use the item selectors to select ...
  • Page 32 NLC‐100SH Installation and troubleshooting  Select  from the menu and  1. Current Accumulated ET and Rain push the  button. Now you'll see the following screen: ENTER These figures will be reset at midnight when they'll be used to calculate  tomorrow's ET budget. Note: If you use a custom irrigation period, this happens at the  start of your irrigation period, which might not be midnight.  Please refer to For more information turn to  Appendix G: Defining  a custom irrigation period on page 163.
  • Page 33: Connecting A Rain Sensor

    NLC‐100SH Installation and troubleshooting  Tip:If you are running in AUTO mode and want to check the  current accumulated values, you can simply push the WATER  BUDGET button and you'll skip right to the above display. You  exit back by pushing the WATER BUDGET button again. This way you don't have to exit AUTO mode to check the values. Note: To make sure that the ET device works properly, you have  to wait for the device to return pulses. This will typically happen  the next day. Connecting a Rain Sensor You can connect a rain sensor (pulse or switch) to the NLC via the grey  terminals labeled "Rain":...
  • Page 34 NLC‐100SH Installation and troubleshooting  M202 M203 M204 M205 Important! Be aware of the polarity when you connect devices  to the NLC: Connect plus to plus and minus to minus or you  won't see the expected behavior from the connected devices. The NLC can accept input from an external rain sensor or a tipping rain  bucket, and react in three ways: • Simply stop irrigating if it rains at all (works with sensors and tipping  rain bucket.) • Stop irrigating if the rain level exceeds a certain threshold (works  with sensors and tipping rain bucket.) • Adjust irrigation based on the amount of rain (only works with a  ripping rain bucket.) Note: In a master/slave setup you do not need a rain sensor  connected to all slaves ‐ the master can simply send out alarms  to all slaves instead.
  • Page 35: Configuring For A Rain Sensor

    NLC‐100SH Installation and troubleshooting  The following procedure walks you through configuring the controller for  rain sensor input ‐ it is identical to parts of the procedure for ET. Configuring for a Rain Sensor 1 Before moving on, make sure you have connected the rain sensor.  For more information refer to the separate Installation and  Troubleshooting manual. Turn the dial to  SETUP SENSORS AUTO PAUSE/ STOP MANUAL SET DATE & TIME RESUME PROGRAM RAIN OFF RUN TIME RAIN ALARM STATUS WATER DAYS VIEW ALARMS START TIME VIEW ET & RAIN WATER BUDGET / ET PROGRAM STATUS VIEW MOISTURE SENSOR ADVANCED...
  • Page 36 NLC‐100SH Installation and troubleshooting  Use the item selectors to select and push the  2. Rain ENTER button. Now the display looks like this: Now you can choose between three settings: Rain gauge (Pulses) If your rain sensor provides dynamic data in the sense that it sends a pulse  for each unit of rain it detects, select  Pulses Rain contact (N/O or N/C) If your rain sensor simply tells the controller whether to irrigate or not (if  it's raining or not), you need to tell the controller if the input is normally  open or closed. Whenever the device is in the opposite mode, the  controller will not irrigate.
  • Page 37 NLC‐100SH Installation and troubleshooting  Disabled Don't use the Rain input. Use the item selectors to locate the setting you want and if you chose  anything but  , push the  button to save your  Rain gauge (Pulses) ENTER selection and the  button to exit sensor configuration. SENSORS If you do chose  , you need to tell the controller how  Rain gauge (Pulses) many inches of rain each pulse corresponds, so please continue to the next  step. Important! If you want to receive remote rain data from an ET  server, you must disable your local rain sensors. Turn the dial to  ADVANCED AUTO PAUSE/ STOP MANUAL SET DATE & TIME RESUME PROGRAM RAIN OFF RUN TIME RAIN ALARM STATUS WATER DAYS VIEW ALARMS START TIME...
  • Page 38 NLC‐100SH Installation and troubleshooting  Use the item selectors to select  and push the  3. Intelliset ENTER button. Now you'll see the following screen: Select  . Now the display will look like this: 6. Device Setup...
  • Page 39: Setting Hourly Maximum Rain And Rain Alarm Level

    NLC‐100SH Installation and troubleshooting  Select  and then  2. ET/Rain Setup 2. ET and Rain Inch/Pulse  Now you'll see something like this: settings. Use the item selectors to set your values and push the  button  ENTER to save your settings. Setting Hourly Maximum Rain and Rain Alarm  Level The NLC allows for two precautions when you experience rain: You can set a threshold value for how much it should rain before the rain  alarm will be activated. Here is how this calculation is done: • Based on historical ET data for the area, the controller knows how  much water is evaporating per day during the current season. • The NLC assumes that 75% of the daily ET is evaporating between  8AM and 8PM, and the remaining 25% between 8PM and 8AM. • When the amount of rain exceeds the rain alarm level you define,  the rain alarm is activated. • Now, based on the historical ET data the controller will calculate ...
  • Page 40: Setting The Hourly Max. Rain And Rain Alarm Level

    NLC‐100SH Installation and troubleshooting  how much rain will evaporate, and mapping this number against the  known amount of fallen rain, the controller will intelligently know  when it is safe to turn off the rain alarm (i.e. when enough rain has  evaporated that we are below your defined alarm level.) • The soil holding value is also a parameter: since you can never  benefit from more rain than the soil is capable of holding, the rain  alarm will not stay on forever after a few days of intensive rain. Note: If you have not provided any historical ET, a default of  0.20" per day is used. See the NLC User Manual. • If it rains intensively for more than an hour you may get so much  water that the soil can not benefit from all of it ‐ the excess water  will simply run off the surface. So if you run programs in ET  corrected mode, the controller won't subtract all of the rain from  tomorrow's ET figure ‐ it will "cut off" the amount of rain to subtract  at the hourly maximum.  Example: If the hourly maximum is 0.02" and it rains 0.03" per hour  for three hours, only 0.06" and not 0.09" will be subtracted from  tomorrow's ET budget. See the NLC User Manual. Setting the Hourly Max. Rain and Rain Alarm Level 1 Turn the dial to  ADVANCED...
  • Page 41 NLC‐100SH Installation and troubleshooting  AUTO PAUSE/ STOP MANUAL SET DATE & TIME RESUME PROGRAM RAIN OFF RUN TIME RAIN ALARM STATUS WATER DAYS VIEW ALARMS START TIME VIEW ET & RAIN WATER BUDGET / ET PROGRAM STATUS VIEW MOISTURE SENSOR ADVANCED SETUP SENSORS SOLENOID AMPS Now the display looks like this: Use the item selectors to select ...
  • Page 42 NLC‐100SH Installation and troubleshooting  Select  Now the display will look like this: 1. ET. Select  from the  3. Max Hourly Rain and Rain Alarm Limit menu and push the  button. Now you'll see the following  ENTER screen:...
  • Page 43 NLC‐100SH Installation and troubleshooting  Note: Setting a value to zero is the same as disabling the  feature. Note: If you see "NA" values in this screen you have not  configured a rain sensor to provide input using pulses. For more  information turn to  Appendix 2: Configuring for a Rain Sensor  on page 35. Note: Be aware that testing the tipping rain bucket input by  flipping the "spoon" will accumulate "rain" in the controller. Do  it with caution as it can't be deleted by cycling the power. Use the item selectors to set the desired values and push the  button  ENTER to save your settings.
  • Page 44: Connecting A Flow Sensor

    NLC‐100SH Installation and troubleshooting  Connecting a Flow Sensor A traditional flow sensor is connected to the "Flow" terminals. A photo diode type flow sensor is also connected to the “Flow” terminal,  and via the “V‐Aux” terminal through a resistor. Recommended resistor values: • 9V: 330 Ohm, 0.25 Watt • 12V: 470 Ohm, 0.5 Watt...
  • Page 45: Enabling Flow Sensor Input (Pulses)

    NLC‐100SH Installation and troubleshooting  Enabling Flow Sensor Input (pulses) By default flow sensor input is enabled in the NLC. To enable flow sensor  input to accept pulses, follow this procedure: Note: You can enable flow sensor input even if you haven't  attached a physical sensor yet ‐ you just won't get any reading  from it. Enabling flow sensor pulse input in the NLC 1 Turn the dial to  SETUP SENSORS AUTO PAUSE/ STOP MANUAL SET DATE & TIME RESUME PROGRAM RAIN OFF RUN TIME RAIN ALARM STATUS WATER DAYS VIEW ALARMS START TIME VIEW ET & RAIN WATER BUDGET / ET PROGRAM STATUS VIEW MOISTURE SENSOR ADVANCED...
  • Page 46: Configuring For Flow Sensor Input

    NLC‐100SH Installation and troubleshooting  Use the item selectors to select item number  and  3. Alarm/Flow you'll see the default setting for sensor setup,  Flow (Pulses) Push the  button to save your selection. ENTER Now the NLC is ready to accept input from your flow sensor, but before you  can use it to anything meaningful you need to configure threshold values  and actions ‐ read more in the next section. Configuring for Flow Sensor Input In the previous section you enabled the NLC to accept flow sensor input ‐  now you need to configure what to do with it and this section walks you  through the relevant procedures.
  • Page 47: Selecting Sensor Type

    NLC‐100SH Installation and troubleshooting  Selecting Sensor Type By telling the NLC which type of sensor you are using, the controller can  calibrate the input it receives from the input terminals. The NLC knows the  calibration profiles for five different sensor types ‐ if you're not using one  of these you'll have to skip to the next procedure to perform a manual  calibration for your sensor. Using a known sensor type to enable a built‐in profile: Using a built‐in calibration profile 1 Turn the dial to  , use the item selectors to scroll to item  ADVANCED number  , and push the  button. 3. FloGuard ENTER Now you'll see this display: Select   and push the  button. 4. Flow Sensor Setup, ENTER Now you'll see this display:...
  • Page 48 NLC‐100SH Installation and troubleshooting  Choose  by pushing the  button. 1. Flow Sensor Type ENTER Now you'll see this display: Use the item selectors to select one of the 13 built‐in profiles: • 1" RS • 1" PDH • 1.5" RS • 1.5" PDH • 2" RS • 2" PDH • 3" RS • 3" PDH...
  • Page 49 NLC‐100SH Installation and troubleshooting  • 4" RS • 4" PDH • 6" RS • 6" PDH • "Custom" Push the  button to save your selection. ENTER If your sensor doesn't fit any of the built-in profiles you have to enter your own manually: Using a custom calibration profile 1 Turn the dial to  , use the item selectors to scroll to item  ADVANCED number   and push the  button. 3. FloGuard, ENTER Now you'll see this display: Select ...
  • Page 50 NLC‐100SH Installation and troubleshooting  Use the item selectors to locate the  option and select it by  Custom pressing the  button. Now you'll see the calibration screen: ENTER Note: A bit of background on how calibration affects the  calculated flow: The NLC needs to know the "K" and "Offset"  values of your sensor (K‐factor and offset are the parameters of  the flow meter known from the datasheet), as the actual flow  will be calculated from this formula: ActualFlow = K * (Pulses + Offset) About the two values you need to enter: • The "Offset" value is to correct the input from your sensor.
  • Page 51: Setting The Flow Sensor Adjustment

    NLC‐100SH Installation and troubleshooting  • • The "K" value can be looked up in the data sheet for your sensor. Use the item selectors to enter your values and push the  ENTER button to save your settings. Setting the Flow Sensor Adjustment If you want to calibrate your flow sensor, you can use the sensor  adjustment to multiply the values from your sensor with anything between  0.00 and 9.99. This comes in handy if you have a standard sensor that behaves slightly  different than the built‐in profile calculates. Adjusting the flow sensor input 1 Turn the dial to  , use the item selectors to scroll to item  ADVANCED number  , and push the  button. 3. FloGuard ENTER Now you'll see this display:...
  • Page 52: Viewing The Current Flow

    NLC‐100SH Installation and troubleshooting  Select  , and push the  button. 4. Flow Sensor Setup ENTER Now you'll see this display: Choose   Now you'll see the screen  2. Flow Sensor Adjustment. for adjusting the flow sensor input: Use the item selectors to set your adjustment factor. Push the  button to save your selection. ENTER Viewing the Current Flow Given that you have configured your flow sensor correctly, the NLC lets you  see the real time flow directly in the controller display:...
  • Page 53 NLC‐100SH Installation and troubleshooting  1 Turn the dial to  , use the item selectors to scroll to item  ADVANCED number   and push the  button. 3. FloGuard, ENTER Now you'll see this display: Select  , and push the  button. 4. Flow Sensor Setup ENTER Now you'll see this display: Select  and you'll see the current  3. Current Flow Pulses and GPM system flow in both pulses per second and gallons per minute:...
  • Page 54: Connecting An Alarm

    NLC‐100SH Installation and troubleshooting  Note: The NLC can measure correctly up to a flow of 250 pulses  per second. If your flow exceeds this you should use a sensor  that has a higher "water amount per pulse" ratio. However, a  higher frequency is to prefer over a lower one, as it provides  the most accurate measuring, so in an ideal world your  frequency closes in on 250 pulses per second without ever  exceeding it. For more information turn to  Appendix 2:  Selecting Sensor Type on page 47. Connecting an Alarm The grey terminals labeled "AUX" are intended for a regular auxiliary alarm. M202 M203 M204 M205...
  • Page 55: Connecting A Moisture Sensor

    NLC‐100SH Installation and troubleshooting  Note: An alarm is used instead of a Flow Sensor. Turn the dial  to   and select   eller  .  SENSOR SETUP Connecting a Moisture sensor Connecting, Configuring and Using Moisture  Sensors This section describes how you actually get the moisture sensors ready for  use and how they can improve your irrigation. Note: The SMS are pre‐programmed, so programming is not  necessary. The NLC works with the following moisture sensors: • SMS‐100 (single sensor)
  • Page 56: Connecting And Configuring A Moisture Sensor

    NLC‐100SH Installation and troubleshooting  Connecting and configuring a moisture sensor Before you can enjoy the benefits of moisture sensor input you must  connect it to the moisture sensor wire, obtain a license from your  distributor and perform some basic configuration. Follow this procedure to get your moisture sensor up and running: Note: You must have entered a license key for the controller  before you are able to configure moisture sensors.  Assigning an ID to a soil moisture sensor 1 Connect the soil moisture sensor to the RS232 port on the controller  via an SMI‐100 interface.  Turn the dial to  ADVANCED...
  • Page 57 NLC‐100SH Installation and troubleshooting  AUTO PAUSE/ STOP MANUAL SET DATE & TIME RESUME PROGRAM RAIN OFF RUN TIME RAIN ALARM STATUS WATER DAYS VIEW ALARMS START TIME WATER BUDGET / ET VIEW ET & RAIN PROGRAM STATUS VIEW MOISTURE SENSOR ADVANCED SETUP SENSORS SOLENOID AMPS Now the display looks like this: Use the item selectors to select...
  • Page 58 NLC‐100SH Installation and troubleshooting  Select and push the button. 4. Moisture Sensor Id Assign ENTER Now the display looks like this: Select and push the button. Now 4. Moisture Sensor Id Assign ENTER the display looks like this:...
  • Page 59 NLC‐100SH Installation and troubleshooting  The number of sensors available in the list depends on your license. Use the item selectors to choose the ID you wish to assign to the  newly connected moisture sensor and push the  button. ENTER Now the controller will first check that there are no existing moisture sensors with the ID you chose: If no clashes in ID numbers are found, the controller moves on to detect the new sensor: If all goes well you will see the following message in the display:...
  • Page 60: Configuring A Soil Moisture Sensor

    NLC‐100SH Installation and troubleshooting  Once your moisture sensor has an ID you need to tell the controller what type of sensor it is and in which type of soil it is placed. Follow this procedure to make the sensor known to the NLC: Configuring a soil moisture sensor Turn the dial to ADVANCED AUTO PAUSE/ STOP MANUAL SET DATE & TIME RESUME PROGRAM RAIN OFF RUN TIME...
  • Page 61 NLC‐100SH Installation and troubleshooting  Use the item selectors to select and push the 3. Intelliset ENTER button. Now you'll see the following screen: Select and push the button. Now the display looks 2. Moisture ENTER like this:...
  • Page 62 NLC‐100SH Installation and troubleshooting  Select and push the button. Now 2. Moisture Sensor Setup ENTER the display looks like this: Use the item selectors to select the ID of the sensor you wish to  configure (You assigned the ID in the previous procedure: Appendix  2: Assigning an ID to a soil moisture sensor on page 56 and then  adjust each column: Column Description Whether the moisture sensor should be enabled or not. Enable The type of sensor associated with the ID. Supported sensors  Type are: • SMS‐100 The type of soil in which the sensor is placed. Options are: Soil type • Clay • Sand • Loam • Standard Push the button to save your configuration.
  • Page 63: Chapter 3: System Activation

    NLC‐100SH Installation and troubleshooting  Chapter 3: System activation The default license that ships with your controller allows for only one  station. Most likely you have purchased a license that allows for more  stations, and to unlock the NLC to control all your licensed stations, follow  this procedure: Note: The NLC comes predefined with the station license you  have purchased. Further licenses are only needed if the system  is expanded or moisture sensors are added. Station license 1 Turn the dial to  Advanced AUTO PAUSE/ STOP MANUAL SET DATE & TIME RESUME PROGRAM RAIN OFF RUN TIME RAIN ALARM STATUS WATER DAYS VIEW ALARMS START TIME VIEW ET & RAIN WATER BUDGET / ET PROGRAM STATUS VIEW MOISTURE SENSOR...
  • Page 64 NLC‐100SH Installation and troubleshooting  The display looks like this: ENTER Press the arrow key down to  , and you will see a display  9. License like this (your ID will be different): Note To obtain a license key for more stations you need to know the ID you see  in this display ‐ keep this ready when ordering.
  • Page 65: Moisture License

    NLC‐100SH Installation and troubleshooting  Press the ENTER button once and the first license key character  starts blinking. Now you can use arrow keys to select the right  characters and the right arrow to move on to the next character. If  your license code is correct, you will see a message like the  following: In this case the license is valid for 36 stations. Your new license will take effect immediately and you can start building  irrigation programs with all your licensed stations right away.  After pressing any key to continue you will be back at this display: Moisture license Repeat 1 og 2. If you have a license for moisture sensors, push the  up arrow key to locate the line for moisture sensor license code:...
  • Page 66 NLC‐100SH Installation and troubleshooting  Press the ENTER button once and the first license key character starts  blinking. Now you can use arrow keys to select the right characters and the  right arrow to move on to the next character. If your license code is correct, you will see a message like the following: In this case the license is valid for three moisture sensors.
  • Page 67: Chapter 4: Troubleshooting Conventional Valves From The Controller

    NLC‐100SH Installation and troubleshooting  Chapter 4: Troubleshooting  conventional valves from the Controller Testing Stations This section describes the various ways you can troubleshoot your  controller and stations. Enabling current readings The most important tool in day to day troubleshooting is the built‐in  current readings. To enable current readings in the display of the NLC,  follow this procedure: 1  Turn the dial to ADVANCED AUTO PAUSE/ STOP MANUAL SET DATE & TIME RESUME PROGRAM RAIN OFF RUN TIME RAIN ALARM STATUS WATER DAYS VIEW ALARMS START TIME VIEW ET & RAIN WATER BUDGET / ET PROGRAM STATUS VIEW MOISTURE SENSOR...
  • Page 68 NLC‐100SH Installation and troubleshooting  Select  and push the  8. Enable/Disable line mA display ENTER button. Use the item selectors to select  and push the  again. Enable ENTER When you return to either  or  mode, you'll see the line status  AUTO MANUAL in the upper right hand corner: Note The display will return to showing the time if you power down the  controller. The current reading will toggle between current readings for the internal  connection board and any expansion boards you may have connected.
  • Page 69: Running The "Electrical Test

    NLC‐100SH Installation and troubleshooting  The reading will be prefixed with 'I' for Internal board, or a number for an  expansion board: '1' for the first expansion board, '2' for the second and '3'  for the third. Running the "Electrical Test" The NLC has a built‐in test that will activate each station in turn for just one  second in order to check if they are responding correctly. The stations must  be connected to the solenoids that activate valves in the landscape, and  the test can tell whether the stations and solenoids are working correctly  in conjunction. 1 Turn the dial to  SOLENOID AMPS AUTO PAUSE/ STOP MANUAL SET DATE & TIME RESUME PROGRAM RAIN OFF RUN TIME RAIN ALARM STATUS WATER DAYS VIEW ALARMS START TIME VIEW ET & RAIN WATER BUDGET / ET PROGRAM STATUS VIEW MOISTURE SENSOR...
  • Page 70 NLC‐100SH Installation and troubleshooting  Use the item selectors to select a station and push the  button  ENTER to start the test. If the station is ok, the display will look something like this: In this case the station is pulling a current of 238mA to keep the valve open,  which is ok since this is typically in the 200‐400 mA range. Note: The number before the slash is the current on the wire  before trying to activate the station ‐ if this is much more than  zero, there could be a leak somewhere.
  • Page 71: Special Current Readings From The Station Test

    NLC‐100SH Installation and troubleshooting  If the station fails, the display will look something like this: If the station is not working correctly it is typically not pulling any current  at all ‐ the current reading is 0 mA. Note Note: There are a few special readings that you should be  aware of: Special current readings from the station test Reading Meaning There is a short on the terminal (on the controller)  -1mA / -1mA Important If you experience a short on the terminal and fix it, you  must restart the electrical test, or all following stations will  appear to have a terminal short. There is a situation of overload (more than 2A for more  -2mA / -2mA than five minutes.)
  • Page 72: Running The "Water Test

    NLC‐100SH Installation and troubleshooting  Reading Meaning There is a blown fuse on the connect board. -3mA / -3mA Regardless of whether the station fails or turns out ok, you move on to  testing the next station in line by pushing the  button. ENTER Running the "Water Test" The "water test" is a built‐in program that will activate all 100 station  identities in the system in turn. This way you can walk through the  landscape and ensure that all stations are actually pulling the valves open. Running the test program 1 Turn the dial to  MANUAL AUTO PAUSE/ STOP MANUAL SET DATE & TIME RESUME PROGRAM RAIN OFF RUN TIME RAIN ALARM STATUS WATER DAYS VIEW ALARMS START TIME WATER BUDGET / ET VIEW ET &...
  • Page 73 NLC‐100SH Installation and troubleshooting  The interval must be between 10 and 990 seconds. Once you've set the interval time, push the  button to start the test  ENTER program.  Once the test program starts running, you'll see each station  activated in turn, starting at the station you chose in the last step: Note: All 100 station identities will activate in turn ‐ this means  that if you don't have connected stations to all slots in the  connection boards, you will experience "empty" intervals  where no stations react to the instructions.
  • Page 74: Testing Programs

    NLC‐100SH Installation and troubleshooting  Note: The test will include the Master Valve but not Booster  Pumps. Tip:You can pause the test program just as any regular program.  Tip:You should enable Line Survey to be able to see the current  pulled by each station. Testing Programs The easiest way to test whether a program is running correctly ‐ that is, it  activates the correct stations,master valves and booster pump relays ‐ is to  try to run the program manually.  Tip:If you don't want to wait the entire program out just to see  that everything activates in the right order, you can decrease  the water budget to 1 percent before running the program.  This way you can "follow" the program by walking from station  to station in the terrain as they activate for just one percent of  the original run time.
  • Page 75: Chapter 5: Troubleshooting 3D Decoders And Valves

    Chapter 5: Troubleshooting 3D decoders  and valves Test run Push the Test button on the 3D to test the sensor decoder, MV and the 24 possible STs. • The test program runs until complete or until an error is discovered.  • The stations will be tested in the following order: FS‐MV – ST1 – ST2  … ST24. The green LED will blink if the station is active, the red LED  will blink in case of an error. • The Flow sensor is only checked for presence.  • If the test program encounters a failure, the Act/Err LED will show  corresponding error codes. See Act/Err LED codes. • Press Test button to clear the error and resume the test. • Press Prog button to exit the test program and resume normal  operation.
  • Page 76: Dip Switches

    NLC‐100SH Installation and troubleshooting  DIP switches Number Off (Default) Station Normal Power.  Station High Power. About  About 25mA. 35mA. MV Normal Power. About  MV High Power. About 35mA. 25mA. Dynamic load Not in use Not in use Note: Most of the valves on the market will work with normal  power. Should you encounter issues with the valve turning on,  then try the high power position. LED Number patterns The LEDs will blink a pattern that can be translated into a number. For  example, 21 will be: Long on – long off – long on – long off – short on. The  pattern for 3 and 12 is also shown as example. The space between numbers  will be shown as a pause. Number Blink LED Number examples Long Short Space Pause...
  • Page 77: Act/Err Led Codes

    NLC‐100SH Installation and troubleshooting  Act/Err LED codes Code Error Cause/ Action information Short circuit in two  The 3D is in protection  Check two wire path.  wire path.  mode, limiting current  Disconnect any  to a safe level. remaining valves in  the field. Station activation  Shorted output, no  Check decoder,  error.  decoder or solenoid or  solenoid and splices. Current  incorrect solenoid type.  You do not need to  consumption out  The number of the  open the 3D box. of range.  station causing the  error is shown on the  ST or MV LEDs. Station activation  Limit for number of  Deactivate one or  error.  active stations  more stations. Too many active  exeeded. The number  You do not need to ...
  • Page 78 NLC‐100SH Installation and troubleshooting  Station  Use correct decoder  programming.  type. Wrong decoder  type. Station  Decoder could be  Connect decoder  programming. defective. again, or replace  Verification of the  decoder. programmed  station failed.  Station  Station programming  Keep programming  programming.  operation took too  sequence inside the  General operation  long.  time limit. Connect  timeout.  decoder again, or  replace decoder.
  • Page 79: Glossary

    NLC‐100SH Installation and troubleshooting  Glossary Term Description Cable Two wires surrounded by insulation. Two-wire Synonym for a cable. Wire An individual copper wire.
  • Page 80 NLC‐100SH Installation and troubleshooting ...
  • Page 81 NLC‐100SH Installation and troubleshooting ...
  • Page 82 NLC‐100SH Installation and troubleshooting  NETAFIM USA 5470 E. Home Ave. Fresno, CA 93727 CS 888 638 2346 www.netafimusa.com...
