Netafim AlphaDisc BLE Quick Manual

QUICK GUIDE
AlphaDisc™ BLE:
Smartphone Operated Controller for Filtration Systems
INTRODUCTION
Thank you for purchasing the AlphaDisc™ BLE Controller - a smartphone operated controller
for filtration systems. The system consists of two major components, the AlphaDisc™ BLE
Controller and the AlphaDisc™ Mobile Application.
For additional information about the AlphaDisc™ filter, as well as a complete user guide for your
AlphaDisc™ BLE controller, please scan the QR code or visit our website.
This Quick Guide provides the "getting started" instructions for a new filtration system which is
equipped with the integral AlphaDisc™ BLE controller.
IMPORTANT: If your AlphaDisc™ BLE controller was supplied as a standalone device for controlling existing filtration
systems, please first refer to the Installing the AlphaDisc™ BLE Controller on an Existing Filter chapter in the
AlphaDisc™ BLE IOM and make sure to install the controller properly before attempting to operate the system.
SAFETY FIRST: Before starting, read the Safety Instructions chapter in the AlphaDisc™ BLE IOM.
Make sure that you understand and comply with all the relevant safety instructions.

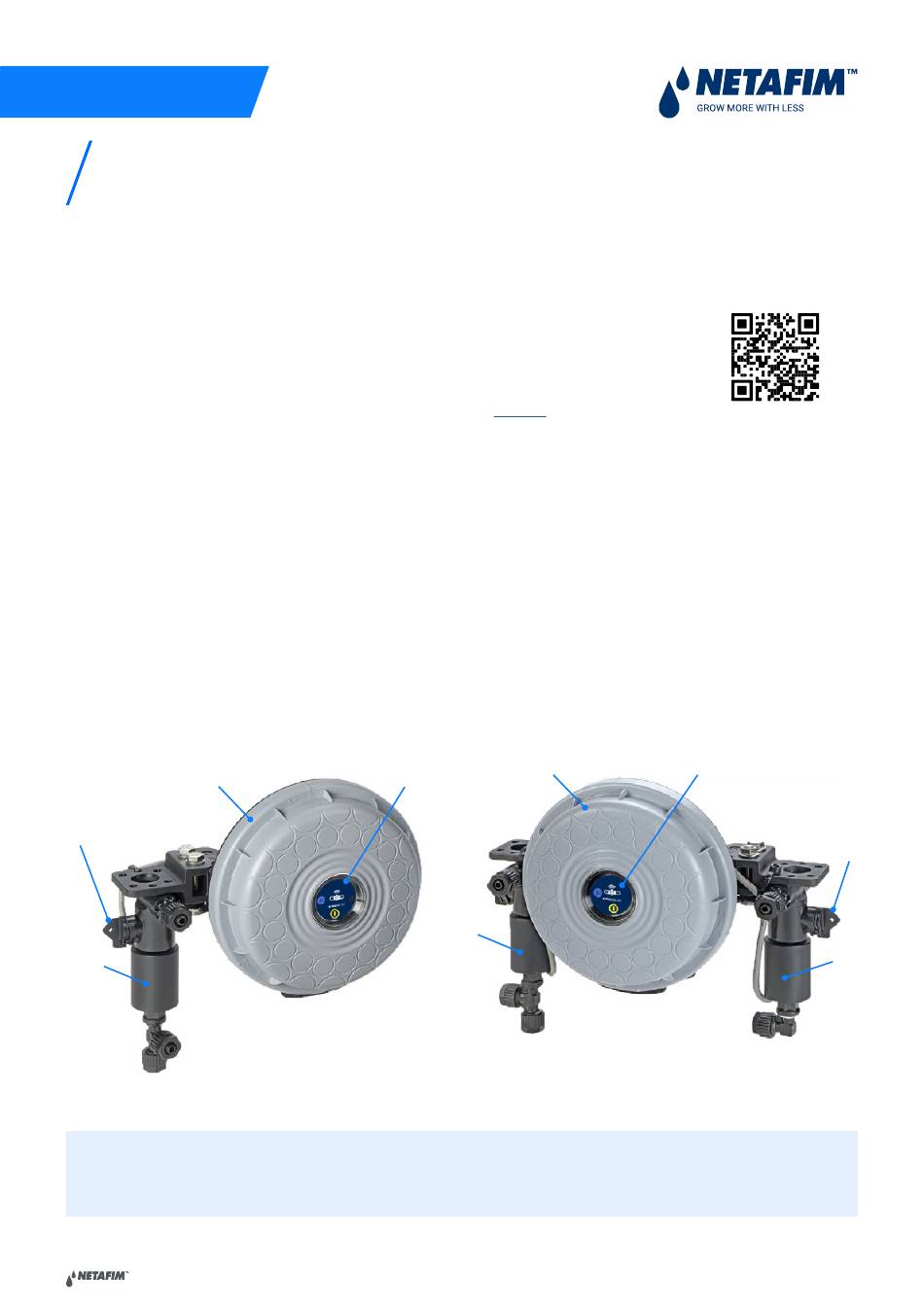

GETTING TO KNOW THE ALPHADISC™ BLE CONTROLLER:
5
4
2
Single solenoid controller
1. AlphaDisc™ BLE panel for manual flushing
button and indication LEDs
2. 3-Way 12VDC solenoid #1 – latch
| AlphaDisc BLE quick user guide V1.0
5
1
2
3. 3-Way 12VDC solenoid #2 – latch
4. Solenoids› manual operation handles
5. AlphaDisc™ BLE cover
1
Dual solenoid controller
4
3
1
