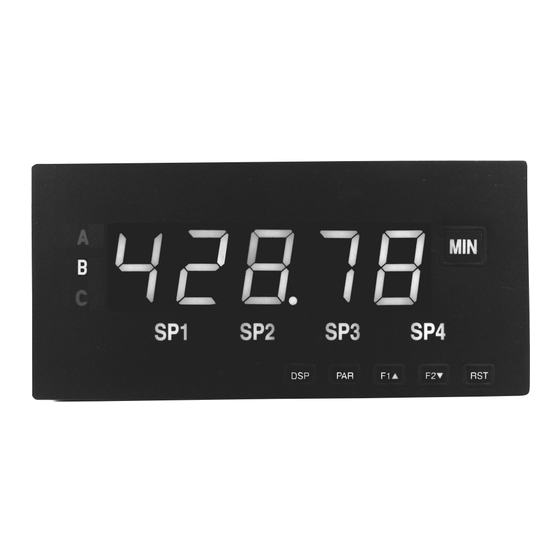

MODEL LPAXDA- 5 DIGIT LARGE PAX DISPLAY FOR DUAL ANALOG INPUTS
U L
C
US LISTED
R
IND. CONT. EQ.
51EB

GENERAL DESCRIPTION

The LPAXDA Display is a versatile display that can increase productivity by
offering the plant floor or production area a large visual display of their current
status. With the use of a units label and backlighting, the display can be tailored
to show the actual engineering unit, which further enhances the display. This
LPAXDA display accepts various analog inputs through the use of input
modules (MPAXDP) which allow the unit to adapt to most any application. The
MPAXDP Modules offer the same features as our highly successful PAXDP
Series Panel Meters. Additional plug-in option cards can add alarms, analog
output, and communication/bus capabilities, making the LPAXDA a truly
Intelligent Panel Meter.

SAFETY SUMMARY

All safety regulations, local codes and instructions that appear in this and
corresponding literature, or on equipment, must be observed to ensure personal
safety and to prevent damage to either the instrument or equipment connected
to it. If equipment is used in a manner not specified by the manufacturer, the
protection provided by the equipment may be impaired.
The protective conductor terminal is bonded to conductive
parts of the equipment for safety purposes and must be
connected to an external protective earthing system.
CAUTION: Read complete
instructions prior to installation
and operation of the unit.

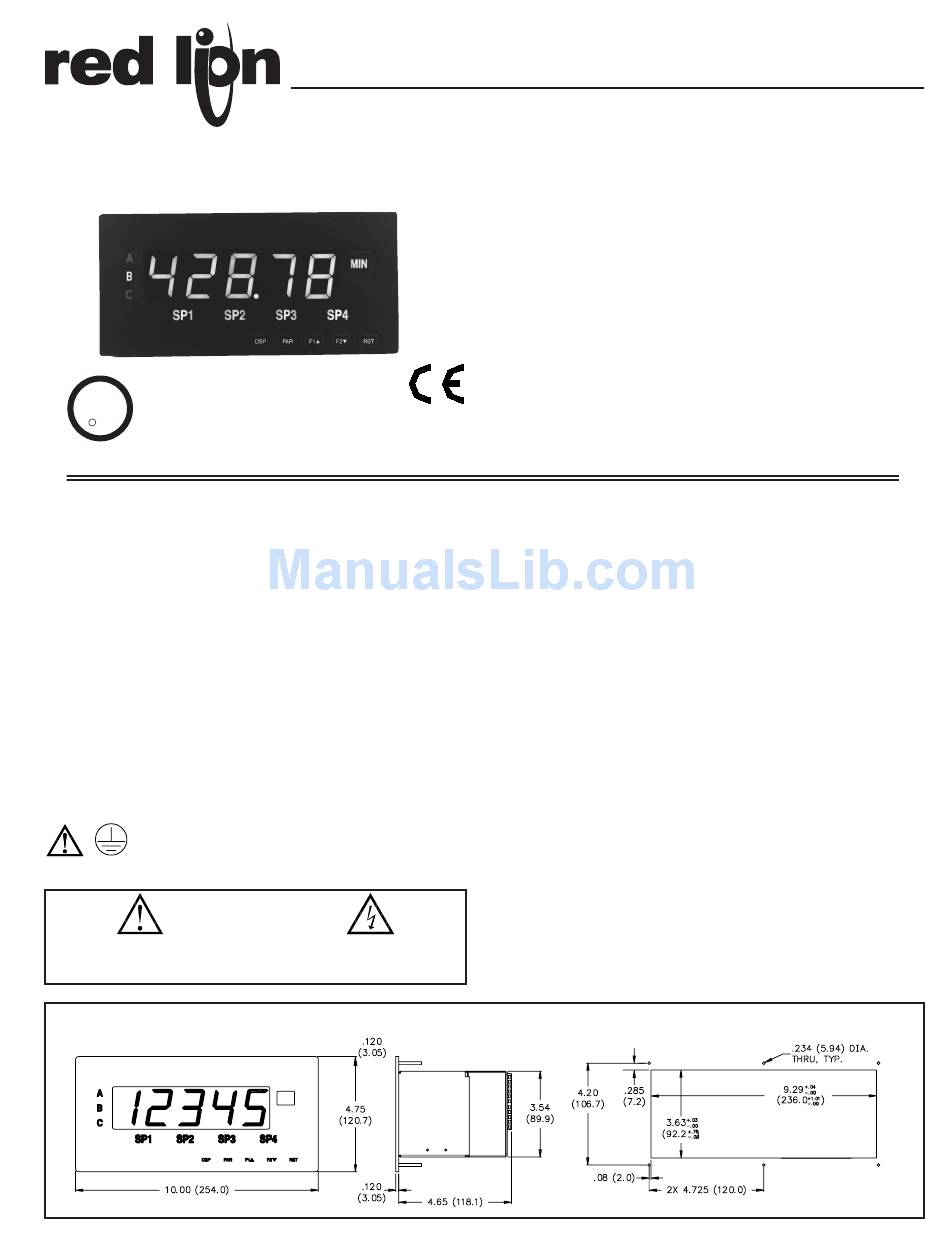

DIMENSIONS In inches (mm)
CAUTION: Risk of electric shock.
LARGE LED DISPLAY READABLE TO 70 FEET
G
DUAL PROCESS SIGNAL INPUT MODULE
G
ALARMS, ANALOG OUTPUT, AND COMMUNICATION
G
CUSTOM UNITS LABEL WITH BACKLIGHT
G
PROGRAMMABLE USER INPUTS
G
PROGRAMMABLE FUNCTION KEYS
G
UNIVERSAL AC/DC POWERED MODELS
G
CRIMSON SOFTWARE FOR METER CONFIGURATION
G
NEMA 4/IP65
G

SPECIFICATIONS

Additional specifications, wiring, programming, and information for the
individual MPAX models are contained in the corresponding standard PAX
literature. This PAX literature is shipped with the ordered MPAX model.
1. DISPLAY: 1.5" (38 mm) Red LED
5-Digit: (-19999 to 99999)
2. POWER REQUIREMENTS:
AC Modules: 85 to 250 VAC, 50/60 Hz, 21 VA
DC Modules: 18 to 36 VDC, 13 W or 24 VAC ±10%, 50/60 Hz, 16 VA
3. INPUT: Accepts analog input modules, see "Selecting your display
components."
4. ANNUNCIATORS:
LPAXDA00: A, B, C, SP1, SP2, SP3, and SP4
Optional units label with backlight
5. KEYPAD: Five tactile membrane switches integrated into the front panel
6. CERTIFICATIONS AND COMPLIANCES:
UL Recognized Component, File #E179259, UL3101-1, CSA 22.2 No. 1010-1
Recognized to US and Canadian requirements under the Component
Recognition Program of Underwriters Laboratories, Inc.
UL Listed, File # E137808, UL508, CSA C22.2 No. 14-M95
LISTED by Und. Lab. Inc. to U.S. and Canadian safety standards
Type 4 Enclosure rating (Face only), UL50
IECEE CB Scheme Test Certificate #UL/8843/UL
CB Scheme Test Report #04ME11209-20041018
Issued by Underwriters Laboratories, Inc.
IEC 1010-1, EN 61010-1: Safety requirements for electrical equipment for
measurement, control, and laboratory use, Part 1.
IP65 Enclosure rating (Face only), IEC 529
ELECTROMAGNETIC COMPATIBILITY
EMC specifications determined by the MPAX module.
1
Bulletin No. LPAXDA-X
Drawing No. LP0602
Effective 1/05
PANEL CUT-OUT
