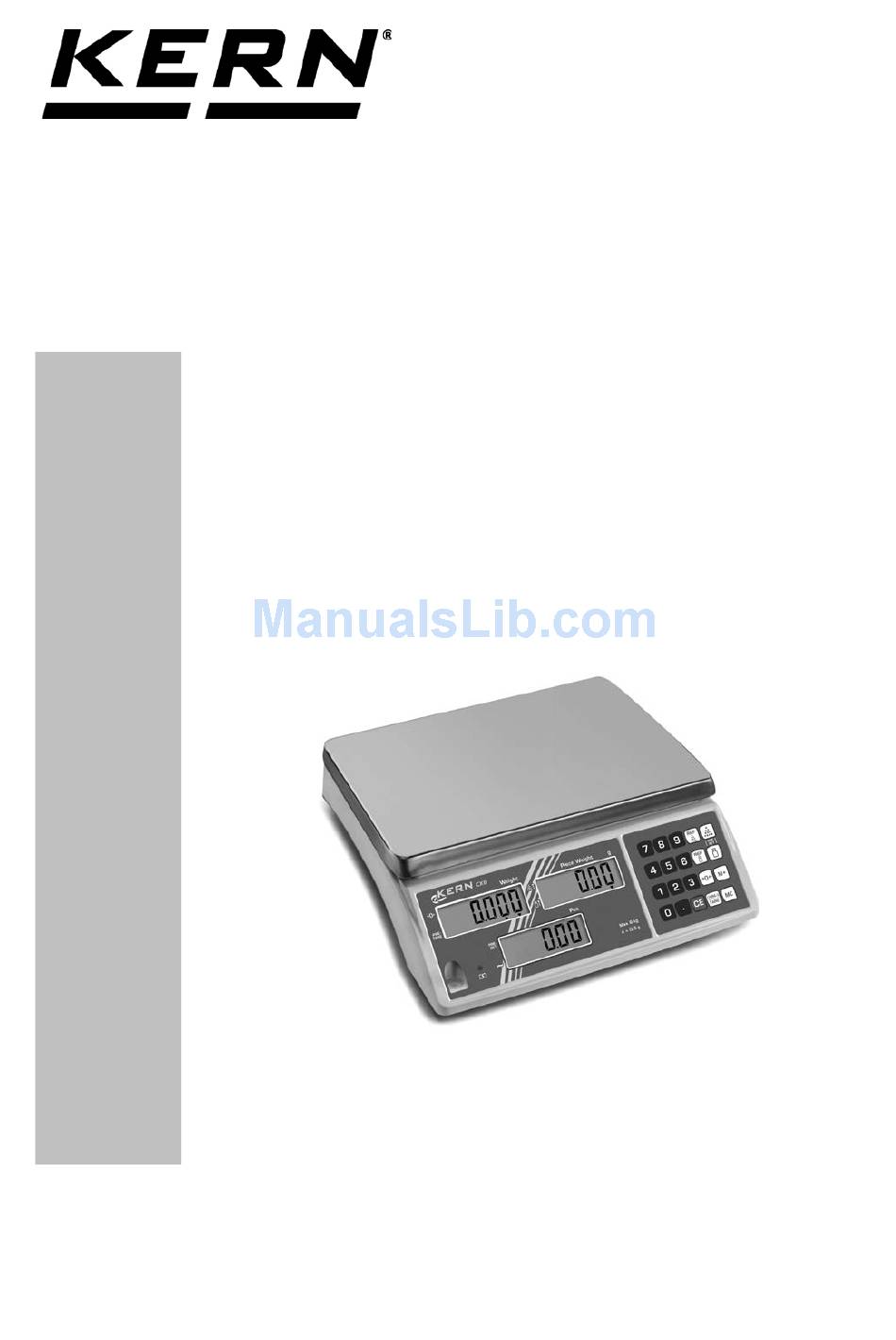

- Page 1 KERN & Sohn GmbH Ziegelei 1 Phone: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-Mail: info@kern-sohn.com Internet: www.kern-sohn.com Operating manual Counting balances KERN CXB Version 2.2 04/2016 CXB-BA-e-1622...
-
Page 2: Table Of Contents
KERN CXB Version 2.2 04/2016 Operating manual Counting balances Contents Technical data ....................4 Appliance overview ..................6 Overview of display ........................7 2.1.1 Display weight ..........................8 2.1.2 Display reference weight ......................8 2.1.3 Display quantity ........................... 8 2.1.4 Battery charge status display ...................... - Page 3 Parts counting ....................26 Determination of the reference weight by weighing ............26 Numeric entering of the reference weight ................27 Automatic reference optimization ..................27 Save/call up reference weight – Pre-Set function ............... 28 8.4.1 Save ............................28 8.4.2 Call-up ............................
-
Page 4: Technical Data
1 Technical data KERN CXB 3K0.2 CXB 6K0.5 CXB 15K1 CXB 30 K2 Readability (d) 0.2 g 0.5 g Weighing range (max) 3 kg 6 kg 15 kg 30 kg Reproducibility 0.2 g 0.5 g Linearity ± 0,4 g ± 1,0 g ±... - Page 5 KERN 3K1NM 6K2NM 15K5NM 30K10NM Readability (d) 10 g Weighing range (max) 3 kg 6 kg 15 kg 30 kg Minimum weight (min) 20 g 40 g 100 g 200 g Verification value (e) 10 g Reproducibility 10 g Linearity...
-
Page 6: Appliance Overview
2 Appliance overview Bubble level Battery compartment Connection for mains cable ON/OFF switch CXB-BA-e-1622... -
Page 7: Overview Of Display
2.1 Overview of display Weight Reference weight Loading status display Quantity CXB-BA-e-1622... -
Page 8: Display Weight
2.1.1 Display weight Here, the weight of your goods is displayed. Overlay indicates: Zeroing display PRE- Tare in memory TARE Battery very low 2.1.2 Display reference weight The reference weight of a sample is shown here. This value is either entered by user of calculated by balance. -
Page 9: Keyboard Overview
2.2 Keyboard overview CXB-BA-e-1622... - Page 10 Selection Function • Number keys • Deleting key • Move decimal point to the left • Call counting with tolerance control • Pre-Set function • Store reference weights in memory • Call stored reference weights • Addition in sum memory •...
-
Page 11: Basic Information (General)
The balance may only be used according to the described conditions. Other areas of use must be released by KERN in writing. 3.3 Warranty Warranty claims shall be voided in case •... -
Page 12: Monitoring Of Test Resources
In KERN's accredited DKD calibration laboratory test weights and balances may be calibrated (return to the national standard) fast and at moderate cost. 4 Basic Safety Precautions 4.1 Pay attention to the instructions in the Operation Manual... -
Page 13: Unpacking, Setup And Commissioning
6 Unpacking, Setup and Commissioning 6.1 Installation Site, Location of Use The balances are designed in a way that reliable weighing results are achieved in common conditions of use. You will work accurately and fast, if you select the right location for your balance. Therefore, observe the following for the installation site: •... -
Page 14: Placing
6.3 Mains connection Power is supplied via the external mains adapter. The stated voltage value must be the same as the local voltage. Only use original KERN mains adapters. Using other makes requires consent by KERN. 6.4 Rechargeable battery operation The optionally supplied battery is charged with the supplied power supply. -
Page 15: Start-Up
6.5.1 Start-up Turn on scales with ON/OFF switch (left). The balance will carry out a self-test As soon as the weight display shows "0" in all the three display windows your balance is ready to weigh. On CXP models (with RS 232) an internal number appears before the balance counts down to zero. -
Page 16: Linearisation (Verified Models Only)
6.6 Linearisation (verified models only) Linearity shows the greatest deviation of a weight display on the scale to the value of the respective test weight according to plus and minus over the entire weighing range. If linearity deviation is discovered during a monitoring of test resources, you can improve this by means of linearization. - Page 17 Operation After the adjustment switch having been set to position “ADJ” switch-on balance. After the selftest, in the display appears: Press the -button twice, in the display appears: Press button, in the display appears Ensure that there are no objects on the weighing pan. ...
- Page 18 Operation Place the second adjustment weight. Press button, in the display appears shortly followed by Put on the third adjustment weight Press button, in the display appears shortly: followed by Put on the forth adjustment weight ...
-
Page 19: Adjustment With External Weight
Operation followed by The sixth adjustment item is displayed, by that way linearisation is completed. to change to adjustment (see chap. 6.7.2 adjustment CXB-M –models) After successful linearisation you will have to carry out an adjustment. In case of an adjustment error or incorrect adjusting weight the display will show an error message;... -
Page 20: Adjustment Models Cxb
6.7.1 Adjustment models CXB Operation Ensure that there are no objects on the weighing plate. The following appears in the display: Press : During display of „----“ press : “01 FnC” is displayed: 12345 Press : „02 EC” is displayed: : „EC 00“... - Page 21 12345 (example) Press , then press 12345 (example) The value of the adjustment weight to be used will appear flashing Place the adjustment weight Press : „EC01“ is displayed, digit „1“ flashes Remove weight and press Press again, now the adjustment process is completed. CXB-BA-e-1622...
-
Page 22: Adjustment Models Cxb_M
6.7.2 Adjustment models CXB_M In verified models CXB-M, access to the adjustment is blocked. To cancel the access lock, the adjustment switch at the lower side of the balance must be switched from “LOCK” position to “ADJ” position. Adjustment switch Operation After the adjustment switch having been set to position “ADJ”... - Page 23 Press button, in the display appears shortly: followed by: (example) The value of the adjustment weight entered as last will appear flashing. Accept the value or enter the value of the adjustment weight to be used with help of the numeric keyboard.
-
Page 24: Verification
* The adjustment should be made with the recommended adjustment weight (see chap. 1 "Technical data"). Weights of different nominal values may be used for adjustment but are not optimal for technical measuring. Info about adjustment weights can be found on the Internet at: http://www.kern- sohn.com 7 Verification General introduction:... -
Page 25: Adjustment Switch And Seal
7.1 Adjustment switch and seal After a verification the balance is sealed at the indicated positions. Verification of the balance is invalid without the "seal". Position of the official seals: SEAL SEAL SEAL CXB-BA-e-1622... -
Page 26: Parts Counting
8 Parts counting With parts counting you can either count parts into a container or remove parts from a container. To count a greater number of parts the average weight per part has to be determined with a small quantity (reference quantity). The larger the reference quantity, the higher the counting exactness. -
Page 27: Numeric Entering Of The Reference Weight
8.2 Numeric entering of the reference weight If you know the reference weight/piece you can enter this via number keys. Enter reference weight via number keys 0� 1. 8 33 PRE- TARE Confirm with button 0� 1. 8 33 PRE- ... -
Page 28: Save/Call Up Reference Weight - Pre-Set Function
8.4 Save/call up reference weight – Pre-Set function There are 10 memory locations at your disposal (occupied via number keys 0 -9). 8.4.1 Save Enter the reference weight to be stored 100� 0. 0 �� PRE- TARE Press button Press button... -
Page 29: Call-Up
8.4.2 Call-up When the reference weight is required at a later point in time it can be called by pressing the button and entering the relevant storage location number. Press button Press button Enter storage location (0 – 9) via the numeric keyboard Press button ... -
Page 30: Count With Tolerance Control - Fill To Target
8.5 Count with tolerance control - Fill to target This function can be used to program a target number of pieces or target weight. Reaching the target value is indicated by an audio-visual signal. 8.5.1 Set tolerance value for target number of pieces Reaching the target value will be indicated by an audio signal and [-QtY-] will be flashing in the reference window. -
Page 31: Set Tolerance Value For Target Weight
8.5.2 Set tolerance value for target weight Reaching the target value will be indicated by an audio signal and [-YPSt-] will be flashing in the reference window. Press button Press button Use number keys to enter target value Entered target value. Corrections possible by pressing button... -
Page 32: Taring
9 Taring The dead weight of any weighing container may be tared away by pressing a button, so that the following weighing procedures show the net weight of the goods to be weighed. 9.1 Determination of the tare weight by weighing Place empty tare container on the weighing plate. -
Page 33: Numerical Input Of Tare (Pre-Tare)
9.2 Numerical input of tare (PRE-TARE) Pre-setting PRE-TARE mode Make sure that no load is on the weighing plate Press the -button, in the reference weight display appears flashing [PrEtA] During this display enter the Pre-Tare value using the numeric keyboard ... - Page 34 PRE-TARE setting „1“: Objects present on weighing plate. 177. 5 � 1. 7 752� 100�� PRE- TARE Enter your tare weight via number keys. 177. 5 � 1. 0 � 177�� PRE- TARE Press button The net weight of the goods to be weighed is displayed 176.
- Page 35 PRE-TARE setting „0“: Remove all objects from weighing plate. 0� 0�� 0� PRE- TARE Press button PlETA� -----�� 0. 0 �� PRE- TARE Enter tare via number keys. PlETA� -----�� 6. 8 � PRE- TARE ...
-
Page 36: Totalization
10 Totalization The balance is equipped with a summation memory used for adding up of identical counted parts to total quantity and total weight. 10.1 Add up “Number of parts" Select reference weight and place number of parts for first weighing. 118. -
Page 37: Add Up "Weight
10.2 Add up “Weight" Place weight on weighing plate. 0� 0�� 118. 3 �� PRE- TARE The display value is added to the summation memory by pressing the button. -----�� ADD� -----�� PRE- TARE The [ ] display next to "M+" indicates the stored value. After dead stop control was carried out the balance will return automatically to counting mode. -
Page 38: Delete Stored Values
Note: Turning off the balance will result in a loss of all stored values. 10.3 Delete stored values Unload balance and press the button. Stored values, total weight, total number of pieces and number of weighings will be set to zero. The [ ] display next to "M+" disappears. -
Page 39: Menu Models Cxb
11 Menu models CXB To adjust the balance to individual requirements, use the menu to change settings for the balance 11.1 Navigation in the menu • Press button, [-----] appears on the weight display. During this display press the key, on the weight display appears [01 Func]. •... -
Page 40: Menu Overview Function Menu „01 Fnc" - Models Cxb
11.3 Menu overview function menu „01 FnC“ – Models CXB Menu item Submenu Description of function Background illumination always on Background illumination on: FnC 01 • during weighing Background • when button is pressed illumination of Background illumination automatically off when the the display balance is not used for more than 10 minutes Background illumination off... - Page 41 FnC 09 Pre-Tare not possible, when sample on the weighing plate Pre-Tare settings Pre-Tare possible when sample on the weighing plate FnC 10 Audio signal with instable weighing value Audio signal during Audio signal with stable weighing value checkweighing FnC 11 not documented Settings add-on function 1...
-
Page 42: Menu Models Cxb-M
12 Menu models CXB-M Call up menu: In weighing mode press , and during display of “---------“ press , in the display appears Change to the next menu item at numeric input cursor to the right Confirm entry Exit menu at numeric input cursor to the left Display background illumination... -
Page 43: Operation
13 Operation 13.1 Background illumination of the display - FnC 01 The back light for the display can be adjusted as follows: In weighing mode press , and during display of “---------“ press , in the display appears Press , in the display appears ... - Page 44 Background illumination of the display always on Automatic background illumination: The display lights up automatically during the weighing process or when a button is pressed. The display extinguishes after 10 minutes, when the balance is not in operation. Background illumination off ...
-
Page 45: Automatic Switch-Off Function - Fnc 02
13.2 Automatic switch-off function - FnC 02 The automatic switch-off function can be adjusted as follows: In weighing mode press , and during display of “---------“ press , in the display appears Press , in the display appears ... -
Page 46: Setting For Calculation Of Reference Value - Fnc 03
13.3 Setting for calculation of reference value - FnC 03 For calculation of the reference value, values between 0 and 15 can be adjusted: The higher the value, the faster the reference value will be calculated. In weighing mode press , and during display of “---------“... -
Page 47: Automatic Reference Optimisation - Fnc 04
13.4 Automatic reference optimisation - FnC 04 To optimize the calculated average piece weight automatically, add further parts whose number is smaller than that of the first reference determination. For each reference optimization the average piece weight is newly calculated. As the additional pieces increase the base for the calculation, the reference also becomes more exact. -
Page 48: Pre-Tare Setting - Fnc 09
13.5 Pre-Tare setting - FnC 09 Under this menu item, Pre-Tare setting can be carried out. Two settings are possible: Pre-Tare not possible when a load is on the weighing plate Pre-Tare possible when a load is on the weighing plate Procedure with setting „00“: ... -
Page 49: Audio Signal During Tolerance Weighing - Fnc 10
Procedure with setting „01“: Leave the load on the weighing plate, such as: 2 kg Enter the Pre-Tare value: for 1 kg enter „1“, „1.0“, „1.00“, „1.000“ Confirm by , the Pre-Tare value will be deducted from the load value. ... -
Page 50: Servicing, Maintenance, Disposal
Spilled weighing goods must be removed immediately. 14.2 Servicing, maintenance The appliance may only be opened by trained service technicians who are authorized by KERN. Before opening, disconnect from power supply. 14.3 Disposal Disposal of packaging and appliance must be carried out by operator according to valid national or regional law of the location where the appliance is used. -
Page 51: Instant Help
15 Instant help In case of an error in the program process, briefly turn off the balance and disconnect from power supply. The weighing process must then be restarted from the beginning. Fault Possible cause • The balance is not switched on. The displayed weight does not glow. -
Page 52: Declaration Of Conformity
16 Declaration of Conformity To view the current EC/EU Declaration of Conformity go to: www.kern-sohn.com/ce The scope of delivery for verified weighing balances (= conformity-rated weighing balances) includes a Declaration of Conformity. CXB-BA-e-1622...
