Summary of Contents for KERN CXB

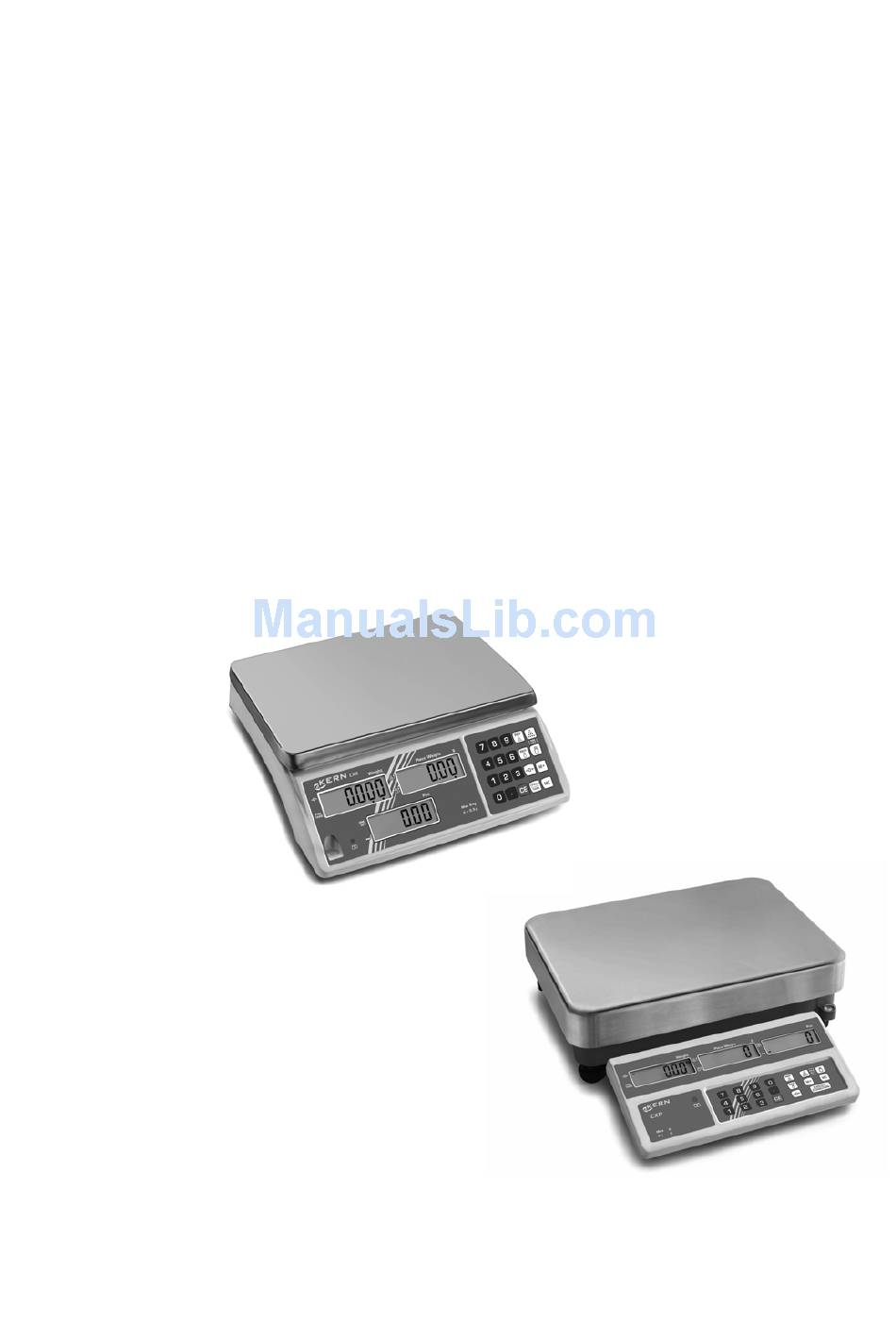

- Page 1 Operating instruction Counting scales CXB/CXP CXB/CXP-BA-e-0711...
-
Page 2: Table Of Contents
Mains connection ________________________________________________ 17 Battery power supply _____________________________________________ 17 Initial Commissioning ____________________________________________ 17 7.5.1 Start-up_____________________________________________________________ 18 7.5.2 Turn off – CXB models _________________________________________________ 18 7.5.3 Turn off/standby mode – CXP models _____________________________________ 18 7.5.4 Balance zero display __________________________________________________ 18 7.5.5... - Page 3 Description of interface ___________________________________________ 35 13.2.1 Example: Setting an output format ______________________________________ 39 Service, maintenance, disposal _________________________________ 40 14.1 Cleaning _______________________________________________________ 40 14.2 Service, maintenance _____________________________________________ 40 14.3 Disposal________________________________________________________ 40 Instant help _________________________________________________ 41 Appendix ASCII CODE table____________________________________ 42 CXB/CXP-BA-e-0711...
-
Page 4: Technical Data
1 Technical data CXB models: KERN CXB 3K0.2 CXB 6K0.5 CXB 15K1 CXB 30 K2 Readability (d) 0.2 g 0.5 g Weighing range (max) 3 kg 6 kg 15 kg 30 kg Reproducibility 0.2 g 0.5 g Linearity ± 0.4 g ±... -
Page 5: Declaration Of Conformity
Service life c. 200 hours / loading time ca. 16 hrs. With backlit display: Operating time ca. 60h. / loading time ca. 16 hrs. with back light + RS 232: Operating time ca. 56h. / loading time ca. 16 hrs. Data interface RS 232C CXB/CXP-BA-e-0711... -
Page 6: Appliance Overview

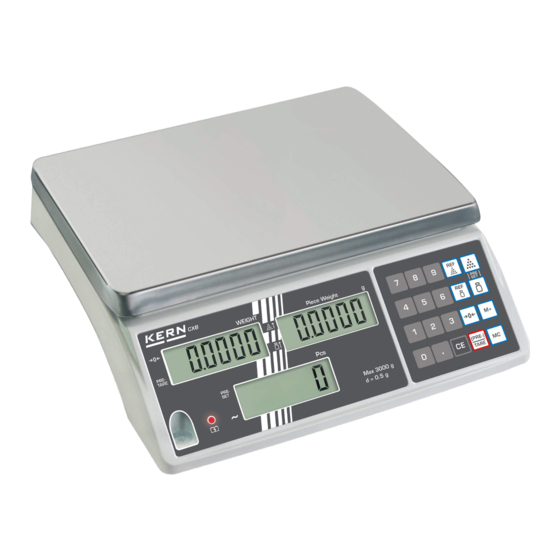

3 Appliance overview CXB models: 1. Bubble level 2. Battery compartment 3. Mains cable connection 4. ON/OFF switch CXB/CXP-BA-e-0711... - Page 7 CXP models: 1. ON/OFF switch 2. Mains cable connection 3. RS 232 interface 4. Bubble level CXB/CXP-BA-e-0711...
-
Page 8: Overview Of Display
3.1 Overview of display CXB models: Weight Reference weight Loading status display Pieces CXP models: Weight Reference weight Pieces Loading status display CXB/CXP-BA-e-0711... -
Page 9: Display Weight
Placed reference weight insufficient for reference calculation 3.1.3 Display quantity Here, all the parts placed on balance are immediately displayed by number. Overlay indicates: Data in summation memory Stability display 3.1.4 Battery charge status display Battery is almost discharged Battery is completely discharged green CXB/CXP-BA-e-0711... -
Page 10: Keyboard Overview
3.2 Keyboard overview CXB models: CXP models: CXB/CXP-BA-e-0711... - Page 11 • Display reference weight stored last • Enter target weight • Zeroing key • Back to weighing mode • Taring key • Enter numerical tare CXB models • ON/OFF standby • Taring key • Enter numerical tare CXP models CXB/CXP-BA-e-0711...
-
Page 12: Basic Information (General)
The balance may only be used according to the described conditions. Other areas of use must be released by KERN in writing. 4.3 Warranty Warranty claims shall be voided in case •... -
Page 13: Monitoring Of Test Resources
Infor- mation is available on KERN’s home page (www.kern-sohn.com with regard to the monitoring of balance test substances and the test weights required for this. In KERN’s accredited DKD calibration laboratory test weights and balances may be... -
Page 14: Unpacking, Setup And Commissioning
(e.g. due to mobile phones or radio equipment), static electric- ity accumulations or instable power supply occur. Change location or remove source of interference. 7.2 Unpacking Carefully remove the balance from the packaging, remove plastic cover and setup balance at the intended workstation. CXB/CXP-BA-e-0711... -
Page 15: Setup
Screw down second screw (3) as well. B) Push the holder (8) into the guide rail of the display part (7). Attach the display part (7) to the weighing balance, using the four screws (9). Use an Allen key (10) to tighten the screws. CXB/CXP-BA-e-0711... -
Page 16: Scope Of Delivery
7.3 Mains connection Power is supplied via the external mains adapter. The stated voltage value must be the same as the local voltage. Only use original KERN mains adapters. Using other makes requires consent by KERN. 7.4 Battery power supply The optionally supplied battery is charged with the supplied power supply. -
Page 17: Start-Up
PRE- TARE 7.5.2 Turn off – CXB models • Turn off balance by operating the ON/OFF switch (left) 7.5.3 Turn off/standby mode – CXP models • To turn off the balance for a long period of time use the ON/OFF switch (left). -
Page 18: Adjustment With External Weight
* The adjustment should be made with the recommended adjustment weight (see chap. 1 "Technical data"). Weights of different nominal values may be used for ad- justment but are not optimal for technical measuring. Info about adjustment weights can be found on the Internet at: http://www.kern- sohn.com Note Use the key to exit adjustment mode. -
Page 19: Parts Counting
Dead stop control is carried out and the calculated reference weight appears on the display. 118. 3 1. 1 833 PRE- TARE Weight Reference weight Pieces Now you can place the parts to be counted onto the weighing plate. All quantity parameters of your goods to be weighed are displayed: CXB/CXP-BA-e-0711... -
Page 20: Numeric Entering Of The Reference Weight
Overlay indicates: Placed number of pieces insufficient for reference calculation CXB models < 40 d CXP models < 20 d Placed reference weight insufficient for reference calculation CXB models < 4/5 d CXP models < 1/5 d Add additional parts until the [ ] display disappears. -
Page 21: Store/Call Reference Weight
Enter the reference weight to be stored 0. 0 PRE- TARE Press button PlSET PRE- TARE Press button PlSET PRE- TARE Enter the storage location for the reference weight via the number keys (0 - 9) 0. 0 PRE- TARE CXB/CXP-BA-e-0711... -
Page 22: Call-Up
[ -0.TX- ] is flashing in reference weight window. Press button ----- PRE- TARE Last value stored Use number keys to enter desired target number of pieces ----- PRE- TARE Entered target value. Last value stored Corrections possible by pressing CXB/CXP-BA-e-0711... -
Page 23: Set Tolerance Value For Target Weight
Use number keys to enter target value ----- PRE- TARE Entered target value. Last value stored Corrections possible by pressing Press button ----- PRE- TARE Press button 0. 0 PRE- TARE Information: To delete stored target values enter "0". CXB/CXP-BA-e-0711... -
Page 24: Taring
To delete the stored tare, unload the weighing plate and then press the TARE key; the [ ] display next to "PRE-TARE" disappears. The taring process can be repeated any number of times. The limit is reached when the whole weighing range is exhausted. CXB/CXP-BA-e-0711... -
Page 25: Numerical Input Of Tare (Pre-Tare)
1. 7 752 PRE- TARE Enter your tara weight via number keys. 177. 5 1. 0 PRE- TARE Press the TARE key. The net weight of the goods to be weighed is displayed 176. 5 1. 7 752 PRE- TARE CXB/CXP-BA-e-0711... - Page 26 6. 8 ----- PRE- TARE Press TARE key, tare weight is indicated as negative value -6. 8 ----- PRE- TARE Put on tare container + goods to be weighed. The net weight of the goods to be weighed is displayed CXB/CXP-BA-e-0711...
-
Page 27: Add
With balance unloaded, press the key: Total weight, number of weighing procedures as well as total parts counting appear 2 sec. 118. 3 PRE- TARE Number weighing proc- Total weight placed on bal- Total parts counting placed ance on balance esses CXB/CXP-BA-e-0711... -
Page 28: Add Up "Weight
The total weight as well as the number or weighings will pop up for 3 sec. 118. 3 PRE- TARE Number weighing Total weight placed on balance processes Information: Turning off the balance will result in a loss of all stored values. CXB/CXP-BA-e-0711... -
Page 29: Delete Stored Values
PRE-TARE setting "0" = no input of tare possible when weighing plate is loaded PRE-TARE setting "1*" = input of tare weight possible regardless whether weighing plate is loaded or unloaded * = default setting CXB/CXP-BA-e-0711... -
Page 30: Menu Overview [User]
M+ for stale weighing values only nnPTP M+ for stable/instable weighing values Import weighing The balance must be reset to zero be- nnPB0 value adding tween individual weighings up (chap.10) The balance needs not to be reset be- tween individual weighings CXB/CXP-BA-e-0711... -
Page 31: Configurations Menu
Backlight switched off to Backlight off Press key, [CEnTR] appears on the save battery. weight display Press the key during this display. The set mode will remain after the balance was turned off. CXB/CXP-BA-e-0711... -
Page 32: Setting The Display Speed
[CEnTR] appears on the weight display. Press the key during this display. PRE- 5PEED PRE- TARE Display speed Use the key, to in- crease and the key to decrease the number value Store setting by using the key. The balance returns automatically into weighing mode. CXB/CXP-BA-e-0711... -
Page 33: Data Output
This data exchange is asynchronous using ASCII - Code. Pin allocation of balance output plug: Technical specifications of interface: Baud rate 9600; 4800; 2400;1200 Start bit Stop bit 2, 1 Parity nOnE, odd, even DATA FLOW nOnE Default settings in bold print. CXB/CXP-BA-e-0711... -
Page 34: Description Of Interface
Setting date DATE 151707 Setting time TKnnE hrs/min/s For display format, see also example in STl XX chpt. 13.2.1 XX = see table 1 Confirm setting by pressing the key, then enter the number of output values (max. 15) CXB/CXP-BA-e-0711... - Page 35 STQP Confirm setting by pressing the key, then carry out further settings rtCtS FLOef Always use this setting NONE SETC Output after pressing Continuous serial output Output after stabilisation (weight >0) Output of all weighing values after sta- bilisation CXB/CXP-BA-e-0711...
- Page 36 None None None None None None None User defined input in ASCII Code #3 User defined input in ASCII Cod #4 See delineation 1/chpt. 16 User defined input in ASCII Cod #5 User defined input in ASCII Cod #6 CXB/CXP-BA-e-0711...
- Page 37 1 : 5. - 8. Position Code (Tab. 1) 2 : 9.- 12. Position 3 :13.-15. Position Net (Tab. 2) Gross Piece number Reference weight ( For codes see table 2) Output of this setting: Reference weight Number pcs. Gross (02) (03) (06) (00) CXB/CXP-BA-e-0711...
-
Page 38: Example: Setting An Output Format
(For code see table 2). 040314 STl 00 14=Weight unit 02=Net 04=Weighing unit 03=Reference weight Reference After entering fourth value keep tapping key until fifth value appears. Further values are entered accordingly 040314 STl 00 Confirm setting by pressing the CXB/CXP-BA-e-0711... -
Page 39: Service, Maintenance, Disposal
Spilled weighing goods must be removed immediately. 14.2 Service, maintenance The appliance may only be opened by trained service technicians who are authorized by KERN. Before opening, disconnect from power supply. 14.3 Disposal Disposal of packaging and appliance must be carried out by operator according to valid national or regional law of the location where the appliance is used. -
Page 40: Instant Help
• Adjustment is no longer correct. • Great fluctuations in temperature. Electromagnetic fields / static charging (choose different location/switch off inter- fering device if possible) Should other error messages occur, switch balance off and then on again. If the error message remains inform manufacturer. CXB/CXP-BA-e-0711... -
Page 41: Appendix Ascii Code Table
Ctrl P Ctrl Q Ctrl R Ctrl S ¶ Ctrl T § Ctrl U Ctrl V < < Ctrl W Ctrl X > > Ctrl Y Ctrl Z Ctrl \ Ctrl ] Ctrl 6 Ctrl - SPACE BAR “ “ CXB/CXP-BA-e-0711... - Page 42 Å Alt 143 É Alt 144 æ Alt 145 Æ Alt 146 ô Alt 147 ö Alt 148 ò Alt 149 û Alt 150 ù Alt 151 ÿ Alt 152 Ö Alt 153 Ü Alt 154 ¢ Alt 155 CXB/CXP-BA-e-0711...
- Page 43 Alt 188 Alt 228 ╜ Alt 189 Alt 229 ╛ Alt 190 µ Alt 230 ┐ Alt 191 Alt 231 └ Alt 192 Alt 232 ┴ Alt 193 Alt 233 ┬ Alt 194 Alt 234 ├ Alt 195 Alt 235 CXB/CXP-BA-e-0711...
- Page 44 Alt 238 º Alt 248 Alt 239 • Alt 249 Alt 240 Alt 250 · ± Alt 241 Alt 251 Alt 242 Alt 252 Alt 243 ² Alt 253 ¦ Alt 244 Alt 254 Alt 245 (blank) Alt 255 CXB/CXP-BA-e-0711...
