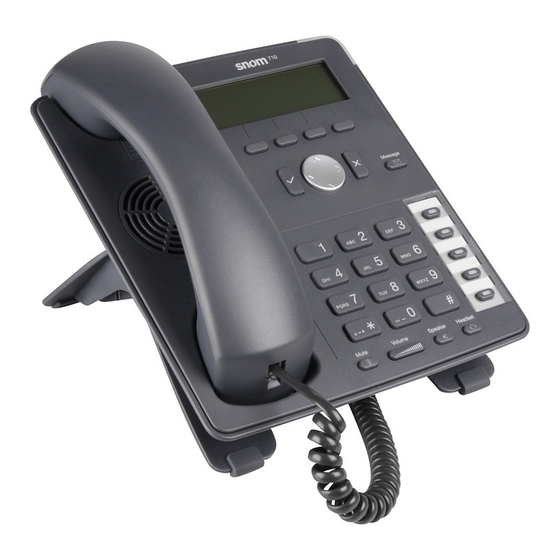

Snom 710 Setup Manual

Hide thumbs Also See for 710:

Advertisement

Quick Links

Download this manual See also: Configuration Manual, User Manual
Snom 710 and Elastix Server
Setup Guide
http://www.elastix.org

Advertisement

loading

Related Manuals for Snom 710

Summary of Contents for Snom 710

  • Page 1 Snom 710 and Elastix Server Setup Guide http://www.elastix.org...

  • Page 2: Setup Diagram

    PaloSanto Solutions Snom 710 Server Setup Guide 1.0 Setup Diagram Figure 1-1 is a setup diagram for a single IP Phone Snom 710 configuration. The phone is setup as a SIP telephony device. Figure 1-1. Setup Diagram 2.0 Host PC Environment Table 2-1.

  • Page 3: Setup Procedure

    Snom 710 Server Setup Guide 4.0 Setup Procedure To set up the Elastix Server for the Snom 710, 1. Go to the web address of the Elastix Server Login page. The web address is determined by the customer, for this guide we have used the IP address 192.168.1.75...
  • Page 4 PaloSanto Solutions Snom 710 Server Setup Guide 5. Click on the Submit button to add an extension, see Figure 4-3. This will take you to the Add SIP Extension page. Figure 4-3. Add an Extension 6. On the Add SIP Extension page (Figure 4-4), fill in the following information: •...
  • Page 5 9. With this you have just finished creating a SIP extension that will be used by the Snom 710 to register with the Elastix Server. Repeat Steps 5 through 8 to similarly create another extension (different values on Step 6) to be used by the IP (SIP) Phone to register as well (extension 302 in this example).

  • Page 6: Manual Configuration

    PaloSanto Solutions Snom 710 Server Setup Guide MANUAL CONFIGURATION 1. Log in to the Snom 710 WebUI by pointing your browser to the Snom Phone‟s IP address. For the initial configuration, refer to the Snom 710 User Manual found at: http://wiki.snom.com/Snom710/Documentation...
  • Page 7 14. Configure the other IP (SIP) Phone with the correct parameters. 15. To test the Snom 710, pick up the previously configured IP (SIP) Phone and call the Snom 710‟s extension number (301 in this example). When the call is established, speak into the phone and verify that the other IP (SIP) Phone can hear your voice.
  • Page 8 PaloSanto Solutions Snom 710 Server Setup Guide AUTOPROVISIONING USING ELASTIX‟S ENDPOINT CONFIGURATOR Note: The support for Endpoint Configurator is available in Elastix 2.4 by installing the new Endopoint configurator module. This new module is already included in Elastix 2.5. 1. For Elastix 2.4, log in to the console and install the module by entering the...
  • Page 9 PaloSanto Solutions Snom 710 Server Setup Guide 5. After clicking in the configuration link, you will see a window with many tabs according to what you want to configure. In this case we will configure a SIP account. Go to the tab “Accounts” and drag the accounts you want to assign from left to right.
  • Page 10 PaloSanto Solutions Snom 710 Server Setup Guide Figure 4-14. Configuration successful 8. Your phone will reboot, and when it boots up it should be registered with Elastix with the accounts you set. This step completes the procedure.
