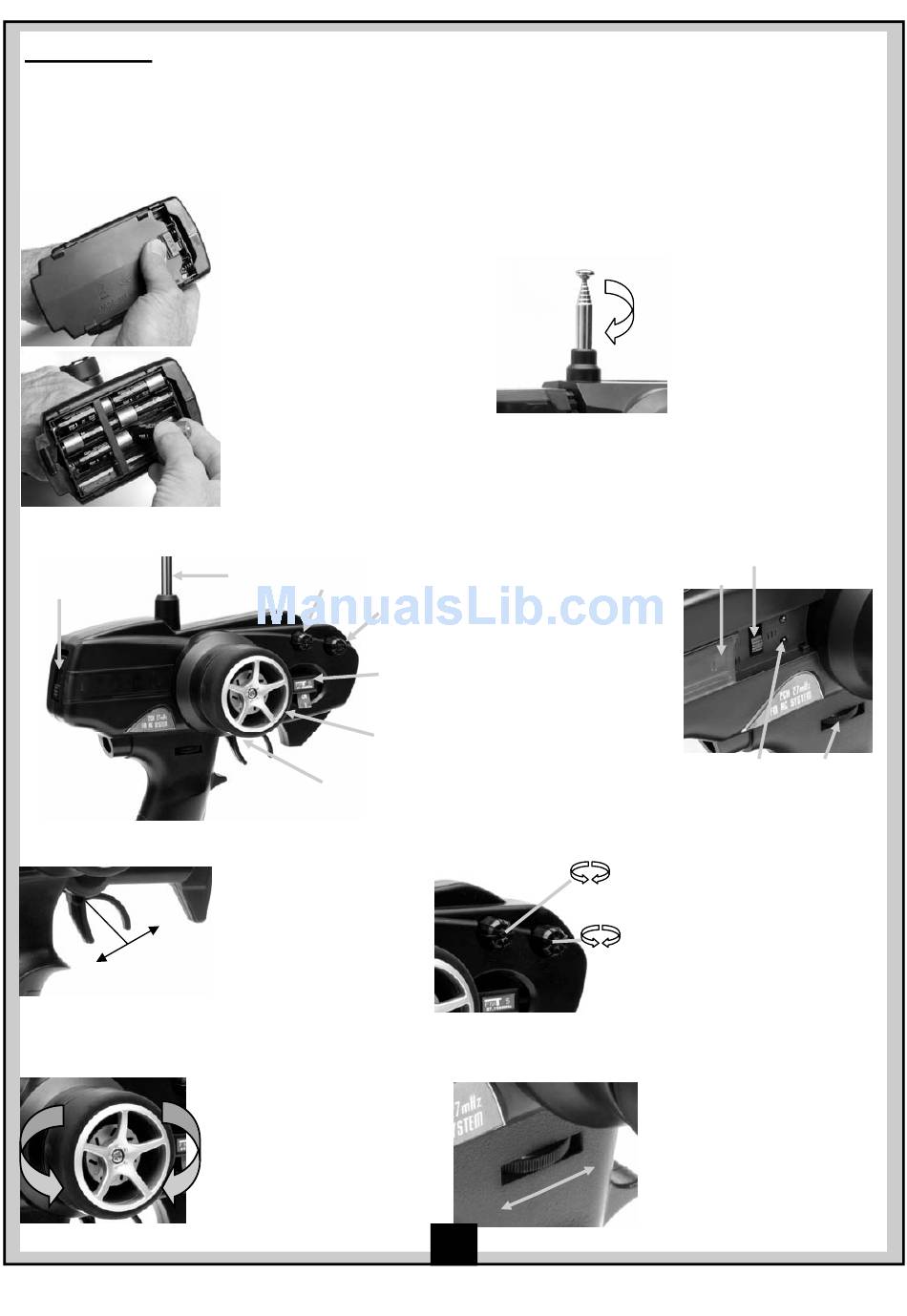

Transmitter

The HPI Transmitter is an advanced controller designed for the beginner to be easy to use and tune. You will need to
follow the steps below to ensure you prepare the controller correctly for use and understand the adjustment possi-
bilities available.

Preparing the transmitter

The function switches on the transmitter
7

Throttle Trigger

1
Neutral
2

Steering Wheel

R
L
Open the battery holding
tray to expose the empty
battery slots.
Insert 8 AA batteries into
the marked spaces.
Please note the correct
direction of the batteries
Incorrect battery insertion
could lead to damage
1 2
3
4
6
5
1. Push the trigger
forward to brake
2. Pull the trigger
backwards to go
forwards and
speed up
Turn the steering wheel
to the left or right to
make the go vehicle
left or right
1. Aerial
2. Throttle Trim
3. Steering Trim
4. Frequency Crystal
5. Throttle Trigger
6. Steering Control
(wheel)
7. Power Switch
8. Battery level indicator
9. Steering reverse
switch
10. Throttle reverse
switch
11. Steering Throw dial

Throttle/Steering Trim

1
1 2
5
Insert the aerial into the
hole and turn clockwise
until it is tightly secured.
Make sure you never over
extend the aerial as this
will cause it to break.
9
10
8
Throttle Trim
1. Turn anti clockwise for
more brake
2
2. Turn clockwise for more
throttle
Steering Trim
1. Turn anti clockwise to trim
to the left
2. Turn clockwise to trim to
the right

End Point Adjustment Dials

The steering lock can be
adjusted by rotating the
shown in the picture.
Rotate the dial clockwise for
more steering lock.
Rotate the dial anti clockwise
for less steering lock.
11
