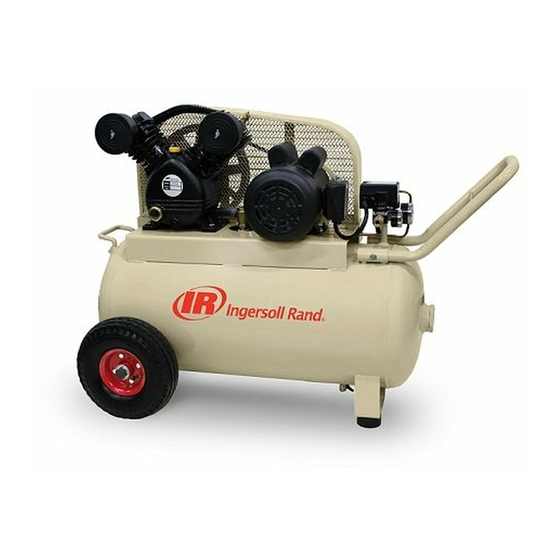

Ingersoll-Rand P1.5IU-A9 Owner's Manual
Hide thumbs Also See for P1.5IU-A9:

Advertisement

Available languages

Available languages

IMPORTANT INFORMATION! READ AND FOLLOW THESE INSTRUCTIONS. RETAIN FOR REFERENCE.
SAFETY
DEFINITIONS______________________________________
DANGER
WILL cause DEATH, SEVERE INJURY or
substantial property damage.
• WARNING
CAN cause DEATH, SEVERE INJURY or
substantial property damage.
• CAUTION
WILL or CAN cause MINOR INJURY or property
damage.

GENERAL SAFETY PRECAUTIONS __________________

DANGER
INTAKE AIR. Can contain carbon monoxide or
other contaminants. Will cause serious injury or
death. Ingersoll Rand air compressors are not
designed, intended or approved for breathing air.
Compressed air should not be used for breathing
air applications unless treated in accordance
with all applicable codes and regulations.
• WARNING
HAZARDOUS VOLTAGE. Can cause serious
injury or death. Disconnect power and bleed
pressure from tank before servicing.
Lockout/Tagout machine. Compressor must be
connected to properly grounded circuit. See
grounding instructions in manual. Do not operate
compressor in wet conditions. Store indoors.
MOVING PARTS. Can cause serious injury. Do
not operate with guards removed. Machine may
start automatically. Disconnect power before
servicing. Lockout/Tagout machine.
HOT SURFACES. Can cause serious injury. Do
not touch. Allow to cool before servicing. Do not
touch hot compressor or tubing.
HIGH PRESSURE AIR. Bypassing, modifying or
removing safety/relief valves can cause serious
injury or death. Do not bypass, modify or remove
safety/relief valves. Do not direct air stream at
body. Rusted tanks can cause explosion and
severe injury or death. Drain tank daily or after
each use. Drain valve located at bottom of tank.
• CAUTION
RISK OF BURSTING. Use only suitable air
handling parts acceptable for pressure of not
less than the maximum allowable working
pressure of the machine.
© Ingersoll-Rand Company
Owner's Manual

GENERAL INFORMATION

Your air compressor unit is suitable for operating air tools,
caulking guns, grease guns, sandblasters, etc. Depending on
your application, the following accessories may be required:
l
An air pressure regulator to adjust the air pressure entering
the tool or accessory.
l
An air line filter for removal of moisture and oil vapor in
compressed air.
l
An in-line lubricator to prolong the life of air tools.
l
Separate air transformers which combine the functions of air
regulation and/or moisture and dirt removal.
Contact your nearest authorized dealer or call 1-800-AIR-SERV
for more information on air tools and accessories for your
application.

PREPARATION FOR USE

TRANSPORTING THE UNIT _________________________
• CAUTION
The wheels and handle do not provide adequate
clearance, stability or support for pulling the unit
up and down stairs or steps. The unit must be
lifted or pushed up a ramp. Do not use the handle
to lift the unit.

SELECTING A LOCATION ___________________________

GENERAL. Select a clean, dry, well-lighted area with plenty of
space for proper cooling air flow and accessibility. Locate the unit
on a solid level surface at least 12 inches (30 cm) from walls.
Ensure unit is as level as possible.
TEMPERATURE. Ideal operating temperatures are between
32°F and 104°F (0°C and 40°C). In lower temperatures, you must
protect safety/relief valves and drain valves from freezing.
• CAUTION
Never operate in temperatures below 20°F
(-6.6°C) or above 125°F (51.0°C).
HUMID AREAS. In frequently humid areas, moisture may form in
the bare pump and produce sludge in the lubricant, causing
running parts to wear out prematurely. Excessive moisture is
especially likely to occur if the unit is located in an unheated area
that is subject to large temperature changes. Two signs of
excessive humidity are external condensation on the bare pump
when it cools down and a "milky" appearance in petroleum
compressor lubricant. You may be able to prevent moisture from
forming in the bare pump by increasing ventilation or operating
for longer intervals.
NOISE CONSIDERATIONS. Consult local officials for
information regarding acceptable noise levels in your area. To
reduce excessive noise, use vibration mounts or intake silencers,
relocate the unit or construct total enclosures or baffle walls.
Contact your dealer for assistance.
for Model P1.5IU-A9
C.C.N. : 80444425
REV.
: B
DATE
: FEBRUARY 2008
