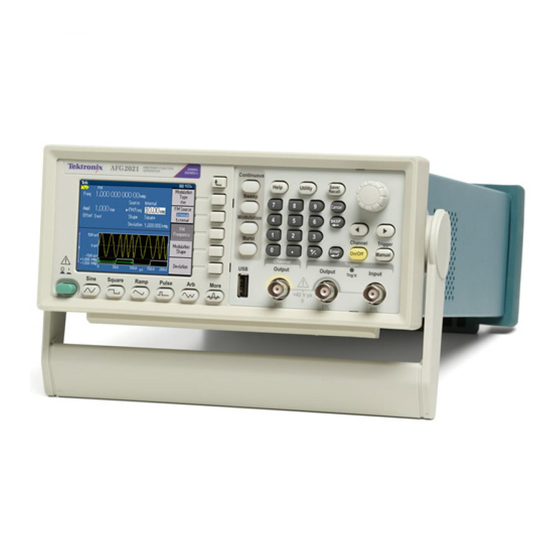

- Page 1 AFG2000 Series Arbitrary Function Generators Declassification and Security Instructions www.tektronix.com *P077061901* 077-0619-01...
- Page 2 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
-
Page 3: Table Of Contents
Media and data export devices ................Built-In security features ..................Secure ......................Access Protection ....................Troubleshooting..................... How to clear or sanitize a nonfunctional instrument............How to recover from clearing or removing the memory ..........Change log ......................AFG2000 Series Declassification and Security Instructions... - Page 4 Table of Contents AFG2000 Series Declassification and Security Instructions...
-
Page 5: Preface
Preface This document helps customers with data security concerns to sanitize or remove memory devices from the Tektronix AFG2000 Series Arbitrary Function Generators. All of these products have data storage (memory) devices. Some models have data output devices (USB ports). These instructions tell how to clear or sanitize the memory devices and disable the data output devices. - Page 6 User accessible. User is able to directly retrieve the memory device contents. User-modifiable. The user can write to the memory device during normal instrument operation, using the instrument interface or remote control. Volatile memory. Data is lost when the instrument is powered off. AFG2000 Series Declassification and Security Instructions...
-
Page 7: Clear And Sanitize Procedures
U201 on main board Programmed Use Secure. See the Clear or firmware, setups, at the factory, sanitize instrument procedure waveforms, calibration firmware (See page 2.). data, Ethernet MAC operations, and address, and instrument user input serial number AFG2000 Series Declassification and Security Instructions... - Page 8 Erases all waveforms and stored setups in all user memories. Replaces the current front-panel setup with the default factory setup values. Replaces the current GPIB and Ethernet settings with the default factory settings for models with these ports. AFG2000 Series Declassification and Security Instructions...
-
Page 9: Media And Data Export Devices
Rear panel GPIB Supports remote The GPIB can be disabled. Select control and data IEEE488.2 Off Bus as Utility-I/O Interface- transfer to PC. GPIB-Configuration. This device is only available on AFG2021 instruments with option GL. AFG2000 Series Declassification and Security Instructions... - Page 10 Clear and sanitize procedures AFG2000 Series Declassification and Security Instructions...
-
Page 11: Built-In Security Features
Built-In security features The AFG2000 Series Arbitrary Function Generators have the following security functions: Secure Access Protection Secure To erase confidential data from the instrument, use the Secure function (See page 2, Clear or sanitize instrument.): Erases all waveforms and stored setups in all user memories... - Page 12 7 characters. For information about changing the password, refer to the Quick Start User Manual for your product. For information about the Service Menu, refer to the AFG2000 Series Arbitrary Function Generators Service Manual. AFG2000 Series Declassification and Security Instructions...
-
Page 13: Troubleshooting
Tektronix will install replacement parts and then repair and return the instrument. Main board Remove the main board and return the product to Tektronix. A new main board will be installed, and the instrument will be repaired and adjusted as necessary. -
Page 14: Change Log
Change log Change log Document Revision part number date Change description 077-0619-00 April 2012 New document. 077–0619–01 September Updated with new instrument models. 2012 AFG2000 Series Declassification and Security Instructions...
