Redarc Tow-Pro Elite Manual page 5

1 SPECIFICATIONS
Kit Contents
1. Remote Head Assembly
2. Main Unit
3. Remote Head Nut
4. Remote Head Knob
5. Remote Head Bezel
6. RJ45 Remote Head Cable (1m)
7. Main Unit Wires & Connector (0.5m)

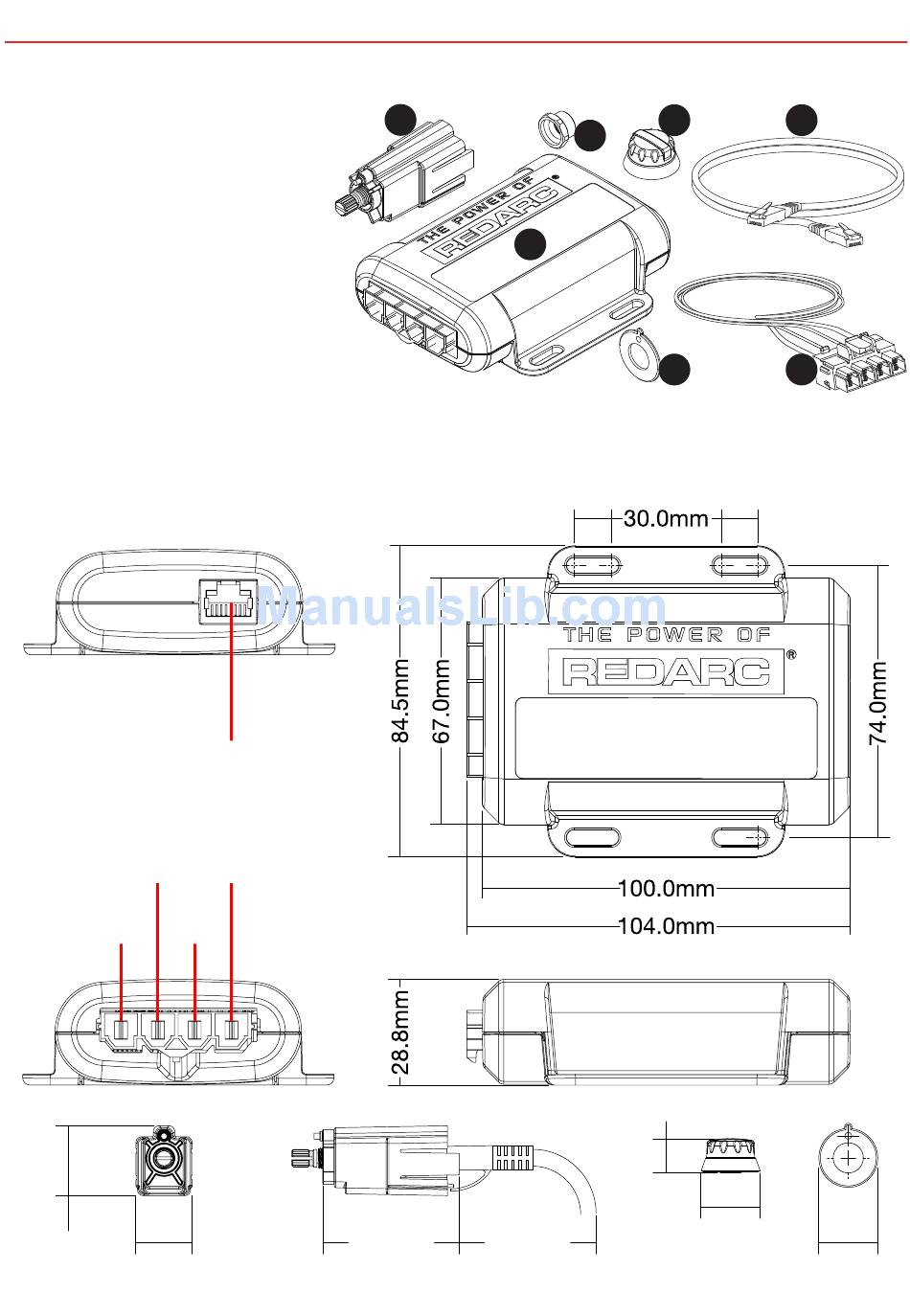

Dimensions & Connection
Brake
Output
(BLUE)
Brake Ground/
Lights
(RED) (WHITE)
23.7mm
Remote Head
Connection
Input
Power
(BLACK)
Earth
19.0mm 46.5mm
1
2
10.0mm
(Recommended)
43.5mm
4
4
3
5
11.5mm
20.0mm
20.0mm
6
7
10.0mm
