Edimax AR-7288WnA Manual

Edimax AR-7288WnA Manual

N300 wireless adsl modem router
Hide thumbs Also See for AR-7288WnA:
Table of Contents

Advertisement

Quick Links

Download this manual

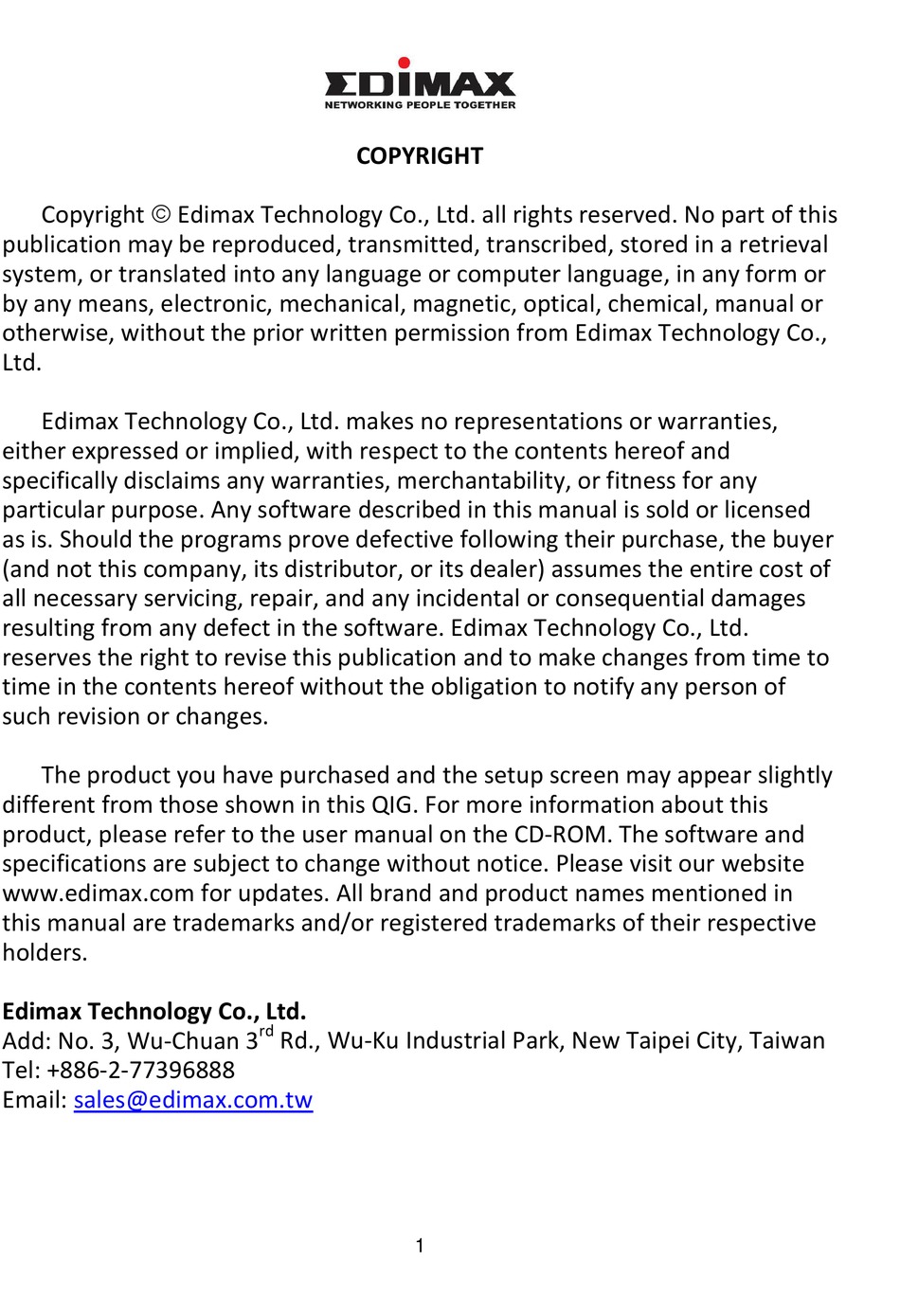

Copyright  Edimax Technology Co., Ltd. all rights reserved. No part of this
publication may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language or computer language, in any form or
by any means, electronic, mechanical, magnetic, optical, chemical, manual or
otherwise, without the prior written permission from Edimax Technology Co.,
Ltd.
Edimax Technology Co., Ltd. makes no representations or warranties,
either expressed or implied, with respect to the contents hereof and
specifically disclaims any warranties, merchantability, or fitness for any
particular purpose. Any software described in this manual is sold or licensed
as is. Should the programs prove defective following their purchase, the buyer
(and not this company, its distributor, or its dealer) assumes the entire cost of
all necessary servicing, repair, and any incidental or consequential damages
resulting from any defect in the software. Edimax Technology Co., Ltd.
reserves the right to revise this publication and to make changes from time to
time in the contents hereof without the obligation to notify any person of
such revision or changes.
The product you have purchased and the setup screen may appear slightly
different from those shown in this QIG. For more information about this
product, please refer to the user manual on the CD-ROM. The software and
specifications are subject to change without notice. Please visit our website
www.edimax.com for updates. All brand and product names mentioned in
this manual are trademarks and/or registered trademarks of their respective
holders.
Edimax Technology Co., Ltd.
Add: No. 3, Wu-Chuan 3
Tel: +886-2-77396888
Email:
sales@edimax.com.tw
COPYRIGHT
rd
Rd., Wu-Ku Industrial Park, New Taipei City, Taiwan
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AR-7288WnA and is the answer not in the manual?

Questions and answers

Related Manuals for Edimax AR-7288WnA

Summary of Contents for Edimax AR-7288WnA

  • Page 1 COPYRIGHT Copyright  Edimax Technology Co., Ltd. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission from Edimax Technology Co.,...

  • Page 2: Table Of Contents

    Contents 1. PRODUCT INTRODUCTION ........................5 1.1. P ..........................5 ACKAGE ONTENTS 1.2. S ........................5 YSTEM EQUIREMENTS 1.3. S .......................... 5 AFETY RECAUTIONS 1.4. LED S & B ..................... 6 TATUS UTTON EFINITIONS 1.5. F ............................8 EATURES 2. HARDWARE INSTALLATION ........................9 3.
  • Page 3 5.3.11. UPnP ..........................64 5.3.12. DNS Proxy ........................64 5.3.13. Print Server ........................64 5.3.14. Packet Acceleration ......................65 5.3.15. Storage Service ........................ 65 5.3.16. Interface Grouping ......................66 5.3.17. IP Tunnel .......................... 67 5.3.18. Certificate ........................68 5.3.19. Power Management ......................71 5.3.20.
  • Page 4 manual are based on the most recent firmware version at the time of writing.

  • Page 5: Product Introduction

    1. Product Introduction 1.1. Package Contents Before you start using this product, please check if there is anything missing in the package and contact your dealer to claim the missing item(s):  ADSL2+ router  RJ-45 Ethernet cable  RJ-11 telephone line ...

  • Page 6: Led Status & Button Definitions

     Do not put this device close to a place where it is damp or wet. Do not spill any fluid on this device.  Do not connect this device to any PCs or electronic products, other than those which you are instructed or recommended to do so in the product’s documentation, by our customer engineers or by your broadband provider –...
  • Page 7 WLAN Green Successful WLAN connection. Flashing WLAN activity (transferring/receiving data). WLAN connection failed. Green WPS is disabled. Flashing WPS is enabled and waiting for client to negotiate. Note i. If the ADSL LED is off, please check your Internet connection. Refer to A.

  • Page 8: Features

    Item Description WPS Button Activate WPS (Wi-Fi Protected Setup) LAN 1–4 RJ-45 Ethernet ports 1–4. Hold for less than 5 seconds to restart the device, and hold for more Reset Button than 10 seconds to reset the device to factory default settings. Line RJ-11 port for standard telephone line.

  • Page 9: Hardware Installation

    2. Hardware Installation Connect the ADSL line. Connect the line port of the router of the device to the modem interface of a splitter using a telephone cable. Connect a telephone to the Phone interface of the splitter using a telephone cable. Connect the Line interface of the splitter to your existing, incoming line.
  • Page 10 Configuration 2 0 shows the correct connection when a telephone set is installed before the filter. Figure 2 - Connection diagram (Connecting a telephone set before the filter) Note: When Configuration 2 is used, the filter must be installed close to the telephone cable.
  • Page 11 PC LAN IP configuration. Configure your PC’s LAN settings to automatically obtain an IP address from the router by following the steps below: 1. Click “Start” and then select “Control Panel”. 2. Click “Switch to Classic View” in the top left to show additional setting icons.
  • Page 12 4. Select the “Local Area Connection” icon and right-click it to open the sub-menu, then select “Properties”. 5. Select “Internet Protocol (TCP/IP)” and then click “Properties” 6. Ensure that “Obtain an IP address automatically” and “Obtain DNS server address automatically” are selected and then press “OK”.

  • Page 13: Ip Address Setting

    3. IP Address Setting To use the router to access the Internet, the PCs in the network must have an Ethernet adapter installed and be connected to the router either directly or through a hub or switch. The TCP/IP protocol of each PC must be installed and the IP Address of each PC has to be set in the same subnet as the router.
  • Page 14 2. Click the Network icon and then select Open Network and Sharing Center to open the Network and Sharing Center window. 3. Click Ethernet to open the Ethernet Status window, and then select Properties. The Local Area Connection window will appear.
  • Page 15 4. Check your list of Network Components. Select Internet Protocol Version 4 (TCP/IPv4) and click the Properties button.

  • Page 16: Windows 7

    5. In the Internet Protocol Version 4 (TCP/IPv4) Properties window, select Obtain an IP address automatically and Obtain DNS server address automatically as shown on the following screen. 6. Click OK (shown above) to confirm the setting. Your PC will now obtain an IP address automatically from your router’s DHCP server.

  • Page 17: Windows Vista

    4. In the Internet Protocol Version 4 (TCP/IPv4) Properties window, select Obtain an IP address automatically and Obtain DNS server address automatically as shown on the following screen. 5. Click OK to confirm the setting. Your PC will now obtain an IP address automatically from your router’s DHCP server.

  • Page 18: Windows Xp

    4. In the Internet Protocol Version 4 (TCP/IPv4) Properties window, select Obtain an IP address automatically and Obtain DNS server address automatically as shown on the following screen. 5. Click OK to confirm the setting. Your PC will now obtain an IP address automatically from your router’s DHCP server.

  • Page 19: Mac Os X

    4. In the Internet Protocol (TCP/IP) Properties window, select Obtain an IP address automatically and Obtain DNS server address automatically as shown on the following screen. 5. Click OK to confirm the setting. Your PC will now obtain an IP address automatically from your router’s DHCP server.
  • Page 20 3. Click on “Wi-Fi” in the left panel and then click “Advanced” in the lower right corner. Select “TCP/IP” from the top menu and “Using DHCP” in the drop down menu labeled “Configure IPv4” should be selected.

  • Page 21: Ezmax Setup Wizard

    4. EZmax Setup Wizard You can configure the router by running the setup wizard on the CD-ROM included in the package contents. The wizard enables you to configure your Internet connection, upgrade the firmware and change the router’s password. Please follow the instructions below. Alternatively, if you lose the CD-ROM or prefer a web based setup, you can login to the ADSL router using Internet Explorer, and configure the router from there using the web-based interface.
  • Page 22 Please ensure all hardware is correctly installed. Check the box and click “Next”. Select your country and ISP. If your ISP is not listed, select “Other” from the list and refer to 4.2. Internet Connection Type.
  • Page 23 Enter your ISP’s username and password and click “Apply”. On the next screen, click “Apply” again.

  • Page 24: Internet Connection Type

    Please wait while the router connects to the Internet. When the router is connected successfully, you will see the screen below. 4.2. Internet Connection Type If your country or ISP is not listed, please select “Other” from the list. Then select your Internet connection type and click “Next”. If you are not sure, please contact your Internet Service Provider (ISP).
  • Page 25 Depending on your selection, please refer to the appropriate chapter: 4.2.1. PPPoE/PPPoA 4.2.2. Bridge Mode 4.2.3. Dynamic IP Address 4.2.4. Static IP Parameter Description PPPoE/PPPoA PPPoE (PPP over Ethernet) and PPPoA (PPP over ATM) are common connection methods used for xDSL. Bridge Mode Bridge Mode is a common connection method used for xDSL modems.

  • Page 26: Ppoe/Pppoa

    4.2.1. PPoE/PPPoA Parameter Description User Name Enter the username exactly as your ISP assigned. Password Enter the password that your ISP has assigned to you. Virtual path identifier (VPI) is the virtual path between two points in an ATM network. Its valid value is in the range of 0 to 255.

  • Page 27: Bridge Mode

    4.2.2. Bridge Mode Parameter Description Virtual path identifier (VPI) is the virtual path between two points in an ATM network. Its valid value is in the range of 0 to 255. Enter the correct VPI provided by your ISP. By default, VPI is set to 8. Virtual channel identifier (VCI) is the virtual channel between two points in an ATM network.

  • Page 28: Dynamic Ip Address

    4.2.3. Dynamic IP Address Parameter Description Virtual path identifier (VPI) is the virtual path between two points in an ATM network. Its valid value is in the range of 0 to 255. Enter the correct VPI provided by your ISP. By default, VPI is set to 8.

  • Page 29: Static Ip

    4.2.4. Static IP Parameter Description Virtual path identifier (VPI) is the virtual path between two points in an ATM network. Its valid value is in the range of 0 to 255. Enter the correct VPI provided by your ISP. By default, VPI is set to 8.

  • Page 30: Firmware Upgrade

    4.3. Firmware Upgrade The wizard includes a tool to upgrade the router’s firmware. Firmware can be downloaded from the Edimax website; if you wish to upload new firmware, select “Firmware Upgrade” from the menu across the top of the screen.

  • Page 31: Web-Based Management

    5. Web-Based Management The router can also be configured using the web-based configuration interface. Follow the instructions below. 5.1. Accessing the Router To access the web-based configuration interface: 1. Open the Internet Explorer (IE) browser and enter http://192.168.2.1. 2. In the Login page that is displayed, enter the username and password. ...

  • Page 32: Device Info

    5.2. Device Info Choose Device Info, and the submenus of Device Info are shown as below: You can view the basic information of the router and running status of all interfaces. 5.3. Advanced Setup Click Advanced Setup and the submenus of Advanced Setup appears. In this section, you can set the parameters of the router to connect to the internet 5.3.1.
  • Page 33 Step 1 Choose Advance Setup > Layer2 Interface > ATM Interface, and the following page appears. In this page, you can add or remove the DSL ATM Interfaces. Step 2 In this page, click Add to add an ATM interface, and the following page appears.

  • Page 34: Wan Service

    Note: QoS cannot be set for CBR and Realtime VBR.  ETH Interface Choose Advanced Setup > Layer2 Interface > ETH Interface, and the following page appears. In this page, you can add or remove the DSL ETH Interfaces. Click the Add button to display the following page. In this page, select a Ethernet port to configure.
  • Page 35 Step 1 In the Wide Area Network (WAN) Service Setup page, click the Add button to display the following page. (First a proper ATM configuration should be added for this WAN service.) Step 2 In this page, you can select an ATM Interface for the WAN service. After selecting the ATM interface, click Next to display the following page.
  • Page 36 Step 4 In this page, you can modify the PPP username, PPP password, PPPoE service name and authentication method.  PPP Username: The correct user name provided by your ISP.  PPP Password: The correct password provided by your ISP. ...
  • Page 37 up. If this function is enabled, the router uses this IP address as the WAN IP address.  Enable PPP Debug Mode: Enable or disable this function.  Bridge PPPoE Frames Between WAN and Local Ports: Enable or disable this function. ...
  • Page 38 Step 8 In this page, it displays the information about the PPPoE settings. Click Apply/Save to save and apply the settings. Adding a MER (IPoE) WAN service This section describes the steps for adding the MER WAN service. Step 1 Back to the Wide Area Network (WAN) Service Setup page, and click the Add button to display the following page.
  • Page 39 Step 3 In this page, select the WAN service type to be IP over Ethernet, enter the service description for this service. After setting, click Next to display the following page. Step 4 In this page, you may modify the WAN IP settings. You may select obtain an IP address automatically or manually enter the IP address provided by your ISP.
  • Page 40 Step 5 In this page, you can set the network address translation settings,for example, enabling NAT, enabling firewall, and enabling IGMP multicast. After setting, click Next and the following page appears. Step 6 In this page, select a preferred WAN interface as the system default gateway interface and then click Next to display the following page.
  • Page 41 Step 7 In this page, you may select a DNS server interface from the available WAN interfaces. After setting, click Next to display the following page. Step 8 In this page, it displays the information about the IPoE settings. Click Apply/Save to save and apply the settings. Adding a PPPoA WAN service This section describes the steps for adding the PPPoA WAN service.
  • Page 42 Step 2 Select the DSL link type to be PPPoA, and select the encapsulation mode to be VC/MUX (according to the uplink equipment). After setting, click the Apply/Save button to apply the settings. Step 3 Choose WAN Service and click Add to display the following page. Step 4 Select the proper interface for the WAN service, and then click Next to display the following page.
  • Page 43 Step 6 In this page, you can enter the PPP username and PPP password provided by your ISP. Select the authentication method according to your requirement. After setting, click Next to display the following page.  PPP Username/PPP Password: The correct user name provided by your ISP.
  • Page 44 Step 7 In this page, select a preferred WAN interface as the system default gateway interface and then click Next to display the following page. Step 8 In this page, you may select a DNS server interface from the available WAN interfaces. After setting, click Next to display the following page.
  • Page 45 Step 9 In this page, it displays the information about the PPPoA settngs.Click Apply/Save to apply the settings. You can modify the settings by clicking the Back button if necessary. Adding an IPoA WAN service This section describes the steps for adding the IPoA WAN service. Step 1 Choose Advanced Setup >...
  • Page 46 Step 4 Select the proper interface for the WAN service ,and then click Next to display the following page. Step 5 In this page, you may modify the service description. Click Next to display the following page. Step 6 In this page, enter the WAN IP address and the WAN subnet mask provided by your ISP and then click Next to display the following page.
  • Page 47 In this page, Network Address Translation (NAT) allows you to share one Wide Area Network (WAN) IP address for multiple computers on your Local Area Network (LAN). If you do not want to enable NAT, and wish the user of modem to access the Internet normally, you need to add a route on the uplink equipment.

  • Page 48: Lan Configuration

    Step 10 In this page, it displays the information about the IPoA settngs. Click Apply/Save to save and apply the settings. You can modify the settings by clicking the Back button if necessary. 5.3.3. LAN Configuration Choose Advanced Setup > LAN, and the following page appears. In this page, you can configure an IP address for the DSL router, enable IGMP snooping, enable or disable the DHCP server, edit the DHCP option, configure the DHCP advanced setup and set the binding between a MAC address and...
  • Page 49 Configuring the Private IP Address for the DSL Router In this page, you can modify the IP address of the device. The preset IP address is 192.168.1.1. Enable IGMP Snooping IGMP snooping enables the router to forward multicast traffic intelligently, instead of flooding all ports in the VLAN.
  • Page 50 In this page, you can add, edit or delete the DHCP options, and these options will be sent to the DHCP client. Editing the DHCP Option60 Click the Edit DHCP Option60 button in the Local Area Network (LAN) Setup page to display the DHCP Option60 Setup page. In this page, you can add, edit or delete the DHCP60 options.

  • Page 51: Nat

    Click the Add Entries button in the Local Area Network (LAN) Setup page to display the DHCP Static IP Lease page. In this page, enter the MAC address of the LAN host and the static IP address that is reserved for the host, and then click the Apply/Save button to apply the settings.
  • Page 52 Step 1 Click the Add button to display the following page.  Use interface: Select an interface that you want to configure.  Select a Service: Select a proper service in the drop-down list.  Custom Server: Enter a new service name to establish a user service type. ...
  • Page 53 In this page, you may add or remove an entry of port triggering. Click the Add button to display the following page.  Use interface: Select an interface that you want to configure.  Select an application: Select a proper application in the drop-down list. ...

  • Page 54: Security

    After setting, click Save/Apply to apply the settings. Note: You can use a single port number, several port numbers separated by commas, port blocks consisting of two port numbers separated by a dash, or any combination of these, for example 80, 90-140, 180. 5.3.4.3.
  • Page 55 Click Modify Firewall or Remove Firewall to modify or remove the firewall. Click Modify Rule or Remove Rule to modify or remove the rule. Click Add Firewall, and the following page appears.  Name: The name of the firewall.  Interface: You can select a proper interface from the drop-down list. ...

  • Page 56: Parental Control

    Click the Add button to display the following page.  Protocol Type: Select the proper protocol type.  Destination MAC Address: Enter the destination MAC address.  Source MAC Address: Enter the source MAC address.  Frame Direction: The direction of transmission frame. ...

  • Page 57: Quality Of Service

    This page is used to control the time restriction to a special LAN device that connects to the DSL router. In this page, enter the user name and configure the time settings. After setting, click the Apply/Save button to save and apply the settings. Url Filter Click Advanced Setup >...
  • Page 58 Select Enable QoS to enable QoS and configure the default DSCP mark. In this page, enable the QoS function and select the default DSCP mark. After setting, click Apply/Save to save and apply the settings. Note: If the Enable QoS checkbox is not selected, all QoS will be disabled for all interfaces.

  • Page 59: Routing

    In this page, you can enable, add or remove a QoS classification rule. Click the Add button to display the following page. In this page, enter the traffic name, select the rule order and the rule status, and specify the classification criteria and the classification results. After setting, click Apply/Save to save and apply the settings.
  • Page 60 In this page, you can modify the default gateway settings. Select a proper WAN interface and add it to the column of Selected Default Gateway Interface as the system default gateway. After setting, click Apply/Save to save and apply the settings. Static Route Choose Advanced Setup >...
  • Page 61  Metric: The metric value of routing. After setting, click Apply/Save to save and apply the settings. Policy Routing Choose Advanced Setup > Routing > Policy Routing and the following page appears. In this page, you can add or remove a static policy rule. Click the Add button to display the following page.

  • Page 62: Dns

    In this page, to configure an individual interface, select the desired RIP version and operation, and then select the Enabled checkbox for the interface. After setting, click Apply/Save to save and apply the settings. 5.3.9. DNS Server Choose Advanced Setup > DNS > DNS Server and the following page appears. In this page, you can select a DNS server interface from the available interfaces, manually enter the DNS server addresses, or obtain the DNS address from a WAN interface.

  • Page 63: Dsl

     D-DNS provider: Select a proper DDNS server in the drop-down list.  Hostname: It is the domain name and it can be modified.  Interface: The interface that the packets pass through on the DSL router.  Username: Enter the username for accessing the DDNS management interface.

  • Page 64: Upnp

    5.3.11. UPnP Choose Advanced Setup > UPnP and the following page appears. In this page, you can enable or disable the UPnP function. After setting, click Apply/Save to save and apply the settings. 5.3.12. DNS Proxy Choose Advanced Setup > DNS Proxy and the following page appears. In this page, you can enable or disable the DNS proxy function.

  • Page 65: Packet Acceleration

    5.3.14. Packet Acceleration Choose Advanced Setup > Packet Acceleration and the following page appears. In this page, you can enable packet flow accelerator. 5.3.15. Storage Service Storage Device Info Choose Advanced Setup > Storage Service > Storage Device Info, and the following page appears.

  • Page 66: Interface Grouping

    5.3.16. Interface Grouping Choose Advanced Setup > Interface Grouping and the following page appears. Interface grouping supports multiple ports to PVC and bridging groups. Each group will perform as an independent network. To support this feature, you must create mapping groups with the appropriate LAN and WAN interfaces using the Add button.

  • Page 67: Ip Tunnel

    In this page, please follow the on-screen configuration steps to configure the parameters of the interface grouping. After setting, click Apply/Save to save and apply the settings. 5.3.17. IP Tunnel IPv6inIPv4 Choose Advanced Setup > IP Tunnel > IPv6inIPv4, and the following page appears.

  • Page 68: Certificate

    Click Apply/Save to save and enable the settings. IPv4inIPv6 Choose Advanced Setup > IP Tunnel > IPv4inIPv6, and the following page appears. Click the Add button, and the following page appears. Click Apply/Save to save and enable the settings. 5.3.18. Certificate Local Choose Advanced Setup >...
  • Page 69 Click the Create Certificate Request button to display the following page. In this page, please set the following parameters.  Certificate name: Set the certificate name.  Common Name: The common name is the "fully qualified domain name," (or FQDN) used for DNS lookups of your server (for example, www.mydomain.com).
  • Page 70 The certificate request needs to be submitted to a certificate authority, which will sign the request. Then the signed certificate needs to be loaded to the DSL router. Click Load Signed Certificate in this page, and the following page appears. In this page, paste the signed certificate, and then click the Apply button.

  • Page 71: Power Management

    Trusted CA Choose Advanced Setup > Certificate > Trusted CA and the following page appears. In this page, you may import or remove a CA certificate. Click the Import Certificate button to display the following page. In this page, enter the certificate name and paste the certificate content. Finally, click the Apply button to import the certificate.

  • Page 72: Multicast

    5.3.20. Multicast Choose Advanced Setup > Multicast and the following page appears. In this page, you can configure the multicast parameters. After setting, click Apply/Save to save and apply the settings. 5.4. Wireless Choose Wireless and the submenus of Wireless are shown as below: 5.4.1.
  • Page 73 This page allows you to configure the basic features of the wireless LAN interface.  Enable Wireless: Enable or disable the wireless function.  Hide Access Point: if you want to hide any access point for your router, select this option, and then a station cannot obtain the SSID through the passive scanning.

  • Page 74: Security

     Max Clients: Specify the maximum wireless client stations to be enabled to link with AP. Once the clients exceed the max vlaue, all other clients are refused. The value of maximum clients is 16.  Wireless - Guest/Virtual Access Points: If you want to make Guest/Virtual network function be available, you have to check those boxes in the table below.
  • Page 75 There are 2 primary methods used in the Wi-Fi Protected Setup: PIN entry, a mandatory method of setup for all WPS certified devices. Push button configuration (PBC), an actual push button on the hardware or through a simulated push button in the software. (This is an optional method on wireless client).
  • Page 76 - Shared Mode For the parameter description of shared mode, refer to the Open Mode. - 802.1x  Select SSID: Select a SSID for configuring the security settings.  Network Authentication: Select the 802.1X in the drop-down list.  RADIUS Server IP Address: Enter the IP address of the RADIUS server. RADIUS server is used to authenticate the hosts on the wireless network.
  • Page 77 - WPA Mode  Select SSID: Select a SSID for configuring the security settings.  Network Authentication: Select the WPA-PSK mode.  WPA Group Rekey Interval: Setting the interval for renewing key.  RADIUS Server IP Address: Enter the IP address of the RADIUS server. RADIUS server is used to authenticate the hosts on the wireless network.

  • Page 78: Mac Filter

     Select SSID: Select a SSID for configuring the security settings.  Network Authentication: Select the WPA2 mode.  WPA2 Preauthentication: Enable or disable pre-authentication.  Network Re-auth Interval: Set the network re-auth interval.  WPA Group Rekey Interval: Setting the interval for renewing key. ...

  • Page 79: Wireless Bridge

    This page is used to allow or reject the wireless clients to access the wireless network of the wireless router. In this page, you can add or remove the MAC filters. The MAC restrict modes include Disabled, Allow, and Deny. ...

  • Page 80: Advanced

    5.4.5. Advanced Choose Wireless > Advanced to display the following page. This page allows you to configure the advanced features of the wireless LAN interface. Usually, you do not need to change the settings in this page.  Band: The radio frequency remains at 2.4GHz. ...
  • Page 81  802.11n Protection: The 802.11n standards provide a protection method so 802.11b/g and 802.11n devices can co-exist in the same network without “speaking” at the same time.  Support 802.11n Client Only: Only stations that are configured in 802.11n mode can associate. ...

  • Page 82: Station Info

     XPress Technology: Select Enable or Disable. This is a special accelerating technology for IEEE802.11g. The defaule is Disabled.  Transmit Power: Adjust the transmission range here. This tool can be helpful for security purposes if you wish to limit the transmission range. Click Apply/Save to configure the advanced wireless options and make the changes take effect.

  • Page 83: Management

    5.6. Management 5.6.1. Settings Backup Choose Management > Settings > Backup to display the following page. In this page, click the Backup Settings button to save your router’s settings to your local PC. Update Choose Management > Settings > Update, and the following page appears. In this page, click the Browse…...

  • Page 84: Access Control

    WAN Management Protocol (TR-069) allows an Auto-Configuration Server (ACS) to perform auto-configuration, provision, collection, and diagnostics to this device. In this page, you may configure the parameters such as the ACS URL, ACS password, and connection request user name. After setting, click the Apply/Save button to save and apply the settings. 5.6.3.

  • Page 85: Update Software

    Services Control Choose Management > Access Control > Services Control and the following page appears. In this page, you can enable or disable the different types of services. It is recommended to keep it as default. After setting, click the Apply/Save button to save and apply the settings. 5.6.4.

  • Page 86: Reboot

    5.6.5. Reboot Choose Management > Reboot and the following page appears. In this page, click the Reboot button, and then the router reboots.

  • Page 87: Appendix I: How To Install And Access The Usb Storage

    Appendix I: How to Install and Access the USB Storage 1. Plug USB storage into USB on AR-7288WnA. 2. Log in web management. (Example: HTTP://192.168.2.1) 3. Choose Advanced Setup > Storage Service Storage Device Info, and the following page appears. In this page, you can view the USB device info.
  • Page 88 5. Click Start, input \\192.168.2.1 (192.168.2.1 is IP address of AR- 7288WnA), and then press Enter. 6. Enter username and password which you have added at step 4, and then click OK. 7. It will display the USB device. Double click left mouse on the fold, and then you are able to access the data in the USB storage.
  • Page 89 MAC OS X 5. Go to Finder > Go > Connect to Server and enter smb://192.168.2.1 (the default IP address of your AR-7288WnA) and click “Connect”. 6. Enter the username and password which you added during step 4 and then click Connect.

  • Page 90: Appendix Ii

    Installation Guide page 8) OR “Quick Start” (See Quick Installation Guide page 10), all the below Settings (Pointers No. 1 & No. 2) are Pre-Set in AR-7288WnA; except Pointer No. 3, Username and Password (As provided by your ISP). Need to be Input by User accordingly.
  • Page 91 Tel: 1300 738 555 Int’l: +61 2 8832 3200 Fax: 1300 738 500 Manufactured by: Edimax Technology Australia Pty Ltd Level 1, 203 Blackburn Road, Mt Waverley, VIC3152, Australia +61-8-61022811 (AUS) +64-9-8870589(NZ) support@edimax-au.com www.edimax.com Australia Support Toll Free Number #1300 540 833...

  • Page 92: Trouble Shooting

    Trouble Shooting Question Answer Check the connection between the power • Why are all the indicators adapter and the power socket. off? Check whether the power switch is turned on. • Check the connection between the device and • Why is the LAN indicator your PC, hub or switch.
  • Page 93 EU Declaration of Conformity English: This equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC, 2009/125/EC. Français: Cet équipement est conforme aux exigences essentielles et autres dispositions de la directive 1999/5/CE, 2009/125/CE Čeština: Toto zařízení je v souladu se základními požadavky a ostatními příslušnými ustanoveními směrnic 1999/5/ES, 2009/125/ES.

  • Page 94: Declaration Of Conformity

    Declaration of Conformity We, Edimax Technology Co., LTD., declare under our sole responsibility, that the equipment described below complies with the requirements of the European Council directive (1995/5/EC, 2006/95/EC). Equipment : N300 Wireless ADSL Modem Router Model No. : AR-7288WnA...
