- Page 1 EW-7833AXP Quick Installation Guide 12-2019 / v1.0...
-
Page 2: Table Of Contents
Contents Product Information ........1 I-1. Package Contents ..............2 I-2. System Requirements ............... 2 I-3. Hardware Overview ..............3 II. Hardware Installation ........ 4 III. Install Driver ..........7 III-1. Driver Installation ..............7 III-2. Driver Uninstallation ............... 8... -
Page 3: Product Information
You can find all supporting documents from the link below or via QR Code: https://www.edimax.com/download (Once you’ve visited the Edimax official website, please enter the model no. “EW-7833AXP” into the search box to search for your product.) -
Page 4: I-1. Package Contents
I-1. Package Contents Low Profile Bracket External Antenna Set EW-7833AXP (With Base) USB Bluetooth Header Connector Cable (9 pin to 4 pin) I-2. System Requirements - Win10 - Linux... -
Page 5: I-3. Hardware Overview

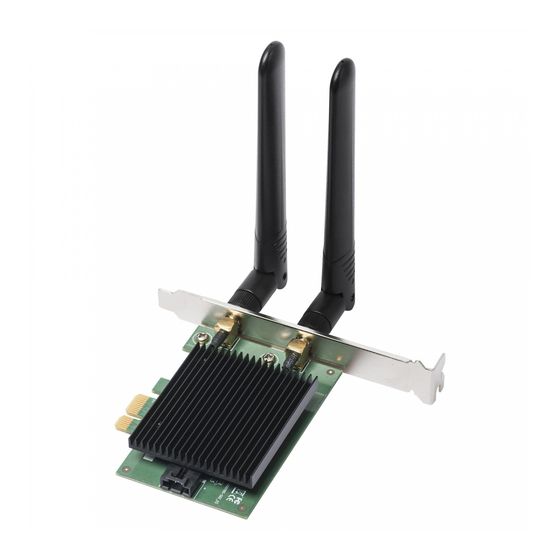

I-3. Hardware Overview Description Wi-Fi Antenna Connector Standard Profile Bracket Bluetooth Port PCI-E (X1/X4) -
Page 6: Hardware Installation
II. Hardware Installation Please follow the instructions below to install the network adapter in your PC, 1. Turn off the PC and unplug the power cord. 2. Remove the side panel of the computer by unscrewing it and identify empty PCI-E slot. 3. - Page 7 4. In order to activate Bluetooth function, please connect the network adapter to the motherboard with USB Bluetooth header connector cable. 5. Connect the external magnetic antenna base.
- Page 8 6. Reattach the side panel and put the power cord back...
-
Page 9: Install Driver
III. Install Driver Please follow the instructions below to install and uninstall the driver. III-1. Driver Installation You can find Wi-Fi & Bluetooth diver from the Edimax website below or via QR Code: https://www.edimax.com/download (Once you’ve visited the Edimax official website, please enter the model no. -
Page 10: Iii-2. Driver Uninstallation
III-2. Driver Uninstallation For Windows 10: 1. Open Control Panel using the Start menu or Search function. 2. Select “Uninstall a program” under the programs category. - Page 11 3. Select” Edimax” (or similar) and click “Uninstall)
- Page 12 COPYRIGHT Copyright Edimax Technology Co., Ltd. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission from Edimax Technology Co., Ltd.
- Page 13 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 14 Canada, Innovation, Science and Economic Development Canada (ISED) Notices This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.
- Page 15 21.76 A simplified DoC shall be provided as follows: Article 10(9) AX3000 Dual band PCI-E Hereby, Edimax Technology Co., Ltd. declares that the radio equipment type Network Adapter is in compliance with Directive 2014/53/EU The full text of the EU declaration of conformity is available at the following internet address: http://www.edimax.com/edimax/global/...
- Page 16 EU Declaration of Conformity English: This equipment is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU, 2014/35/EU. Français: Cet équipement est conforme aux exigences essentielles et autres dispositions de la directive 2014/53/EU, 2014/35/EU. Čeština: Toto zařízení je v souladu se základními požadavky a ostatními příslušnými ustanoveními směrnic 2014/53/EU, 2014/35/EU.
- Page 17 Declaration of Conformity We, Edimax Technology Co., Ltd., declare under our sole responsibility, that the equipment described below complies with the requirements of the European Radio Equipment directives. Equipment: AX3000 Dual band PCI-E Network Adapter Model No.: EW-7833AXP The following European standards for essential requirements have been followed:...
