Configuration Steps

Connect the Line interface of the device to the Modem interface of a splitter using a telephone cable.

Connect a telephone to the Phone interface of the splitter using a telephone cable. Connect the Line

interface of the splitter to your existing, incoming line.

The splitter has three interfaces:

 Line: Connect to a wall phone jack (RJ-11 jack).

 Modem: Connect to the ADSL jack of the device.

 Phone: Connect to a telephone set.

Plug one end of the power adapter into a wall outlet and connect the other end to the 12V interface of

the device.

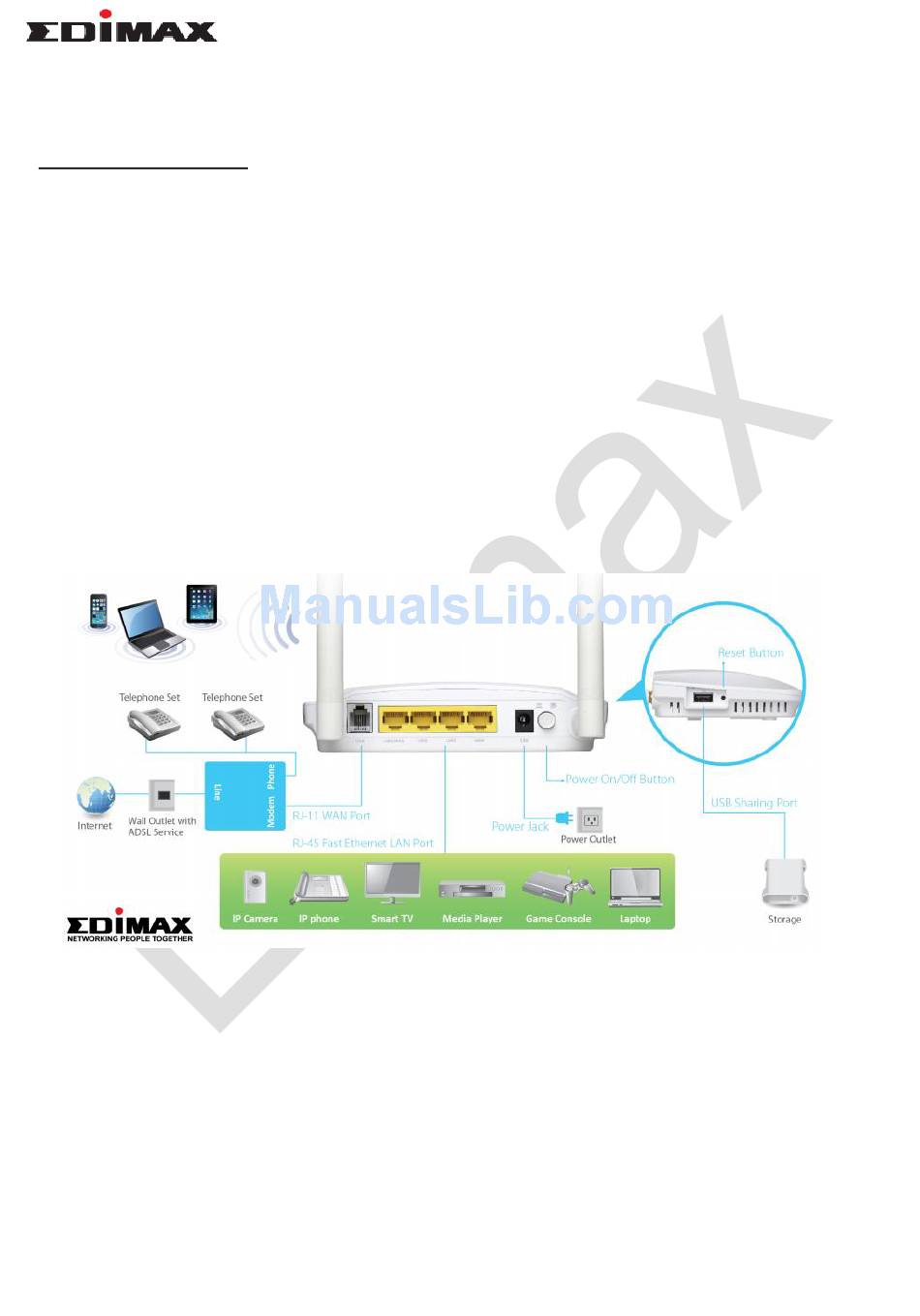

The following diagram shows how to correctly connect the router, PC, splitter and the telephone sets.

Please check the ADSL LED on the front panel. This light indicates the status of your ADSL broadband

through your telephone line. If the light is on, you can continue setup. However if the light is flashing,

there is no broadband line detected. Please call your Internet Service Provider (ISP) and inform them

about the flashing ADSL light to resolve the issue.

Note: You must use the power adapter included in the package with the router, do NOT attempt to use a

third-party power adapter.

How to Configure AR-7288WnA on MAC

Table of Contents

Do you have a question about the AR-7288WnA and is the answer not in the manual?

Page 1 How to Configure AR-7288WnA on MAC Configuration Steps A. Hardware Installation 1. Connect the ADSL line Connect the Line interface of the device to the Modem interface of a splitter using a telephone cable. Connect a telephone to the Phone interface of the splitter using a telephone cable. Connect the Line interface of the splitter to your existing, incoming line.
Page 2 4. MAC LAN IP configuration Configure your MAC’s LAN settings to automatically obtain an IP address from the router by following the steps below: a. Select “ EdimaxADSL “ to connect AR-7288WnA via wireless. b. Select “ Wi-Fi “, and click “ Advanced “.
Page 3 c. Select “ TCP/IP “, and configure “ Configure IPV4 “ as “ Using DHCP “. B. Internet Connection You can login to the ADSL router using Internet Explorer, and configure the router from there using the web-based interface. Please follow the instructions below: 1.
Page 4 2. The login screen below will appear. Enter the default username “admin” and default password “1234” and click “OK”. 3. You will arrive at the system status page as shown below.
Page 5 4. In the navigation bar across the top of the screen, click “Quick Start”. The Wizard page of the web-based interface allows fast configuration of the Internet connection and other parameters. Please refer to the user manual for detailed information on these parameters. Enter the required information on each page of the quick start and click “Apply”...
