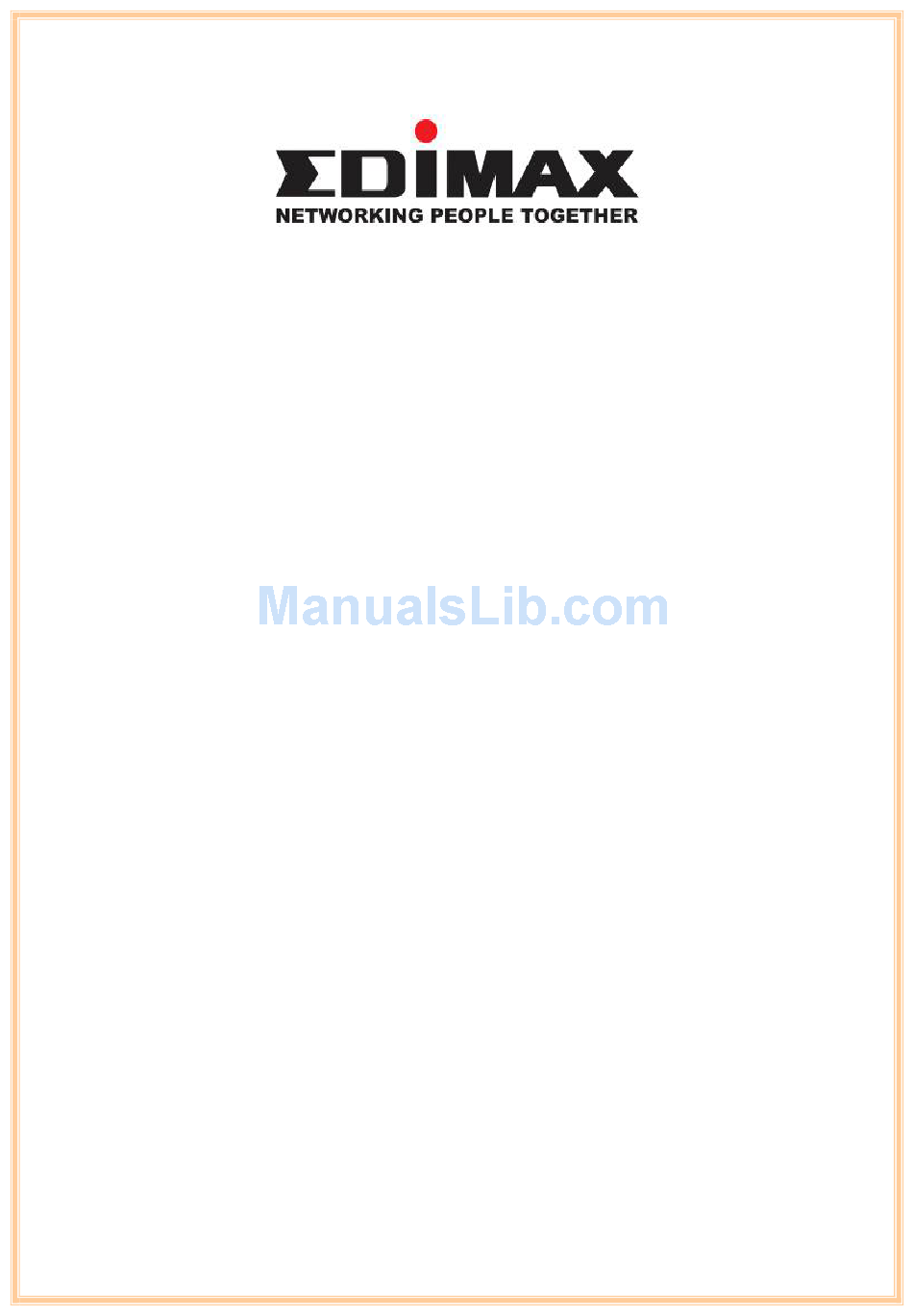

User's Manual
December 2006
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AR-7025Um and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Edimax AR-7025Um

Summary of Contents for Edimax AR-7025Um

  • Page 1 AR-7025Um User’s Manual December 2006...
  • Page 2 Copyright© by Edimax Technology Co, LTD. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic,optical, chemical,...

  • Page 3: Table Of Contents

    Contents 1. Introduction ..................5 1.1 System Requirements ................5 1.2 Package Contents..................5 2. Product Features................6 2.1 Features and Benefits ................6 2.2 Applications ....................6 2.3 ADSL Compliant..................6 2.4 ATM and PPP Protocols ................6 2.5 Encapsulation Mode .................. 6 2.6 Supported OS.....................
  • Page 4 5.3.2 Compiling the Driver ..............21 5.3.3 Loading Modem Driver ..............22 5.3.4 Verification of driver loading successfully ........23 6. Customizing Communication Settings .........24 6.1 Accessing Communication Settings on Windows ....... 24 7. The DSL Status Application ............26 7.1 Windows DSL Status Application ............26 8.

  • Page 5: Introduction

    1. Introduction This USB ADSL Modem is an external ADSL modem that connecting broadband ADSL line to USB connector of PC system. The USB ADSL Modem uses advanced ADSL chipset solution with complete set of industry standard features for high-speed Internet access. The USB ADSL Modem offers easy installation and cost-effective connection for SOHO and residential users.

  • Page 6: Product Features

    2. Product Features 2.1 Features and Benefits USB specifications v1.1 compliant USB bus power. Additional power adapter is unnecessary. Full rate operation with up to 8 Mbps downstream data rate and up to 1 Mbps upstream data rate enables high-speed Internet access. Friendly GUI configuration and management software Firmware downloadable feature provides performance and feature enhancements in the future release...

  • Page 7: Supported Os

    For LAN Connection Classical IP over ATM (RFC 1577) IP over ATM Bridged LLC (RFC 2684) IP over ATM Bridged VC (RFC 2684) IP over ATM Routed LLC (RFC 2684) IP over ATM Routed VC (RFC 2684) VPI / VCI Settings VPI value: 0~255 VCI value: 32~65535 2.6 Supported OS...

  • Page 8: Hardware Indicators And Connectors

    3. Hardware Indicators and Connectors 3.1 LED Descriptions When modem is establishing the connection, the LED will be blinking. When modem is connected, the LED will be on steadily. 3.2 Front Panel Connect this connector with Type-B end of USB cable. 3.3 Rear Panel Connect this connector with RJ-11 cable.

  • Page 9: Hardware Installation

    4. Hardware Installation 4.1 Before You Start… In MAC operating systems, you need to install the device drivers first (see next chapter) and then perform the hardware installation steps below 4.2 Hardware Installation Install the USB ADSL Modem by following these steps with the PC running: 1.

  • Page 10: Software Installation

    5. Software Installation The software installation procedures vary depending upon the operating system of your PC. Be sure to follow the instructions provided for the operating system appropriate for you. 5.1 Before You Start… The following information may be required for software installation. Contact your DSL service provider before proceeding with software installation.

  • Page 11: Windows Installation

    5.2 Windows Installation The software setup process for Microsoft Windows applications (XP, 2000, Me, and 98SE) is described below with operating system specific differences noted. The USB ADSL Modem should be connected to your PC prior to installing the driver software. No other Windows programs should be running on your PC during the software install process Step 1: The Microsoft Windows “Found New Hardware Wizard”...
  • Page 12 Install Driver: Click here to install USB ADSL modem driver. User Manual “Conexant AccessRunner USB ADSL”: Click here to read user’s manual. Acrobat: Click here to install Acrobat Reader. Panda: Click here to start Anti Virus program. Step 3: Click “Install Driver”, and then select the country you are at, PS.
  • Page 13 Step 4: After country selection, the window below will appear. Select the ISP, and then click “ ” to next page. Step 5: Enter your account “User Name, Password and Password Confirm” then click “ ” to next page,...
  • Page 14 Step 6: Confirm modem settings and click “ ” to next page, Step 7: Software kit searches available USB modem,...
  • Page 15 Step 8: Please wait for while during the device driver is installing. [For Windows XP and 2000] Step 9: After the device driver is installed completed, you will see the window as below, click “ ” to exit the wizard.
  • Page 16 [For Windows ME] Step 9: After the device driver is installed completed, you will see the window as below. Step 10: Follow the previous appeared window, DSL Modem Setup Wizard will appear and remind you the system will automatically reboot within 10 seconds. Step 11: After reboot your system, please wait for DSL Modem Setup wizard complete the device configuration process;...
  • Page 17 [For Windows 98SE] Step 9: For Widows 98SE, during the installation process, the system will ask you to insert Windows 98SE installation CD, please insert the CD and click “OK”. Step 10: Insert Windows 98SE CD-ROM in the selected driver and click OK. Step 11: After the device driver is installed completely, you will see the window as below.
  • Page 18 Step 12: Follow the previous appeared window, DSL Modem Setup Wizard will appear and remind you the system will automatically reboot within 10 seconds. Step 13: After system reboot, please wait for DSL Modem Setup wizard complete the device configuration process and then your ADSL USB Modem will be installed properly. Note: If your country ISP Setting is not in the ISP list, If your country is not on the list, please click “...
  • Page 19 a) After you select ”Other”, the window below will appear, PS. Please refer to the following table before you select “Typical Default WAN Setting” or “Typical Default LAN Setting”. Connection Type Encapsulation and Multiplexing method Network Information PPP over ATM LLC (RFC 2364) Internet Account information: PPP over ATM NULL (RFC 2364) User name...
  • Page 20 <<Attention — For Windows ME & 98SE>> After your device driver is installed properly, the “Conexant Dial-up PPP Connection” icon will be created on the desktop. Please Do Not change the default settings In the Phone Number section. If the setting is changed by accident, please do the following steps: (1) Close the “Conexant Dial-up PPP Connection”...

  • Page 21: Linux Installation

    5.3 Linux Installation This chapter describes the Linux LAN/WAN driver for this USB ADSL modem. This driver supports Linux-2.6 kernels. The Linux kernel sources can be downloaded from: http://www.kernel.org/pub/linux/kernel/v2.6/. The installed system should already have the kernel sources installed in the /usr/src/linux or /lib/modules directory.

  • Page 22: Loading Modem Driver

    target(s). % make - This is to create the Control panel application. (Command to be executed from directory monaco_linux/cpl.) 5.3.3 Loading Modem Driver The module accepts several parameters that can be set when the module is loaded. [Syntax] insmod ./GUModem.ko {Module Options} (Command to be executed from directory monaco_linux/ModemDrv/src) [Module Options] Rfc1483Mode...

  • Page 23: Verification Of Driver Loading Successfully

    PPPOA interfaces. Maximum value for this variable in this release is 4 and hence can have any walue between 1 and 4, any value above 4 and below 1 is invalid and driver loading will fail. Rfc1483Vpi1, Rfc1483Vpi2, Rfc1483Vpi3, Rfc1483Vpi4 -- These are 4 different values of the VPIs that user wants to configure.

  • Page 24: Customizing Communication Settings

    6. Customizing Communication Settings 6.1 Accessing Communication Settings on Windows Once the USB ADSL Modem and software have been installed, the communication settings may be easily updated by performing the following steps: Step 1: From your PC desktop, click Start Program Conexant DSL Modem Configure.
  • Page 25 Step 3: The system must be rebooted to have the new settings take effect, therefore the “Reboot” window will appear. Remove all disks from their drives, select Yes, reboot the computer now, and click Close to reboot.

  • Page 26: The Dsl Status Application

    7. The DSL Status Application The USB ADSL Status Application program provides a quick and easy way to check the performance of the modem and the ADSL connection in Windows operating systems. When open, the monitor window updates every 2 seconds. 7.1 Windows DSL Status Application There are 3 methods to access the DSL Status Application: From the Start...
  • Page 27 The system information can be displayed by clicking on the arrow button This screen displays the release number of the Package Version, DSL Modem driver version, Control Panel Version and the Firmware version you are currently using.

  • Page 28: Software Uninstall

    8. Software Uninstall 8.1 Windows Uninstall Remove the USB ADSL Modem software drivers by performing the following steps: Note: The USB cable should NOT be unplugged until you are prompted to do so. Step 1: From your PC desktop, click Start Programs Conexant DSL Modem Uninstall.
  • Page 29 Step 4: A message will be displayed indicating the software is being removed. Step 5: You will be prompted to unplug your modem. Unplug the USB cable from the PC and click OK. Step 6: The DSL Modem Setup Wizard window will appear as below. The system will automatically reboot within 10 seconds.

  • Page 30: Modifying Tcp/Ip Networking Option

    9. Modifying TCP/IP Networking Option 9.1 WAN USB Driver 9.1.1 Microsoft Windows XP TCP/IP settings are set up automatically during the software installation process. The following procedure may be used to change TCP/IP settings, if necessary. Step 1: From your PC desktop, open the “Control Panel” window (Start Control Panel).
  • Page 31 Step 3: The “General” tab of the “Conexant Dial-Up PPP Connection Properties” window allows you to specify a different VPI and VCI, if needed. Contact your DSL service provider before altering this connection information. Enter the VPI and VCI in the Phone Number field (For example: 8,35) Step 4: From the “Networking”...

  • Page 32: Microsoft Windows 2000

    Step 5: Use the “Internet Protocol (TCP/IP) Properties” window to modify the IP address and DNS Server addresses as follows: • Change the IP address to a user defined address by selecting Use the following IP address (click inside the radio button to the left of it) and typing the address in the space provided •...
  • Page 33 Step 1: From your PC desktop, open the “Control Panel” window (Start Settings Control Panel). Double click the Network and Dial-up icon. Step 2: From the “Network and Dial-up” window, right click the Conexant Dial-Up PPP Connection icon and click Properties. Step 3: The “General”...
  • Page 34 Step 4: From the “Networking” tab of the “Conexant Dial-Up PPP Connection Properties” window, select Internet Protocol (TCP/IP) and click Properties Step 5: Use the “Internet Protocol (TCP/IP) Properties” window to modify the IP address and DNS Server addresses as follows:...

  • Page 35: Microsoft Windows Me

    • Change the IP address to a user defined address by selecting Use the following IP address (click inside the radio button to the left of it) and typing the address in the space provided • Change the DNS Server addresses to user defined addresses by selecting Use the following DNS server addresses (click inside the radio button to the left of it) and typing the addresses in the spaces provided.
  • Page 36 Step 2: From the “Dial-up Networking” window, right click the Conexant Dial-Up PPP Connection icon and click Properties. Step 3: From the “Networking” tab of the Conexant Dial-up PPP Connection Window, select TCP/IP (marked with a check in the check-box to the left) and click TCP/IP Settings button.
  • Page 37 Step 4: Use the “TCP/IP Settings” window to modify the IP address, Name Server address and/or default gateway as follows: • Change the IP address to a user defined address by selecting Specify an IP address (click inside the circle to the left of it) and typing the address in the space provided •...

  • Page 38: Microsoft Windows 98Se

    Specify name server addresses (click inside the circle to the left of it) and typing the addresses in the spaces provided • Change the default gateway by leaving the box blank to the left of Use default gateway on remote network. Step 5: Click OK to apply your changes and exit from the “TCP/IP Settings”...
  • Page 39 Step 3: From the “Server Types” tab of the “Conexant Dial-up PPP Connection” Window, select TCP/IP by checking the check to the left and click TCP/IP settings button. Step 4: Use the “TCP/IP Settings” window to modify the IP address, Name Server address and/or default gateway as follows:...

  • Page 40: Lan Usb Driver

    • Change the IP address to a user defined address by selecting Specify an IP address (click inside the circle to the left of it) and typing the address in the space provided • Change the Name Server addresses to user defined addresses by selecting Specify name server addresses (click inside the circle to the left of it) and typing the addresses in the spaces provided...
  • Page 41 Step 2: Double click the Local Area connection icon from the “Network Connections” window. Step 3: Select Internet Protocol (TCP/IP) from the “General” tab of the “Local Area Connection Properties” windows. Click Properties. Step 4: The “Internet Protocol(TCP/IP) Properties” window is used to modify the IP address and DNS Server address as follows.

  • Page 42: Microsoft Windows 2000

    address option (click inside the circle to the left of it) and typing the addresses in the spaces provided • Change the DNS Server addresses to user defined addresses by selecting Use the following DNS server addresses (click inside the circle to the left of it) and typing the addresses in the spaces provided.
  • Page 43 Step 4: The “Internet Protocol(TCP/IP) Properties” window is used to modify the IP address and DNS Server address as follows. • Change the IP address to a user defined address by selecting Use the following IP address option (click inside the circle to the left of it) and typing the addresses in the spaces provided •...

  • Page 44: Microsoft Windows Me

    • The Advanced button of the “Internet Protocol (TCP/IP) Properties” window may be used to alter IP settings, DNS server addresses, WINS addresses, IP security options, and TCP/IP filtering options. Step 5: Click OK to apply your changes and exit from the “Internet Protocol (TCP/IP) Properties”...
  • Page 45 Step 4: The “Gateway” tab allows you to add or remove gateways. Consult with your network administrator to determine the appropriate address for your individual needs. • To add a new gateway, type the address in the New gateway field and click Add. The new gateway will appear in the Installed gateway list.

  • Page 46: Microsoft Windows 98Se

    Step 5: Click OK to apply your changes and exit from the “TCP/IP Properties” windows. Step 6: The “Network” window will reappear. Click OK to end the TCP/IP options modification session. Step 7: If you have made changes to TCP/IP properties, you will be asked to restart/reboot your PC.
  • Page 47 • To add a new gateway, type the address in the New gateway field and click Add. The new gateway will appear in the Installed gateway list. • To remove a previously installed gateway, highlight the entry to be removed in the Installed gateway list and click Remove.
  • Page 48 If you have any troubles to configure or setup this ADSL USB Modem, please contact us. Before contacting us, make sure collect following information. Submit complete detailed information of your problem will help us to provide you accurate answers. Model Name: Serial Number: PC Settings: Other:...
