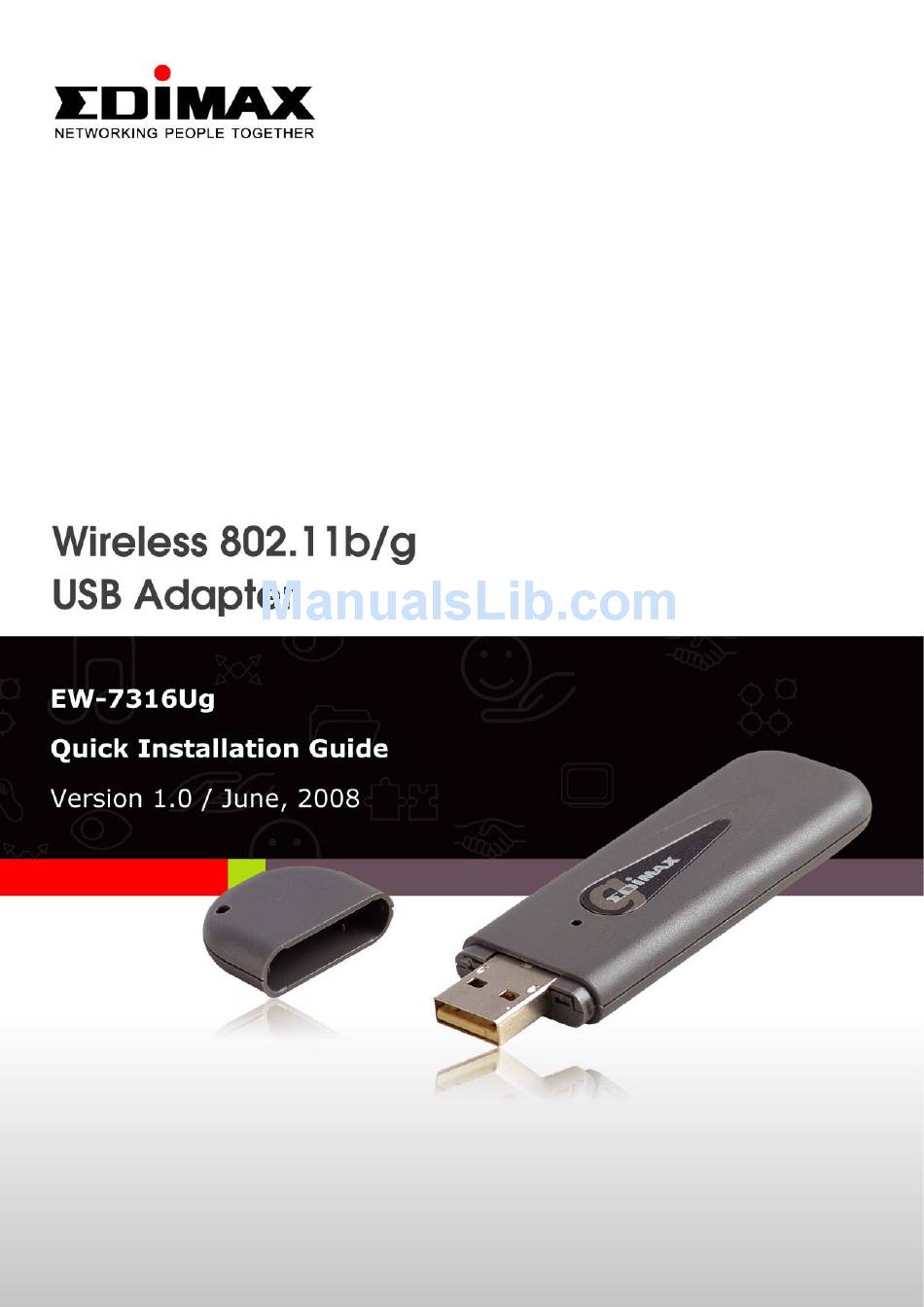

Edimax EW-7316Ug Quick Install Manual

Edimax EW-7316Ug Quick Install Manual

Wireless 802.11b/g usb adaptor
Hide thumbs Also See for EW-7316Ug:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EW-7316Ug and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Edimax EW-7316Ug

Summary of Contents for Edimax EW-7316Ug

  • Page 2 Č ý : Českého průvodce rychlou instalací naleznete na Č ý přiloženém CD s ovladači : Finden Sie bitte das deutsche QIG beiliegend in der Treiber CD ñ l : Incluido en el CD el QIG en Español. ñ ç : Veuillez trouver l’français QIG ci-joint dans le ç...
  • Page 3 COPYRIGHT Copyright ©2005/2006 are all rights reserved by Edimax Technology Co. Ltd. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical,...

  • Page 4: Table Of Contents

    1. Product Introduction ... 5 2. Product Package... 5 3. Hardware Installation ... 6 4. Software Installation... 7 5. Connect to Wireless Access Point...11 5.1 Using Realtek Wireless Configuration Utility...11 5.2 Using Windows Zero Config... 15 6. Federal Communication Commission Interference Statement ... 19 7.

  • Page 5: Product Introduction

    1. Product Introduction Thank you for your purchasing Edimax Wireless 802.11b/g USB Adapter. This USB adapter is designed to comply with IEEE 802.11b/g Wireless LAN standard and easy to carry with the Mini size. It is suitable for any Laptop or Desktop computers.

  • Page 6: Hardware Installation

    3. Hardware Installation Please follow the instructions as below to install your new Wireless USB Adapter: Step 1. Please insert the Wireless USB Adapter into an available USB 2.0 port of your computer. We recommend you to insert the adapter after the software of driver/utility has been installed.

  • Page 7: Software Installation

    4. Software Installation This wizard can be run in Windows 2000/XP/XP64/2003/Vista. The following procedures are operated in Windows XP. (Procedures are similar for Windows 2000/XP/XP64/Vista.) Insert the CD shipped along with the product into your CD-ROM drive. The Windows Vista will popup AutoPlay window, Please select “Install or run program”...
  • Page 8 3. Please Select the Setup Language and click “Next” to proceed. 4. Please Click “Next” to start installing driver and utility...
  • Page 9 5. Please click “install” to start the installation 6. The driver and utility is installing, please wait a while.
  • Page 10 7. When you see this message, please click ‘Finish’ to complete the driver installation process.

  • Page 11: Connect To Wireless Access Point

    5. Connect to Wireless Access Point Using Configuration Utility to Connect to Wireless Access Point 5.1 Using Realtek Wireless Configuration Utility 1. After installation is complete, wireless configuration utility will be shown an icon at your windows desktop as below. Please click the icon by right mouse key to lunch the configuration utility.
  • Page 12 3. If the wireless access point uses encryption, you have to input WEP passphrase or WPA preshared key. Please ask the owner of the wireless access point you want to connect, and input the correct passphrase / preshared key at “Network key” & “Confirm network key”, then click ‘OK’. If the value you inputted here is wrong, you will not be able to connect to wireless access point.
  • Page 13 4. The utility will automatically add the access point at Wireless Utility Profile.
  • Page 14 5. If the wireless access point is successfully connected, you’ll see a connected icon displayed at the lower-left corner of wireless configuration utility window and click ‘Close’ to exit.

  • Page 15: Using Windows Zero Config

    5.2 Using Windows Zero Config 1. After lunch wireless configuration, Please select “Windows Zero Config” and click “OK” to disable the utility of the adapter.. 2. Please lunch Windows Zero Config by double-click the wireless connection icon in the lower-left corner on Windows desktop.
  • Page 16 3. The Windows Zero Config Panel will pup-up. Please select the wireless access point which you want to connect and click “Connect”...
  • Page 17 4. If the wireless access point without encryption, there is warning window will pup-up. Please click “Connect Anywhere”.
  • Page 18 5. When you see the “Connected” shows on the Windows Zero Config window, the wireless is successfully connected.

  • Page 19: Federal Communication Commission Interference Statement

    6. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 20: R&Tte Compliance Statement

    Slovenia, the Netherlands, Portugal, Spain, Sweden, and the United Kingdom. The ETSI version of this device is also authorized for use in EFTA member states: Iceland, Liechtenstein, Norway, and Switzerland. EU Countries not intended for use None Please check the declaration of conformity on www.edimax.com...
