Front-Panel Buttons and Indicators

LCD display

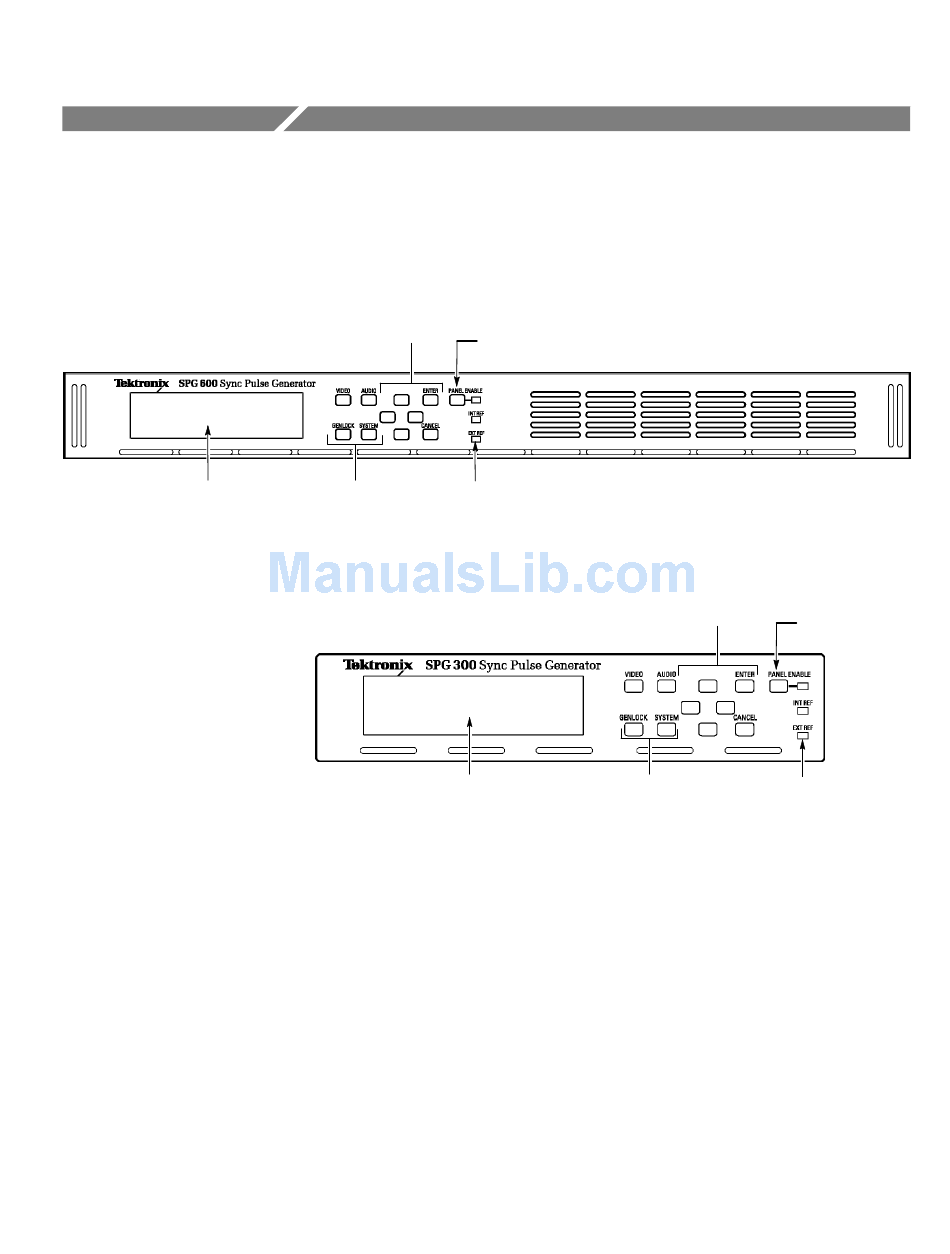

Figure 1: SPG600 front panel

LCD Display
VIDEO Button
AUDIO Button
GENLOCK Button
SPG600 & SPG300 Sync Pulse Generators Quick Reference Manual
This section describes the sync pulse generator front-panel buttons and
indicators.
Menu control
buttons
PANEL ENABLE
button
Menu buttons Reference indicator
LCD display

Figure 2: SPG300 front panel

Use the two-line, 20-character per line LCD display to show instrument settings.
You can adjust the contrast of the LCD display using the System menu.
Use this button to access the Video menu. The Video menu lets you select output
signal and set video parameters.
Use this button to access the Audio menu. The Audio menu lets you set audio
parameters such as amplitude and frequency.
Use this button to access the Genlock menu. The Genlock menu lets you set
genlock parameters such as genlock source and genlock timing.
Menu control
buttons
Reference indicator
Menu buttons
PANEL ENABLE
button
