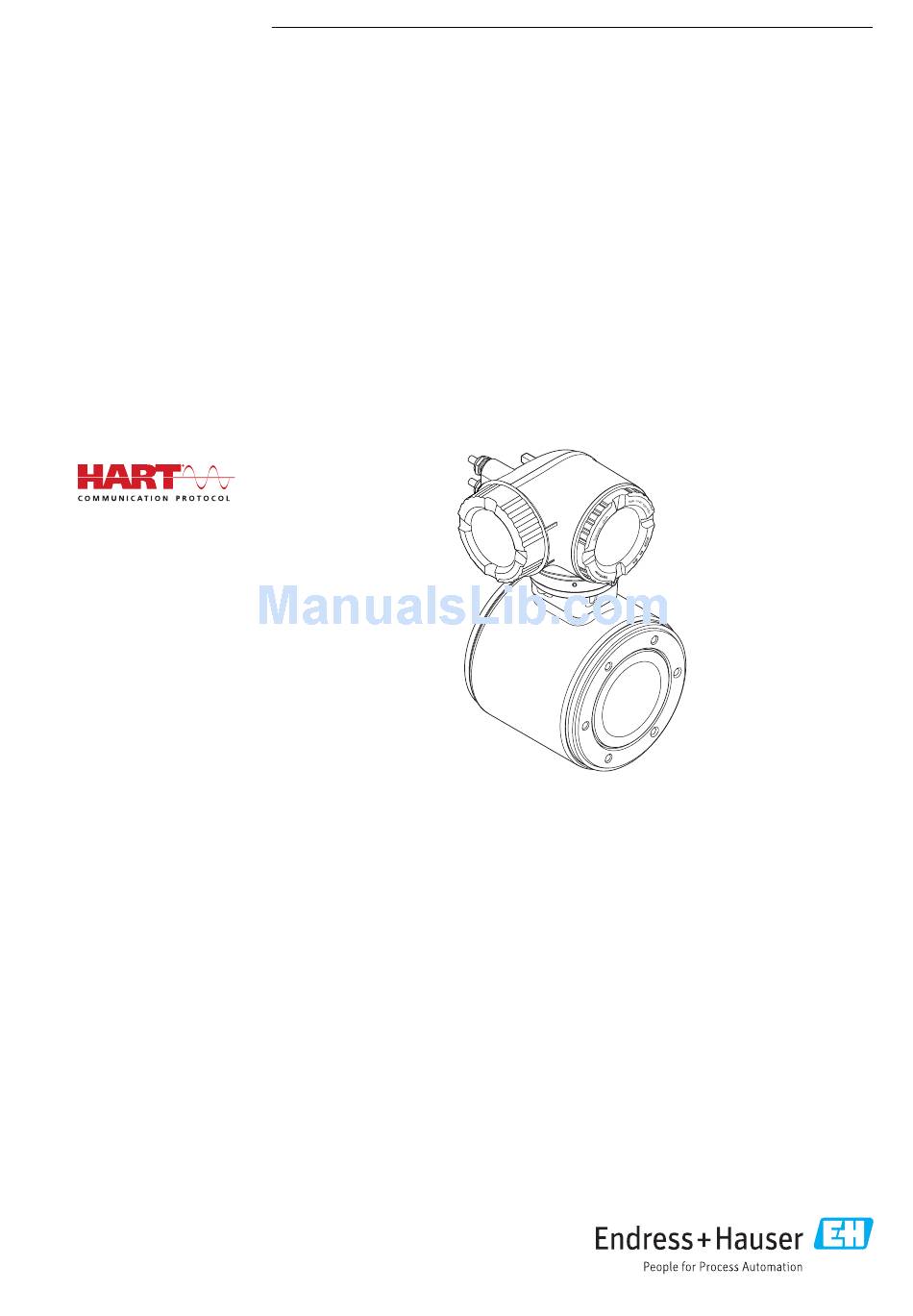

Page 1: Operating Instructions
Products Solutions Services BA01392D/06/EN/01.16 71302563 Valid as of version 01.01.zz (Device firmware) Operating Instructions Proline Promag H 300 HART Electromagnetic flowmeter...
Page 2 • Make sure the document is stored in a safe place such that it is always available when working on or with the device. • To avoid danger to individuals or the facility, read the "Basic safety instructions" section carefully, as well as all other safety instructions in the document that are specific to working procedures.
Page 3: Table Of Contents
Table of contents Table of contents Document information ....6 Installation ..... . . 22 Document function .
Page 4 ... . 122 Measured variables via HART protocol ..69 11.7 Showing data logging ....
Page 5 Table of contents 12.13 Firmware history ..... 145 Maintenance ....146 13.1 Maintenance tasks .
Page 6: Document Information
Document information Proline Promag H 300 HART Document information Document function These Operating Instructions contain all the information that is required in various phases of the life cycle of the device: from product identification, incoming acceptance and storage, to mounting, connection, operation and commissioning through to troubleshooting, maintenance and disposal.
Page 7: Tool Symbols
Proline Promag H 300 HART Document information Symbol Meaning Light emitting diode is off. Light emitting diode is on. Light emitting diode is flashing. 1.2.4 Tool symbols Symbol Meaning Flat blade screwdriver Allen key Open-ended wrench 1.2.5 Symbols for certain types of information...
Page 8: Documentation
Document information Proline Promag H 300 HART Symbol Meaning Hazardous area Safe area (non-hazardous area) Flow direction Documentation For an overview of the scope of the associated Technical Documentation, refer to the following: • The W@M Device Viewer : Enter the serial number from the nameplate (www.endress.com/deviceviewer)
Page 9: Registered Trademarks
Proline Promag H 300 HART Document information Registered trademarks HART ® Registered trademark of the FieldComm Group, Austin, Texas, USA Applicator ® , FieldCare ® , DeviceCare ® , Field Xpert , HistoROM ® , Heartbeat Technology Registered or registration-pending trademarks of the Endress+Hauser Group...
Page 10: Basic Safety Instructions
Basic safety instructions Proline Promag H 300 HART Basic safety instructions Requirements for personnel The personnel for installation, commissioning, diagnostics and maintenance must fulfill the following requirements: ‣ Trained, qualified specialists must have a relevant qualification for this specific function and task.
Page 11: Workplace Safety
Proline Promag H 300 HART Basic safety instructions NOTICE Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability as minute changes in the temperature, concentration or level of contamination in the process can alter the corrosion resistance properties.
Page 12: It Security
Basic safety instructions Proline Promag H 300 HART IT security We only provide a warranty if the device is installed and used as described in the Operating Instructions. The device is equipped with security mechanisms to protect it against any inadvertent changes to the device settings.
Page 13: Access Via Fieldbus
Proline Promag H 300 HART Basic safety instructions General notes on the use of passwords • The access code and network key supplied with the device should be changed during commissioning. • Follow the general rules for generating a secure password when defining and managing the access code or network key.
Page 14: Product Description
Product description Proline Promag H 300 HART Product description The device consists of a transmitter and a sensor. The device is available as a compact version: The transmitter and sensor form a mechanical unit. Product design N ic te r e rg ö...
Page 15: Incoming Acceptance And Product
Proline Promag H 300 HART Incoming acceptance and product identification Incoming acceptance and product identification Incoming acceptance Are the order codes on the delivery note (1) and the product sticker (2) identical? A0028673 A0029314 A0029315 Are the goods undamaged? A0028673...
Page 16: Product Identification
Incoming acceptance and product identification Proline Promag H 300 HART Product identification The following options are available for identification of the measuring device: • Nameplate specifications • Order code with breakdown of the device features on the delivery note • Enter serial numbers from nameplates in W@M Device Viewer (www.endress.com/deviceviewer): All information about the measuring device is...
Page 17: Transmitter Nameplate
Proline Promag H 300 HART Incoming acceptance and product identification 4.2.1 Transmitter nameplate 3 4 5 Order code: Ser. no.: Ext. ord. cd.: Date: A0029192  2 Example of a transmitter nameplate Manufacturing location Name of the transmitter Order code Serial number (ser.
Page 18: Sensor Nameplate
Incoming acceptance and product identification Proline Promag H 300 HART 4.2.2 Sensor nameplate Order code: Ser. no.: Ext. ord. cd.: Date: A0029204  3 Example of sensor nameplate Name of the sensor Manufacturing location Order code Serial number (ser. no.) Extended order code (Ext.
Page 19: Symbols On Measuring Device
Proline Promag H 300 HART Incoming acceptance and product identification 4.2.3 Symbols on measuring device Symbol Meaning WARNING! This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury. Reference to documentation Refers to the corresponding device documentation.
Page 20: Storage And Transport
Storage and transport Proline Promag H 300 HART Storage and transport Storage conditions Observe the following notes for storage: • Store in the original packaging to ensure protection from shock. • Do not remove protective covers or protective caps installed on process connections.
Page 21: Measuring Devices With Lifting Lugs
Proline Promag H 300 HART Storage and transport 5.2.2 Measuring devices with lifting lugs CAUTION Special transportation instructions for devices with lifting lugs ‣ Only use the lifting lugs fitted on the device or flanges to transport the device. ‣...
Page 22: Installation
Installation Proline Promag H 300 HART Installation Installation conditions 6.1.1 Mounting position Mounting location A0029343 Preferably install the sensor in an ascending pipe, and ensure a sufficient distance to the next pipe elbow: h ≥ 2 × DN To prevent measuring errors arising from accumulation of gas bubbles in the measuring tube, avoid the following mounting locations in the pipe: •...
Page 23 Proline Promag H 300 HART Installation A0029257 Orientation The direction of the arrow on the sensor nameplate helps you to install the sensor according to the flow direction (direction of medium flow through the piping). An optimum orientation position helps avoid gas and air accumulations and deposits in the measuring tube.
Page 24: Requirements From Environment And Process
Installation Proline Promag H 300 HART ≥ 5 x DN ≥ 2 x DN A0028997 Installation dimensions For the dimensions and installation lengths of the device, see the "Technical Information" document, "Mechanical construction" section 6.1.2 Requirements from environment and process...
Page 25 Proline Promag H 300 HART Installation A0029004  5 Measures to avoid device vibrations (L > 10 m (33 ft)) Adapters Suitable adapters to DIN EN 545 (double-flange reducers) can be used to install the sensor in larger-diameter pipes. The resultant increase in the rate of flow improves measuring accuracy with very slow-moving fluids.
Page 26: Special Mounting Instructions
Installation Proline Promag H 300 HART 6.1.3 Special mounting instructions Protective cover 280 (11.0) 270 (10.5) A0029553 Mounting the measuring device 6.2.1 Required tools For sensor For flanges and other process connections: • Screws, nuts, seals etc. are not included in the scope of supply and must be provided by the customer.
Page 27 Proline Promag H 300 HART Installation 3. Install the measuring device or turn the transmitter housing so that the cable entries do not point upwards.  A0029263 The sensor is supplied to order, with or without pre-installed process connections. Pre- installed process connections are firmly secured to the sensor by 4 or 6 hexagonal-headed bolts.
Page 28 Installation Proline Promag H 300 HART 3. Depending on the application the seals should be replaced periodically, particularly if molded seals are used (aseptic version)! The interval between changes depends on the frequency of the cleaning cycles, the cleaning temperature and the medium temperature.
Page 29: Turning The Transmitter Housing
Proline Promag H 300 HART Installation 6. Mount the process connection back on the sensor. When doing so, make sure to observe the maximum screw tightening torques for lubricated threads: 7 Nm (5.2 lbf ft) 6.2.4 Turning the transmitter housing To provide easier access to the connection compartment or display module, the transmitter housing can be turned.
Page 30: Post-Installation Check
Installation Proline Promag H 300 HART Post-installation check Is the device undamaged (visual inspection)?  Does the measuring device conform to the measuring point specifications? For example: • Process temperature  • Process pressure (refer to the section on "Pressure-temperature ratings" in the "Technical Information"...
Page 31: Electrical Connection
Minimum requirement: cable temperature range ≥ ambient temperature +20 K Power supply cable Standard installation cable is sufficient. Signal cable Current output 4 to 20 mA HART A shielded cable is recommended. Observe grounding concept of the plant. Current output 0/4 to 20 mA Standard installation cable is sufficient.
Page 32 Electrical connection Proline Promag H 300 HART Current input 0/4 to 20 mA Standard installation cable is sufficient. Status input Standard installation cable is sufficient. Cable diameter • Cable glands supplied: M20 × 1.5 with cable ⌀ 6 to 12 mm (0.24 to 0.47 in) •...
Page 33: Terminal Assignment
Proline Promag H 300 HART Electrical connection 7.1.3 Terminal assignment Transmitter: supply voltage, input/outputs The terminal assignment of the inputs and outputs depends on the individual order version of the device. The device-specific terminal assignment is documented on an adhesive label in the terminal cover.
Page 34 Electrical connection Proline Promag H 300 HART – – – 3 mm A0029813 1. Loosen the securing clamp of the connection compartment cover. 2. Unscrew the connection compartment cover. 3. Squeeze the tabs of the display module holder together. 4. Remove the display module holder.
Page 35 Proline Promag H 300 HART Electrical connection 22 mm 24 mm – A0029816 10. Connect the cable in accordance with the terminal assignment .  Signal cable terminal assignment: The device-specific terminal assignment is documented on an adhesive label in the terminal cover.
Page 36: Connecting Remote Display And Operating Module Dkx001
Electrical connection Proline Promag H 300 HART 7.2.2 Connecting remote display and operating module DKX001 NOTICE If ordered subsequently: only one display or operation unit may be connected to the transmitter at any one time. The remote display and operating module DKX001 cannot be connected at the same time as the existing display or operation unit.
Page 37 Proline Promag H 300 HART Electrical connection affect the measuring accuracy or cause the destruction of the sensor as a result of the electrochemical decomposition of the electrodes. Note the following when using grounding rings: • Depending on the option ordered, plastic disks are used instead of grounding rings on some process connections.
Page 38: Special Connection Instructions
Cable shield: the cable shield must be grounded at both ends to comply with EMC requirements; observe cable specifications Connection for HART operating devices →  63 Resistor for HART communication (≥ 250 Ω): observe maximum load →  155 Analog display unit: observe maximum load →  155 Transmitter 4...20 mA...
Page 39 4...20 mA A0028763  10 Connection example for HART input with a common negative (passive) Automation system with HART output (e.g. PLC) Active barrier for power supply (e.g. RN221N) Cable shield: the cable shield must be grounded at both ends to comply with EMC requirements; observe cable...
Page 40 Electrical connection Proline Promag H 300 HART Pulse/frequency output 12345 A0028761  13 Connection example for pulse/frequency output (passive) Automation system with pulse/frequency input (e.g. PLC) Power supply Transmitter: Observe input values →  155 Switch output A0028760  14 Connection example for switch output (passive) Automation system with switch input (e.g.
Page 41 Proline Promag H 300 HART Electrical connection A0029279  16 Connection example for double pulse output (passive) Automation system with double pulse input (e.g. PLC) Power supply Transmitter: Observe input values →  157 Double pulse output Double pulse output (slave), phase-shifted...
Page 42: Ensuring The Degree Of Protection
Electrical connection Proline Promag H 300 HART Status input A0028764  19 Connection example for status input Automation system with status output (e.g. PLC) Power supply Transmitter: Observe input values Ensuring the degree of protection The measuring device fulfills all the requirements for the IP66/67 degree of protection, Type 4X enclosure.
Page 43: Operation Options
Proline Promag H 300 HART Operation options Operation options Overview of operation options A0029295 Local operation via display module Computer with Web browser (e.g. Internet Explorer) or with operating tool (e.g. FieldCare, DeviceCare, AMS Device Manager, SIMATIC PDM) Field Xpert SFX350 or SFX370...
Page 44: Structure And Function Of The Operating Menu
Operation options Proline Promag H 300 HART Structure and function of the operating menu 8.2.1 Structure of the operating menu For an overview of the operating menu for experts: "Description of Device Parameters" document supplied with the device→  175...
Page 45: Operating Philosophy
Proline Promag H 300 HART Operation options 8.2.2 Operating philosophy The individual parts of the operating menu are assigned to certain user roles (operator, maintenance etc.). Each user role contains typical tasks within the device lifecycle. Menu/parameter User role and tasks...
Page 46: Display
Operation options Proline Promag H 300 HART Access to the operating menu via the local display 8.3.1 Operational display X X X X X X X 1120.50 A0029346 Operational display Device tag→  76 Status area Display area for measured values (4-line) Operating elements→...
Page 47: Navigation View
Proline Promag H 300 HART Operation options Mass flow Totalizer  The measurement channel number indicates which of the three totalizers is displayed. Output  The measurement channel number indicates which of the outputs is displayed. Status input Measurement channel numbers...
Page 48 Operation options Proline Promag H 300 HART / ../ Display For more information about the icons in the menu, refer to the "Display area" section →  48 Status area The following appears in the status area of the navigation view in the top right corner: •...
Page 49: Editing View
Proline Promag H 300 HART Operation options Wizard operation Symbol Meaning Switches to the previous parameter. Confirms the parameter value and switches to the next parameter. Opens the editing view of the parameter. 8.3.3 Editing view Numeric editor Text editor...
Page 50 Operation options Proline Promag H 300 HART Text editor Symbol Meaning Toggle • Between upper-case and lower-case letters • For entering numbers • For entering special characters Selection of letters from A to Z. ABC _ … Selection of letters from a to z.
Page 51: Operating Elements
Proline Promag H 300 HART Operation options 8.3.4 Operating elements Meaning Minus key In a menu, submenu Moves the selection bar upwards in a choose list. With a Wizard Confirms the parameter value and goes to the previous parameter. With a text and numeric editor In the input mask, moves the selection bar to the left (backwards).
Page 52 Operation options Proline Promag H 300 HART • Setup • Data backup • Simulation Calling up and closing the context menu The user is in the operational display. 1. Press  for 2 s.  The context menu opens. XXXXXXXXXX 20.50...
Page 53: Navigating And Selecting From List
Proline Promag H 300 HART Operation options 8.3.6 Navigating and selecting from list Different operating elements are used to navigate through the operating menu. The navigation path is displayed on the left in the header. Icons are displayed in front of the individual menus.
Page 54: Calling Up Help Text
Operation options Proline Promag H 300 HART The direct access code consists of a 4-digit number and the channel number, which identifies the channel of a process variable: e.g. 0914-1. In the navigation view, this appears on the right-hand side in the header of the selected parameter.
Page 55: Changing The Parameters
Proline Promag H 300 HART Operation options 8.3.9 Changing the parameters For a description of the editing display - consisting of text editor and numeric editor - with symbols →  49, for a description of the operating elements →  51 Example: Changing the tag name in the "Tag description"...
Page 56: User Roles And Related Access Authorization
Operation options Proline Promag H 300 HART Ent. access code Invalid or out of range input value Min:0 Max:9999 A0014049-EN 8.3.10 User roles and related access authorization The two user roles "Operator" and "Maintenance" have different write access to the parameters if the customer defines a user-specific access code.
Page 57: Access To The Operating Menu Via The Web Browser
Proline Promag H 300 HART Operation options Local operation with touch control The keypad lock is switched on and off via the context menu. Switching on the keypad lock The keypad lock is switched on automatically: • Each time the device is restarted.
Page 58 Operation options Proline Promag H 300 HART Computer software Software Interface CDI-RJ45 WLAN Recommended operating • Microsoft Windows 7 or higher. systems • Mobile operating systems: – iOS – Android  Microsoft Windows XP is supported. Web browsers supported • Microsoft Internet Explorer 8 or higher •...
Page 59: Establishing A Connection
Proline Promag H 300 HART Operation options 8.4.3 Establishing a connection Via service interface (CDI-RJ45) Configuring the Internet protocol of the computer The following information refers to the default Ethernet settings of the device. IP address of the device: 192.168.1.212 (factory setting) 1.
Page 60: Logging On
Operation options Proline Promag H 300 HART Starting the Web browser 1. Start the Web browser on the computer. 2. Enter the IP address of the Web server in the address line of the Web browser: 192.168.1.212  The login page appears.
Page 61: User Interface
Proline Promag H 300 HART Operation options 8.4.5 User interface A0029418 Function row Operating language Navigation area Header The following information appears in the header: • Device tag • Device status with status signal →  132 • Current measured values...
Page 62: Disabling The Web Server
Operation options Proline Promag H 300 HART Working area Depending on the selected function and the related submenus, various actions can be performed in this area: • Configuring parameters • Reading measured values • Calling up help text • Starting an upload/download 8.4.6...
Page 63: Connecting The Operating Tool
Proline Promag H 300 HART Operation options 8.5.1 Connecting the operating tool Via HART protocol This communication interface is available in device versions with a HART output. A0028747  22 Options for remote operation via HART protocol (active) Control system (e.g. PLC) Field Communicator 475 Computer with Web browser (e.g.
Page 64 Operation options Proline Promag H 300 HART Service interface Via service interface (CDI-RJ45) A0027563  24 Connection via service interface (CDI-RJ45) Computer with Web browser (e.g. Microsoft Internet Explorer, Microsoft Edge) for accessing the integrated device Web server or with "FieldCare", "DeviceCare" operating tool with COM DTM "CDI Communication TCP/IP"...
Page 65: Field Xpert Sfx350, Sfx370
Function scope Field Xpert SFX350 and Field Xpert SFX370 are mobile computers for commissioning and maintenance. They enable efficient device configuration and diagnostics for HART and FOUNDATION fieldbus devices in the non-Ex area (SFX350, SFX370) and the Ex area (SFX370).
Page 66: Fieldcare
Operation options Proline Promag H 300 HART 8.5.3 FieldCare Function scope FDT-based plant asset management tool from Endress+Hauser. It can configure all smart field devices in a system and helps you manage them. By using the status information, it is also a simple but effective way of checking their status and condition.
Page 67: Devicecare
Proline Promag H 300 HART Operation options User interface Xxxxxx/…/…/ Device name: Xxxxxxx kg/h Mass flow: 12.34 Device tag: Xxxxxxx Volume flow: 12.34 m /h ³ Status: Good Xxxxxx Mass flow unit: kg/h Access status tooling Maintenance Volume flow unit: m /h ³...
Page 68: Simatic Pdm
Source for device description files See data →  69 8.5.7 Field Communicator 475 Function scope Industrial handheld terminal from Emerson Process Management for remote configuration and measured value display via HART protocol. Source for device description files See data →  69 Endress+Hauser...
Page 69: System Integration
SIMATIC PDM www.endress.com → Download Area (Siemens) Field Communicator 475 Use update function of handheld terminal (Emerson Process Management) Measured variables via HART protocol The following measured variables (HART device variables) are assigned to the dynamic variables at the factory: Endress+Hauser...
Page 70 • Expert → Communication → HART output → Output → Assign PV • Expert → Communication → HART output → Output → Assign SV • Expert → Communication → HART output → Output → Assign TV •...
Page 71: Other Settings
• 10 = totalizer 3 Other settings 9.3.1 Burst mode functionality in accordance with HART 7 Specification Navigation "Expert" menu → Communication → HART output → Burst configuration → Burst configuration 1 to n ‣ Burst configuration ‣ Burst configuration 1 to n Burst mode 1 to n →...
Page 72 Activate the HART burst mode for burst • Off message X. • On Burst command 1 to n Select the HART command that is sent to the • Command 1 Command 2 HART master. • Command 2 • Command 3 •...
Page 73 Proline Promag H 300 HART System integration Parameter Description Selection / User entry Factory setting Min. update period Enter the minimum time span between two Positive integer 1 000 ms burst responses of one burst message. Max. update period Enter the maximum time span between two...
Page 74: Commissioning
Commissioning Proline Promag H 300 HART Commissioning 10.1 Function check Before commissioning the measuring device: ‣ Make sure that the post-installation and post-connection checks have been performed. • "Post-installation check" checklist →  30 • "Post-connection check" checklist →  42 10.2...
Page 75 Proline Promag H 300 HART Commissioning X X X X X X X 20.50 0104-1 Main menu Display language English Display/operat. Setup Main menu Display/operat. Setup Diagnostic / ../Setup Status input XXXXXXXXX XXXXXXXXX A0029700-EN  26 Taking the example of the local display Depending on the device version, not all submenus and parameters are available in every device.
Page 76: Defining The Tag Name
Commissioning Proline Promag H 300 HART 10.4.1 Defining the tag name To enable fast identification of the measuring point within the system, you can enter a unique designation using the Device tag parameter and thus change the factory setting. XXXXXXXXX A0029422 ...
Page 77 Proline Promag H 300 HART Commissioning Corrected volume flow unit →  77 Corrected volume unit →  77 Parameter overview with brief description Parameter Prerequisite Description Selection Factory setting Volume flow unit – Select volume flow unit. Unit choose list Country-specific: •...
Page 78: Displaying The I/O Configuration
Commissioning Proline Promag H 300 HART 10.4.3 Displaying the I/O configuration The I/O configuration submenu guides the user systematically through all the parameters in which the configuration of the I/O modules is displayed. Navigation "Setup" menu → I/O configuration ‣...
Page 79: Configuring The Current Input
Proline Promag H 300 HART Commissioning Navigation "Setup" menu → Status input ‣ Status input 1 to n →  79 Assign status input →  79 Terminal number Active level →  79 Terminal number →  79 Response time status input →...
Page 80: Configuring The Current Output
Commissioning Proline Promag H 300 HART 20 mA value →  80 Current span →  80 Failure mode →  80 Failure value →  80 Parameter overview with brief description Parameter Prerequisite Description User interface / Factory setting Selection / User...
Page 81 Proline Promag H 300 HART Commissioning Current span →  81 0/4 mA value →  81 20 mA value →  81 Fixed current →  81 Failure mode →  82 →  82 Failure current Parameter overview with brief description...
Page 82 Commissioning Proline Promag H 300 HART Parameter Prerequisite Description Selection / User Factory setting interface / User entry Failure mode One of the following options is Define output behavior in • Min. Max. selected in the Assign current alarm condition. • Max. output parameter (→  81): •...
Page 83: Configuring The Pulse/Frequency
Proline Promag H 300 HART Commissioning 10.4.7 Configuring the pulse/frequency/switch output The Pulse/frequency/switch output wizard guides you systematically through all the parameters that can be set for configuring the selected output type. Navigation "Setup" menu → Advanced setup → Pulse/frequency/switch output ‣...
Page 84 Commissioning Proline Promag H 300 HART Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting interface / User entry Operating mode – Define the output as a pulse, • Pulse Pulse frequency or switch output. • Frequency • Switch Terminal number –...
Page 85 Proline Promag H 300 HART Commissioning Signal mode →  85 Assign frequency output →  85 Minimum frequency value →  85 Maximum frequency value →  86 →  86 Measuring value at minimum frequency Measuring value at maximum →...
Page 86 Commissioning Proline Promag H 300 HART Parameter Prerequisite Description Selection / User Factory setting interface / User entry Maximum frequency value One of the following options is Enter maximum frequency. 0.0 to 10 000.0 Hz 10 000.0 Hz selected in the Assign current output parameter (→  81): •...
Page 87 Proline Promag H 300 HART Commissioning Configuring the switch output Navigation "Setup" menu → Pulse/frequency/switch output ‣ Pulse/frequency/switch output 1 to n Operating mode →  87 Terminal number →  87 Signal mode →  87 →  88...
Page 88 Commissioning Proline Promag H 300 HART Parameter Prerequisite Description Selection / User Factory setting interface / User entry Switch output function In the Operating mode Select function for switch • Off parameter the Switch option is output. • On selected. • Diagnostic behavior • Limit •...
Page 89: Configuring The Local Display
Proline Promag H 300 HART Commissioning Parameter Prerequisite Description Selection / User Factory setting interface / User entry Switch-off delay • The Switch option is Define delay for the switch-off 0.0 to 100.0 s 0.0 s selected in the Operating of status output. mode parameter.
Page 90 Commissioning Proline Promag H 300 HART Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry Format display A local display is provided. Select how measured values • 1 value, max. size 1 value, max. size are shown on the display.
Page 91: Configuring The Low Flow Cut Off
Proline Promag H 300 HART Commissioning Parameter Prerequisite Description Selection / User Factory setting entry 100% bargraph value 3 A selection was made in the Enter 100% value for bar Signed floating-point Value 3 display parameter. graph display. number Value 4 display A local display is provided.
Page 92: 10.4.10 Configuring Empty Pipe Detection
Commissioning Proline Promag H 300 HART 10.4.10 Configuring empty pipe detection The Empty pipe detection submenu contains parameters that must be configured for the configuration of empty pipe detection. Navigation "Setup" menu → Empty pipe detection ‣ Empty pipe detection →...
Page 93 Timeout →  94 →  94 Failure mode Failure value →  94 "Configuration" submenu Navigation "Expert" menu → Communication → HART input → Configuration Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry Capture mode –...
Page 94: 10.4.12 Configuring The Relay Output
• In the Failure mode parameter, the Defined value option is selected. "Input" submenu Navigation "Expert" menu → Communication → HART input → Input Parameter overview with brief description Parameter Description User interface Value Signed floating-point number Status •...
Page 95 Proline Promag H 300 HART Commissioning Switch-off value →  95 Switch-on value →  95 Failure mode →  96 Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting interface / User entry Relay output function – Select the function for the •...
Page 96: 10.4.13 Configuring The Double Pulse Output
Commissioning Proline Promag H 300 HART Parameter Prerequisite Description Selection / User Factory setting interface / User entry Switch-on delay In the Relay output function Define delay for the switch-on 0.0 to 100.0 s 0.0 s parameter, the Limit option is of status output.
Page 97 Proline Promag H 300 HART Commissioning Parameter Description Selection / User interface / Factory setting User entry Assign pulse output 1 Select process variable for pulse output. • Off • Mass flow • Volume flow • Corrected volume flow Measuring mode Select measuring mode for pulse output.
Page 98: Advanced Settings
Commissioning Proline Promag H 300 HART 10.5 Advanced settings The Advanced setup submenu together with its submenus contains parameters for specific settings. Navigation to the "Advanced setup" submenu X X X X X X X 20.50 0104-1 Main menu Language English Display/operat.
Page 99: Carrying Out A Sensor Adjustment
Proline Promag H 300 HART Commissioning ‣ SIL confirmation ‣ Deactivate SIL ‣ Display →  101 ‣ Electrode cleaning circuit →  104 ‣ WLAN settings →  105 ‣ Heartbeat setup ‣ Configuration backup →  106 ‣...
Page 100 Commissioning Proline Promag H 300 HART Totalizer operation mode →  100 Failure mode →  100 Parameter overview with brief description Parameter Description Selection Factory setting Assign process variable Select process variable for totalizer. • Off Volume flow • Volume flow •...
Page 101: Carrying Out Additional Display Configurations
Proline Promag H 300 HART Commissioning 10.5.3 Carrying out additional display configurations In the Display submenu you can set all the parameters associated with the configuration of the local display. Navigation "Setup" menu → Advanced setup → Display ‣ Display Format display →...
Page 102 Commissioning Proline Promag H 300 HART Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry Format display A local display is provided. Select how measured values • 1 value, max. size 1 value, max. size are shown on the display.
Page 103 Proline Promag H 300 HART Commissioning Parameter Prerequisite Description Selection / User Factory setting entry Value 3 display A local display is provided. Select the measured value that For the picklist, see None is shown on the local display. the Value 2 display parameter (→...
Page 104: Performing Electrode Cleaning
Commissioning Proline Promag H 300 HART Parameter Prerequisite Description Selection / User Factory setting entry Separator A local display is provided. Select decimal separator for • . (point) . (point) displaying numerical values. • , (comma) Backlight One of the following Switch the local display •...
Page 105: Wlan Configuration
Proline Promag H 300 HART Commissioning Parameter Prerequisite Description Selection / User Factory setting entry / User interface ECC recovery time For the following order code: Define recovery time after 1 to 600 s 60 s "Application package", option electrode cleaning. During this EC "ECC electrode cleaning"...
Page 106: Configuration Management
Commissioning Proline Promag H 300 HART Parameter Prerequisite Description User entry / Factory setting Selection WLAN passphrase In the Security type Enter the network key (8 to 32 8 to 32-digit Serial number of the parameter, the WPA2-PSK characters). character string measuring device option is selected.
Page 107: Using Parameters For Device Administration
Proline Promag H 300 HART Commissioning Parameter Description User interface / Selection Factory setting Configuration management Select action for managing the device data in • Cancel Cancel the embedded HistoROM. • Execute backup • Restore • Compare • Clear backup data Backup state Shows the current status of data saving or •...
Page 108 Commissioning Proline Promag H 300 HART ‣ Reset access code →  108 Device reset →  109 Using the parameter to define the access code Navigation "Setup" menu → Advanced setup → Administration → Define access code ‣ Define access code Define access code →...
Page 109: Simulation
Proline Promag H 300 HART Commissioning Using the parameter to reset the device Navigation "Setup" menu → Advanced setup → Administration Parameter overview with brief description Parameter Description Selection Factory setting Device reset Reset the device configuration - either • Cancel Cancel entirely or in part - to a defined state.
Page 110 Commissioning Proline Promag H 300 HART Relay output 1 to n simulation →  111 Switch status 1 to n →  111 Pulse output simulation →  111 Pulse value →  111 →  111 Device alarm simulation Diagnostic event category →...
Page 111 Proline Promag H 300 HART Commissioning Parameter Prerequisite Description Selection / User Factory setting entry / User interface Pulse output simulation 1 to n In the Operating mode Set and switch off the pulse • Off parameter, the Pulse option is output simulation. • Fixed value selected.
Page 112: Protecting Settings From Unauthorized
Commissioning Proline Promag H 300 HART 10.7 Protecting settings from unauthorized access The following write protection options exist in order to protect the configuration of the measuring device from unintentional modification: • Protect access to parameters via access code →  112 •...
Page 113: Write Protection Via Write Protection
Proline Promag H 300 HART Commissioning 3. Enter the access code again in the Confirm access code parameter (→  108) to confirm the code.  The Web browser switches to the login page. If no action is performed for 10 minutes, the Web browser automatically returns to the login page.
Page 114 Commissioning Proline Promag H 300 HART A0029630 Setting the write protection (WP) switch on the main electronics module to the ON position enables hardware write protection.  In the Locking status parameter the Hardware locked option is displayed →  115. In addition, on the local display the -symbol appears in front of the parameters in the header of the operational display and in the navigation view.
Page 115: Operation
Proline Promag H 300 HART Operation Operation 11.1 Reading the device locking status Device active write protection: Locking status parameter Operation → Locking status Function scope of the "Locking status" parameter Options Description None The access status displayed in the Access status parameter applies →  56. Only appears on local display.
Page 116 Operation Proline Promag H 300 HART Navigation "Diagnostics" menu → Measured values → Process variables ‣ Process variables →  116 Volume flow →  116 Mass flow Corrected volume flow →  116 Flow velocity Conductivity →  116 Corrected conductivity →...
Page 117: Totalizer" Submenu
Proline Promag H 300 HART Operation Parameter Prerequisite Description User interface Temperature One of the following conditions is met: Displays the temperature currently Positive floating-point • Order code for "Sensor option", option calculated. number CI "Medium temperature Dependency measurement" The unit is taken from the Temperature unit parameter •...
Page 118: Output Values
Operation Proline Promag H 300 HART Input values of current input The Current input 1 to n submenu contains all the parameters needed to display the current measured values for every current input. Navigation "Diagnostics" menu → Measured values → Input values → Current input 1 to n ‣...
Page 119 Proline Promag H 300 HART Operation ‣ Pulse/frequency/switch output 1 →  119 to n ‣ Relay output 1 to n →  120 ‣ Double pulse output →  120 Output values of current output The Value current output submenu contains all the parameters needed to display the current measured values for every current output.
Page 120 Operation Proline Promag H 300 HART Parameter overview with brief description Parameter Prerequisite Description User interface / User Factory setting entry Output frequency In the Operating mode Displays the value currently 0.0 to 12 500.0 Hz – parameter, the Frequency measured for the frequency option is selected.
Page 121: Adapting The Measuring Device To The Process
Proline Promag H 300 HART Operation Navigation "Diagnostics" menu → Measured values → Output values → Double pulse output ‣ Double pulse output →  121 Pulse output Parameter overview with brief description Parameter Description User interface Pulse output Shows the currently output pulse frequency.
Page 122: Function Scope Of The "Control Totalizer" Parameter
Operation Proline Promag H 300 HART Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry Control Totalizer 1 to n One of the following options is Control totalizer value. • Totalize Totalize selected in the Assign process •...
Page 123 Proline Promag H 300 HART Operation A0016222  28 Chart of a measured value trend • x-axis: depending on the number of channels selected displays 250 to 1000 measured values of a process variable. • y-axis: displays the approximate measured value span and constantly adapts this to the ongoing measurement.
Page 124 Operation Proline Promag H 300 HART Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry / User interface Assign channel 1 to n The Extended HistoROM Assign process variable to • Off application package is logging channel. • Volume flow available.
Page 125: Diagnostics And Troubleshooting
Proline Promag H 300 HART Diagnostics and troubleshooting Diagnostics and troubleshooting 12.1 General troubleshooting For local display Error Possible causes Solution Local display dark and no output Supply voltage does not match the Apply the correct supply voltage signals value indicated on the nameplate.
Page 126 Diagnostics and troubleshooting Proline Promag H 300 HART Error Possible causes Solution Device shows correct value on local Configuration error Check and correct the parameter display, but signal output is configuration. incorrect, though in the valid range. Device measures incorrectly.
Page 127: Diagnostic Information Via Light Emitting
Proline Promag H 300 HART Diagnostics and troubleshooting Error Possible causes Solution Parallel WLAN and Ethernet • Check network settings. communication • Temporarily enable only the WLAN as an interface. Web browser frozen and operation Data transfer active Wait until data transfer or current no longer possible action is finished.
Page 128 Diagnostics and troubleshooting Proline Promag H 300 HART Color Meaning Flashing red Warning Not used – – Communication White Communication active Service interface (CDI) Yellow Connection established Flashing yellow Communication active No connection Endress+Hauser...
Page 129: Diagnostic Information On Local Display
Proline Promag H 300 HART Diagnostics and troubleshooting 12.3 Diagnostic information on local display 12.3.1 Diagnostic message Faults detected by the self-monitoring system of the measuring device are displayed as a diagnostic message in alternation with the operational display. Operational display in alarm condition...
Page 130 Diagnostics and troubleshooting Proline Promag H 300 HART Diagnostic behavior Symbol Meaning Alarm • Measurement is interrupted. • Signal outputs and totalizers assume the defined alarm condition. • A diagnostic message is generated. Warning Measurement is resumed. The signal outputs and totalizers are not affected. A diagnostic message is generated.
Page 131: Calling Up Remedial Measures
Proline Promag H 300 HART Diagnostics and troubleshooting 12.3.2 Calling up remedial measures X X X X X X X X X X X X X X 20.50 S801 Supply voltage Menu Diagnostic list Diagnostics 1 S801 Supply voltage Diagnostics 2...
Page 132: Calling Up Remedy Information
Diagnostics and troubleshooting Proline Promag H 300 HART A0031056 Status area with status signal Diagnostic information→  130 Remedy information with Service ID In addition, diagnostic events which have occurred can be shown in the Diagnostics menu: • Via parameter •...
Page 133: Diagnostic Information In Devicecare Or
Proline Promag H 300 HART Diagnostics and troubleshooting 12.5 Diagnostic information in DeviceCare or FieldCare 12.5.1 Diagnostic options Any faults detected by the measuring device are displayed on the home page of the operating tool once the connection has been established.
Page 134: Calling Up Remedy Information
Diagnostics and troubleshooting Proline Promag H 300 HART 12.5.2 Calling up remedy information Remedy information is provided for every diagnostic event to ensure that problems can be rectified quickly: • On the home page Remedy information is displayed in a separate field below the diagnostics information.
Page 135: Overview Of Diagnostic Information
Proline Promag H 300 HART Diagnostics and troubleshooting Available status signals Configuration as per HART 7 Specification (Condensed Status), in accordance with NAMUR NE107. Symbol Meaning Failure A device error is present. The measured value is no longer valid. A0013956 Function check The device is in service mode (e.g.
Page 136 Diagnostics and troubleshooting Proline Promag H 300 HART Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Software incompatible 1. Check software Alarm 2. Flash or change main electronics module Modules incompatible 1. Check electronic modules Alarm 2.
Page 137 Proline Promag H 300 HART Diagnostics and troubleshooting Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Embedded HistoROM Contact service organization Alarm failed Sensor electronic (ISEM) 1. Check ECC recovery time Alarm faulty 2.
Page 138 Diagnostics and troubleshooting Proline Promag H 300 HART Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] CT activation/ Follow the sequence of the custody Warning deactivation failed transfer activation/deactivation: First authorized user login, then set the...
Page 139: Pending Diagnostic Events
Proline Promag H 300 HART Diagnostics and troubleshooting Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] EMC interference 1. Check ambient conditions Alarm regarding EMC influence 2. Turn off diagnostic message Empty pipe 1.
Page 140: Diagnostic List
Diagnostics and troubleshooting Proline Promag H 300 HART Parameter Prerequisite Description User interface Operating time from restart – Shows the time the device has been in Days (d), hours (h), operation since the last device restart. minutes (m) and seconds Operating time –...
Page 141: 12.10.2 Filtering The Event Logbook
Proline Promag H 300 HART Diagnostics and troubleshooting In addition to the operation time of its occurrence, each event is also assigned a symbol that indicates whether the event has occurred or is ended: • Diagnostic event – : Occurrence of the event –...
Page 142 Diagnostics and troubleshooting Proline Promag H 300 HART Info number Info name I1351 Empty pipe detection adjustment failure I1353 Empty pipe detection adjustment ok I1361 Web server login failed I1397 Fieldbus: access status changed I1398 CDI: access status changed I1443...
Page 143: 12.11 Resetting The Measuring Device
Proline Promag H 300 HART Diagnostics and troubleshooting Info number Info name I1712 New flash file received I1725 Sensor electronic module (ISEM) changed I1726 Configuration backup failed 12.11 Resetting the measuring device Using theDevice reset parameter (→  109) it is possible to reset the entire device configuration or some of the configuration to a defined state.
Page 144 Diagnostics and troubleshooting Proline Promag H 300 HART ENP version →  144 Device revision →  144 Device ID →  144 Device type →  145 Manufacturer ID →  145 Parameter overview with brief description Parameter Description...
Page 145: 12.13 Firmware History
Proline Promag H 300 HART Diagnostics and troubleshooting Parameter Description User interface Factory setting Device type Shows the device type with which the 2-digit hexadecimal number 0x3A (for Promag 300) measuring device is registered with the HART Communication Foundation. Manufacturer ID...
Page 146: Maintenance
Maintenance Proline Promag H 300 HART Maintenance 13.1 Maintenance tasks No special maintenance work is required. 13.1.1 Exterior cleaning When cleaning the exterior of measuring devices, always use cleaning agents that do not attack the surface of the housing or the seals.
Page 147: Repairs
Proline Promag H 300 HART Repairs Repairs 14.1 General notes 14.1.1 Repair and conversion concept The Endress+Hauser repair and conversion concept provides for the following: • The measuring devices have a modular design. • Spare parts are grouped into logical kits with the associated Installation Instructions.
Page 148: Disposal
Repairs Proline Promag H 300 HART 14.5 Disposal 14.5.1 Removing the measuring device 1. Switch off the device. WARNING Danger to persons from process conditions. ‣ Beware of hazardous process conditions such as pressure in the measuring device, high temperatures or aggressive fluids.
Page 149: Accessories
Proline Promag H 300 HART Accessories Accessories Various accessories, which can be ordered with the device or subsequently from Endress +Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.
Page 150: Communication-Specific Accessories
For intrinsically safe HART communication with FieldCare via the USB interface. HART  For details, see "Technical Information" TI00404F HART Loop Converter Is used to evaluate and convert dynamic HART process variables to analog current HMX50 signals or limit values.  For details, see "Technical Information" TI00429F and Operating Instructions...
Page 151: System Components
Proline Promag H 300 HART Accessories W@M Life Cycle Management Improved productivity with information at your fingertips. Data relevant to a plant and its components is generated from the first stages of planning and during the asset’s complete life cycle.
Page 152: Technical Data
Technical data Proline Promag H 300 HART Technical data 16.1 Application Depending on the version ordered, the measuring device can also measure potentially explosive, flammable, poisonous and oxidizing media. To ensure that the device remains in proper operating condition for its service life, use the measuring device only for media against which the process-wetted materials are sufficiently resistant.
Page 153 Proline Promag H 300 HART Technical data Nominal Recommended Factory settings diameter flow Full scale value current min./max. full scale value Pulse value Low flow cut off output (v ~ 0.3/10 m/s) (~ 2 pulse/s) (v ~ 0.04 m/s) (v ~ 2.5 m/s)
Page 154 Corrected volume flow HART protocol The measured values are written from the automation system to the measuring device via the HART protocol. The pressure transmitter must support the following protocol-specific functions: • HART protocol • Burst mode Current input The measured values are written from the automation system to the measuring device via the current input →...
Page 155: Output
Proline Promag H 300 HART Technical data 16.4 Output Output signal HART current output Current output 4 to 20 mA HART Current span Can be set to: 4 to 20 mA (active/passive) Open-circuit voltage DC 28.8 V (active) Maximum input voltage...
Page 156 Technical data Proline Promag H 300 HART Pulse output Maximum input values DC 30 V, 250 mA (passive) Maximum output current 22.5 mA (active) Open-circuit voltage DC 28.8 V (active) Pulse width Adjustable: 0.05 to 2 000 ms Maximum pulse rate...
Page 157 Proline Promag H 300 HART Technical data Double pulse output Function Double pulse Version Open collector Can be set to: • Active • Passive Maximum input values DC 30 V, 250 mA (passive) Open-circuit voltage DC 28.8 V (active) Voltage drop For 22.5 mA: ≤...
Page 158 Technical data Proline Promag H 300 HART The following inputs and outputs are available for assignment: • Choice of current output: 4 to 20 mA (active), 0/4 to 20 mA (passive) • Pulse/frequency/switch output • Choice of current input: 4 to 20 mA (active), 0/4 to 20 mA (passive) •...
Page 159 Proline Promag H 300 HART Technical data Local display Plain text display With information on cause and remedial measures Backlight Red backlighting indicates a device error. Status signal as per NAMUR recommendation NE 107 Interface/protocol • Via digital communication: HART protocol •...
Page 160: Power Supply
Technical data Proline Promag H 300 HART Dynamic variables Read out the dynamic variables: HART command 3 The measured variables can be freely assigned to the dynamic variables. Measured variables for PV (primary dynamic variable) • Off • Volume flow •...
Page 161: Performance Characteristics
Proline Promag H 300 HART Technical data Power supply failure • Totalizers stop at the last value measured. • Configuration is retained in the plug-in memory (HistoROM DAT). • Error messages (incl. total operated hours) are stored. Electrical connection →  33 Potential equalization →...
Page 162: Installation
Technical data Proline Promag H 300 HART Temperature ±3 °C (±5.4 °F) Electrical conductivity Max. measured error not specified. Accuracy of outputs The outputs have the following base accuracy specifications. Current output Accuracy ±5 µA Pulse/frequency output o.r. = of reading Accuracy Max.
Page 163: Process
Proline Promag H 300 HART Technical data Temperature tables Observe the interdependencies between the permitted ambient and fluid temperatures when operating the device in hazardous areas. For detailed information on the temperature tables, see the separate document entitled "Safety Instructions" (XA) for the device.
Page 164 Technical data Proline Promag H 300 HART [°F] [°C] 40 60 80 100 120 140 160 [°C] [°F] A0027450 Ambient temperature range Fluid temperature Conductivity ≥ 5 μS/cm for liquids in general. Stronger filter damping is required for very low conductivity values.
Page 165: 16.10 Mechanical Construction
Proline Promag H 300 HART Technical data Vibrations →  24 16.10 Mechanical construction Design, dimensions For the dimensions and installation lengths of the device, see the "Technical Information" document, "Mechanical construction" section Weight • Including the transmitter • Weight specifications apply to standard pressure ratings and without packaging material.
Page 166 Technical data Proline Promag H 300 HART Cable entries/cable glands A0020640  34 Possible cable entries/cable glands Cable entry with M20 × 1.5 internal thread Cable gland M20 × 1.5 Adapter for cable entry with internal thread G ½" or NPT ½"...
Page 167 Proline Promag H 300 HART Technical data Accessories Protective cover Stainless steel, 1.4404 (316L) External WLAN antenna • WLAN antenna: ASA plastic (acrylic ester-styrene-acrylonitrile) and nickel-plated brass • Adapter: Stainless steel and copper Grounding rings • Standard: 1.4435 (316L) • Optional: Alloy C22, tantalum Wall mounting kit Stainless steel 1.4301 (304)
Page 168: 16.11 Operability
Technical data Proline Promag H 300 HART 16.11 Operability Languages Can be operated in the following languages: • Via local operation English, German, French, Spanish, Italian, Dutch, Portuguese, Polish, Russian, Turkish, Chinese, Japanese, Korean, Arabic, Bahasa (Indonesian), Thai, Vietnamese, Czech, Swedish •...
Page 169 Proline Promag H 300 HART Technical data Via remote display and operating module DKX001 The remote display and operating module DKX001 is available as an optional extra: Order code for "Display; operation", option O "Separate backlit, 4-line display; 10 m (30 ft) Cable;...
Page 170 Technical data Proline Promag H 300 HART Service interface →  64 Supported operating tools Different operating tools can be used for local or remote access to the measuring device. Depending on the operating tool used, access is possible with different operating units and via a variety of interfaces.
Page 171 Proline Promag H 300 HART Technical data – Export parameter settings (.csv file, create documentation of the measuring point configuration) – Export the Heartbeat verification log (PDF file, only available with the "Heartbeat Verification" application package) – Flash firmware version for device firmware upgrade, for instance HistoROM The measuring device features HistoROM data management.
Page 172: 16.12 Certificates And Approvals
Technical data Proline Promag H 300 HART Event list Automatic • Chronological display of up to 20 event messages in the events list • If the Extended HistoROM application package (order option) is enabled: up to 100 event messages are displayed in the events list along with a time stamp, plain text description and remedial measures •...
Page 173 Proline Promag H 300 HART Technical data The following types of monitoring in safety equipment are possible: Volume flow Functional Safety Manual with information on the SIL device →  175 HART certification HART interface The measuring device is certified and registered by the FieldComm Group. The measuring system meets all the requirements of the following specifications: •...
Page 174: 16.13 Application Packages
Technical data Proline Promag H 300 HART 16.13 Application packages Many different application packages are available to enhance the functionality of the device. Such packages might be needed to address safety aspects or specific application requirements. The application packages can be ordered with the device or subsequently from Endress+Hauser.
Page 175: 16.15 Supplementary Documentation
Proline Promag H 300 HART Technical data 16.15 Supplementary documentation For an overview of the scope of the associated Technical Documentation, refer to the following: • The W@M Device Viewer : Enter the serial number from the nameplate (www.endress.com/deviceviewer) • The Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2-D matrix code (QR code) on the nameplate.
Page 176 Technical data Proline Promag H 300 HART Contents Documentation code cCSAus IS XA01499D cCSAus Ex nA XA01513D INMETRO Ex i XA01500D INMETRO Ex ec XA01501D NEPSI Ex i XA01502D NEPSI Ex nA XA01503D Special Documentation Contents Documentation code Information on the Pressure Equipment Directive...
Page 177: Index
Index Index Access authorization to parameters Declaration of Conformity ..... 11 Read access ......56 Define access code .
Page 178 Electronics module ......14 HART certification ......173 Enabling write protection .
Page 179 Index Mounting dimensions see Installation dimensions Keypad lock Mounting location ......22 Disabling ....... 56 Mounting preparations .
Page 180 Performance characteristics ....161 HART input ......92 Post-connection check (checklist) .
Page 181 Transport ....... 20 HART input ......92 Totalizer I/O configuration .
Page 182 Index Wizard Current input ......79 Current output ......80 Define access code .
Page 184 www.addresses.endress.com...

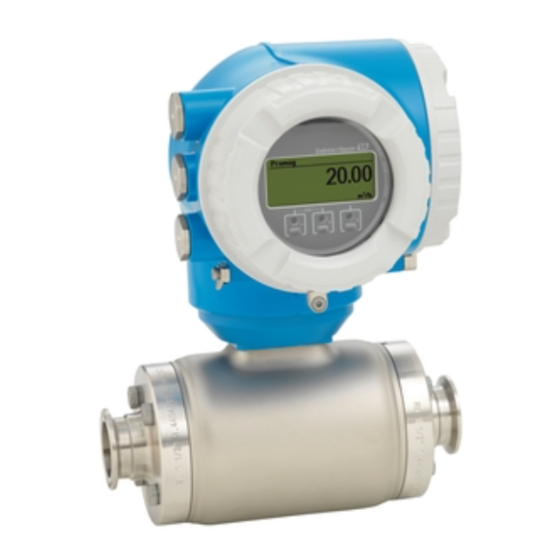

HART Proline Promag H 300 Operating Instructions Manual

1 Document Information

2 Basic Safety Instructions

3 Product Description

4 Incoming Acceptance and Product

Identification

5 Storage and Transport

6 Installation

7 Electrical Connection

8 Operation Options

9 System Integration

10 Commissioning

11 Operation

12 Diagnostics and Troubleshooting

13 Maintenance

14 Repairs

15 Accessories

16 Technical Data

Index

Quick Links

Operating Instructions

Need help?

Questions and answers

Related Manuals for HART Proline Promag H 300

Summary of Contents for HART Proline Promag H 300

Table of Contents
