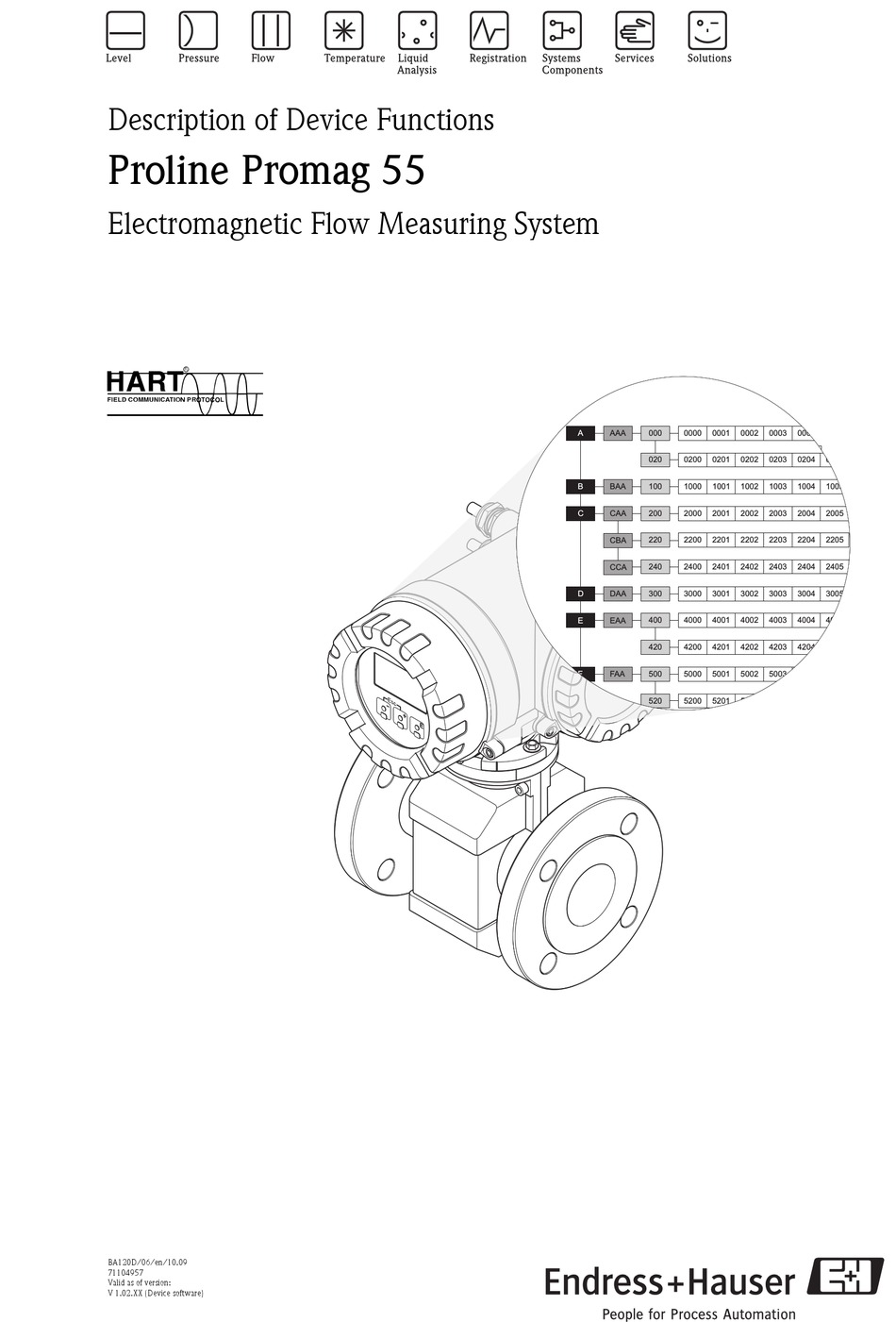

Description of Device Functions
Proline Promag 55
Electromagnetic Flow Measuring System
6
BA120D/06/en/10.09
71104957
Valid as of version:
V 1.02.XX (Device software)

A
AAA
000
0000
0001
0002
A
AAA
000
0000
0001
0002
020
0200
0201
0202
020
0200
0201
0202
B
BAA
100
1000
1001
1002
B
BAA
100
1000
1001
1002
C
CAA
200
2000
2001
2002
C
CAA
200
2000
2001
2002
220
2200
2201
2202
CBA
220
2200
2201
2202
CBA
CCA
240
2400
2401
2402
240
2400
2401
2402
CCA
D
DAA
300
3000
3001
3002
D
DAA
300
3000
3001
3002
E
EAA
400
4000
4001
4002
E
EAA
400
4000
4001
4002
420
4200
4201
4202
420
4200
4201
4202
F
FAA
500
5000
5001
5002
F
FAA
500
5000
5001
5002
520
5200
5201
5202
520
5200
5201
5202
0003
0004
0005
0003
0004
0005
0203
0204
0205
0203
0204
0205
1003
1004
1005
1003
1004
1005
2003
2004
2005
2003
2004
2005
2203
2204
2205
2203
2204
2205
2403
2404
2405
2403
2404
2405
3003
3004
3005
3003
3004
3005
4003
4004
4005
4003
4004
4005
4203
4204
4205
4203
4204
4205
5003
5004
5003
5004
5203
5203

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Proline Promag 55 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HART Proline Promag 55

Summary of Contents for HART Proline Promag 55

  • Page 1 Description of Device Functions Proline Promag 55 Electromagnetic Flow Measuring System 0000 0001 0002 0003 0004 0005 0000 0001 0002 0003 0004 0005 0200 0201 0202 0203 0204 0205 0200 0201 0202 0203 0204 0205 1000 1001 1002 1003 1004...
  • Page 2 Device Functions Proline Promag 55 Endress+Hauser...

  • Page 3: Table Of Contents

    ....Group HART ......113 9.1.1 Function group CONFIGURATION .
  • Page 4 Contents Device Functions Proline Promag 55 10.1.9 Function group NOISE VALUE ..139 10.2 Group SOLID CONTENT FLOW ... . 141 10.2.1 Function group CONFIGURATION ..141 Block SUPERVISION .
  • Page 5 Device Functions Proline Promag 55 Contents Endress+Hauser...
  • Page 6 Contents Device Functions Proline Promag 55 Registered trademarks ® HART Registered trademarks of the HART Communication Foundation, Austin, USA ® ® ® ® HistoROM™, S-DAT , T-DAT , F-CHIP , FieldCare Registered trademarks of Endress+Hauser Flowtec AG, Reinach, CH Endress+Hauser...

  • Page 7: Using The Manual

    Device Functions Proline Promag 55 1 Using the manual Using the manual There are various ways of locating the description of a function of your choice in the manual: Using the table of contents to locate a function description The designations of all the cells in the function matrix are listed in the table of contents. You can use these unambiguous designations (such as USER INTERFACE, INPUTS, OUTPUTS, etc.) to...

  • Page 8: Function Matrix

    1 Using the manual Device Functions Proline Promag 55 Function matrix General layout of the function matrix The function matrix consists of four levels: Blocks -> Groups -> Function groups -> Functions 0000 0001 0002 0003 0009 … 0400 0401...

  • Page 9: Codes Identifying Cells

    Device Functions Proline Promag 55 1 Using the manual 2.1.5 Codes identifying cells Each cell (block, group, function group and function) in the function matrix has an individual, unique code. Blocks: The code is a letter (A, B, C, etc.) Groups: The code consists of three letters (AAA, ABA, BAA, etc.).

  • Page 10: Function Matrix Promag 55

    1 Using the manual Device Functions Proline Promag 55 Function matrix Promag 55 FUNCTION BLOCKS GROUPS GROUPS → → MEASURED VARIABLES MEASURING VALUES see P. 12 → (see P. 11) SYSTEM UNITS see P. 15 ↓ → SPECIAL UNITS see P. 20 →...
  • Page 11 Device Functions Proline Promag 55 3 Block MEASURED VARIABLES Block MEASURED VARIABLES ⇒ ⇐ ⇒ ⇐ Endress+Hauser...

  • Page 12: Group Measuring Values

    3 Block MEASURED VARIABLES Device Functions Proline Promag 55 Group MEASURING VALUES 3.1.1 Function group MAIN VALUES MEASURED ⇒ ⇒ MEASURING VALUES MAIN VALUES VARIABLES Function description MEASURED VARIABLES ➞ MEASURING VALUES ➞ MAIN VALUES Note! • The engineering units of all the measured variables shown here can be set in the SYSTEM UNITS group.

  • Page 13: Function Group Add. Values Conc

    Device Functions Proline Promag 55 3 Block MEASURED VARIABLES 3.1.2 Function group ADD. VALUES CONC. MEASURED ⇒ ⇒ MEASURING VALUES MAIN VALUES VARIABLES ⇓ ADD. VALUES CONC. Function description MEASURED VARIABLES → MEASURING VALUES → ADD. VALUES CONC. TARGET MASS FLOW...
  • Page 14 3 Block MEASURED VARIABLES Device Functions Proline Promag 55 Function description MEASURED VARIABLES → MEASURING VALUES → ADD. VALUES CONC. % CARRIER MASS FLOW Note! (0026) This function is only available if the measuring device is equipped with an F-CHIP for measuring solid content flows (s.

  • Page 15: Group System Units

    Device Functions Proline Promag 55 3 Block MEASURED VARIABLES Group SYSTEM UNITS 3.2.1 Function group CONFIGURATION MEASURED ⇒ MEASURING VALUES VARIABLES ⇓ ⇒ SYSTEM UNITS CONFIGURATION Function description MEASURED VARIABLES ➞ SYSTEM UNITS ➞ CONFIGURATION You can select the units for measured variables in this function group.
  • Page 16 3 Block MEASURED VARIABLES Device Functions Proline Promag 55 Function description MEASURED VARIABLES ➞ SYSTEM UNITS ➞ CONFIGURATION UNIT VOLUME FLOW Use this function to select the unit for displaying the volume flow (volume/time). (0402) The unit you select here is also valid for: •...
  • Page 17 Device Functions Proline Promag 55 3 Block MEASURED VARIABLES Function description MEASURED VARIABLES ➞ SYSTEM UNITS ➞ CONFIGURATION UNIT VOLUME Use this function to select the unit for displaying the volume. (0403) The unit you select here is also valid for: •...

  • Page 18: Function Group Additional

    3 Block MEASURED VARIABLES Device Functions Proline Promag 55 3.2.2 Function group ADDITIONAL CONFIGURATION MEASURED ⇒ MEASURING VALUES VARIABLES ⇓ ⇒ SYSTEM UNITS CONFIGURATION ⇓ ADDITIONAL CONF. Function description MEASURED VARIABLES ➞ SYSTEM UNITS ➞ ADDITIONAL CONFIGURATION UNIT DENSITY Use this function to select the unit for displaying the fluid density.
  • Page 19 Device Functions Proline Promag 55 3 Block MEASURED VARIABLES Function description MEASURED VARIABLES ➞ SYSTEM UNITS ➞ ADDITIONAL CONFIGURATION FORMAT DATE/TIME Use this function to select the format for the date and the time. (0429) The unit you select here is also valid for:...

  • Page 20: Group Special Units

    3 Block MEASURED VARIABLES Device Functions Proline Promag 55 Group SPECIAL UNITS 3.3.1 Function group ARBITRARY UNIT MEASURED ⇒ MEASURING VALUES VARIABLES ⇓ SYSTEM UNITS ⇓ ⇒ SPECIAL UNITS ARBITRARY UNIT Function description MEASURED VARIABLES ➞ SPECIAL UNITS ➞ ARBITRARY UNIT Use this function group to define an arbitrary unit for the flow rate variable.

  • Page 21: Function Group Density Parameter

    Device Functions Proline Promag 55 3 Block MEASURED VARIABLES 3.3.2 Function group DENSITY PARAMETER MEASURED ⇒ MEASURING VALUES VARIABLES ⇓ SYSTEM UNITS ⇓ ⇒ SPECIAL UNITS ARBITRARY UNIT ⇓ DENSITY PARAMETER Function description MEASURED VARIABLES ➞ SPECIAL UNITS ➞ DENSITY PARAMETER Use this function group to calculate a mass flow from a volume flow.
  • Page 22 3 Block MEASURED VARIABLES Device Functions Proline Promag 55 Function description MEASURED VARIABLES ➞ SPECIAL UNITS ➞ DENSITY PARAMETER REFERENCE Use this function to enter the reference temperature for the programmed density value. TEMPERATURE (0701) User input: 5-digit floating-point number Factory setting: 20 °C...

  • Page 23: Block Quick Setup

    Device Functions Proline Promag 55 4 Block QUICK SETUP Block QUICK SETUP Function Block Group Functions groups QUICK SETUP QUICK SETUP T-DAT QUICK SETUP ⇒ ⇒ ⇒ COMMISSION PULS. FLOW SAVE/LOAD (1002) P. 23 (1003) P. 23 (1009) P. 24...
  • Page 24 4 Block QUICK SETUP Device Functions Proline Promag 55 Function description QUICK SETUP T-DAT SAVE/LOAD Use this function to save the parameter settings / configuration of the transmitter in a (1009) transmitter DAT (T-DAT), or to load the parameter settings from the T-DAT into the EEPROM (manual security function).

  • Page 25: Commissioning" Quick Setup Menu

    Device Functions Proline Promag 55 4 Block QUICK SETUP "Commissioning" Quick Setup menu XXX.XXX.XX 1002 Quick Setup Commission 2000 HOME-POSITION Language Pre-Settings Selection Delivery Settings Acutal Settings pre-settings Selection Volume Quit Mass System units 0402 0420 Unit Unit Volume Flow...
  • Page 26 4 Block QUICK SETUP Device Functions Proline Promag 55 Note! In the case of measuring devices without a local display, the individual parameters and functions must be configured via the configuration program, e.g. FieldCare. If the measuring device is equipped with a local display, all the important device parameters for standard operation can be configured quickly and easily by means of the "Commissioning"...

  • Page 27: Pulsating Flow" Quick Setup Menu

    Device Functions Proline Promag 55 4 Block QUICK SETUP "Pulsating flow" Quick Setup menu XXX.XXX.XX 1003 Quick Setup Puls. Flow 2002 6606 Display Special HOME-POSITION Damping filter Selection ➀ Totalizer 3 Totalizer 2 Totalizer 1 Quit Totalizer 3002 3002 3002...

  • Page 28: Basic Configuration

    4 Block QUICK SETUP Device Functions Proline Promag 55 Settings for the pulsating flow Setup menu: Fct. code Function name Suggested settings Description Call up through the function matrix: QUICK SETUP QUICK SETUP PULS. FLOW see P. 23 1003 QUICK SETUP PULSATING FLOW see P.

  • Page 29: Data Backup/Transmission

    Device Functions Proline Promag 55 4 Block QUICK SETUP Data backup/transmission Using the T-DAT SAVE/LOAD function, you can transfer data (device parameters and settings) between the T-DAT (exchangeable memory) and the EEPROM (device storage unit). This is required in the following instances: •...

  • Page 30: Block User Interface

    4 Block QUICK SETUP Device Functions Proline Promag 55 Block USER INTERFACE Endress+Hauser...

  • Page 31: Group Control

    Device Functions Proline Promag 55 4 Block QUICK SETUP Group CONTROL 5.1.1 Function group BASIC CONFIGURATION ⇒ ⇒ USER INTERFACE CONTROL BASIC CONFIGURATION 200 Function description USER INTERFACE ➞ CONTROL ➞ BASIC CONFIGURATION LANGUAGE Use this function to select the language for all texts, parameters and messages shown on (2000) the local display.
  • Page 32 4 Block QUICK SETUP Device Functions Proline Promag 55 Function description USER INTERFACE ➞ CONTROL ➞ BASIC CONFIGURATION CONTRAST LCD Use this function to optimize display contrast to suit local operating conditions. (2003) User input: 10 to 100% Factory setting: BACKLIGHT Use this function to optimize the backlight to suit local operating conditions.

  • Page 33: Function Group Unlocking/Locking

    Device Functions Proline Promag 55 4 Block QUICK SETUP 5.1.2 Function group UNLOCKING/LOCKING ⇒ ⇒ USER INTERFACE CONTROL BASIC CONFIGURATION 200 ⇓ UNLOCKING/LOCKING 202 Function description USER INTERFACE ➞ CONTROL ➞ UNLOCKING/LOCKING ACCESS CODE All data of the measuring system are protected against inadvertent change. Programming (2020) is disabled and the settings cannot be changed until a code is entered in this function.

  • Page 34: Function Group Operation

    4 Block QUICK SETUP Device Functions Proline Promag 55 5.1.3 Function group OPERATION ⇒ ⇒ USER INTERFACE CONTROL BASIC CONFIGURATION 200 ⇓ UNLOCKING/LOCKING 202 ⇓ OPERATION Function description USER INTERFACE ➞ CONTROL ➞ OPERATION TEST DISPLAY Use this function to test the operability of the local display and its pixels.

  • Page 35: Function Group Configuration

    Device Functions Proline Promag 55 4 Block QUICK SETUP 5.2.1 Function group CONFIGURATION ⇒ USER INTERFACE CONTROL ⇓ ⇒ MAIN LINE CONFIGURATION Function description USER INTERFACE ➞ MAIN LINE ➞ CONFIGURATION A0001253 1= main line, 2 = additional line, 3 = information line...
  • Page 36 4 Block QUICK SETUP Device Functions Proline Promag 55 Function description USER INTERFACE ➞ MAIN LINE ➞ CONFIGURATION 100% VALUE Note! (2201) This function is only available if VOLUME FLOW IN % or MASS FLOW IN % was selected in the function ASSIGN (2200).

  • Page 37: Function Group Multiplex

    Device Functions Proline Promag 55 4 Block QUICK SETUP 5.2.2 Function group MULTIPLEX ⇒ USER INTERFACE CONTROL ⇓ ⇒ MAIN LINE CONFIGURATION ⇓ MULTIPLEX Function description USER INTERFACE ➞ MAIN LINE ➞ MULTIPLEX ASSIGN Use this function to define the second reading to be displayed in the main line alternately (2220) (every 10 seconds) with the value defined in the ASSIGN function (2200).
  • Page 38 4 Block QUICK SETUP Device Functions Proline Promag 55 Function description USER INTERFACE ➞ MAIN LINE ➞ MULTIPLEX FORMAT Use this function to define the maximum number of places after the decimal point for the (2222) second value displayed in the main line.

  • Page 39: Group Additional Line

    Device Functions Proline Promag 55 4 Block QUICK SETUP Group ADDITIONAL LINE 5.3.1 Function group CONFIGURATION ⇒ USER INTERFACE CONTROL ⇓ MAIN LINE ⇓ ⇒ ADDITIONAL LINE CONFIGURATION Function description USER INTERFACE ➞ ADDITIONAL LINE ➞ CONFIGURATION A0001253 1= main line, 2 = additional line, 3 = information line...
  • Page 40 4 Block QUICK SETUP Device Functions Proline Promag 55 Function description USER INTERFACE ➞ ADDITIONAL LINE ➞ CONFIGURATION ASSIGN Advanced options with optional software package SOLID CONTENT FLOW: (continued) TARGET MASS FLOW % TARGET MASS FLOW TARGET MASS FLOW BARGRAPH %...
  • Page 41 Device Functions Proline Promag 55 4 Block QUICK SETUP Function description USER INTERFACE ➞ ADDITIONAL LINE ➞ CONFIGURATION DISPLAY MODE Note! (2403) This function is only available if VOLUME FLOW BARGRAPH IN % or MASS FLOW BARGRAPH IN % was selected in the function ASSIGN (2400).

  • Page 42: Function Group Multiplex

    4 Block QUICK SETUP Device Functions Proline Promag 55 5.3.2 Function group MULTIPLEX ⇒ USER INTERFACE CONTROL ⇓ MAIN LINE ⇓ ⇒ ADDITIONAL LINE CONFIGURATION ⇓ MULTIPLEX Function description USER INTERFACE ➞ ADDITIONAL LINE ➞ MULTIPLEX ASSIGN Use this function to define the second reading to be displayed in the additional line (2420) alternately (every 10 seconds) with the value defined in the function ASSIGN (2400).
  • Page 43 Device Functions Proline Promag 55 4 Block QUICK SETUP Function description USER INTERFACE ➞ ADDITIONAL LINE ➞ MULTIPLEX ASSIGN Note! (continued) Multiplex mode is suspended as soon as a fault / notice message is generated. The message in question appears on the display.
  • Page 44 4 Block QUICK SETUP Device Functions Proline Promag 55 Function description USER INTERFACE ➞ ADDITIONAL LINE ➞ MULTIPLEX DISPLAY MODE Note! (2423) This function is only available if VOLUME FLOW BARGRAPH IN % or MASS FLOW BARGRAPH IN % was selected in the function ASSIGN (2420).

  • Page 45: Group Information Line

    Device Functions Proline Promag 55 4 Block QUICK SETUP Group INFORMATION LINE 5.4.1 Function group CONFIGURATION ⇒ USER INTERFACE CONTROL ⇓ MAIN LINE ⇓ ADDITIONAL LINE ⇓ ⇒ INFORMATION LINE CONFIGURATION Function description USER INTERFACE ➞ INFORMATION LINE ➞ CONFIGURATION...
  • Page 46 4 Block QUICK SETUP Device Functions Proline Promag 55 Function description USER INTERFACE ➞ INFORMATION LINE ➞ CONFIGURATION ASSIGN Advanced options with optional software package SOLID CONTENT FLOW: (continued) TARGET MASS FLOW % TARGET MASS FLOW TARGET MASS FLOW BARGRAPH %...
  • Page 47 Device Functions Proline Promag 55 4 Block QUICK SETUP Function description USER INTERFACE ➞ INFORMATION LINE ➞ CONFIGURATION DISPLAY MODE Note! (2603) This function is only available if VOLUME FLOW BARGRAPH IN % or MASS FLOW BARGRAPH IN % was selected in the function ASSIGN (2600).

  • Page 48: Function Group Multiplex

    4 Block QUICK SETUP Device Functions Proline Promag 55 5.4.2 Function group MULTIPLEX ⇒ USER INTERFACE CONTROL ⇓ MAIN LINE ⇓ ADDITIONAL LINE ⇓ ⇒ INFORMATION LINE CONFIGURATION ⇓ MULTIPLEX Function description USER INTERFACE ➞ INFORMATION LINE ➞ MULTIPLEX ASSIGN...
  • Page 49 Device Functions Proline Promag 55 4 Block QUICK SETUP Function description USER INTERFACE ➞ INFORMATION LINE ➞ MULTIPLEX ASSIGN Note! (continued) Multiplex mode is suspended as soon as a fault / notice message is generated. The message in question appears on the display.
  • Page 50 4 Block QUICK SETUP Device Functions Proline Promag 55 Function description USER INTERFACE ➞ INFORMATION LINE ➞ MULTIPLEX DISPLAY MODE Note! (2623) This function is only available if VOLUME FLOW BARGRAPH IN % or MASS FLOW BARGRAPH IN % was selected in the function ASSIGN (2620).

  • Page 51: Block Totalizer

    Device Functions Proline Promag 55 4 Block QUICK SETUP Block TOTALIZER Endress+Hauser...

  • Page 52: Group Totalizer (1 To 3)

    4 Block QUICK SETUP Device Functions Proline Promag 55 Group TOTALIZER (1 to 3) 6.1.1 Function group CONFIGURATION ⇒ ⇒ TOTALIZER TOTALIZER 1 CONFIGURATION ⇓ ⇒ TOTALIZER 2 CONFIGURATION ⇓ ⇒ TOTALIZER 3 CONFIGURATION Function description TOTALIZER ➞ TOTALIZER (1 to 3) ➞ CONFIGURATION The function descriptions below apply to totalizers 1 to 3;...
  • Page 53 Device Functions Proline Promag 55 4 Block QUICK SETUP Function description TOTALIZER ➞ TOTALIZER (1 to 3) ➞ CONFIGURATION TOTALIZER MODE Use this function to define how the flow components are to be totalized. (3002) Options: BALANCE Positive and negative flow components. The positive and negative flow components are balanced.

  • Page 54: Function Group Operation

    4 Block QUICK SETUP Device Functions Proline Promag 55 6.1.2 Function group OPERATION ⇒ ⇒ TOTALIZER TOTALIZER 1 CONFIGURATION ⇓ ⇓ OPERATION ⇒ TOTALIZER 2 CONFIGURATION ⇓ ⇓ OPERATION ⇒ TOTALIZER 3 CONFIGURATION ⇓ OPERATION Function description TOTALIZER ➞ TOTALIZER (1 to 3) ➞ OPERATION The function descriptions below apply to totalizers 1 to 3;...

  • Page 55: Group Handling Totalizer

    Device Functions Proline Promag 55 4 Block QUICK SETUP Group HANDLING TOTALIZER ⇒ TOTALIZER TOTALIZER 1 ⇓ TOTALIZER 2 ⇓ TOTALIZER 3 ⇓ ⇒ HANDLING TOTALIZER DJA Handling totalizer functions Function description TOTALIZER ➞ HANDLING TOTALIZER ➞ Handling totalizer functions...

  • Page 56: Block Outputs

    7 Block OUTPUTS Device Functions Proline Promag 55 Block OUTPUTS Endress+Hauser...

  • Page 57: Group Current Output (1 To 2)

    Device Functions Proline Promag 55 7 Block OUTPUTS Group CURRENT OUTPUT (1 to 2) 7.1.1 Function group CONFIGURATION ⇒ ⇒ OUTPUTS CURRENT OUTPUT 1 CONFIGURATION ⇓ ⇒ CURRENT OUTPUT 2 CONFIGURATION Function description OUTPUTS ➞ CURRENT OUTPUT (1 to 2) ➞ CONFIGURATION ASSIGN CURRENT Use this function to assign a measured variable to the current output.
  • Page 58 CURRENT SPAN Use this function to define the current span. The selection specifies the operational range (4001) and the lower and upper signal on alarm. For the current output 1 the option HART can be defined additionally. Options 0–20 mA 4–20 mA...
  • Page 59 Device Functions Proline Promag 55 7 Block OUTPUTS Function description OUTPUTS ➞ CURRENT OUTPUT (1 to 2) ➞ CONFIGURATION VALUE 0_4 mA Use this function to assign the 0/4 mA current a value. The value can be higher or lower (4002) than the value assigned to 20 mA (function VALUE 20 mA (4003)).
  • Page 60 7 Block OUTPUTS Device Functions Proline Promag 55 Function description OUTPUTS ➞ CURRENT OUTPUT (1 to 2) ➞ CONFIGURATION VALUE 0_4 mA Parameter setting example A: (continued) 1. VALUE 0_4 mA (4002) = not equal to zero flow (e.g. –5 m VALUE 20 mA (4003) = not equal to zero flow (e.g.
  • Page 61 Device Functions Proline Promag 55 7 Block OUTPUTS Function description OUTPUTS ➞ CURRENT OUTPUT (1 to 2) ➞ CONFIGURATION VALUE 20 mA Use this function to assign the 20 mA current a value. The value can be higher or lower (4003) than the value assigned to 0/4 mA (function VALUE 0_4 mA (4002), see Page 59).
  • Page 62 7 Block OUTPUTS Device Functions Proline Promag 55 Function description OUTPUTS ➞ CURRENT OUTPUT (1 to 2) ➞ CONFIGURATION MEASURING MODE Use this function to define the measuring mode for the current output. (4004) Options: STANDARD SYMMETRY PULSATING FLOW Factory setting:...
  • Page 63 Device Functions Proline Promag 55 7 Block OUTPUTS Function description OUTPUTS ➞ CURRENT OUTPUT (1 to 2) ➞ CONFIGURATION MEASURING MODE • PULSATING FLOW (continued) If flow is characterized by severe fluctuations as is the case, for example, with reciprocating pumps, flow components outside the measuring range are buffered, balanced and output after a maximum delay of 60 seconds.
  • Page 64 7 Block OUTPUTS Device Functions Proline Promag 55 Function description OUTPUTS ➞ CURRENT OUTPUT (1 to 2) ➞ CONFIGURATION ➀ ➁ ➀ ➁ Detailed explanations and 2. Defined measuring range ( – do not have the same sign. information (continued) ➀...
  • Page 65 Device Functions Proline Promag 55 7 Block OUTPUTS Function description OUTPUTS ➞ CURRENT OUTPUT (1 to 2) ➞ CONFIGURATION FAILSAFE MODE For safety reasons it is advisable to ensure that the current output assumes a predefined (4006) state in the event of a fault. The setting you select here affects only the current output. It has no effect on other outputs and the display (e.g.

  • Page 66: Function Group Operation

    7 Block OUTPUTS Device Functions Proline Promag 55 7.1.2 Function group OPERATION ⇒ ⇒ OUTPUTS CURRENT OUTPUT 1 CONFIGURATION ⇓ ⇓ OPERATION ⇒ CURRENT OUTPUT 2 CONFIGURATION ⇓ OPERATION Function description OUTPUTS ➞ CURRENT OUTPUT (1 to 2) ➞ OPERATION ACTUAL CURRENT Use this function to view the computed actual value of the output current.

  • Page 67: Function Group Information

    Device Functions Proline Promag 55 7 Block OUTPUTS 7.1.3 Function group INFORMATION ⇒ ⇒ OUTPUTS CURRENT OUTPUT 1 CONFIGURATION ⇓ OPERATION ⇓ ⇓ INFORMATION ⇒ CURRENT OUTPUT 2 CONFIGURATION ⇓ OPERATION ⇓ INFORMATION Function description OUTPUTS ➞ CURRENT OUTPUT (1 to 2) ➞ INFORMATION...

  • Page 68: Group Pulse/Frequency Output (1 To 2)

    7 Block OUTPUTS Device Functions Proline Promag 55 Group PULSE/FREQUENCY OUTPUT (1 to 2) 7.2.1 Function group CONFIGURATION ⇒ OUTPUTS CURRENT OUTPUT 1 ⇓ CURRENT OUTPUT 2 ⇓ ⇒ PULSE/FREQ. OUTP. 1 CONFIGURATION ⇓ ⇒ PULSE/FREQ. OUTP. 2 CONFIGURATION Function description OUTPUTS ➞...
  • Page 69 Device Functions Proline Promag 55 7 Block OUTPUTS Function description OUTPUTS ➞ PULSE/FREQUENCY OUTPUT (1 to 2) ➞ CONFIGURATION (FREQUENCY) START VALUE Note! FREQUENCY This function is not available unless the FREQUENCY setting was selected in the (4202) OPERATION MODE function (4200).
  • Page 70 7 Block OUTPUTS Device Functions Proline Promag 55 Function description OUTPUTS ➞ PULSE/FREQUENCY OUTPUT (1 to 2) ➞ CONFIGURATION (FREQUENCY) VALUE-f LOW Note! (4204) This function is not available unless the FREQUENCY setting was selected in the OPERATION MODE function (4200).
  • Page 71 Device Functions Proline Promag 55 7 Block OUTPUTS Function description OUTPUTS ➞ PULSE/FREQUENCY OUTPUT (1 to 2) ➞ CONFIGURATION (FREQUENCY) VALUE-f HIGH Parameter setting example 1: (continued) 1. VALUE-f LOW (4204) = not equal to zero flow (e.g. –5 m VALUE-f HIGH (4205) = not equal to zero flow (e.g.
  • Page 72 7 Block OUTPUTS Device Functions Proline Promag 55 Function description OUTPUTS ➞ PULSE/FREQUENCY OUTPUT (1 to 2) ➞ CONFIGURATION (FREQUENCY) MEASURING MODE Note! (4206) This function is not available unless the FREQUENCY setting was selected in the OPERATION MODE function (4200).
  • Page 73 Device Functions Proline Promag 55 7 Block OUTPUTS Function description OUTPUTS ➞ PULSE/FREQUENCY OUTPUT (1 to 2) ➞ CONFIGURATION (FREQUENCY) MEASURING MODE • PULSATING FLOW (continued) If flow is characterized by severe fluctuations as is the case, for example, with reciprocating pumps, flow components outside the measuring range are buffered, balanced and output after a maximum delay of 60 seconds.
  • Page 74 7 Block OUTPUTS Device Functions Proline Promag 55 Function description OUTPUTS ➞ PULSE/FREQUENCY OUTPUT (1 to 2) ➞ CONFIGURATION (FREQUENCY) OUTPUT SIGNAL Note! (4207) Function is not available unless the FREQUENCY setting was selected OPERATION MODE (4200). For selecting the output configuration of the frequency output.
  • Page 75 Device Functions Proline Promag 55 7 Block OUTPUTS Function description OUTPUTS ➞ PULSE/FREQUENCY OUTPUT (1 to 2) ➞ CONFIGURATION (FREQUENCY) OUTPUT SIGNAL Example for output configuration PASSIVE-POSITIVE: (continued) Output configuration with an external pull-down resistance. In the quiescent state (at zero flow), a positive voltage level is measured via the pull-down resistance.
  • Page 76 7 Block OUTPUTS Device Functions Proline Promag 55 Function description OUTPUTS ➞ PULSE/FREQUENCY OUTPUT (1 to 2) ➞ CONFIGURATION (FREQUENCY) OUTPUT SIGNAL Example for active output circuit (ACTIVE): (continued) With an active circuit, the internal power supply is 24 V.
  • Page 77 Device Functions Proline Promag 55 7 Block OUTPUTS Function description OUTPUTS ➞ PULSE/FREQUENCY OUTPUT (1 to 2) ➞ CONFIGURATION (FREQUENCY) TIME CONSTANT Note! (4208) This function is not available unless the FREQUENCY setting was selected in the OPERATION MODE function (4200).
  • Page 78 7 Block OUTPUTS Device Functions Proline Promag 55 Function description OUTPUTS ➞ PULSE/FREQUENCY OUTPUT (1 to 2) ➞ CONFIGURATION (PULSE) ASSIGN PULSE Note! (4221) This function is not available unless the PULSE setting was selected in the OPERATION MODE function (4200).
  • Page 79 Device Functions Proline Promag 55 7 Block OUTPUTS Function description OUTPUTS ➞ PULSE/FREQUENCY OUTPUT (1 to 2) ➞ CONFIGURATION (PULSE) PULSE WIDTH Note! (4223) This function is not available unless the PULSE setting was selected in the OPERATION MODE function (4200).
  • Page 80 7 Block OUTPUTS Device Functions Proline Promag 55 Function description OUTPUTS ➞ PULSE/FREQUENCY OUTPUT (1 to 2) ➞ CONFIGURATION (PULSE) MEASURING MODE Note! (4225) This function is not available unless the PULSE setting was selected in the OPERATION MODE function (4200).
  • Page 81 Device Functions Proline Promag 55 7 Block OUTPUTS Function description OUTPUTS ➞ PULSE/FREQUENCY OUTPUT (1 to 2) ➞ CONFIGURATION (PULSE) OUTPUT SIGNAL Note! (4226) Function is not available unless the PULSE setting was selected OPERATION MODE (4200). For selecting the output configuration of the pulse output.
  • Page 82 7 Block OUTPUTS Device Functions Proline Promag 55 Function description OUTPUTS ➞ PULSE/FREQUENCY OUTPUT (1 to 2) ➞ CONFIGURATION (PULSE) OUTPUT SIGNAL Example for output configuration PASSIVE-POSITIVE: (continued) Output configuration with an external pull-down resistance. In the quiescent state (at zero flow), a positive voltage level is measured via the pull-down resistance.
  • Page 83 Device Functions Proline Promag 55 7 Block OUTPUTS Function description OUTPUTS ➞ PULSE/FREQUENCY OUTPUT (1 to 2) ➞ CONFIGURATION (PULSE) OUTPUT SIGNAL Example for active output circuit (ACTIVE): (continued) With an active circuit, the internal power supply is 24 V.
  • Page 84 7 Block OUTPUTS Device Functions Proline Promag 55 Function description OUTPUTS ➞ PULSE/FREQUENCY OUTPUT (1 to 2) ➞ CONFIGURATION (PULSE) FAILSAFE MODE Note! (4227) This function is not available unless the PULSE setting was selected in the OPERATION MODE function (4200).
  • Page 85 Device Functions Proline Promag 55 7 Block OUTPUTS Function description OUTPUTS ➞ PULSE/FREQUENCY OUTPUT (1 to 2) ➞ CONFIGURATION (STATUS) ASSIGN STATUS Note! (4241) This function is not available unless the STATUS setting was selected in the OPERATION MODE function (4200).
  • Page 86 7 Block OUTPUTS Device Functions Proline Promag 55 Function description OUTPUTS ➞ PULSE/FREQUENCY OUTPUT (1 to 2) ➞ CONFIGURATION (STATUS) ON-VALUE Note! (4242) This function is not available unless STATUS was selected in the OPERATION MODE function (4200) and LIMIT VALUE or FLOW DIRECTION was selected in the ASSIGN STATUS function (4241).
  • Page 87 Device Functions Proline Promag 55 7 Block OUTPUTS Function description OUTPUTS ➞ PULSE/FREQUENCY OUTPUT (1 to 2) ➞ CONFIGURATION (STATUS) SWITCH-OFF DELAY Note! (4245) This function is not available unless the STATUS setting was selected in the OPERATION MODE function (4200).
  • Page 88 7 Block OUTPUTS Device Functions Proline Promag 55 Function description OUTPUTS ➞ PULSE/FREQUENCY OUTPUT (1 to 2) ➞ CONFIGURATION (STATUS) TIME CONSTANT Note! (4247) This function is not available unless the STATUS setting was selected in the OPERATION MODE function (4200).

  • Page 89: Function Group Operation

    Device Functions Proline Promag 55 7 Block OUTPUTS 7.2.2 Function group OPERATION ⇒ OUTPUTS CURRENT OUTPUT 1 ⇓ CURRENT OUTPUT 2 ⇓ ⇒ PULSE/FREQ. OUTP. 1 CONFIGURATION ⇓ ⇓ OPERATION ⇒ PULSE/FREQ. OUTP. 2 CONFIGURATION ⇓ OPERATION Function description OUTPUTS ➞ PULSE/FREQUENCY OUTPUT (1 to 2) ➞ OPERATION (FREQUENCY)
  • Page 90 7 Block OUTPUTS Device Functions Proline Promag 55 Function description OUTPUTS ➞ PULSE/FREQUENCY OUTPUT (1 to 2) ➞ OPERATION (FREQUENCY) VALUE SIMULATION Note! FREQUENCY This function is not available unless FREQUENCY was selected in the OPERATION (4303) MODE function (4200) and the SIMULATION FREQUENCY function (4302) is active (= ON).
  • Page 91 Device Functions Proline Promag 55 7 Block OUTPUTS Function description ➞ ➞ OUTPUTS PULSE/FREQUENCY OUTPUT (1 to 2) OPERATION (PULSE) SIMULATION PULSE Note! (4322) This function is not available unless the PULSE option was selected in the OPERATION MODE function.
  • Page 92 7 Block OUTPUTS Device Functions Proline Promag 55 Function description OUTPUTS ➞ PULSE/FREQUENCY OUTPUT (1 to 2) ➞ OPERATION (STATUS) ACTUAL STATUS Note! (4341) This function is not available unless the STATUS setting was selected in the OPERATION MODE function (4200).

  • Page 93: Function Group Information

    Device Functions Proline Promag 55 7 Block OUTPUTS 7.2.3 Function group INFORMATION ⇒ OUTPUTS CURRENT OUTPUT 1 ⇓ CURRENT OUTPUT 2 ⇓ ⇒ PULSE/FREQ. OUTP. 1 CONFIGURATION ⇓ OPERATION ⇓ ⇓ INFORMATION ⇒ PULSE/FREQ. OUTP. 2 CONFIGURATION ⇓ OPERATION ⇓...

  • Page 94: Group Relay Output (1 To 2)

    7 Block OUTPUTS Device Functions Proline Promag 55 Group RELAY OUTPUT (1 to 2) 7.3.1 Function group CONFIGURATION ⇒ OUTPUTS CURRENT OUTPUT 1 ⇓ CURRENT OUTPUT 2 ⇓ PULSE/FREQ. OUTP. 1 ⇓ PULSE/FREQ. OUTP. 2 ⇓ ⇒ RELAY OUTPUT 1 CONFIGURATION ⇓...
  • Page 95 Device Functions Proline Promag 55 7 Block OUTPUTS Function description OUTPUTS ➞ RELAY OUTPUT (1 to 2) ➞ CONFIGURATION ON-VALUE Note! (4701) This function is not available unless LIMIT VALUE or FLOW DIRECTION was selected in the function ASSIGN RELAY (4700).
  • Page 96 7 Block OUTPUTS Device Functions Proline Promag 55 Function description OUTPUTS ➞ RELAY OUTPUT (1 to 2) ➞ CONFIGURATION SWITCH-OFF DELAY Note! (4704) This function is not available unless LIMIT VALUE was selected in the ASSIGN RELAY function (4700). Use this function to define a delay (0 to 100 seconds) for dropout (i.e. signal changes from 1 to 0) of the relay output.
  • Page 97 Device Functions Proline Promag 55 7 Block OUTPUTS Function description OUTPUTS ➞ RELAY OUTPUT (1 to 2) ➞ CONFIGURATION TIME CONSTANT Use this function to enter a time constant defining how the measuring signal reacts to (4706) severely fluctuating measured variables, either very quickly (enter a low time constant) or with damping (enter a high time constant).

  • Page 98: Function Group Operation

    7 Block OUTPUTS Device Functions Proline Promag 55 7.3.2 Function group OPERATION ⇒ OUTPUTS CURRENT OUTPUT 1 ⇓ CURRENT OUTPUT 2 ⇓ PULSE/FREQ. OUTP. 1 ⇓ PULSE/FREQ. OUTP. 2 ⇓ ⇒ RELAY OUTPUT 1 CONFIGURATION ⇓ ⇓ OPERATION ⇒ RELAY OUTPUT 2 CONFIGURATION ⇓...
  • Page 99 Device Functions Proline Promag 55 7 Block OUTPUTS Function description OUTPUTS ➞ RELAY OUTPUT (1 to 2) ➞ OPERATION VALUE SIMULATION Note! SWITCH POINT The function is not visible unless the SIMULATION SWITCH POINT function (4741) is (4742) active (= ON).

  • Page 100: Function Group Information

    7 Block OUTPUTS Device Functions Proline Promag 55 7.3.3 Function group INFORMATION ⇒ OUTPUTS CURRENT OUTPUT 1 ⇓ CURRENT OUTPUT 2 ⇓ PULSE/FREQ. OUTP. 1 ⇓ PULSE/FREQ. OUTP. 2 ⇓ ⇒ RELAY OUTPUT 1 CONFIGURATION ⇓ OPERATION ⇓ ⇓ INFORMATION ⇒...

  • Page 101: Switching Response Of The Relay Output

    Device Functions Proline Promag 55 7 Block OUTPUTS 7.3.4 Switching response of the relay output General If you have configured the relay output signal for "LIMIT VALUE" or "FLOW DIRECTION", you can define the requisite switch points in the ON-VALUE and OFF-VALUE functions. When the measured variable in question reaches one of these predefined values, the relay output switches as shown in the illustrations below.
  • Page 102 7 Block OUTPUTS Device Functions Proline Promag 55 Contact* Function Status Relay coil ON (operation) System in measuring mode XXX.XXX.XX energized A0001052 A0001239 A0001237 System not in measuring mode (power supply failed) XXX.XXX.XX energized A0001291 A0001240 A0001238 Fault message System OK XXX.XXX.XX...
  • Page 103 Device Functions Proline Promag 55 7 Block OUTPUTS Contact* Function Status Relay coil Flow direction forward energized A0001241 A0001239 A0001237 reverse energized A0001242 A0001240 A0001238 Limit value Limit value not overshot or undershot energized A0001243 A0001239 A0001237 Limit value overshot or undershot...

  • Page 104: Block Inputs

    8 Block INPUTS Device Functions Proline Promag 55 Block INPUTS Endress+Hauser...

  • Page 105: Group Status Input

    Device Functions Proline Promag 55 8 Block INPUTS Group STATUS INPUT 8.1.1 Function group CONFIGURATION ⇒ ⇒ INPUTS STATUS INPUT CONFIGURATION Function description INPUTS ➞ STATUS INPUT ➞ CONFIGURATION ASSIGN STATUS INPUT Use this function to assign a switching function to the status input.

  • Page 106: Function Group Operation

    8 Block INPUTS Device Functions Proline Promag 55 8.1.2 Function group OPERATION ⇒ ⇒ INPUTS STATUS INPUT CONFIGURATION ⇓ OPERATION Function description INPUTS ➞ STATUS INPUT ➞ OPERATION ACTUAL Use this function to view the current level of the status input.

  • Page 107: Function Group Information

    Device Functions Proline Promag 55 8 Block INPUTS 8.1.3 Function group INFORMATION ⇒ ⇒ INPUTS STATUS INPUT CONFIGURATION ⇓ OPERATION ⇓ INFORMATION Function description INPUTS ➞ STATUS INPUT ➞ INFORMATION TERMINAL NUMBER Use this function to display the numbers of the terminals (in the connection (5080) compartment) which are used by the status input.

  • Page 108: Group Current Input

    8 Block INPUTS Device Functions Proline Promag 55 Group CURRENT INPUT 8.2.1 Function group CONFIGURATION ⇒ INPUTS STATUS INPUT ⇓ ⇒ CURRENT INPUT CONFIGURATION Function description INPUTS ➞ CURRENT INPUT ➞ CONFIGURATION ASSIGN CURRENT Use this function to assign a process variable to the current input.
  • Page 109 Device Functions Proline Promag 55 8 Block INPUTS Function description INPUTS ➞ CURRENT INPUT ➞ CONFIGURATION VALUE 20 mA Use this function to assign a value to the 20 mA current. (5203) User input: 5-digit floating-point number Factory setting: Dependent on the process variable assigned to the current input (see function ASSIGN CURRENT, 5200).

  • Page 110: Function Group Operation

    8 Block INPUTS Device Functions Proline Promag 55 8.2.2 Function group OPERATION ⇒ INPUTS STATUS INPUT ⇓ ⇒ CURRENT INPUT CONFIGURATION ⇓ OPERATION Function description INPUTS ➞ CURRENT INPUT ➞ OPERATION ACTUAL CURRENT Use this function to view the actual value of the input current.

  • Page 111: Function Group Information

    Device Functions Proline Promag 55 8 Block INPUTS 8.2.3 Function group INFORMATION ⇒ INPUTS STATUS INPUT ⇓ ⇒ CURRENT INPUT CONFIGURATION ⇓ OPERATION ⇓ INFORMATION Function description INPUTS ➞ CURRENT INPUT ➞ INFORMATION TERMINAL NUMBER This function is used to display the polarity and numbers of the terminals (in the terminal (5280) compartment) occupied by the current input.

  • Page 112: Block Basic Function

    9 Block BASIC FUNCTION Device Functions Proline Promag 55 Block BASIC FUNCTION Endress+Hauser...

  • Page 113: Group Hart

    Factory setting: "_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _" (No text) BUS ADDRESS Use this function to define the address for the exchange of data with the HART protocol. (6002) User input:...

  • Page 114: Function Group Information

    Use this function to view the device ID in hexadecimal numerical format. (6041) User interface: 44 hex (≅ 68 dez) for Promag 55 DEVICE REVISION Use this function to view the device-specific revision of the HART command interface. (6042) User interface: E.g.: 1 Endress+Hauser...

  • Page 115: Group Process Parameter

    Device Functions Proline Promag 55 9 Block BASIC FUNCTION Group PROCESS PARAMETER 9.2.1 Function group CONFIGURATION ⇒ BASIC FUNCTION HART ⇓ ⇒ PROCESS PARAMETER CONFIGURATION Function description BASIC FUNCTION ➞ PROCESS PARAMETER ➞ CONFIGURATION ASSIGN LOW FLOW CUT Use this function to assign the switch point for the low flow cutoff.
  • Page 116 9 Block BASIC FUNCTION Device Functions Proline Promag 55 Function description BASIC FUNCTION ➞ PROCESS PARAMETER ➞ CONFIGURATION PRESSURE SHOCK The closure of a valve can cause brief but severe movements of the fluid in the piping SUPPRESSION system, movements which the measuring system registers. The pulses totaled in this way (6404) result in a totalizer reading error, particularly in the case of batching processes.
  • Page 117 Device Functions Proline Promag 55 9 Block BASIC FUNCTION Function description BASIC FUNCTION ➞ PROCESS PARAMETER ➞ CONFIGURATION CONDUCTIVITY Use this function to switch on the conductivity measurement. (6405) Options: LONG INTERVAL Measurement every 500th flow measurement (500 × measuring period → Page 126) SHORT INTERVAL Measurement every 50th flow measurement (50 ×...

  • Page 118: Function Group Epd Parameter

    9 Block BASIC FUNCTION Device Functions Proline Promag 55 9.2.2 Function group EPD PARAMETER ⇒ BASIC FUNCTION HART ⇓ ⇒ PROCESS PARAMETER CONFIGURATION ⇓ EPD PARAMETER Function description BASIC FUNCTION ➞ PROCESS PARAMETER ➞ EPD PARAMETER EMPTY PIPE DETECTION Flow cannot be measured correctly unless the measuring tube is completely full. This (6420) status can be monitored at all times with the Empty Pipe Detection function.
  • Page 119 Device Functions Proline Promag 55 9 Block BASIC FUNCTION Function description BASIC FUNCTION ➞ PROCESS PARAMETER ➞ EPD PARAMETER EPD RESPONSE TIME Note! (6425) The function is only available if the function EMPTY PIPE DETECTION (6420) has been switched on.

  • Page 120: Function Group Ecc Parameter

    9 Block BASIC FUNCTION Device Functions Proline Promag 55 9.2.3 Function group ECC PARAMETER ⇒ BASIC FUNCTION HART ⇓ ⇒ PROCESS PARAMETER CONFIGURATION ⇓ EPD PARAMETER ⇓ ECC PARAMETER Function description BASIC FUNCTION ➞ PROCESS PARAMETER ➞ ECC PARAMETER Note!
  • Page 121 Device Functions Proline Promag 55 9 Block BASIC FUNCTION Function description BASIC FUNCTION ➞ PROCESS PARAMETER ➞ ECC PARAMETER RECOVERY TIME ECC Note! (6442) This function is not available unless the measuring device is equipped with the optional electrode cleaning function (ECC).

  • Page 122: Function Group Adjustment

    9 Block BASIC FUNCTION Device Functions Proline Promag 55 9.2.4 Function group ADJUSTMENT ⇒ BASIC FUNCTION HART ⇓ ⇒ PROCESS PARAMETER CONFIGURATION ⇓ EPD PARAMETER ⇓ ECC PARAMETER ⇓ ADJUSTMENT Function description BASIC FUNCTION ➞ PROCESS PARAMETER ➞ ADJUSTMENT EPD ADJUSTMENT Use this function to activate the EPD adjustment for an empty or full measuring tube.

  • Page 123: Group System Parameter

    Device Functions Proline Promag 55 9 Block BASIC FUNCTION Group SYSTEM PARAMETER 9.3.1 Function group CONFIGURATION ⇒ BASIC FUNCTION HART ⇓ PROCESS PARAMETER ⇓ ⇒ SYSTEM PARAMETER CONFIGURATION Function description BASIC FUNCTION ➞ SYSTEM PARAMETER ➞ CONFIGURATION INSTALLATION Use this function to reverse the sign of the flow quantity, if necessary.
  • Page 124 9 Block BASIC FUNCTION Device Functions Proline Promag 55 Function description BASIC FUNCTION ➞ SYSTEM PARAMETER ➞ CONFIGURATION POSITIVE ZERO RETURN Use this function to interrupt evaluation of measured variables. This is necessary when a (6605) piping system is being cleaned, for example. This setting acts on all function and outputs of the measuring device.

  • Page 125: Group Sensor Data

    Device Functions Proline Promag 55 9 Block BASIC FUNCTION Group SENSOR DATA 9.4.1 Function group CONFIGURATION ⇒ BASIC FUNCTION HART ⇓ PROCESS PARAMETER ⇓ SYSTEM PARAMETER ⇓ ⇒ SENSOR DATA CONFIGURATION Function description BASIC FUNCTION ➞ SENSOR DATA ➞ CONFIGURATION All sensor data (calibration factors, zero (point) and nominal diameter) are set at the factory and saved on the S-DAT sensor memory chip.

  • Page 126: Function Group Operation

    9 Block BASIC FUNCTION Device Functions Proline Promag 55 9.4.2 Function group OPERATION ⇒ BASIC FUNCTION HART ⇓ PROCESS PARAMETER ⇓ SYSTEM PARAMETER ⇓ ⇒ SENSOR DATA CONFIGURATION ⇓ OPERATION Function description BASIC FUNCTION ➞ SENSOR DATA ➞ OPERATION All sensor data (measuring period, overvoltage time, etc.) are set at the factory and saved on the S-DAT sensor memory chip.
  • Page 127 Device Functions Proline Promag 55 9 Block BASIC FUNCTION Function description BASIC FUNCTION ➞ SENSOR DATA ➞ OPERATION COND.VITY ENABLE Use this function to check whether the sensor is capable of conductivity measurement. (6824) User interface: YES → Conductivity enable: –...

  • Page 128: Block Special Function

    10 Block SPECIAL FUNCTION Device Functions Proline Promag 55 Block SPECIAL FUNCTION Endress+Hauser...

  • Page 129: Group Advanced Diagnostics

    Device Functions Proline Promag 55 10 Block SPECIAL FUNCTION 10.1 Group ADVANCED DIAGNOSTICS Introduction The optional software package "Advanced Diagnostics" (F-CHIP) can be used to detect changes to the measuring system at an early stage, e.g. as a result of build-up (coating), abrasion and corrosion at the measuring electrodes.
  • Page 130 10 Block SPECIAL FUNCTION Device Functions Proline Promag 55 Activating coating detection (procedure) Ascertain reference values for the diagnostic parameters → Function REFERENCE CONDITION USER (7501). Select reference condition → Function SELECT REFERENCE CONDITION (7502) Specify when and how the diagnostic parameter values are to be ascertained: –...

  • Page 131: Function Group Configuration

    Device Functions Proline Promag 55 10 Block SPECIAL FUNCTION 10.1.1 Function group CONFIGURATION ⇒ ⇒ SPECIAL FUNCTION H ADV. DIAGNOSTICS CONFIGURATION Function description SPECIAL FUNCTION ➞ ADV. DIAGNOSTICS ➞ CONFIGURATION REFERENCE This function enables the user to start an adjustment, in order to ascertain the reference CONDITION USER values of various diagnostic parameters valid for his process.

  • Page 132: Function Group Acquisition

    10 Block SPECIAL FUNCTION Device Functions Proline Promag 55 10.1.2 Function group ACQUISITION ⇒ ⇒ SPECIAL FUNCTION H ADV. DIAGNOSTICS CONFIGURATION ⇓ ACQUISITION Function description SPECIAL FUNCTION ➞ ADV. DIAGNOSTICS ➞ ACQUISITION ACQUISITION MODE In this function, you define whether the diagnostic parameters are acquired periodically (7510) by the measuring device or manually by the user.

  • Page 133: Function Group Config. Coating

    Device Functions Proline Promag 55 10 Block SPECIAL FUNCTION 10.1.3 Function group CONFIG. COATING ⇒ ⇒ SPECIAL FUNCTION H ADV. DIAGNOSTICS CONFIGURATION ⇓ ACQUISITION ⇓ CONFIG. COATING Function description SPECIAL FUNCTION ➞ ADV. DIAGNOSTICS ➞ CONFIG. COATING COATING DETECTION The coating detection (= detecting build-up on the measuring electrodes) can be (7520) switched on in this function.

  • Page 134: Function Group Coating E1

    10 Block SPECIAL FUNCTION Device Functions Proline Promag 55 10.1.4 Function group COATING E1 ⇒ ⇒ SPECIAL FUNCTION H ADV. DIAGNOSTICS CONFIGURATION ⇓ ACQUISITION ⇓ CONFIG. COATING ⇓ COATING E1 Function description SPECIAL FUNCTION ➞ ADV. DIAGNOSTICS ➞ COATING E1...

  • Page 135: Function Group Coating E2

    Device Functions Proline Promag 55 10 Block SPECIAL FUNCTION 10.1.5 Function group COATING E2 ⇒ ⇒ SPECIAL FUNCTION H ADV. DIAGNOSTICS CONFIGURATION ⇓ ACQUISITION ⇓ CONFIG. COATING ⇓ COATING E1 ⇓ COATING E2 Function description SPECIAL FUNCTION ➞ ADV. DIAGNOSTICS ➞ COATING E2...

  • Page 136: Function Group Electrode Pot. 1

    10 Block SPECIAL FUNCTION Device Functions Proline Promag 55 10.1.6 Function group ELECTRODE POT. 1 ⇒ ⇒ SPECIAL FUNCTION H ADV. DIAGNOSTICS CONFIGURATION ⇓ ACQUISITION ⇓ CONFIG. COATING ⇓ COATING E1 ⇓ COATING E2 ⇓ ELECTR. POTENTIAL 1 Function description SPECIAL FUNCTION ➞...

  • Page 137: Function Group Electrode Pot. 2

    Device Functions Proline Promag 55 10 Block SPECIAL FUNCTION 10.1.7 Function group ELECTRODE POT. 2 ⇒ ⇒ SPECIAL FUNCTION H ADV. DIAGNOSTICS CONFIGURATION ⇓ ACQUISITION ⇓ CONFIG. COATING ⇓ COATING E1 ⇓ COATING E2 ⇓ ELECTR. POTENTIAL 1 ⇓ ELECTR. POTENTIAL 2 Function description SPECIAL FUNCTION ➞...

  • Page 138: Function Group Volume Flow

    10 Block SPECIAL FUNCTION Device Functions Proline Promag 55 10.1.8 Function group VOLUME FLOW ⇒ ⇒ SPECIAL FUNCTION H ADV. DIAGNOSTICS CONFIGURATION ⇓ ACQUISITION ⇓ CONFIG. COATING ⇓ COATING E1 ⇓ COATING E2 ⇓ ELECTR. POTENTIAL 1 ⇓ ELECTR. POTENTIAL 2 ⇓...

  • Page 139: Function Group Noise Value

    Device Functions Proline Promag 55 10 Block SPECIAL FUNCTION 10.1.9 Function group NOISE VALUE ⇒ ⇒ SPECIAL FUNCTION H ADV. DIAGNOSTICS CONFIGURATION ⇓ ACQUISITION ⇓ CONFIG. COATING ⇓ COATING E1 ⇓ COATING E2 ⇓ ELECTR. POTENTIAL 1 ⇓ ELECTR. POTENTIAL 2 ⇓...
  • Page 140 10 Block SPECIAL FUNCTION Device Functions Proline Promag 55 Function description SPECIAL FUNCTION ➞ ADV. DIAGNOSTICS ➞ NOISE VALUE WARNING LEVEL Note! (7586) This function is not available unless the ON setting was selected in the WARNING MODE function (7503).

  • Page 141: Group Solid Content Flow

    Device Functions Proline Promag 55 10 Block SPECIAL FUNCTION 10.2 Group SOLID CONTENT FLOW Note! A brief introduction to the calculation of solid content flows with Promag 55 and the requirements needed for this can be found in the Operating Instructions (BA119D/06/en).
  • Page 142 10 Block SPECIAL FUNCTION Device Functions Proline Promag 55 Function description SPECIAL FUNCTION ➞ SOLID CONTENT FLOW ➞ CONFIGURATION TARGET MAT. DENSITY Note! (7712) This function is only available if the measuring device has an F-CHIP for calculating solid content flows (order option).

  • Page 143: Block Supervision

    Device Functions Proline Promag 55 11 Block SUPERVISION Block SUPERVISION Endress+Hauser...

  • Page 144: Group System

    11 Block SUPERVISION Device Functions Proline Promag 55 11.1 Group SYSTEM 11.1.1 Function group CONFIGURATION ⇒ ⇒ SUPERVISION SYSTEM CONFIGURATION Function description SUPERVISION ➞ SYSTEM ➞ CONFIGURATION ASSIGN SYSTEM ERROR Use this function to view all system errors. By selecting a certain system error, its error (8000) category can be changed in the subsequent function ERROR CATEGORY (8001).
  • Page 145 Device Functions Proline Promag 55 11 Block SUPERVISION Function description SUPERVISION ➞ SYSTEM ➞ CONFIGURATION ERROR CATEGORY Note! (8003) This function is only available if a process error has been selected in the function ASSIGN PROCESS ERROR (8002). Use this function to define whether a process error triggers a notice message or a fault message.
  • Page 146 11 Block SUPERVISION Device Functions Proline Promag 55 Function description SUPERVISION ➞ SYSTEM ➞ CONFIGURATION REMOVE Note! SW-OPTION This function is only available if: (8006) • The F-CHIP software options were saved beforehand • The F-CHIP is not located on the I/O board of the measuring device Deletes all F-CHIP software options, such as batching, etc.

  • Page 147: Function Group Operation

    Device Functions Proline Promag 55 11 Block SUPERVISION 11.1.2 Function group OPERATION ⇒ ⇒ SUPERVISION SYSTEM CONFIGURATION ⇓ OPERATION Function description SUPERVISION ➞ SYSTEM ➞ OPERATION ACTUAL SYSTEM Use this function to check the present system condition. CONDITION (8040) User interface: "SYSTEM OK"...
  • Page 148 11 Block SUPERVISION Device Functions Proline Promag 55 Function description SUPERVISION ➞ SYSTEM ➞ OPERATION VALUE SIMULATION Note! MEASURAND The function is not visible unless the SIMULATION MEASURAND function (8043) is (8044) active. Use this function to specify a selectable value (e.g. 12 m /s).

  • Page 149: Group Version Info

    Device Functions Proline Promag 55 11 Block SUPERVISION 11.2 Group VERSION INFO 11.2.1 Function group DEVICE ⇒ SUPERVISION SYSTEM ⇓ ⇒ VERSION INFO DEVICE Function description ➞ ➞ SUPERVISION VERSION INFO DEVICE DEVICE SOFTWARE Use this function to view the current device software version.

  • Page 150: Function Group Amplifier

    11 Block SUPERVISION Device Functions Proline Promag 55 11.2.3 Function group AMPLIFIER ⇒ SUPERVISION SYSTEM ⇓ ⇒ VERSION INFO DEVICE ⇓ SENSOR ⇓ AMPLIFIER Function description SUPERVISION ➞ VERSION INFO ➞ AMPLIFIER SOFTWARE REVISION Use this function to view the software revision number of the amplifier.

  • Page 151: Function Group F-Chip

    Device Functions Proline Promag 55 11 Block SUPERVISION 11.2.4 Function group F-CHIP ⇒ SUPERVISION SYSTEM ⇓ ⇒ VERSION INFO DEVICE ⇓ SENSOR ⇓ AMPLIFIER ⇓ F-CHIP Function description SUPERVISION ➞ VERSION INFO ➞ F-CHIP STATUS F-CHIP Use this function to check whether an F-CHIP is installed and which software options are (8240) available.

  • Page 152: Function Groups Input/Output 1

    11 Block SUPERVISION Device Functions Proline Promag 55 11.2.6 Function groups INPUT/OUTPUT 1 to 4 ⇒ SUPERVISION SYSTEM ⇓ ⇒ VERSION INFO DEVICE ⇓ SENSOR ⇓ AMPLIFIER ⇓ F-CHIP ⇓ I/O MODULE ⇓ I/O SUB-MODULE 1 ⇓ I/O SUB-MODULE 2 ⇓...

  • Page 153: Factory Settings

    Device Functions Proline Promag 55 11 Block SUPERVISION Factory settings 12.1 SI units (not for USA and Canada) Low flow cutoff, full scale value, pulse value, totalizer Nominal Low flow cutoff Full scale value Pulse value Totalizer diameter (approx. 2 pulse/s (approx.

  • Page 154: Units (Only For Usa And Canada)

    11 Block SUPERVISION Device Functions Proline Promag 55 Country Language Poland Polish Portugal Portuguese Russia Russian Singapore English South Africa English Spain Espanol Sweden Svenska Switzerland Deutsch Thailand English Density, length, temperature Unit Density kg/l Length Temperature ° C 12.2...
