SuperDrive Upgrade Page 5 of 6

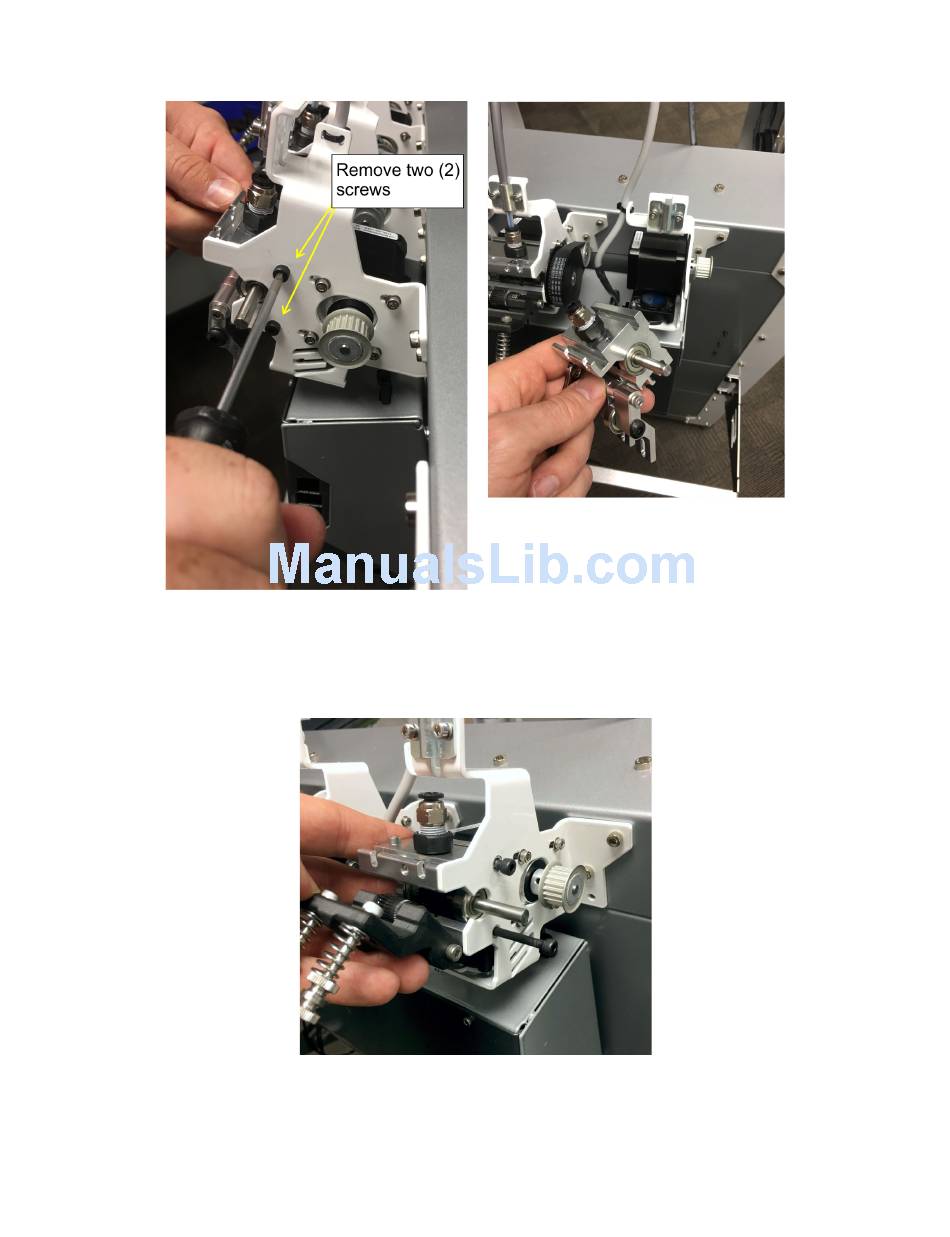

Step 7. Remove Extruder Assembly: Behind the large pulley you just removed are two screws. Remove
these screws with an M3 driver while using a 7mm wrench to hold the opposite nut. When the two screws are
removed, the entire extruder assembly will come free.
Step 8. Install New SuperDrive Extruder Assembly: T ake the new SuperDrive assembly and attach it to the
filament drive stepper motor bracket by using the same two screws and nuts you removed in step 6. Confirm
the orientation of the shaft is correct (seen in Step 1).
