SuperDrive Upgrade Page 2 of 6

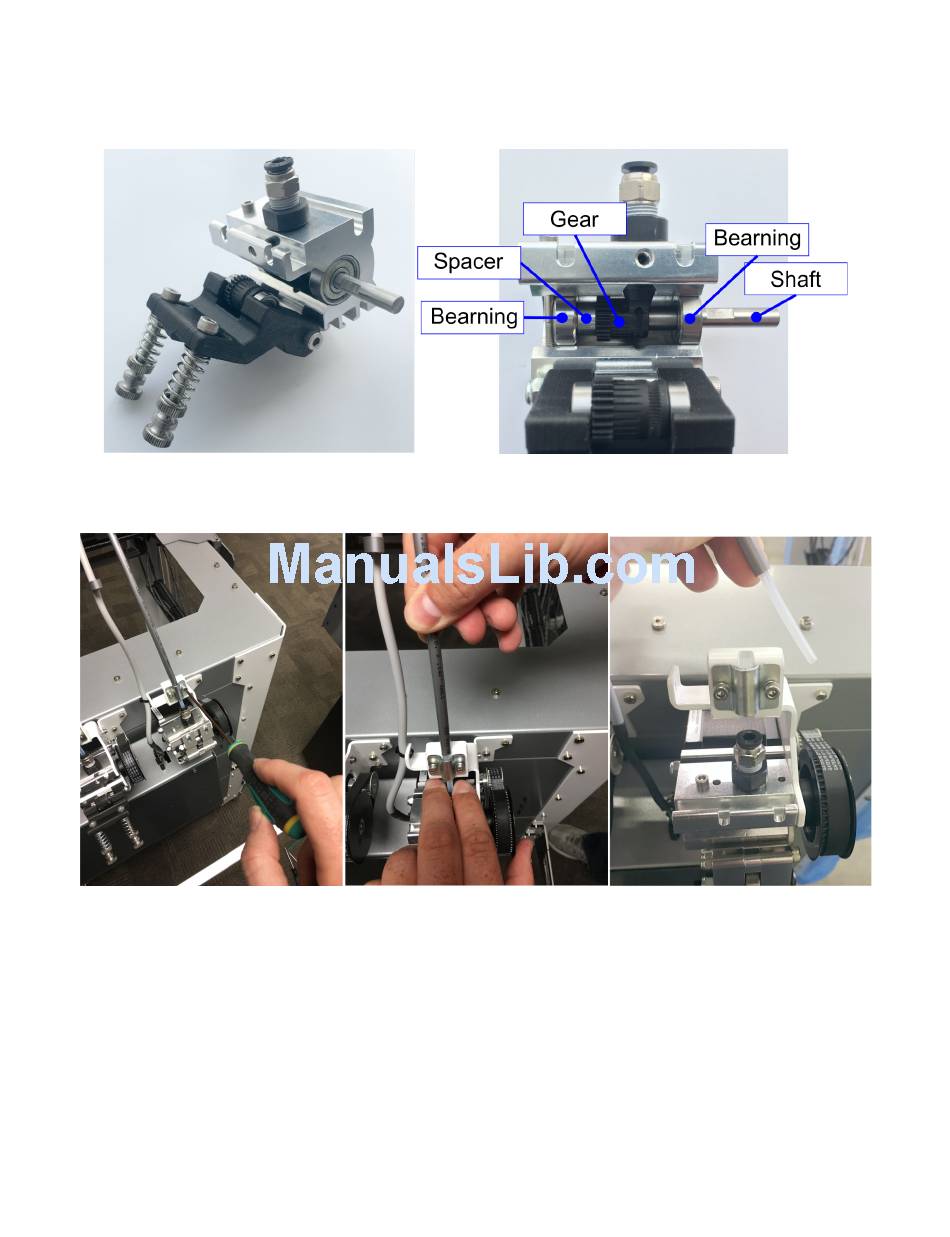

Step 1. Check Upgrade Kit Assembly : Your SuperDirve comes fully assembled, but the shaft is not held in
the housing. If the shaft separates from the assembly, the image below illustrates the orientation of the
bearings, spacer, and gear along the shaft.
Step 2. Remove Filament Guide Tube: Loosen the two screws which clamp down the silver filament guide
tube sleeve, then depress the push-fitting ring to detach the filament guide tube from the extruder.
