SuperDrive Upgrade Page 4 of 6

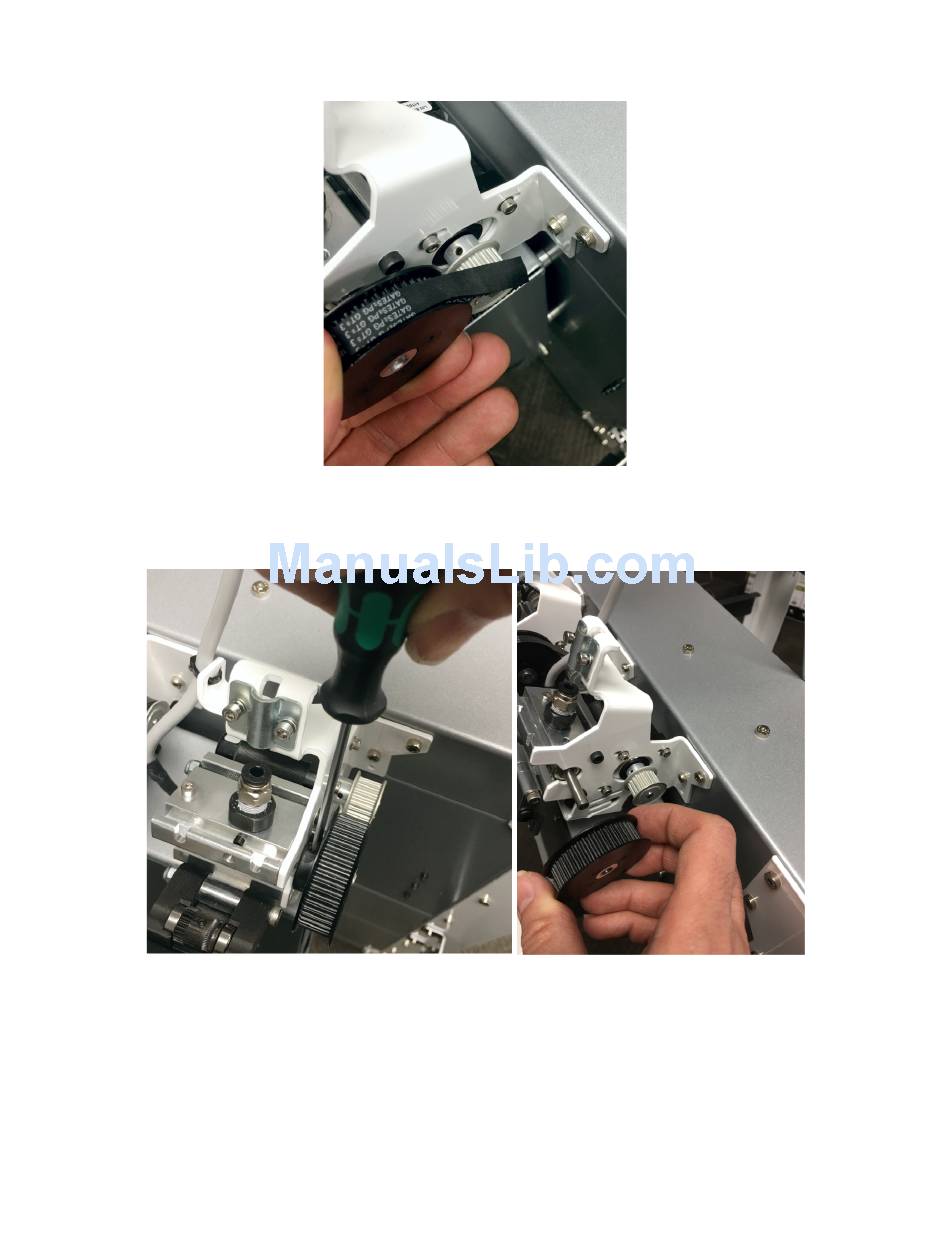

Step 5. Remove Belt: W ith the four motor screws loose, the belt tension is reduced. To remove the belt, you
can place the belt partially off from the smaller pulley (shown below) and rotate the larger pulley by hand to
ease the belt from the smaller pulley.
Step 6. Detach the Large Pulley: T o remove the large pulley, loosening the setscrew on the pulley, then slide
the pulley off the shaft.
