Thank you for purchasing the SuperDrive Extruder Upgrade Kit for your STACKER 3D printer! The new
double gear design of the Stacker SuperDrive provides more consistent filament movement through the
extruder and improves overall performance when printing with any filament -- including flexible filaments.
This Installation Guide is intended for the Stacker S4, but the SuperDrive Upgrade also works with the Stacker
S2 and Stacker 500 models. Please read and understand the entire SuperDrive Upgrade Installation Guide
before proceeding step-by-step through these instructions. Installation takes about half an hour. If you run into
problems or have any questions, please contact our customer support team at

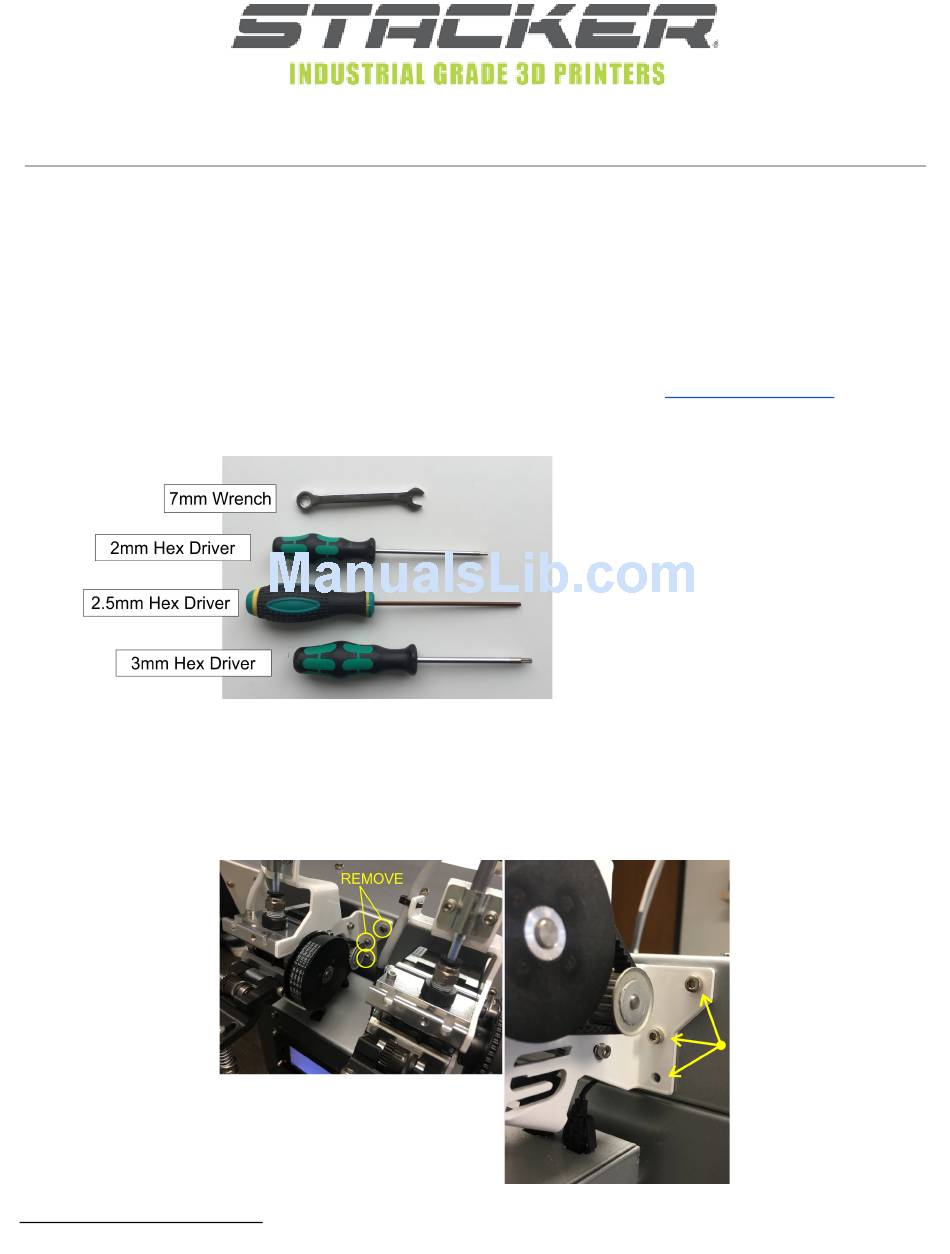

Required Tools :
Please Note: T his Installation Guide only shows the installation on exturder 1. When installing the upgrade kit
on extruders 2, 3, and 4, access to the screws is limited due to the proximity neighboring extruders. You may
find it easer to remove the entire filament drive from the printer to perform the upgrade. To remove the entire
filament drive from the printer, use an M3 Hex Driver and remove the three screws indicated in the images
below. You will also have to disconnect the power connectors located underneath the extruder.
1
L ast updated April 11, 2017
SuperDrive Upgrade Installation Guide
1
i nfo@stacker3d.com
.
Advertisement
Table of Contents
Related Manuals for STACKER SuperDrive Extruder Upgrade Kit
Summary of Contents for STACKER SuperDrive Extruder Upgrade Kit
- Page 1 SuperDrive Upgrade Installation Guide Thank you for purchasing the SuperDrive Extruder Upgrade Kit for your STACKER 3D printer! The new double gear design of the Stacker SuperDrive provides more consistent filament movement through the extruder and improves overall performance when printing with any filament -- including flexible filaments.
- Page 2 SuperDrive Upgrade Page 2 of 6 Step 1. Check Upgrade Kit Assembly : Your SuperDirve comes fully assembled, but the shaft is not held in the housing. If the shaft separates from the assembly, the image below illustrates the orientation of the bearings, spacer, and gear along the shaft.
- Page 3 SuperDrive Upgrade Page 3 of 6 Step 3. Install Spacer Shim: Locate the tube shim (shown to the right). Then remove the tube clamp from your printer, slide the shim behind the tube and reattach the tube clamp. Step 4. Loosen the Four Motor Screws: I n order to remove the belt from the pulleys, you will need to loosen (DO NOT REMOVE) the four of the screws securing the motor to the filament drive stepper motor bracket.
- Page 4 SuperDrive Upgrade Page 4 of 6 Step 5. Remove Belt: W ith the four motor screws loose, the belt tension is reduced. To remove the belt, you can place the belt partially off from the smaller pulley (shown below) and rotate the larger pulley by hand to ease the belt from the smaller pulley.
- Page 5 SuperDrive Upgrade Page 5 of 6 Step 7. Remove Extruder Assembly: Behind the large pulley you just removed are two screws. Remove these screws with an M3 driver while using a 7mm wrench to hold the opposite nut. When the two screws are removed, the entire extruder assembly will come free.
- Page 6 SuperDrive Upgrade Page 6 of 6 Step 9. Reattach the Large Pulley: While sliding the large pulley back onto the shaft, make sure the set screw is aligned with flat area on the shaft (see image below) before tightening the set screw. The set screw must make contact with the flat area of the shaft.
