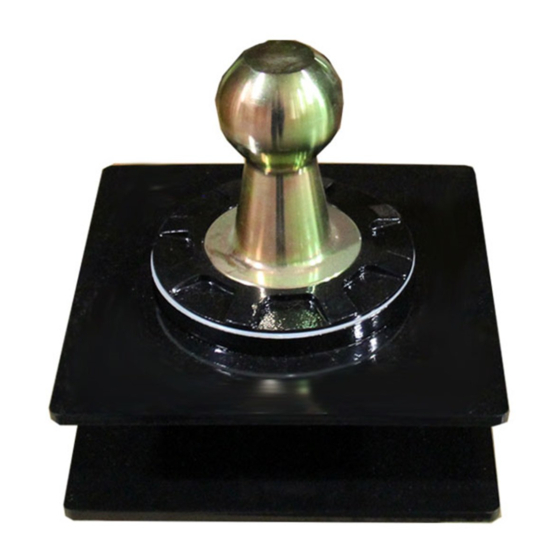

Blue Ox DH2303 Installation Instructions Manual

Please read these Installation Instructions in their entirety prior to
This hitch is rated to 30,000 lbs. Gross Towing Weight
Bolt Torque Specifications
Torque in Foot-Pounds for Inch Bolts
Bolt Size Grade 5
1/4"
5/16"
3/8"
7/16"
1/2"
5/8"
3/4"
WARNING
!
Refer to your vehicle's owner's manual for
maximum towing capacity. DO NOT exceed
vehicle, tongue or hitch weight ratings - failure to
follow vehicle manufacturer's recommendations
could result in damage to your vehicle, personal
injury or death.
2016 Chevy/GMC 2500/3500
installing or operating this equipment.
and 7,500 lbs. Tongue Weight
Grade 8
10 14
19 29
33 47
54 78
78 119
154 230
257 380
DH2303
(Standard & Long Box)
Installation Instructions
Bolt Torque Specifications
Torque in Foot-Pounds for Metric Bolts
Bolt Size
6MM
8MM
10MM
12MM
14MM
16MM
18MM
!
Failure to read and follow these instructions could
result in separation of the trailer from the truck,
causing property damage, loss of towed vehicle,
Page 1 of 9
Grade 8.8 Grade 10.9
6
16
31
54
89
161
222
WARNING
personal injury or death.
8
22
40
70
117
230
318
