Page 1: Instruction Manual

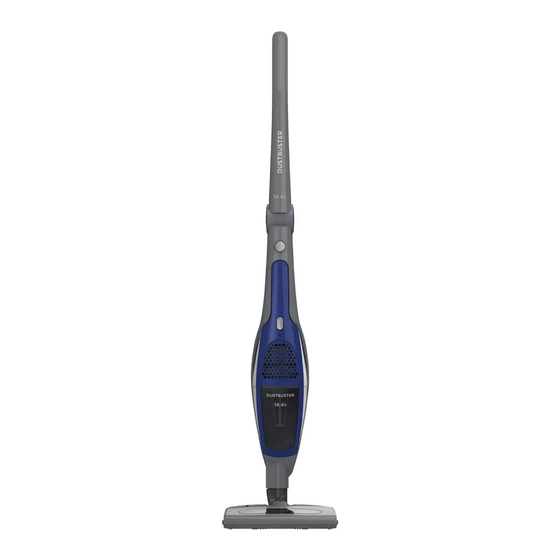

CORDLeSS 2-IN-1 STICk VAC INSTRUCTION MANUAL CATALOg NUMbeRS Db1440SV Db1800SV Thank you for choosing bLACk+DeCkeR! PLeASe ReAD befORe ReTURNINg ThIS PRODUCT fOR ANy ReASON. -
Page 2: Safety Guidelines - Definitions
ENGLISH SAFETY GUIDELINES - DEFINITIONS It is important for you to read and understand this manual. The information it contains relates to protecting YOUR SAFETY and PREVENTING PROBLEMS. The symbols below are used to help you recognize this information. DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. - Page 3 ....Class II Construction 3. Do not expose charger to rain or snow. (double insulated) 4. Use of an attachment not recommended or .../min or rpm ...revolutions or sold by BLACK+DECKER may result in a risk reciprocation per minute...
- Page 4 • When using an extension cord, be sure to use one heavy enough to carry the current Minimum Gauge for Cord Sets Volts Total Length of Cord in Feet your product will draw. An undersized cord 120V 0-25 26-50 51-100 101-150 will cause a drop in line voltage resulting (0-7,6m) (7,6-15,2m) (15,2-30,4m) (30,4-45,7m)
- Page 5 Functional Desciption 1. On/off power switch 2. Handle 3. Handle rotation button 4. Hand vac 5. Hand vac release button 6. Dust bowl 7. Floor head 8. Power indicator 9. Charging indicator 10. Charger 11. Upholstery brush 12. Crevice tool Assembly Installing / Removing Hand Vac...
-
Page 6: Attaching Accessories
Attaching accessories The upholstery brush (11) is designed for more effective cleaning of upholstered furniture and fabric. The crevice tool (12) allows for vacuuming in narrow and hard to-reach places. Charging the battery Charge Hours 1. Make sure the appliance is switched off. The battery will not be charged with the on/ off switch in the on position. 2. - Page 7 On / Off Rotating handle The forward handle position makes vacuuming under beds, sofas, tables, and other hard-to- reach places easy.
-
Page 8: Replacing The Filter
Do not turn appliance on when dust bowl is removed. • In order to keep the suction force optimized, the dust container and filters must be cleaned regularly. • Reassemble after cleaning Replacing the filter The filters should be replaced every 6 to 9 months and whenever worn or damaged. Replacement filters are available from BLACK+DECKER. - Page 9 Removing Brush • Remove the screw (16) from the floor head (7) using a phillips screwdriver. • Lift the plastic tab (17) away from the floor head. • Lift the power brush (18) out of the floor head. • Replace power brush, plastic tab, and tighten screw firmly before using vacuum.
-
Page 10: Maintenance
Seal”). if not installed and used in accordance with Call your local retailer for details. If you the instructions, may cause harmful bring the batteries to a BLACK+DECKER interference to radio communications. Company-Owned or Authorized Service However, there is no guarantee that Center, the Center will arrange to recycle interference will not occur in a particular old batteries. -
Page 11: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Possible Solution • Unit will not start. • Battery not charged. • Check battery charging requirements. • Battery will not charge. • Charger not plugged in. • Plug charger into a working outlet. Refer to “Important Charging Notes” for more details. • Check current at receptacle by plugging in a lamp or other appliance. • Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights.
