4. DESCRIPTION

4.1 Description of the appliance

(page 3 - A )
A1. Control panel
A2. Grinding adjustment dial
A3. Cup shelf
A4. Beans container lid
A5. Pre-ground coffee funnel lid
A6. Pre-ground coffee funnel
A7. Beans container
A8. Main switch
A9. Water tank
A10. Infuser door
A11. Infuser
A12. Coffee spouts (adjustable height)
A13. Coffee grounds container
A14. Condensate tray
A15. Cup tray
A16. Drip tray water level indicator
A17. Drip tray
A18. Cappuccino maker
A19. Steam/hot water dial

4.2 Description of the control panel

(page 2 - B )
B1. Lights
B2. button: turns the appliance on and off
B3. button: to make 1 cup of short espresso coffee.
B4. button: to make 2 cups of short espresso coffee.
B5. button: to rinse or descale the appliance
B6. Selection dial: turn to select coffee quantity or to use pre-
ground coffee
B7. button: to deliver steam to make hot milk-based
coffees
B8. button: to make 1 cup of long espresso coffee
B9. button: to make 2 cups of long espresso coffee.

4.3 Description of the accessories

(page 2 - C )
C1. "Total Hardness Test" indicator paper
C2. Measure
C3. Descaler bottle
C4. Water softener filter

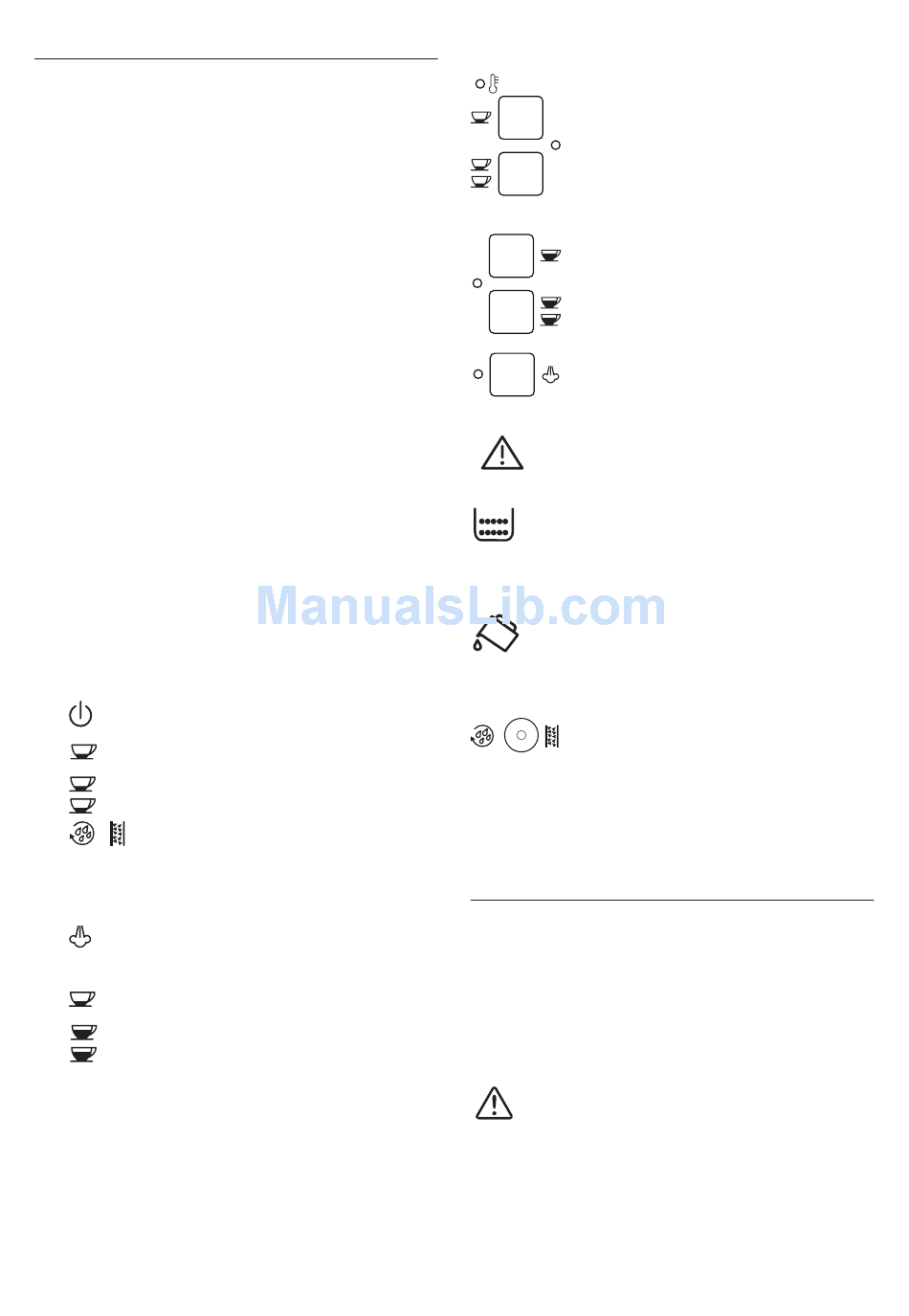

4.4 Description of lights

Light flashing: the machine is heating up.
The appliance is delivering one or two cups of
short coffee.
The appliance is delivering one or two cups of
long coffee.
Light on steadily: the "steam" function has been
selected;
Light flashing: you must turn the steam dial.
An alarm is displayed on the control panel (see
the section "19. Explanation of lights").
Light on steadily: the coffee grounds container
must be inserted;
Light flashing: the grounds container is full and
must be emptied.
Light on steadily: the water tank is missing;
Light flashing: there is not enough water in the
tank.
Light flashing: the appliance must be descaled
(see the section "15. Descaling").
Light on steadily: the appliance is performing a
descaling cycle.
ECO "Energy Saving" mode is active.

5. BEFORE USE

5.1 Checking the appliance

After removing the packaging, make sure the product is com-
plete and undamaged and that all accessories are present. Do
not use the appliance if it is visibly damaged. Contact De'Longhi
Customer Services.

5.2 Installing the appliance

Important!
When you install the appliance, you should respect the follow-
ing safety warnings:
• The appliance could be damaged if the water it contains
freezes.
Do not install the appliance in a room where the tempera-
ture could drop below freezing point.
