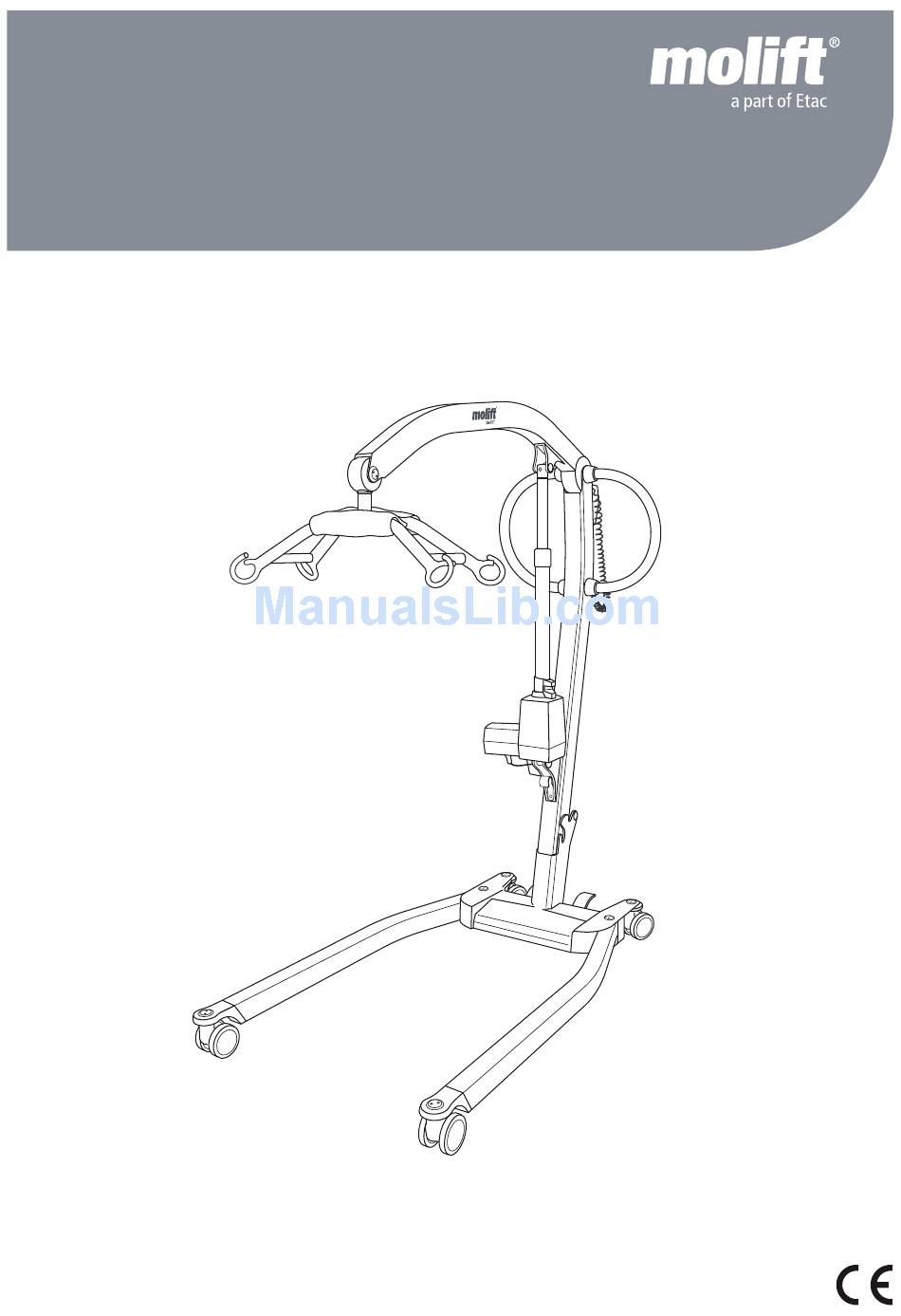

- Page 1 Molift Smart 150 EN - User manual BM09201 Rev. F 2016-04-01...
-
Page 2: Table Of Contents
Follow these instructions carefully. Folding ...........5 Checklist after assembly ......5 Read User Manual before use! How to use Molift Smart 150 ....6 It is important to fully understand Before use / Daily check ......6 the content of the user manual Hand control ..........6... -
Page 3: Molift Smart 150
Wheel / castor (rear with brake) About Molift Smart 150 Molift Smart 150 is a foldable mobile lifter It is ideal for hospitals and institutional care intended for lifting and transferring a person from/ settings, and can also be used in privates homes. -
Page 4: General
General Declaration of conformity The Molift Smart 150 and related accessories described in this operator manual are CE marked in accordance with EU Council Directive 93/42/EEC concerning medical devices, class 1, and has been tested and approved by a third party according to standards IEC 60601-1, IEC 60601-1-2 and NS-EN ISO 10535:2006. -
Page 5: Technical Data
Molift Smart 150 / www.etac.com Technical data Safe Working Load (SWL) Operating forces button 150 kg (330 lbs) Buttons on handset: 3.4 N Weight of unit Material: Ex. battery: 25 kg / incl. battery: 25,8 kg Aluminum, plastic, steel Battery:... -
Page 6: Assembly
Molift Smart 150 / www.etac.com Assembly Battery and Hand control Charge the battery. The battery must not be in the battery holder on the lifting column during assembly or folding. Assembly Remove the transport elastic band. 1. Connect hand control to bottom of battery holder. -
Page 7: How To Use Molift Smart 150
Working pause ratio/Duty Cycle. between lifter, suspension and body support unit Molift Smart 150 should not be run constantly for more than 2 minutes (with maximum load), and Molift lifters shall only be used to lift rest for minimum 18 minutes. -
Page 8: Safety Devices
Molift Smart 150 / www.etac.com Safety devices Emergency Stop / Emergency lowering Molift Smart 150 is equipped with several safety devices, which are intended to prevent damage to personnel and equipment in the case of incorrect Manual use. Emergency lowering The lifter has an overload sensor preventing the lifter to be operated if the load exceeds SWL. -
Page 9: Electronics
After a certain period of operation a signal is given to indicate that service is required. Battery Service indicator Mode Molift Smart 150 is equipped with a 14.4 V 2.6Ah No light Power saving (Stand by) NiMH battery. The battery has a life expectancy of Green Ready for use approx. -
Page 10: Charging
Molift Smart 150 / www.etac.com Charging Battery indicator (LED) Battery charger Mains cable (disconnecting device) Battery charger The battery charger can be used as a tabletop charger or mounted to a vertical wall surface close to a power outlet, minimum 120 cm above the floor. -
Page 11: Transfer
Remember to work ergonomically. Assess the risks and take notes. The assistant is responsible for the safety of the user. Molift Smart 150 has a 4-point suspension for different types of transfers; sitting, recumbent or ambulating. Using slings The suspensions hook design prevents sling to be inadvertently detached when mounted correct. -
Page 12: Transfer
Molift Smart 150 / www.etac.com Transfer Lowering into sitting Try to position the user as low as possible (preferably resting the feet on the chassis) when When transferring the user into sitting, the follow- transferring the lifter with a suspended user. In this... -
Page 13: Accessories
Slings Etac supplies a wide selection of slings for dif- ferent types of transfers. The Molift RgoSling sling series is developed to be combined with a 4-point suspension but the sling also works with a 2-point suspension. See the combination list in the slings user manual for the correct sling and suspension combination. -
Page 14: Maintenance
Contact Etac at molift@etac.com for training and authorization or recommendation of an approved service partner. When performing a periodic inspection, the inspector shall fill out the inspection report for Molift Smart 150. The reports should be retained by the person(s) responsible for servicing the lifter. -
Page 15: Troubleshooting
Molift Smart 150 / www.etac.com Troubleshooting Symptom Possible cause / action The lifting column is wobbly The lifting column is not correctly positioned in the chassis. Assemble column and chassis, and lock column by the locking handle on the chassis. - Page 16 Etac AS Etac Supply Gjøvik Hadelandsveien 2, 2816 Gjøvik, Norway Tel +47 4000 1004 molift@etac.com www.etac.com...
