Summary of Contents for Molift Mover 180

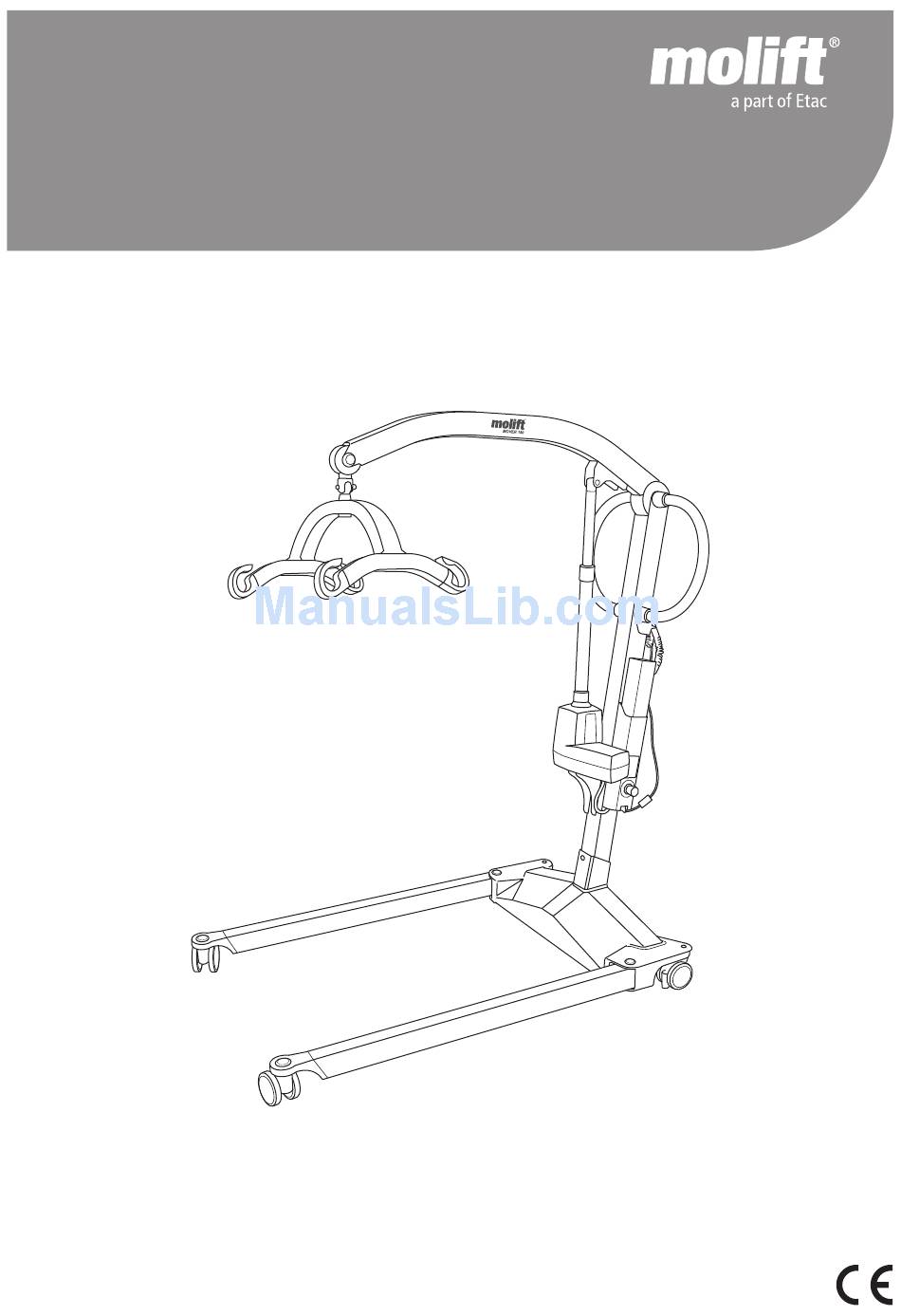

- Page 1 Molift Mover 180 EN - User manual BM08101 Rev. D 2016-04-01...
-
Page 2: Table Of Contents
Battery and hand control ......5 Read user manual before use! Checklist after assembly ......5 It is important to fully understand How to use Molift Mover 180 ....6 the content of the user manual Before use / Daily check ......6 before attempting to use the Hand control ..........6... -
Page 3: Molift Mover 180
Wheel / castor (Rear with brake) About Molift Mover 180 Molift Mover 180 is a mobile lifter intended for It is ideal for hospitals and institutional care set- lifting and transferring a person from/to bed, floor, tings but can also be used in privates homes. The chair, wheelchair or toilet with a sling. -
Page 4: General
General Declaration of conformity The Molift Mover 180 and related accessories described in this operator manual are CE marked in accordance with EU Council Directive 93/42/EEC concerning medical devices, class 1, and has been tested and approved by a third party according to standards IEC 60601-1, IEC 60601-1-2 and NS-EN ISO 10535:2006. -
Page 5: Technical Data
Molift Mover 180 / www.etac.com Technical data Safe Working Load (SWL): Maximum A-weighted sound power level: 182 kg (400 lbs) = 49,4 dB Weight of unit: Operating forces button Excl. battery and suspension: Buttons on handset: 3.4 N 32 kg/70,5 lbs... -
Page 6: Assembly
Molift Mover 180 / www.etac.com Assembly Battery and hand control Charge the battery. The battery must not be in the battery holder during assembly! Lifting column Place lifting column in chassis. Lock the lift column in place by fastening the two hexagon socket screws in front and rear of the chassis. -
Page 7: How To Use Molift Mover 180
Working pause ratio/duty Cycle. support unit, then the lowest maxi- mum load shall always be used Molift Mover 180 should not be run constantly for more than 2 minutes (with maximum load), Molift lifters shall only be used to lift and rest for minimum 18 minutes. -
Page 8: Safety Devices
Molift Mover 180 / www.etac.com Safety devices Emergency stop / Emergency lowering Molift Mover 180 is equipped with several safety Manual devices, which are intended to prevent damage or emergency injuries to personnel and equipment in the case of lowering incorrect use. -
Page 9: Electronics
Service indicator Mode Battery No light Power saving (Stand by) Molift Mover 180 is equipped with a 14.4 V 2.6Ah Green Ready for use NiMH battery. The battery has a life expectancy of Yellow Order service approx. -
Page 10: Charging
Molift Mover 180 / www.etac.com Charging Battery indicator (LED) Battery charger Mains cable (disconnecting device) Battery charger The battery charger can be used as a tabletop charger or mounted to a vertical wall surface close to a power outlet, minimum 120 cm above the floor. -
Page 11: Transfer
Assess the risks and take notes. The assistant is responsible for the safety of the user. Molift Mover 180 can be used with both 2-point and 4-point suspension for different types of transfers; sitting, recumbent or ambulating. -
Page 12: Transfer
Molift Mover 180 / www.etac.com Transfer Lowering into sitting Try to position the user as low as possible (preferably resting the feet on the chassis) when When transferring the user into sitting, the follow- transferring the lifter with a suspended user. In this... -
Page 13: Accessories
The scale set suspension coupling fits all Molift Mover 180 compatible suspensions. Molift Scale is Suspensions approved Class III. The scale can also calculate BMI Molift Mover 180 can be used with 2 or 4 point (Body Mass Index). suspension. Molift Scale Set (without Suspension) Aluminum suspension Art. -
Page 14: Maintenance
Contact Etac at molift@etac.com for training and authorization or recommendation of an approved service partner. When performing a periodic inspection, the inspector shall fill out the inspection report for Molift Mover 180. The reports should be retained by the person(s) responsible for servicing the lifter. -
Page 15: Troubleshooting
Molift Mover 180 / www.etac.com Troubleshooting Symptom Possible cause / action The lifting column is wobbly The lifting column is not correctly positioned in the chassis or the screw in front or back is not properly tightened. Assemble column and chassis, and tighten screws properly. - Page 16 Etac AS Etac Supply Gjøvik Hadelandsveien 2, 2816 Gjøvik, Norway Tel +47 4000 1004 molift@etac.com www.etac.com...
