Vector Display; Figure 2- 18: Waveform Display Elements - Tektronix WVR610A Service Manual

Variable gain
setting
Table 2- 3: Waveform display element descriptions
Display element
Gain Setting
Waveform components
displayed
Field and Line Select
Sweep rate
Sweep rate, Mag

Vector Display

WVR610A & WVR611A Waveform Rasterizers Service Manual
Waveform components
displayed

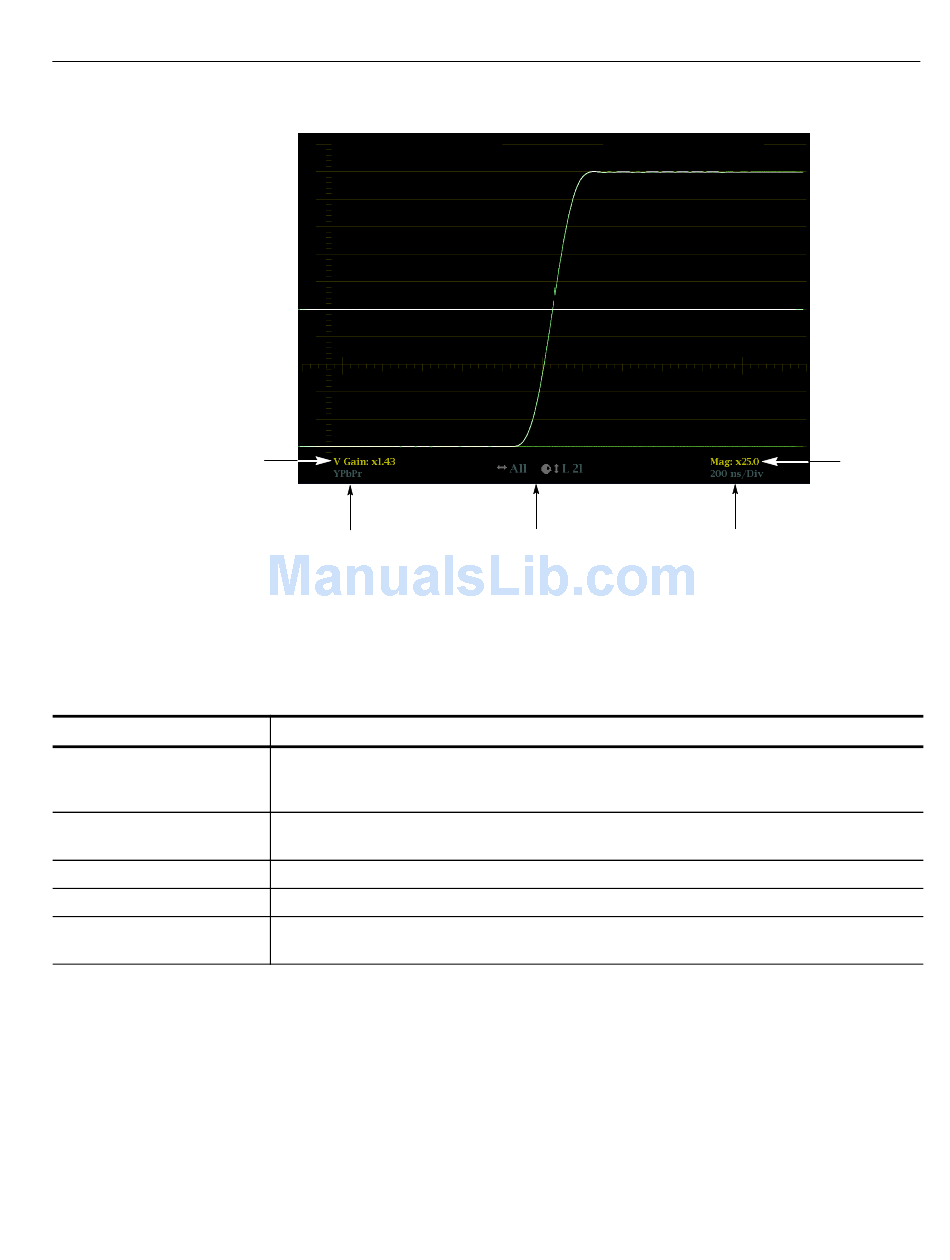

Figure 2- 18: Waveform display elements

Description
A text string indicating the gain setting. Possible readouts are V Gain: x5, and V Gain: 1.50. When
the Gain is set to a value other than 1, it will appear in a bright yellow color. The gain setting is not
displayed when it is X1.
A text string showing the current waveform color space components displayed. Non-displayed
components are indicated by dashes: - - - - .
A readout displaying the currently selected field and line.
A readout showing the current sweep rate in a tile.
A readout showing when the Mag button is pressed; if pressed, Mag is displayed next to the sweep
rate in yellow text.
The Vector display provides two display types: Vector and the Tektronix
proprietary Lightning display (SDI signals only). The Vector display shows a
plot of the R-Y signal on one axis and the B-Y signal on the other. It is useful for
looking at hue and saturation of the colors, but does not show luminance
information. The Lightning display shows the same color signals as in vector,
Field and Line Select
Operating Basics
Sweep Mag
Enabled
Sweep rate
2- 13
