2 Overview – 2.3 Display and user interface
1
Main menu navigation

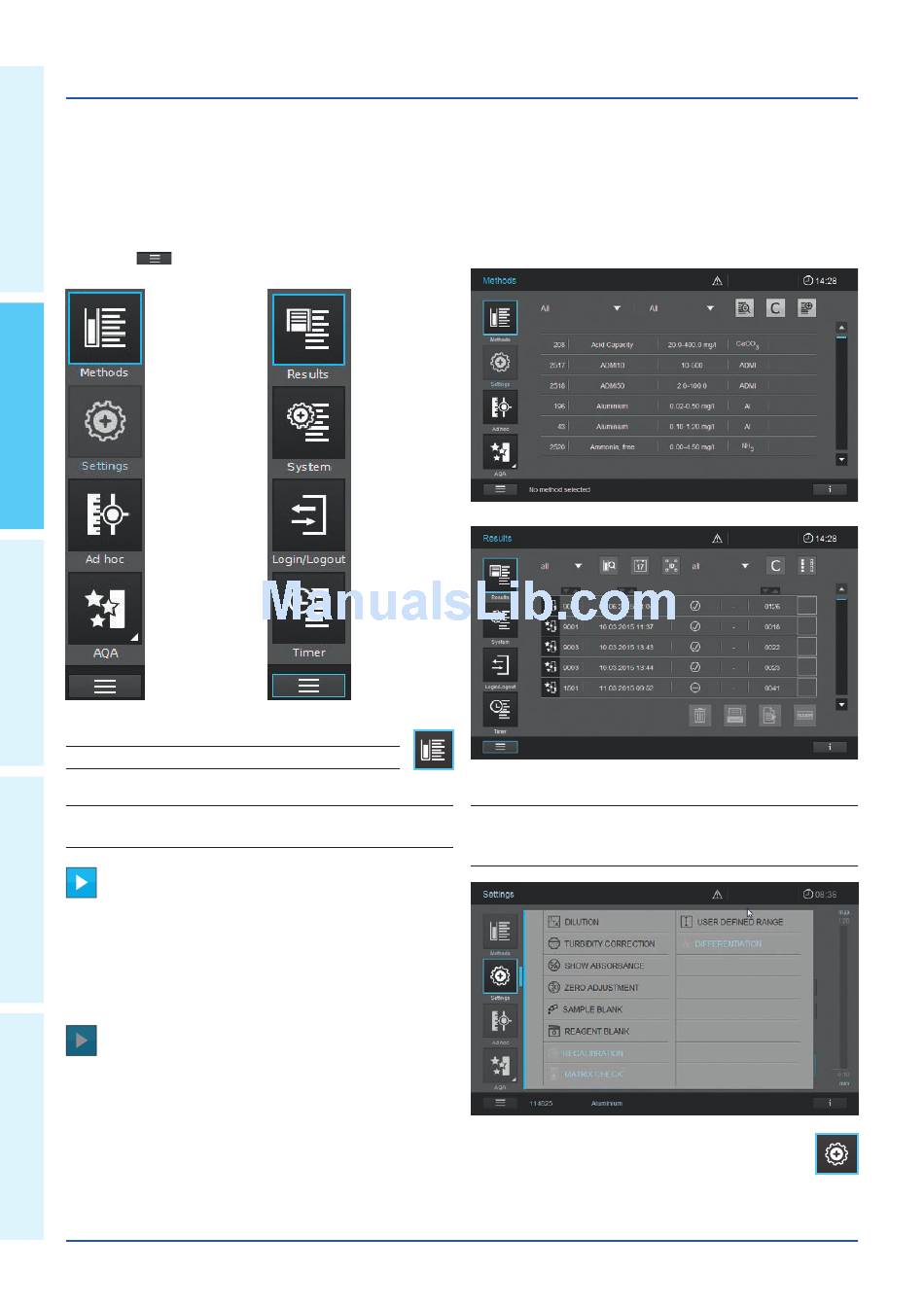

The main menu is always visible on the left: It consist of two
pages with four smart icons each. To switch between the two
pages push at the bottom on the left.
Methods List
Methods
2
Settings
Ad hoc
AQA
3
NOTE
The menu selected is always outlined in blue.
NOTE
Action Buttons like "Start", "Save", "Print" give the following
touch feedback:
Normal
4
Remains static
Active fields are always shown in bright color.
Pressed fields invert the color as long as the chosen action
is performed.
Disabled
Draws 30 % of the normal state
Inactive, disabled fields show faint color.
5
6
"Methods" and "Results" are the most often used modes and
they are at the top of the main menu navigation.
Results List
System Setup
Login / Logout
Timer
NOTE
The main menus "Settings (Method Settings)", "Ad hoc", "AQA",
"System (Instrument Settings)", "Login / Logout", "Timer" open up
a submenu. Example "Settings":
To leave these, the submenu has to be closed by
touching the main menu button again, in this case.
