B300M
NSF 8-2010
Starting with Serial Number 13467

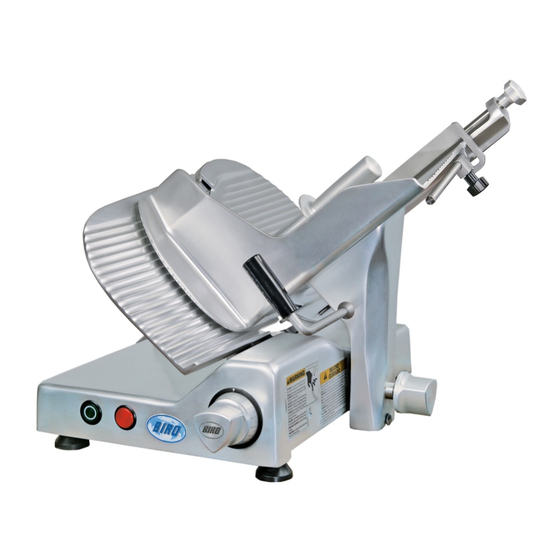

GRAVITY FEED FOOD SLICER
INSTALLATION, USE, MAINTENANCE
& PARTS MANUAL
REVISED 12-16-15

Advertisement

loading
Need help?

Need help?

Do you have a question about the B300M and is the answer not in the manual?

Questions and answers

Related Manuals for BIRO B300M

Summary of Contents for BIRO B300M

  • Page 1 B300M NSF 8-2010 Starting with Serial Number 13467 GRAVITY FEED FOOD SLICER INSTALLATION, USE, MAINTENANCE & PARTS MANUAL REVISED 12-16-15...

  • Page 24: Recommended Spare Parts

    GRSTS Cleaning stone Electrical Box Assembly Mono-Phase 220V-50Hz Z9TCA Mono phase card 115V-60Hz Z12AMR ONLY B350A Mono phase card 115V-60Hz X0090 : B300M G111-A : B350M-B350A-B350MV Z9SCH Water-ring protection Single phase card 220V-50Hz B300M : M9346 UP S/N 90764 G7CIN FROM S/N 90765...

  • Page 25: Code Description

    BIRO Model B300M Manual Slicer STANDARD 8 - 2010 Z3PMS G9347 VT415 G9314 G9301 VT409 Z9PIE G9317 G9318 VT324 VT211 CODE DESCRIPTION G9301 FRAME G9314 FOOT PLATE G9317 SLIDING SHAFT 22x487 G9318 SQUARE SHAFT 30x8x425 G9347 SCRAPER VT211 HEX HEAD SCREW M6-1.0x30 SS VT324 HEX SOCKET HEAD SCREW M6-1.0x10 SS...
  • Page 26 BIRO Model B300M Manual Slicer STANDARD 8 - 2010 Z4COP Z3ATQ G9310 X0090 VT422 G9325 VT230 V9326 X0090B X0491 VT396 VT387 G9376 G9334 G9326 X0620A VT128 X0367 VT126 VT104 CODE DESCRIPTION G9376 BLADE GUARD ROD ASSY S8-2012 X0367 KNIFE GUARD - ASSEMBLY ( Z4COP+VT396+X0491)
  • Page 27 BIRO Model B300M Manual Slicer STANDARD 8 - 2010 G9302 VT010 Z9GHI VT414 Z4BCN VT005 Z3MGRA16 Z3MGR VT439 CODE DESCRIPTION G9302 CAM 8A VT005 SPACER RING d. 18-25x1 SS VT010 SPRING WASCHER d. d.18.5-32x0.3 BLACK VT414 CYLINDRICAL FLAT HEAD FOR SCREW DRIVER M5-0.8x8 SS VT439 HEX SOCKET SET SCREW CUP POINT M6-1.0x8 SS...
  • Page 28 BIRO Model B300M Manual Slicer STANDARD 8 - 2010 G3PSP X0270 VT205 ZZCUS G9309 ZZRMV VT095 VT126 VT126 VT095 VT104 G9307 Z9BMV G9308 VT182 VT478 G9321 Z7REG VT096 VT448 VT104 VT105 VT479 CODE DESCRIPTION G3PSP SQUARE SHAFT 20x94 G9307 GAUGE PLATE MOUVEMENT PIN 22x107 G9308 SPRING D14,5 L=86 thick.1,8...
  • Page 29 BIRO Model B300M Manual Slicer STANDARD 8 - 2010 G9327 G9316 G9329 VT141 VT105 CODE DESCRIPTION G9316 SCREW M8-1.25x65 G9327 GAUGE PLATE G9329 GAUGE PLATE PROTECTION 70x67 VT105 ACORN HEX CAP M8-1.25 SS VT141 FLAT WASHER HIGHT THICK d.8-20odx4tk SS...
  • Page 30 BIRO Model B300M Manual Slicer STANDARD 8 - 2010 3GSCC CE-VERSION COMPLETE ASSEMBLY G9319 G9311 Z3CUS VT096 G9304 B943 VT126 G9315 VT104 VT064 B942 ZZMRV VT086 VT086 VT332 VT104 B941 X0261 Z3BCR Z9FUN CODE DESCRIPTION 3GSCC CE COMPLETE CARRIAGE ASSEMBLY...
  • Page 31 BIRO Model B300M Manual Slicer STANDARD 8 - 2010 G137 VT125 VT105 G419 B948 VT128 VT114 B944 Z9MBPA G420 G418 CODE DESCRIPTION B944 SUPPORT PLATE BUSHING 25x26,5 B948 LOCKING CARRIAGE SCREW G137 REGULATION SHAFT G418 SUPPORT TRAY G419 HANDLE CARRIAGE...
  • Page 32 BIRO Model B300M Manual Slicer VT479 STANDARD 8 - 2010 VT449 C2092 G138 C2044 G0160A G141 G139 C2080 VT460 G425 G139 G136 G148 Z3BCN G9NOT G407 G9NOT G9363 G303 VT458 G144 TILL: 14040 G424 CODE DESCRIPTION X0368 GRIP HOLDER ASSEMBLY ( G141+C2080+G9NOT+G425+VT460+Z3BCN )
  • Page 33 BIRO Model B300M Manual Slicer C2092 VT479 VT104 STANDARD 8 - 2010 VT126 VT449 C2042 G0160A G141 G138 C2080 G142 VT460 G425 G136 G148L Z3BCN G9NOT G407 G9NOT G9363 G303 VT458 FROM: 14041 G144L G424 CODE DESCRIPTION X0368 GRIP HOLDER ASSEMBLY ( G141+C2080+G9NOT+G425+VT460+Z3BCN )
  • Page 34 BIRO Model B300M Manual Slicer C3LPT G0160 F9332200 G9362 C3PRN C2040 G8AST G139 G303 G127 G139 G9336 G9306 Z9MBPA B948 B944 G9349 CODE DESCRIPTION B944 SUPPORT PLATE BUSHING 25x26,5 B948 LOCKING CARRIAGE SCREW C2040 PRODUCT PUSHER C3LPT ALU ARM C3PRN...
  • Page 35 MOTOR ASSEMBLY 220v/50Hz IP 65 A71GM MOTOR ASSEMBLY 220v/60Hz IP 65 A70GM 220/50Hz F9308200 RETAINING RING EXTERNAL M20 SS IP65 G7CIN BELT B300M CP 140 J9 FROM S/N 90764 M9306 PULLEY B 300 M A71GM M9310 PIN 10 x 22 220/60Hz M9313...
  • Page 36 BIRO B 300 M Manual Slicer STANDARD 8 - 2010 X0720 Z9SCH 220V-50hz Z9TCA 115V-60Hz W3CON 115V/60hz Z3CON 220V/50hz VT192 VT125 Complete Assembly Z9PLA Start Switch Illuminated Z9PLH Stop Switch GRSTB GRSTS CODE DESCRIPTION MONO-PHASE MONO-PHASE 115V-60Hz 220V-50Hz GRSTB COMPLETE CONTROL BOX...

  • Page 37: Complete Assembly

    BIRO MANUAL SLICER STANDARD 8 - 2010 AF062 ZZVOL AF076-AF077-AF078-AF079 AF07200-AF07201-AF07202-AF07203 AF07301-AF07302-AF07303 VT194 VT134 AF025 VT134 VT194 VT085 AF064-AF065-AF066-AF0661 AF068-AF069-AF070 VT134 VT194 VT194 VT134 VT085 CODE DESCRIPTION AF025 PLAST IC WHEEL AF067 AF062 PLAST IC SHARPENER DEVICE AF064 SEP. SHARP. FOOT B300 M GAP 15mm AF065 SEP.SHARP.
  • Page 38 BIRO MANUAL SLICER STANDARD 8 - 2010 AF040 AF036 AF039 AF038 AF035 AF011 Z2BCN Z9MAF AF007SXA AF018 AF008SX AF020 AF074 Z9MSB AF063 AF018 Z2BCN AF006 AF008SX AF007SX CODE DESCRIPTION AF007SXA SHAFT ASSEMBLY ( AF006 + AF007SX) AF006 SHAFT FOR SHARPENIG / CLEANING STONE...
  • Page 39 BIRO B 300 M Manual Slicer UP S/N 90764 AF02US AF008 Z9MSB AF006 AF033 Z9MAF AF011 AF008 AF023 ZZVOL AF022 AF006 AF0020 Complete Assembly AF022 AF037 AF038 AF039 AF035 AF036 AF040 AF039 AF022 AF038 CODE DESCRIPTION AF02US SHARPENER - COMPLETE ASSEMBLY...
  • Page 40 THE BIRO MANUFACTURING COMPANY 1114 W. Main Street Marblehead, OH 43440 USA Ph. 419-798-4451 Fax 419-798-9106 Email: service@birosaw.com  ...
