BIRO B350A Installation - Use - Maintenance

Nsf 8-2010 starting with serial number 12309 automatic feed slicer
Hide thumbs Also See for B350A:

Advertisement

Quick Links

Download this manual
B350A
NSF 8-2010
Starting with Serial Number 12309
AUTOMATIC FEED SLICER
INSTALLATION, USE, MAINTENANCE
& PARTS MANUAL
REVISED 12-16-15

Advertisement

loading
Need help?

Need help?

Do you have a question about the B350A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BIRO B350A

Summary of Contents for BIRO B350A

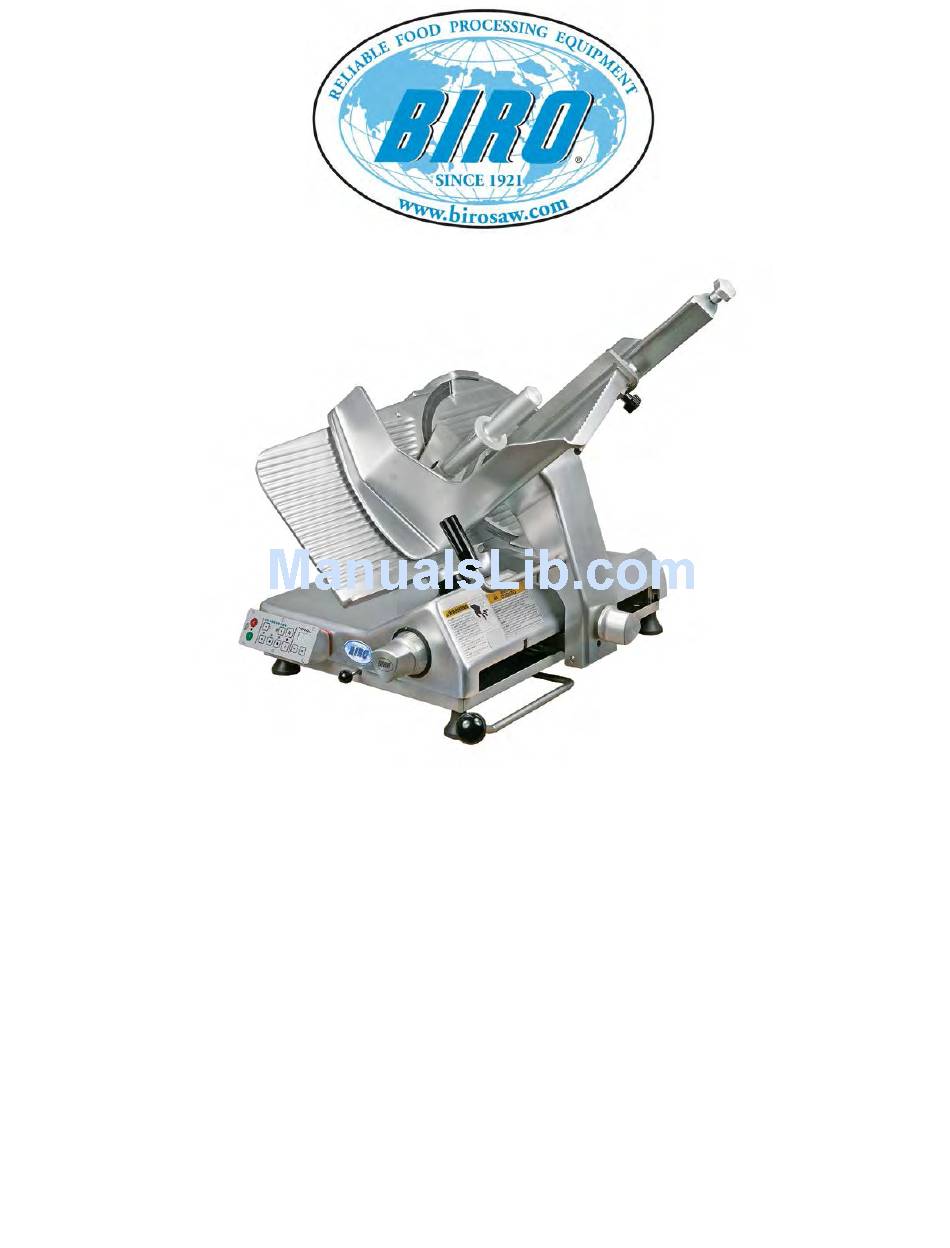

  • Page 1 B350A NSF 8-2010 Starting with Serial Number 12309 AUTOMATIC FEED SLICER INSTALLATION, USE, MAINTENANCE & PARTS MANUAL REVISED 12-16-15...
  • Page 4 CONTENTS FOREWARD SCOPE OF THIS MANUAL GENERAL SAFETY REGULATIONS MANUFACTURER’S WARRANTY AND LIABILITY PLATES-CONFORMITY MARKS ENVIRONMENTAL CONDITIONS OF USE PACKING OPENING THE BOX TECHNICAL DESCRIPTION AND PROPOSED CONDITIONS OF USE GENERAL DESCRIPTION MECHANICAL AND ELECTRICAL SAFETY DEVICES WARNING: RESIDUAL RISKS DIMENSIONS MAIN TECHNICAL DATA SUPPLIED LITERATURE AND ACCESSORIES PRODUCT THAT CAN BE SLICED...

  • Page 35: Recommended Spare Parts

    BIRO Recommended Spare Parts 2015 EDITION GRSTA Electrical Box Assembly Mono-Phase 115V-60Hz Z9MAF GRSTV10 ONLY B350A Sharpening stone Electrical Box Assembly Mono-Phase 115V-60Hz GRSTS Z9MSB Electrical Box Assembly Mono-Phase 220V-50Hz Cleaning stone GRSTU10 ONLY B350A Electrical Box Assembly Mono-Phase 220V-60Hz...
  • Page 36 BIRO B 350 A AUTOMATIC SLICER STANDARD 8 - 2010 G432 VT191 Z3PMS G100 G119 VT233 VT230 G257 G256 G129 Z9PIE VT324 G9314 VT409 G129 VT168 CODE DESCRIPTION VT123 G100 FRAME G119 SLIDE ROD - 25 x 578 G129 SS FOOT SPACER 20 x 30 M8...
  • Page 37 BIRO B 350 A AUTOMATIC SLICER STANDARD 8 - 2010 VERSION TILL S.N. 15111 VT349 VT387 Z3ATQ Z5L3G VT479 VT333 G120 G105B G0100 VT442 G111-A VT417 X0360 X0491 VT396 VT086 G125 G111-B X0620A VT135 VT209 VT460 G9369 G1171 CODE DESCRIPTION...
  • Page 38 BIRO B 350 A AUTOMATIC SLICER STANDARD 8 - 2010 VERSION FROM S.N. 15112 VT349 Z5L3G VT387 Z3ATQ VT479 VT333 G120 G105B G0100 X0491 VT442 X0360D G111-A VT209 VT396 VT417 G125 G111-B X0620A VT135 VT460 G9369 G117B CODE DESCRIPTION VT460...
  • Page 39 BIRO B 350 A AUTOMATIC SLICER STANDARD 8 - 2010 G124 VT440 G131 VT124 VT084 VT010 Z9GHI VT423 Z4BCN VT005 Z8MGRA25 CODE DESCRIPTION G124 CAM INDEXING 25mm + VT440 G131 SPACER CAM VT005 SPACER RING d. 18-25x1 SS VT010 SPRING WASCHER d. d.18.5-32x0.3 BLACK VT084 HEX NUT M4-0.7 SS...
  • Page 40 BIRO B 350 A AUTOMATIC SLICER STANDARD 8 - 2010 G0170 VT126 VT210 X0270 W6CUS Z8BCN G132 G110 VT096 G122 VT127 G102 VT442 F9331500 VT208 VT127 X0450 G132 VT442 VT096 CODE DESCRIPTION G9361-A SLIDE INDEX ASSEMBLY (G102+Z8BCN+VT442) F9331500 SPRING d 10 L 55...
  • Page 41 BIRO B 350 A AUTOMATIC SLICER STANDARD 8 - 2010 G101 G1022 G112 CODE DESCRIPTION G101 GAUGE PLATE G1021 G1021 SS PLATE STRENGTHENING VT128 G1022 LOCKING PLATE SCREW VT106 G112 GAUGE PLATE PROTECTION VT106 ACORN HEX CAP M10-1.5 SS VT128 FLAT WASHER M10 SS...
  • Page 42 BIRO B 350 A AUTOMATIC SLICER W7CUS X0272 STANDARD 8 - 2010 X0271 Z9BCR Z9FUN VT127 VT087 X0262 VT086 X0210 VT104 X0230 VT127 Z5BCN VT087 VT011 G104 X0240 VT040 VT442 X0520 X0120 VT085 X0250 VT040 G116 Z5BCN X0110 CODE DESCRIPTION...
  • Page 43 BIRO B 350 A AUTOMATIC SLICER STANDARD 8 - 2010 VT315 G238 G286 G5CUS G240 VT312 G239 VT436 CODE DESCRIPTION G238 LOCKING BELT PLAT E SUPPORT G239 BELT LOCKING G240 BEARING SHAFT G286 PARRALLEL PIN M6h7x35 SS G5CUS BEARING SKF 608-2RSH VT312 HEX SOCKET HEAD SCREW M5-0.8x12 SS...
  • Page 44 BIRO B 350 A AUTOMATIC SLICER May 2011 G9362 Complete Assembly C2091 G0160A C2041 G0122 F9321500 G0124 C2080 C2032 G127 C2080 G118 G121 G280 Z8MBPA CODE DESCRIPTION G9362 FENCE ASSEMBLY C2032 MEAT GRIP HOLDER C2041 MEAT GRIP C2080 BUSHING C2091...
  • Page 45 BIRO B 350 A AUTOMATIC SLICER STANDARD 8 - 2010 NEW VERSION G137 FROM S.N. 12309 VT127 VT105 G118 VT088 VT128 G4151 G419 VT104 G412 VT095 G114 Z8MBPA VT398 G113 CODE DESCRIPTION G113 SHAFT PIVOT RETURN G114 LOCKING CARRIAGE PLAT E...
  • Page 46 BIRO B 350 A AUTOMATIC SLICER STANDARD 8 - 2010 NEW VERSION FROM S.N. 12309 G397 G136 G406 G407 G9NOT G9363 G303 VT458 G422 CODE DESCRIPTION G136 ALU KNOB G303 KNOB - LOCKING FENCE ASSEMBLY G397 SLIDE ROD ASSY G406...
  • Page 47 BIRO B 350 A AUTOMATIC SLICER VERSION TILL S.N. 14028 STANDARD 8 - 2010 C2041 G138 Z3BCN G409 Z3BCN G138 C2092 G0160 VT449 VT479 G425 VT460 VT460 C2080 G425 G139 G139 G9NOT C2080 CODE DESCRIPTION X0363 GRIP HOLDER ASSEMBLY ( G409+C2080+G9NOT+G425+VT460+Z3BCN )
  • Page 48 BIRO B 350 A AUTOMATIC SLICER NEW VERSION STANDARD 8 - 2010 FROM S.N. 14029 G138 C2092 G0160 VT479 G138 Z3BCN G409 Z3BCN VT449 C2043 VT104 G425 VT460 VT460 C2080 G425 VT126 G9NOT G142 C2080 CODE DESCRIPTION X0363 GRIP HOLDER ASSEMBLY ( G409+C2080+G9NOT+G425+VT460+Z3BCN )
  • Page 49 BIRO B350 A AUTOMATIC SLICER STANDARD 8 - 2010 VT016 G312 VT313 G231 Z10AMR G4CUS VT206 G232 VT126 G249 G247 VT457 G249 G237 VT457 39MOTR7M VT439 G236 G6CIN CODE DESCRIPTION 39MOTR7M MOTOR OMRON R7M 200W G231 SHAFT 14x78 G232 PULLEY Z40...
  • Page 50 BIRO B350 A AUTOMATIC SLICER VT314 STANDARD 8 - 2010 G230 VT238 G244 G4CIN G233 G4CUS Z10AMR VT206 VT126 G247 VT313 VT086 VT125 VT457 G249 G245 VT326 VT311 VT238 VT326 G242 G246 G4CUS G234 G235 VT440 G4CUS VT016 G243 CODE...

  • Page 51: Motor Assembly

    BIRO B350 A AUTOMATIC SLICER G108-B TILL S/N: 80415 VT009 W2CUS M9347 G106-B TILL S/N 80415 G5CIN TILL S/N 80415 G109 M9347 W2CUS VT012 X0060 W6CUS X0070 M9315 W6CUS M9314 M9310 M9313 MOTOR ASSEMBLY M9372 115V/60 Hz IP65 TILL S/N 80415...
  • Page 52 BIRO B350 A AUTOMATIC SLICER STANDARD 8 - 2010 FROM S/N: 80416 TILL S/N 15111 F9308200 ZZATP W2CUS G106 FROM S/N 80416 G8CIN FROM S/N 80416 W2CUS G108 X0060 W6CUS X0070 M9315 W6CUS M9313 M9314 M9310 M9381 115V/60 Hz IP65 FROM S/N 80416...
  • Page 53 BIRO B350 A AUTOMATIC SLICER F9308200 ZZATP STANDARD 8 - 2010 W2CUS FROM S/N: 15112 G106 FROM S/N 80416 G8CIN FROM S/N 80416 W2CUS G108D X0060 W6CUS X0070 M9315 W6CUS M9313 M9314 M9310 MOTOR ASSEMBLY M9381 115V/60 Hz IP65 FROM S/N 80416...
  • Page 54 BIRO B350 A AUTOMATIC SLICER STANDARD 8 - 2010 X0720 Z8CON 115V-60Hz Z3CON 220V-50/60Hz Z11AMR03 Z11AMR10 Z12AMR03 Z12AMR10 X0710 G28110 G28103 VT195 G223 VT405 G287 Complete Assembly CODE DESCRIPTION 115V/60Hz G223 BOX PANEL G28103 CONT ROL PANEL B350 AUT O 3 SPEED...
  • Page 55 BIRO B350 A AUTOMATIC SLICER STANDARD 8 - 2010 AF021 G393 G268 VT435 G270 Z6BCN Z6BCN AF025 VT126 VT104 CODE DESCRIPTION ø AF021 KNOB 40 M10 AF025 PLASTIC WHEEL G268 BOT T OM COVER G270 LEVER SPACER G374 SUPPORT G393 LIFT LEVER VT 104 ACORN HEX CAP M6-1.0 SS...

  • Page 56: Complete Assembly

    BIRO MANUAL SLICER STANDARD 8 - 2010 AF062 ZZVOL AF076-AF077-AF078-AF079 AF07200-AF07201-AF07202-AF07203 AF07301-AF07302-AF07303 VT194 VT134 AF025 VT134 VT194 VT085 AF064-AF065-AF066-AF0661 AF068-AF069-AF070 VT134 VT194 VT194 VT134 VT085 CODE DESCRIPTION AF025 PLAST IC WHEEL AF067 AF062 PLAST IC SHARPENER DEVICE AF064 SEP. SHARP. FOOT B300 M GAP 15mm AF065 SEP.SHARP.
  • Page 57 BIRO MANUAL SLICER STANDARD 8 - 2010 AF040 AF036 AF039 AF038 AF035 Z9MAF AF006 AF011 AF007 AF020 AF074 AF063 Z9MSB AF008 CODE DESCRIPTION AF006 SHAFT - SHARP + CLEANING STONE AF007 BUSHING AF008 NUT - SPECIAL AF011 SPRING - CLEANING STONE...
  • Page 58 BIRO B 350 A AUTOMATIC SLICER UP S/N 10801 AF008 Z9MSB AF006 AF033 AF011 Z9MAF AF008 AF023 AF022 ZZVOL AF006 AF0020 AF022 AF038 AF039 AF034 AF035 AF022 AF036 AF040 AF039 CODE DESCRIPTION AF038 AF01US SHARPENER - COMPLETE ASSEMBLY Complete Assembly...
  • Page 60 THE BIRO MANUFACTURING COMPANY 1114 W. Main Street Marblehead, OH 43440 USA Ph. 419-798-4451 Fax 419-798-9106 Email: service@birosaw.com  ...
