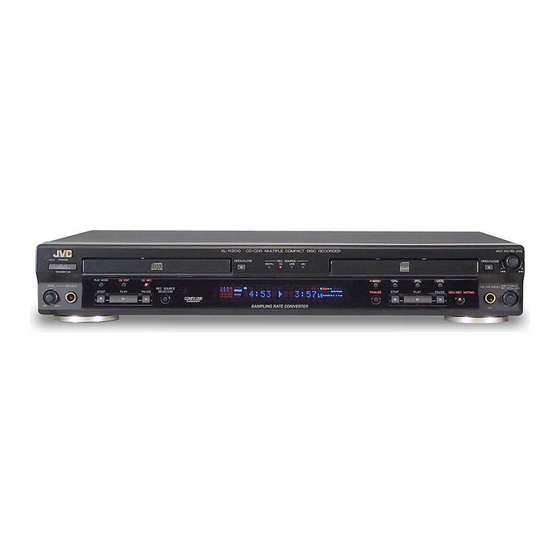

JVC XL-R2010BK Service Manual

Cd/cdr multiple compact disc recorder
Hide thumbs

Advertisement

SERVICE MANUAL
CD/CDR MULTIPLE COMPACT DISC RECORDER
STANDBY/ON
CD REC
CD EDIT
FINALIZE
DISPLAY
1
2
3
4
5
6
7
8
9
10
+10
PLAY
C O N T R O L
MODE
REPEAT
CD
CDR
REC
FADE
SYNCHRO
REC MUTING
+
PITCH
STANDBY/ON
SET
PITCH-
LEVEL
MIN
RM- SXLR2010A
REMOTE CONTROL
<ATTENTION of CD-R/RW mechanism unit>
Because the CD-R/RW mechanism unit is a unit exchange,
Moreover, the [Disassembly method],[Adjustment method],[Description of major ICs],
[Standard schematic diagram],[Printed circuit board],[Block diagram] of the CD-R/RW
mechanism unit is not described.
Contents
Safety precautions ------------------------ 1-2
Preventing static electricity ------------- 1-3
Importance admistering point
on the safety ------ 1-4
XL-R2010BK
STANDBY
OPEN/CLOSE
PLAY MODE
CD EDIT
CD REC
PHONES
REC SOURCE
STOP
PLAY
PAUSE
SELECTOR
MAX
This service manual is printed on 100% recycled paper.
COPYRIGHT
2001 VICTOR COMPANY OF JAPAN, LTD.
REC SOURCE
DIGITAL
CD
LINE
MIC
SYNCHRO
MENU
SET
CANCEL
FINALIZE
STOP
PLAY
PAUSE
Precautions for service ------------------ 1-5
Disassembly method -------------------- 1-6
Confirm method of operation ----------- 1-17
Description of major ICs ---------------- 1-20
XL-R2010BK
Area Suffix
J ------------- U.S.A.
C ---------- Canada
MULTI JOG/REC LEVEL
OPEN/CLOSE
+
-
LINE
CD
MIX BLANCE
REC/
MIC
LINE
REC MUTING
MIC
No.A0013
Oct. 2001
