  • Page 1 Lovibond Water Testing ® Tintometer Group ® SD 400 Oxi L Sauerstoff • Oxygen • Oxygène Kurzanleitung Breve manual Seite 3 Página 42 Quick Start Guide Manuale breve Page 12 Pagina 52 Manual d´utilisation Manual de curta Page 22 Página 62 短手冊...

  • Page 2: Ec Declaration Of Conformity

    Germany declares that this product Product name: SD 400 Oxi L conforms to the following standards which are specified in the Council Directive for the harmonization of legal regulations of the Member States over electromagnetic compatibility (2004/108/EC) and the Low Voltage Directive (2006/95/EC).

  • Page 3: Table Of Contents

    Table of contents General information ..........14 Safety .

  • Page 4: General Information

    2. Safety 2.1 Intended use The SD 400 Oxi L is designed for the measurement of dissolved content of oxygen in water. Suitable oxygen sensors (available in the standard delivery contents of the device) are used for the measurement. The sensor is connected via a 4-pin bayonet connection. The measurement is taken on the sensor membrane at the end of the oxygen sensor.

  • Page 5: Product Description

    – – The battery compartment is located on the back side of the SD 400 Oxi L device. To remove the batteries, the battery compartment lid is opened and removed. The 4 AA batteries are inserted according to the polarity. Then the battery compartment lid is replaced and closed completely.

  • Page 6: External Power Supply

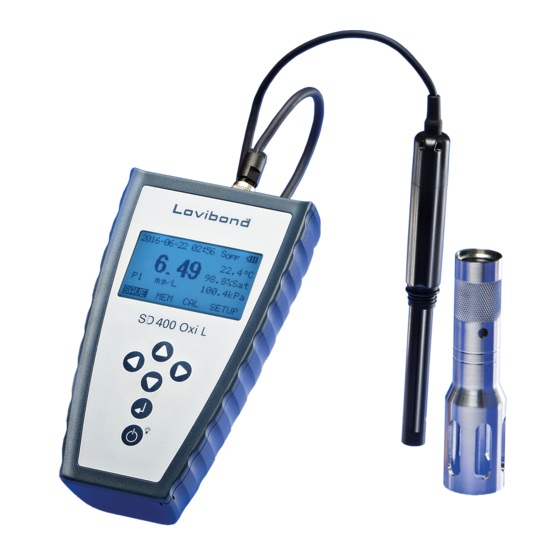

    4.4 Sensor The sensor of the SD 400 Oxi L device is an optical oxygen sensor. The sensor is waterproof in accordance with IP67 and is equipped with an integrated temperature sensor. The long-lasting cable is connected to the measuring device by means of a 4-pin plug.

  • Page 7: Operation

    5. Operation 5.1 Display elements When the measuring device is switched on, it initialises. The serial number of the connected sensor appears in the display during this process. For this purpose, the sensor must be con- nected and the SD card must be inserted in the measuring device. Then the measuring device is in measuring mode and the following display appears: A.

  • Page 8: Controls

    5.2 Controls On/Off switch, Light On/Off Confirmation of the entry, press and hold: End measurement/calibration process In configuration mode or in calibration mode: Adjust display/values (INCREASE/DECREASE) Cursor movement through the menu or through configuration mode (RIGHT/LEFT) 6 Error messages Display - Error message Possible cause Measure Micro SD card read error...

  • Page 9: Returns

    Large measurement value a) Temperature fluctuations a) Keep temperature con- fluctuations b) Sensor cap dirty or de- stant fective b) Clean or replace sensor c) Sensor not sufficiently im- membrane mersed in the sample c) Immerse sensor sufficiently d) Sensor damaged deep in the sample (at least e) External electronic fault 3 cm)

  • Page 10: Accessories And Spare Parts

    Connections 4-pin, M9 Device weight 330 g (including batteries) Data storage Micro SD card Reaction time 40 sec. up to 90 % of the measurement value is reached (T-90) Flow Not necessary Salt compensation Automatic after manual entry Certificates Languages English, German, French, Spanish, Italian, Portuguese, Dutch and Chines (simplified) Warranty...
  • Page 11 Tintometer GmbH The Tintometer Ltd Tintometer AG Tintometer Inc. Lovibond ® Water Testing Lovibond ® House Hauptstraße 2 6456 Parkland Drive Schleefstraße 8-12 Sun Rise Way 5212 Hausen AG Sarasota, FL 34243 44287 Dortmund Amesbury Tel.: +41 (0)56/4422829 Tel: 941.756.6410 Tel.: +49 (0)231/94510-0...
