3.1.8 Removing the cassette mechanism assembly

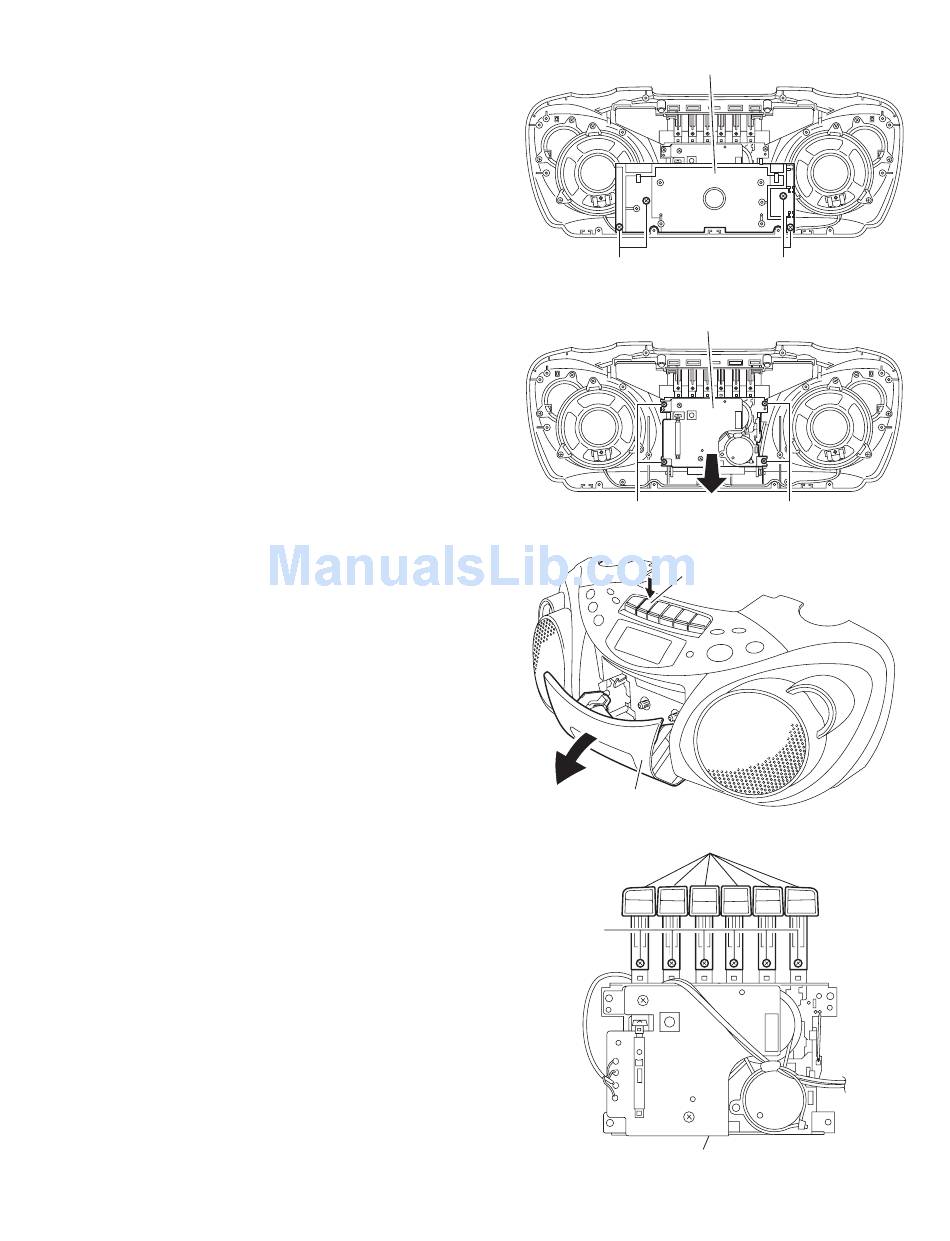

(See Fig.18 ~ 21)
(1) Remove the four screws P attaching the cassette mecha-
nism cover.
(2) Remove the four screws Q attaching the cassette mecha-
nism assembly.
(3) Push Eject button to open the cassette door.
(4) Pull out the cassette mechanism assembly in the direction
of arrow.
(5) Remove the six screws R attaching the operation board.
Cassette mechanism cover
P
Fig.18
Cassette mechanism assembly
Q
Fig.19
EJECT button
Cassette door
Fig.20
Button
R
Cassette mechanism assembly
Fig.21
P
Q
