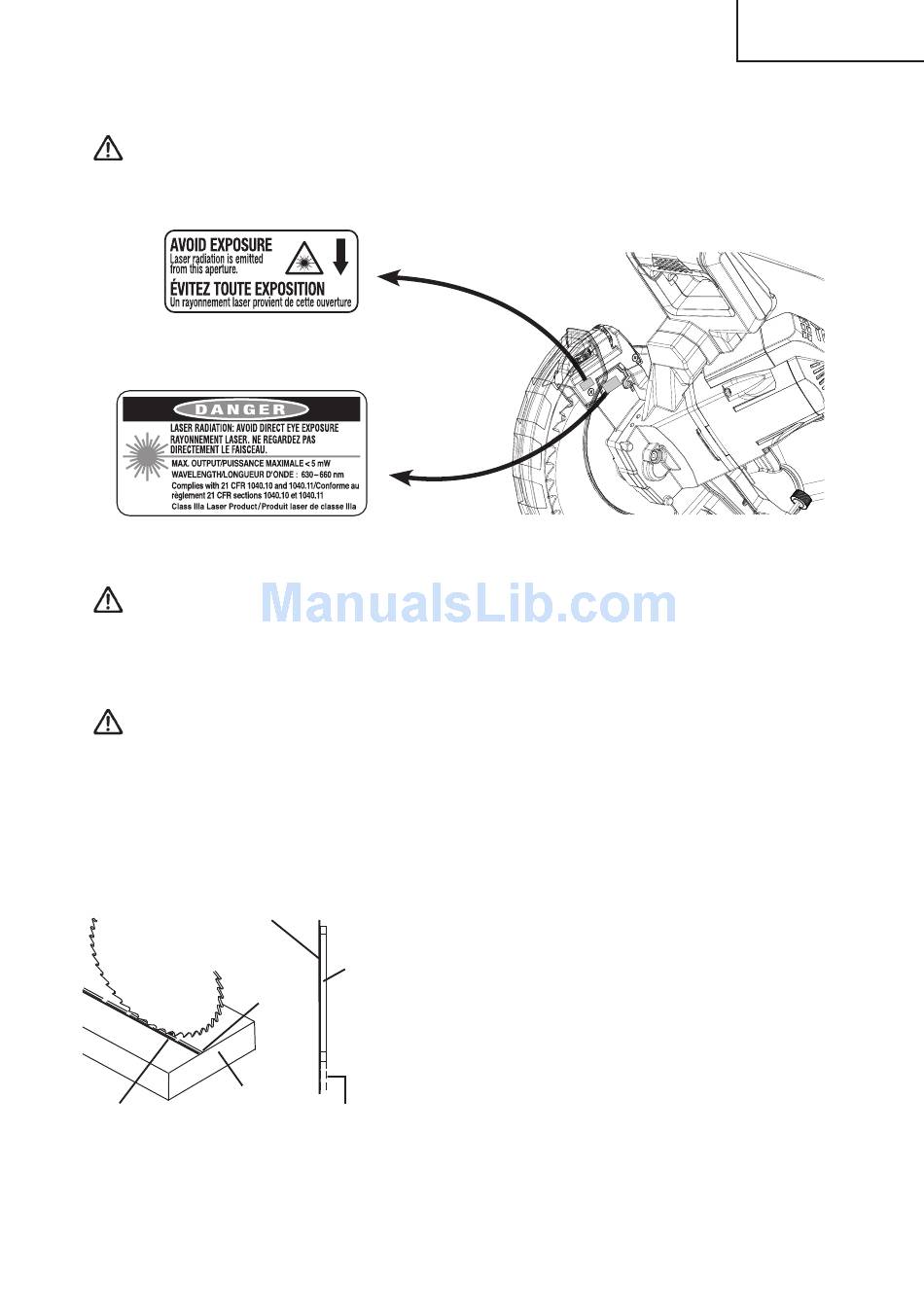

Hitachi C 10FSHC Safety And Instruction Manual page 25

(1) Avoid direct eye contact
WARNING:
CAUTION:
WARNING:
(2) Checking laser line alignment
Laser line
Workpiece
Laser line
Fig. 21
* Laser radiated when laser guide is turned on. Avoid direct eye
contact.
* Use of controls or adjustments or performance of procedures
may result in hazardous radiation exposure.
* The use of optical instruments with this product will increase eye
hazard.
Do not attempt to repair or disassemble the laser. If unqualifi ed
persons attempt to repair this laser product, serious injury
may result. Any repair required on this laser product should be
performed by a qualifi ed service dealer.
TOP VIEW
Blade
Cutting line
Cutting line
*
(a) Set the saw to a 0° miter and 0° bevel setting.
(b) Use a combination square to mark a 90° angled
running across the top and down the front of
a board. This line will serve as the pattern line
to adjust the laser. Place the board on the saw
table.
(c) Carefully lower the saw head down to align the
saw blade with the pattern line. Position the
saw blade to the left, side of the "pattern line"
depending on your preference for the laser line
location. Lock the board in place with the hold-
down clamp.
(d) With the saw plugged in, turn on the laser guide.
Your saw has been preset with the laser line to
the left side of the blade.
English
Fig. 20
25
