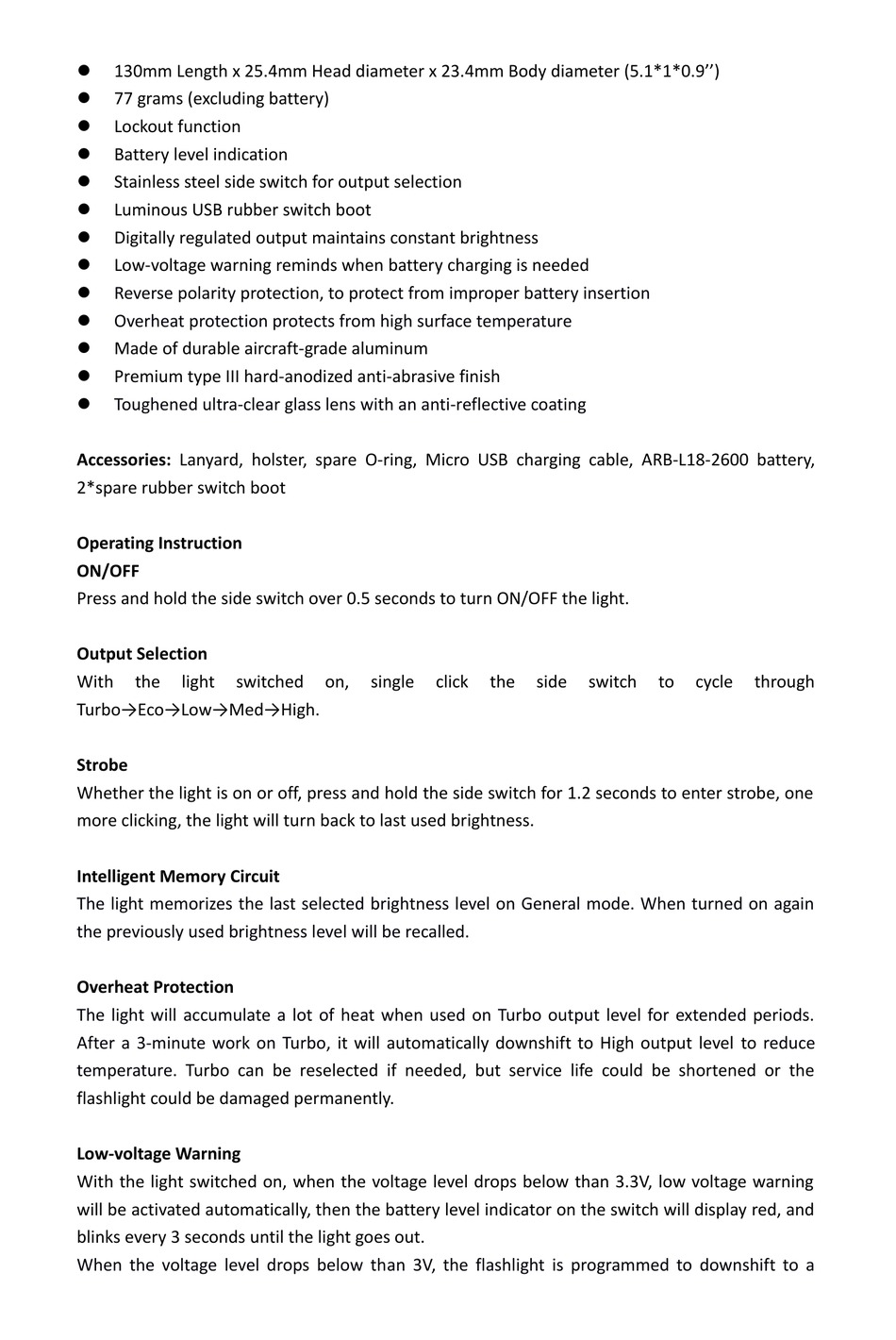

Operating Instruction - Fenix UC30 2017 User Manual

130mm Length x 25.4mm Head diameter x 23.4mm Body diameter (5.1*1*0.9'')

77 grams (excluding battery)

Lockout function

Battery level indication

Stainless steel side switch for output selection

Luminous USB rubber switch boot

Digitally regulated output maintains constant brightness

Low-voltage warning reminds when battery charging is needed

Reverse polarity protection, to protect from improper battery insertion

Overheat protection protects from high surface temperature

Made of durable aircraft-grade aluminum

Premium type III hard-anodized anti-abrasive finish

Toughened ultra-clear glass lens with an anti-reflective coating

Accessories: Lanyard, holster, spare O-ring, Micro USB charging cable, ARB-L18-2600 battery,
2*spare rubber switch boot

Operating Instruction

ON/OFF
Press and hold the side switch over 0.5 seconds to turn ON/OFF the light.
Output Selection
With the light switched
Turbo→Eco→Low→Med→High.
Strobe
Whether the light is on or off, press and hold the side switch for 1.2 seconds to enter strobe, one
more clicking, the light will turn back to last used brightness.
Intelligent Memory Circuit
The light memorizes the last selected brightness level on General mode. When turned on again
the previously used brightness level will be recalled.
Overheat Protection
The light will accumulate a lot of heat when used on Turbo output level for extended periods.
After a 3-minute work on Turbo,
temperature. Turbo can be reselected if needed, but service life could be shortened or the
flashlight could be damaged permanently.
Low-voltage Warning
With the light switched on, when the voltage level drops below than 3.3V, low voltage warning
will be activated automatically, then the battery level indicator on the switch will display red, and
blinks every 3 seconds until the light goes out.
When the voltage level drops below than 3V, the flashlight is programmed to downshift to a
on, single click the
it will automatically downshift to High output level to
side switch to cycle through
reduce
