Fenix RC11 Manual

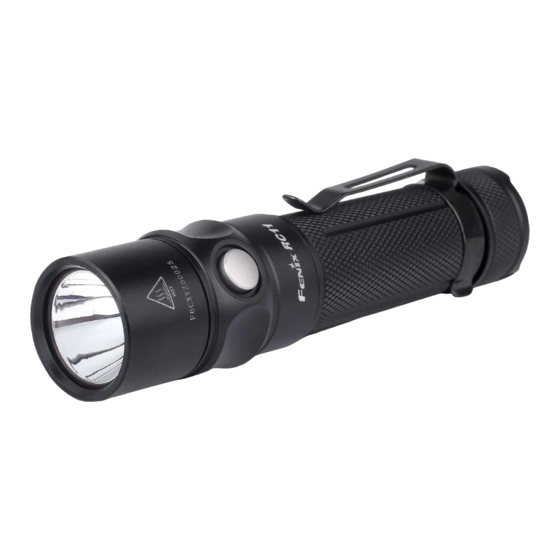

Fenix RC11 Flashlight
Measuring at only 4.5 inches in length, RC11 delivers max 1000-lumen output and longest
runtime up to 135 hours. As a magnetic charging flashlight, it is equipped with innovative
dual-purpose charging cable features magnetic charging port and Micro USB charging
port. Compatible with one 18650 Li-ion battery, CR123A Lithium battery is available in
exceptional circumstances. Also the flat tail cap offers convenient tail stand capability for
using as an upward-facing spotlight.
Technical Parameters
ANSI/PLATO
FL1
Turbo
1000
Lumens
Output
1h 20min*
Runtime
Max Distance
Max Intensity
Impact
Resistance
Waterproof
Lanyard, holster, body clip, spare O-ring, charging cable, Fenix 18650
Accessories
Notice: The above-mentioned parameters (lab-tested by using one Fenix 18650
rechargeable Li-ion battery 3.6V/2600mAh) are approximate and may vary between
flashlights, batteries and environments.
*Due to the protective setup of downshifting from Turbo to High after working 5 minutes,
so the runtime of Turbo is the accumulated time.
General Mode
High Mid
500 150
Lumens Lumens
2h 50min 11h 10min
190m
9050cd
1m
IPX-8, underwater 2m
rechargeable Li-ion battery
Low Eco
50 10
Lumens Lumens
29h 30min 135h
Strobe
1000
Lumens
/
