Removing any Left Bay Module

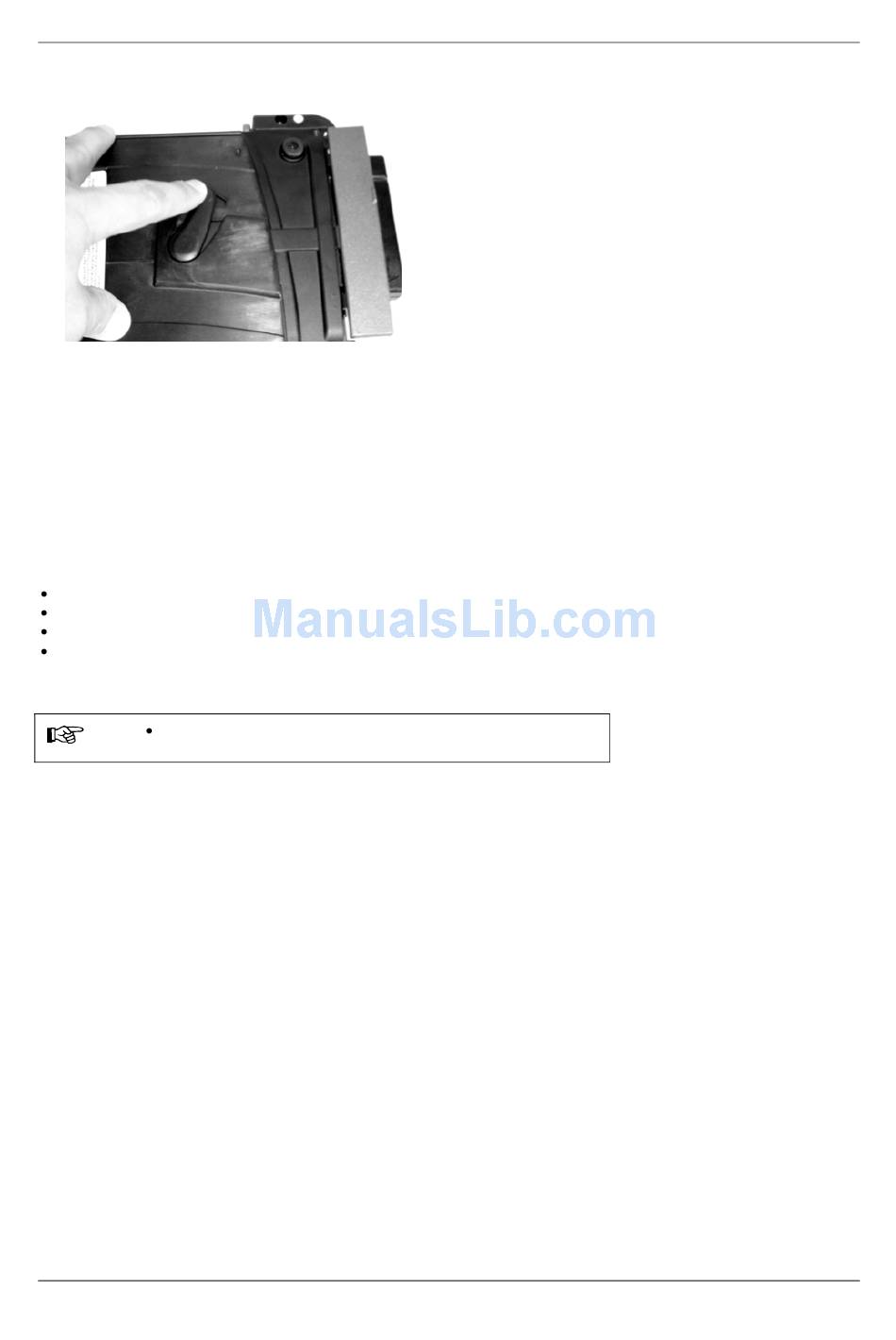

• Push ejector latch forward.
• The module ejects.
• Remove module carefully and place it
in a safe, clean location.

Inserting any Left Bay Module

To insert any of the modules listed above:
Place the computer right-side up.
Open the door of the left front bay.
Align the latch post at the bottom of the module with the receiving slot on the bottom of the bay.
Carefully slide the module into the bay until it locks into place.
Align the groove on the battery bottom with the guide in
the bay to insert properly.
30 02/18/05 ReVolution User Manual 1.00
