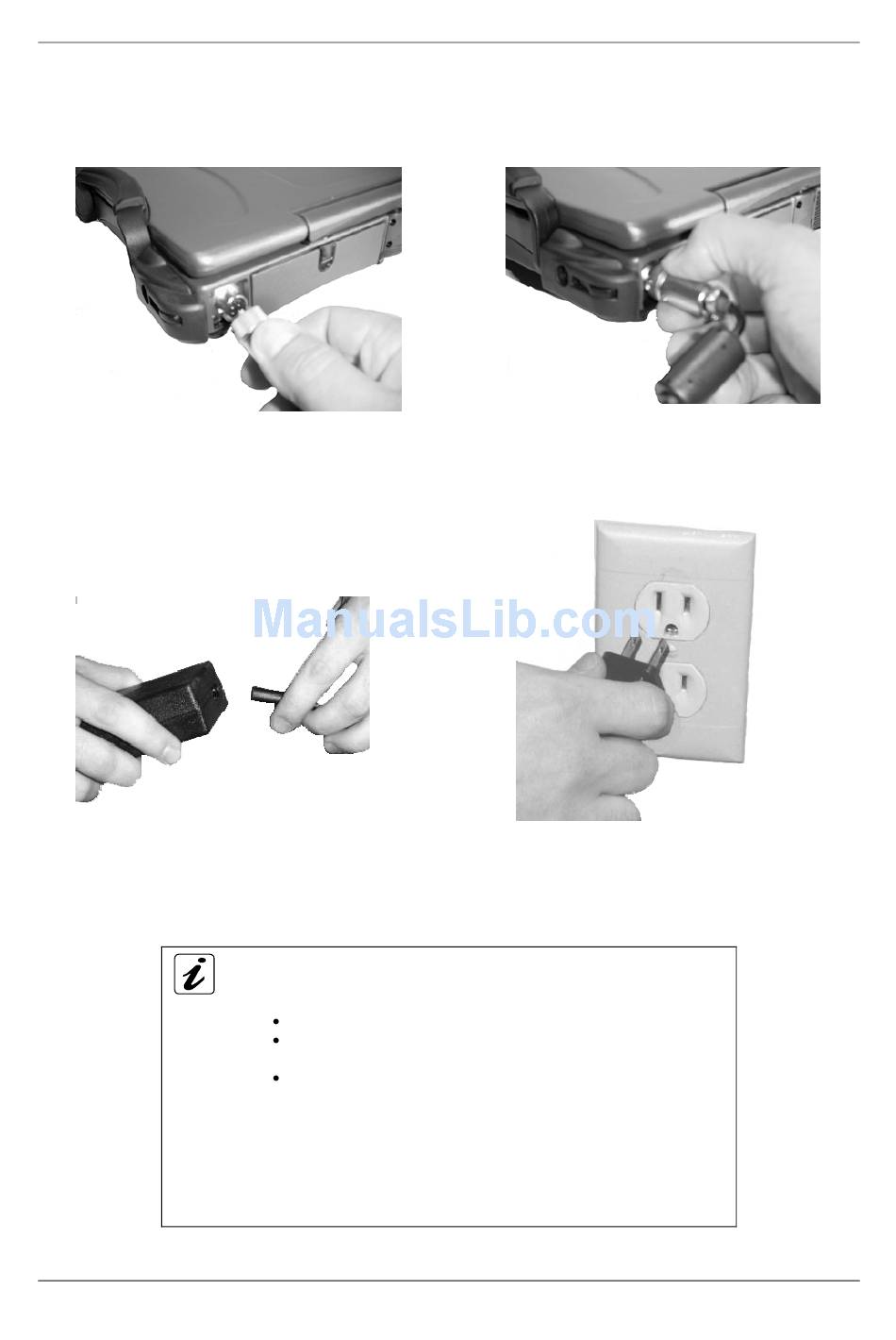

Connecting the AC/DC Adapter

When AC is available, connect the ReVolution to the AC power supply with an AC/DC adapter, as described below.
Connect the locking DC power cord to the
DC voltage socket of the ReVolution.
The other end of the DC power cord
connects into available DC power connector
i.e. cigarette lighter.
Connect the female end of the AC power
cord into the AC power adapter.
ReVolution User Manual 1.00

Power On/Off Button

When pressed for ~1/2 second continuously, the system will:
From Off: Check for valid temperature and then turn on.
From Suspend: Check for valid temperature and then turn
on.
From On: Initiate power off sequence.
When pressed for > 4 seconds continuously, the system:
begins an override function according to the ACPI specification.
The Override Function is useful if the system becomes
unresponsive. It will perform a "hard" shut down.
02/18/05
The AC voltage socket is on the left
side of the Interface panel.
Plug the male end of the AC power
adapter into an available wall socket.
