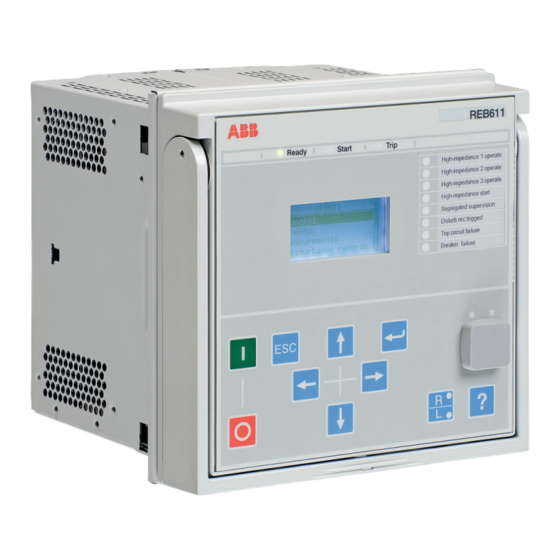

- Page 1 ® Relion 611 series Busbar and Multipurpose Differential Protection and Control REB611 Product Guide...
-
Page 2: Table Of Contents
13. Access control............10 Disclaimer The information in this document is subject to change without notice and should not be construed as a commitment by ABB. ABB assumes no responsibility for any errors that may appear in this document. © Copyright 2012 ABB. -
Page 3: Description
To increase the user-friendliness of the IED’s standard configuration and to emphasize the ® REB611 is a member of ABB’s Relion product IED's simplicity of usage, only the application- family and part of the 611 protection and control specific parameters need setting within the IED's product series. - Page 4 Busbar and Multipurpose Differential Protection and Control 1MRS757467 B REB611 Product version: 1.0 Table 2. Supported functions Functionality Conf. A Protection High-impedance differential protection, instance 1 ● High-impedance differential protection, instance 2 ● High-impedance differential protection, instance 3 ● Non-directional earth-fault protection, low stage, instance 1 ●...
-
Page 5: Protection Functions
Busbar and Multipurpose Differential Protection and Control 1MRS757467 B REB611 Product version: 1.0 3. Protection functions motors and generators. REB611 also offers high- The IED offers phase-segregated (three phases) impedance differential-based restricted earth-fault high-impedance differential protection and non- protection for motors, generators, reactors and directional earth-fault protection for busbars, power transformers. - Page 6 Busbar and Multipurpose Differential Protection and Control 1MRS757467 B REB611 Product version: 1.0 An additional stand-by (residual) earth-fault The residual earth-fault protection can also be protection is provided by the two non-directional used as bus-wire supervision, especially in new or earth-fault stages.
- Page 7 Busbar and Multipurpose Differential Protection and Control 1MRS757467 B REB611 Product version: 1.0 Hi> 3I>BF 51BF MCS 1I MCS 1I MCS 1I MCS 1I Io>BF Hi> Lockout MCS 1I MCS 1I Hi> relay Io> 51N-1 Io>>> REB611 (STANDARD CONF A) GUID-9F68C879-2144-468C-9441-0BD7CB201E98 V1 EN Figure 3.
-
Page 8: Supported Abb Solutions
Product version: 1.0 5. Supported ABB solutions line diagram feature that is especially useful for ABB’s 611 series protection and control IEDs the 611 series IEDs because of the limited size of together with the COM600 Station Automation the LHMI. Further, the WHMI of COM600 offers... -
Page 9: Control
Busbar and Multipurpose Differential Protection and Control 1MRS757467 B REB611 Product version: 1.0 COM600 Web HMI COM600 Ethernet switch Binary horizontal IEC 61850 GOOSE communication REB611 REF611 REF611 REM611 High-impedance 1 operate Overcurrent Overcurrent Short circuit High-impedance 2 operate Earth-fault Earth-fault Combined protection Thermal overload... -
Page 10: Disturbance Recorder
Busbar and Multipurpose Differential Protection and Control 1MRS757467 B REB611 Product version: 1.0 8. Disturbance recorder 10. Recorded data The IED is provided with a disturbance recorder The IED has the capacity to store the records of with preconfigured analog and binary channels. the 32 latest fault events. -
Page 11: Inputs And Outputs
Busbar and Multipurpose Differential Protection and Control 1MRS757467 B REB611 Product version: 1.0 levels. The access control applies both locally and The rated currents of the analog inputs can be remotely to the front panel user interface, the selected in the IED software. In addition, the Web browser-based user interface and PCM600. - Page 12 Busbar and Multipurpose Differential Protection and Control 1MRS757467 B REB611 Product version: 1.0 optional communication modules. The IED can be up/down resistors can be configured with jumpers connected to Ethernet-based communication on the communication card. External resistors are systems via the RJ-45 connector (100Base-TX) or not needed.
-
Page 13: Technical Data
Busbar and Multipurpose Differential Protection and Control 1MRS757467 B REB611 Product version: 1.0 16. Technical data Table 6. Dimensions Description Value Width Frame 177 mm Case 164 mm Height Frame 177 mm (4U) Case 160 mm Depth 201 mm (153 + 48 mm) Weight Complete IED 4.1 kg... - Page 14 Busbar and Multipurpose Differential Protection and Control 1MRS757467 B REB611 Product version: 1.0 Table 9. Binary inputs Description Value Operating range ±20% of the rated voltage Rated voltage 24...250 V DC Current drain 1.6...1.9 mA Power consumption 31.0...570.0 mW Threshold voltage 18...176 V DC Reaction time 3 ms...
- Page 15 Busbar and Multipurpose Differential Protection and Control 1MRS757467 B REB611 Product version: 1.0 Table 12. Double-pole power output relays with TCS function Description Value Rated voltage 250 V AC/DC Continuous contact carry Make and carry for 3.0 s 15 A Make and carry for 0.5 s 30 A Breaking capacity when the control-circuit time...
- Page 16 Busbar and Multipurpose Differential Protection and Control 1MRS757467 B REB611 Product version: 1.0 Table 16. IRIG-B Description Value IRIG time code format B004, B005 Isolation 500 V 1 min Modulation Unmodulated Logic level TTL Level Current consumption 2...4 mA Power consumption 10...20 mW According to 200-04 IRIG -standard Table 17.
- Page 17 Busbar and Multipurpose Differential Protection and Control 1MRS757467 B REB611 Product version: 1.0 Table 20. Electromagnetic compatibility tests Description Type test value Reference 1 MHz/100 kHz burst disturbance IEC 61000-4-18 test: IEC 60255-22-1, class III IEEE C37.90.1-2002 • Common mode 2.5 kV •...
- Page 18 Busbar and Multipurpose Differential Protection and Control 1MRS757467 B REB611 Product version: 1.0 Table 20. Electromagnetic compatibility tests, continued Description Type test value Reference Power frequency immunity test: Binary inputs only IEC 61000-4-16 • Common mode IEC 60255-22-7, class A 300 V rms •...
- Page 19 Busbar and Multipurpose Differential Protection and Control 1MRS757467 B REB611 Product version: 1.0 Table 22. Mechanical tests Description Reference Requirement Vibration tests (sinusoidal) IEC 60068-2-6 (test Fc) Class 2 IEC 60255-21-1 Shock and bump test IEC 60068-2-27 (test Ea shock) Class 2 IEC 60068-2-29 (test Eb bump) IEC 60255-21-2...
- Page 20 Busbar and Multipurpose Differential Protection and Control 1MRS757467 B REB611 Product version: 1.0 Protection functions Table 26. High-impedance differential protection (HIPDIF) Characteristic Value Operation accuracy Depending on the frequency of the current measured: f ±2 Hz ±1.5% of the set value or ±0.002 x In Minimum Typical Maximum...
- Page 21 Busbar and Multipurpose Differential Protection and Control 1MRS757467 B REB611 Product version: 1.0 Table 28. Non-directional earth-fault protection (EFxPTOC) Characteristic Value Operation accuracy Depending on the frequency of the current measured: f ±2 Hz EFLPTOC ±1.5% of the set value or ±0.002 x I EFHPTOC ±1.5% of the set value or ±0.002 x I (at currents in the range of 0.1…10 x I...
- Page 22 Busbar and Multipurpose Differential Protection and Control 1MRS757467 B REB611 Product version: 1.0 Table 29. Non-directional earth-fault protection (EFxPTOC) main settings Parameter Function Value (Range) Step Start value EFLPTOC 0.010...5.000 x I 0.005 EFHPTOC 0.10...40.00 x I 0.01 1.00...40.00 x I 0.01 EFIPTOC Time multiplier...
- Page 23 Busbar and Multipurpose Differential Protection and Control 1MRS757467 B REB611 Product version: 1.0 Table 32. Operation characteristics Parameter Values (Range) Operating curve type 1=ANSI Ext. inv. 2=ANSI Very. inv. 3=ANSI Norm. inv. 4=ANSI Mod inv. 5=ANSI Def. Time 6=L.T.E. inv. 7=L.T.V.
- Page 24 Busbar and Multipurpose Differential Protection and Control 1MRS757467 B REB611 Product version: 1.0 Measurement functions Table 33. Three-phase current measurement (CMMXU) Characteristic Value Operation accuracy Depending on the frequency of the current measured: f ±2 Hz ±0.5% or ±0.002 x I (at currents in the range of 0.01...4.00 x I Suppression of harmonics DFT: -50 dB at f = n x f...
- Page 25 Busbar and Multipurpose Differential Protection and Control 1MRS757467 B REB611 Product version: 1.0 Supervision functions Table 35. CT supervision for high-impedance protection scheme (HZCCRDIF) Characteristic Value Operation accuracy Depending on the frequency of the current measured: fn ±2 Hz ±1.5% of the set value or ±0.002 x In Reset time <...
-
Page 26: Local Hmi
Busbar and Multipurpose Differential Protection and Control 1MRS757467 B REB611 Product version: 1.0 17. Local HMI 18. Mounting methods The IED is equipped with a four-line liquid crystal Using appropriate mounting accessories, the display (depending on the chosen font and standard IED case for the 611 series IED can be language, more or fewer lines might be visible). -
Page 27: Ied Case And Ied Plug-In Unit
Busbar and Multipurpose Differential Protection and Control 1MRS757467 B REB611 Product version: 1.0 GUID-78E3ECC3-F2C7-4EFE-BC94-CAF89B5CA6D0 V1 EN GUID-0ED32BE0-C610-4171-81A9-321735932451 V1 EN GUID-2B67CC71-7A0E-4EC8-86AA-9E94EE3C0BAF V1 EN Figure 10. Semi-flush with a 25º Figure 8. Flush mounting Figure 9. Semi-flush mounting tilt 19. IED case and IED plug-in unit For safety reasons, the IED casings of the current measuring IEDs are equipped with automatic operating contacts that short-circuit the current... -
Page 28: Selection And Ordering Data
Busbar and Multipurpose Differential Protection and Control 1MRS757467 B REB611 Product version: 1.0 20. Selection and ordering data number consists of a string of codes generated The IED type and serial number label identifies the from the IED's hardware and software modules. protection IED. -
Page 29: Accessories And Ordering Data
Busbar and Multipurpose Differential Protection and Control 1MRS757467 B REB611 Product version: 1.0 R E B 6 1 1 H B A A A A 1 N N 1 X E Description Option 1 None Option 2 None Power supply 48-250Vdc;... -
Page 30: Tools
Busbar and Multipurpose Differential Protection and Control 1MRS757467 B REB611 Product version: 1.0 22. Tools WHMI is disabled by default. The interface can be The IED is delivered as a pre-configured unit. The enabled with PCM600 or from the front panel user default parameter setting values can be changed interface (LHMI). - Page 31 Busbar and Multipurpose Differential Protection and Control 1MRS757467 B REB611 Product version: 1.0 Table 39. Supported functions Function WHMI PCM600 PCM600 PCM600 Engineering Engineering Pro IED parameter setting ● ● ● ● Saving of IED parameter ● ● ● ● settings in the IED Signal monitoring ●...
-
Page 32: Terminal Diagram
GUID-BA0109A6-62B2-43A2-90B5-E3636790E5AF V1 EN Figure 12. Terminal diagram of standard configuration A 24. References documentation, such as technical reference www.abb.com/substationautomation portal manual, installation manual, operators manual, offers you information about the distribution and so on. The selection tool on the Web page automation product and service range. -
Page 33: Functions, Codes And Symbols
Busbar and Multipurpose Differential Protection and Control 1MRS757467 B REB611 Product version: 1.0 25. Functions, codes and symbols Table 40. REB611 functions, codes and symbols Function IEC 61850 IEC 60617 IEC-ANSI Protection High-impedance differential protection, HIPDIF1 dHi>(1) 87(1) instance 1 High-impedance differential protection, HIPDIF2 dHi>(2) -
Page 34: Document Revision History
