360° Passive Infrared • Line Voltage
SPECIFICATIONS
Voltages ..............................................................120/230/277/347VAC
Load Ratings
@120VAC ................................................. 0-800W Ballast/Tungsten
@230 or 277VAC, 50/60Hz .....................................0-1200W Ballast
@347VAC, 50/60Hz ................................................0-1500W Ballast
Operating Temperature ................................ 32° to 131°F (0° to 55°C)
Light Level One-Step Adjustment .................................... 10FC–300FC
Time Delay Adjustment ............................................... 5 to 30 minutes
Walk-Through Mode ..............3 minutes if no activity after 30 sec.
Test Mode ............ 5 sec. upon intial power-up or DIP switch reset
PIR Coverage
Sensitivity Adjustment ................... Automatic or Low (DIP switch)
Model CI-355 ............................................................... up to 1200ft
Model CI-355-1 ............................................................. up to 500ft
CI-355
Occupancy Sensor
with Light Level feature
U.S. Patents: 4,787,722
and Patent Pending
Santa Clara, CA 95050
2
2
5,189,393
Advertisement
Table of Contents
Related Manuals for LEGRAND Watt Stopper CI-355
Summary of Contents for LEGRAND Watt Stopper CI-355
-
Page 1: Specifications
CI-355 360° Passive Infrared • Line Voltage Occupancy Sensor with Light Level feature SPECIFICATIONS Voltages ..............120/230/277/347VAC Load Ratings @120VAC ..........0-800W Ballast/Tungsten @230 or 277VAC, 50/60Hz ........0-1200W Ballast @347VAC, 50/60Hz ..........0-1500W Ballast Operating Temperature ........ 32° to 131°F (0° to 55°C) Light Level One-Step Adjustment ........ -
Page 2: Unit Description

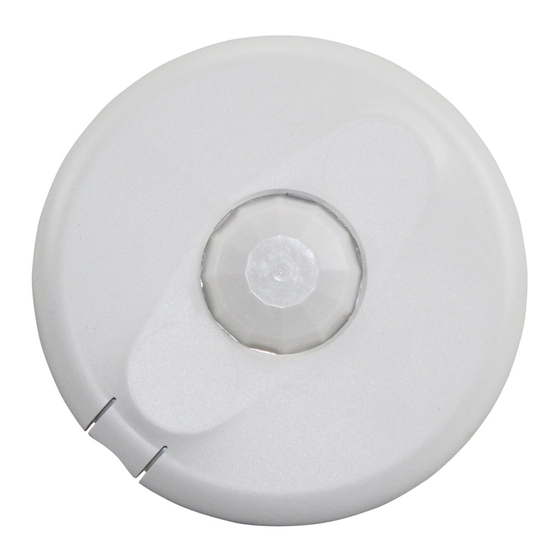

UNIT DESCRIPTION The Watt Stopper CI-355 360° passive infrared (PIR) occupancy sensors turn lighting systems on and off based on occupancy and ambient light levels. The light level feature can be used to keep lights from turning on if the ambient light level is sufficient. -
Page 3: Placement Guidelines
PLACEMENT GUIDELINES Depending upon obstacles such as furniture or partitions, the area of coverage may be less or more than the sensing distances shown in the coverage pattern. This must be considered when planning the number of sensors and their placement. -
Page 4: Wiring Directions
WIRING DIRECTIONS CAUTION TURN POWER OFF AT THE CIRCUIT BREAKER BEFORE INSTALLING SENSORS. #12 to #16 AWG Strip Gauge Cu Wire Only Neutral Load Switch Load Ground Neutral (Optional) Neutral Load Load Line Load Line Ground Ground Neutral Neutral (Optional) (Optional) Multiple sensors connected in parallel Call 800.879.8585 for Technical Support... - Page 5 LIGHT LEVEL FEATURE The Light Level feature holds lights off upon initial occupancy if adequate ambient light exists. It will not turn the lights off if they are on. The default setting is for maximum, meaning that even the brightest ambient light will not hold the lights off.
-
Page 6: Mounting The Sensor
MOUNTING THE SENSOR 4" Square, 2.25" Deep Using a 4-Inch Square Junction Junction Box with Double Gang Box with Double-Gang Mudring attached Mudring Drop Ceiling 1. Pull the high voltage wires into the J-Box through the conduit CA-1 Adapter knockout. 2. -
Page 7: Sensor Adjustment
SENSOR ADJUSTMENT The sensors are factory preset to allow for quick installation in most applications. Verification of proper wiring or coverage, or customizing the sensor’s settings can be done using the following procedures. To make adjustments, open the Front Cover with a small screwdriver. There is a 30 second Keyhole slots Light level... -
Page 8: Dip Switch Setting
DIP SWITCH SETTING Feature Switch Not Used The CI-355 has 7 DIP switches under the cover. They are used to set time delay and sensor activation LED settings. Override Not Used: Switch 1 Normal Switch 1 has no function. It’s position does not affect Override the sensor’s operation. -
Page 9: Troubleshooting
TROUBLESHOOTING CAUTION Turn power off at the circuit breaker before working with or near high voltage. For any unexpected operation: 1. Check DIP switch settings. 2. Make sure the switches are set according to the defined settings in the DIP Switch Setting Chart. Lights do not turn on with occupancy, and the following condition exists: •... -
Page 10: Ordering Information
Wiremold #V5752 box. WARRANTY INFORMATION Watt Stopper/Legrand warranties its products to be free of defects in materials and workmanship for a period of five (5) years. There are no obligations or liabilities on the part of Watt Stopper/Legrand for consequential damages arising...
