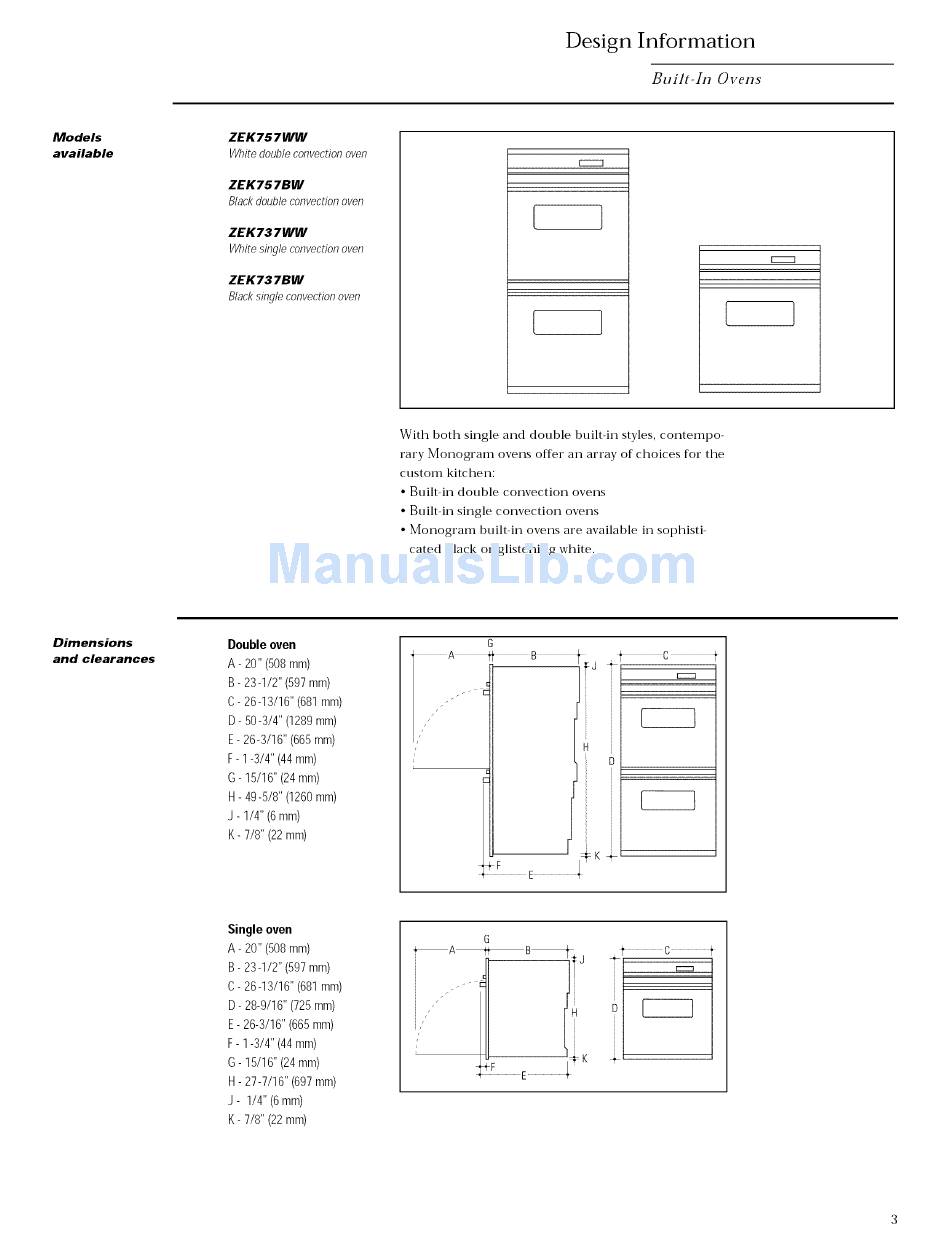

Design
Information
Built-In
Ovens
Models
available
ZEK 75 7 WW
Whitedouble convection oven
ZEK757BW
Blackdoubleconvectionoven
ZEK73 7WW
Whitesingle convectionoven
ZEK737BW
Black single convection oven
r---q
With
both
single
and
double
built-in
styles,
contempo-
rary
Monogram
ovens
offer
an
array
of choices
for the
custom
kitchen:
• Built-in
double
convection
ovens
• Built-in
single
convection
ovens
• Monogram
built-in
ovens
are
available
in sophisti-
cated
black
or glistening
white.
Dimensions
and
clearances
Double oven
A- 20" (508 mm)
B- 23-1/2" (597 mm)
C- 26-13/16" (681 ram)
D- 50-3/4" (1289 mm)
E- 26-3/16" (665 mm)
F- 1-3/4" (44 mm)
G- 15/16" (24 mm)
H- 49-5/8" (1260 mm)
J- 1/4" (6 mm)
K- 7/8" (22 mm)
,
A
/
'
B
'
I
£! ......................
E ......................................
'
C
'
r"""'n
Single oven
A- 20" (508 mm)
B- 23-1/2" (597 mm)
C- 26-13/16" (681 ram)
D- 28-9/16" (725 mm)
E- 26-3/16" (665 mm)
F- 1-3/4" (44 mm)
G- 15/16" (24 mm)
H- 27-7/16" (697 mm)
J- 1/4" (6 mm)
K- 7/8" (22 mm)
_A
'
B
_K
..................................
C ................................
izzl
u-q
