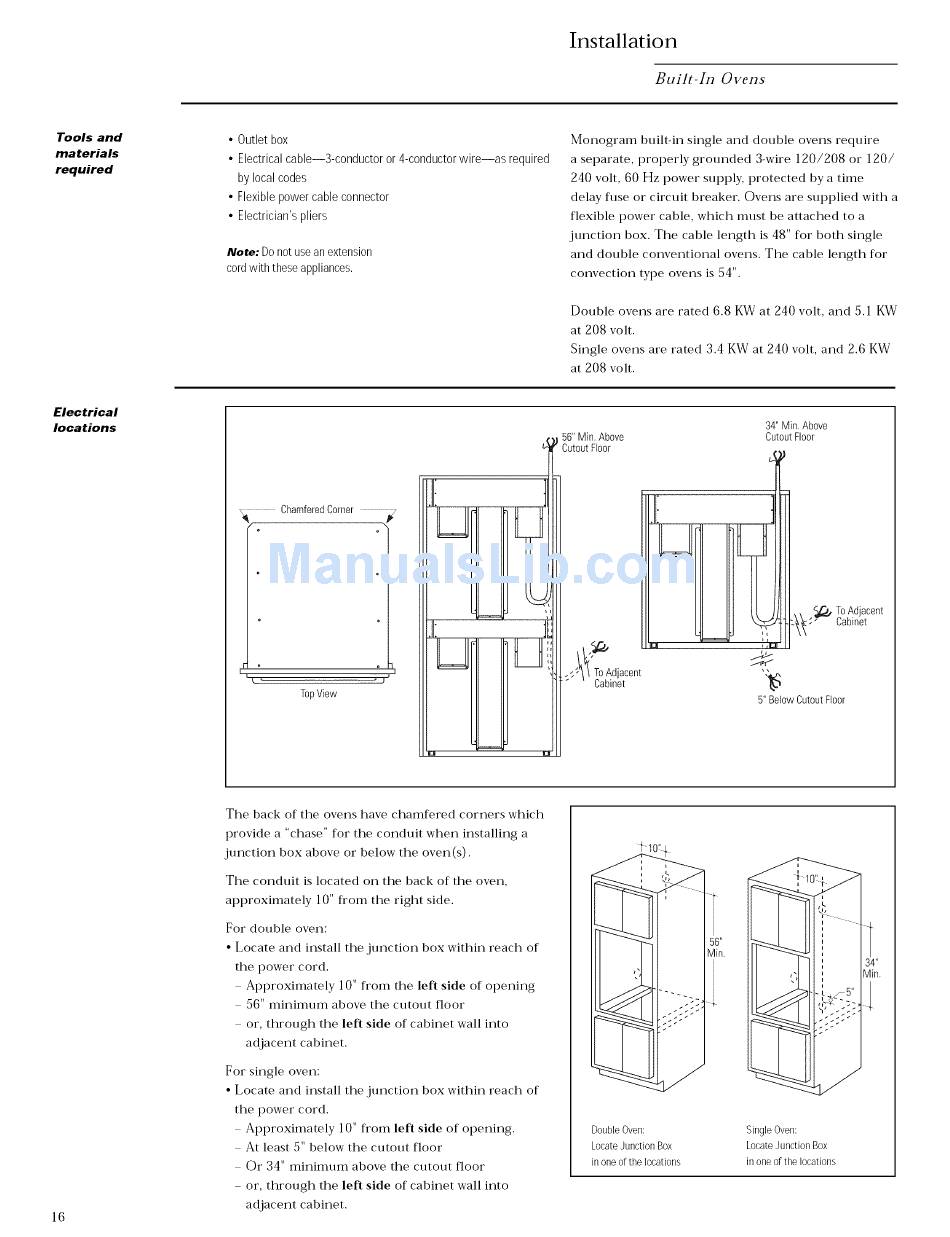

Installation
Built-In
Ovens
Tools
and
materials
required
• Outlet box
• Electrical cable--3-conductor or 4-conductorwire--as required
by local codes
• Flexible power cable connector
• Electrician's pliers
Note:
Do not use an extension
cord with these appliances.
Monogram
built-in
single
and double
ovens
require
a separate,
properly
grounded
3-wire
120/208
or 120/
240 volt, 60 Hz power
supply,
protected
by a time
delay fuse or circuit
breaker.
Ovens
are supplied
with a
flexible
power
cable,
which
must
be attached
to a
junction
box. The cable length
is 48" for both
single
and double
conventional
ovens.
The cable
length
for
convection
type ovens
is 54".
Double
ovens
are
rated
6.8 KW at 240 volt,
and
5.1 KW
at 208 volt.
Single
ovens
are
rated
3.4 KW at 240 volt,
and
2.6
KW
at 208 volt.
Electrical
locations
........................
Chamfered Corner
/
\
o
o
!1
,
i
Top View
56" Min. Above
CutoutFloor
_cent
Cabinet
34"Min, Above
CutoutFIoor
,kk_
ToAdiacent
;"
Cabinet
"v
5"Below Cutout F loor
16
The back
of the ovens have chamfered
corners
which
provide
a "chase"
for the conduit
when
installing
a
junction
box above
or below the oven(s).
The conduit
is located
on the back of the oven,
approximately
10" fi'om the right
side.
For double
oven:
• Locate
and install
the junction
box within
reach
of
the power
cord.
Approximately
10" from the left side of opening
56" minimum
above the cutout
floor
or, through
the left side of cabinet
wall into
adjacent
cabinet.
For single
oven:
• Locate
and install
the junction
box within
reach
of
the power
cord.
Approximately
10" from left side of opening.
At least 5" below the cutout
floor
Or 34" minimum
above the cutout
floor
or, through
the left side of cabinet
wall into
adjacent
cabinet.
DoubleOven:
LocateJunction Box
in one of the locations
Single Oven:
LocateJunction Box
in oneof the locations
