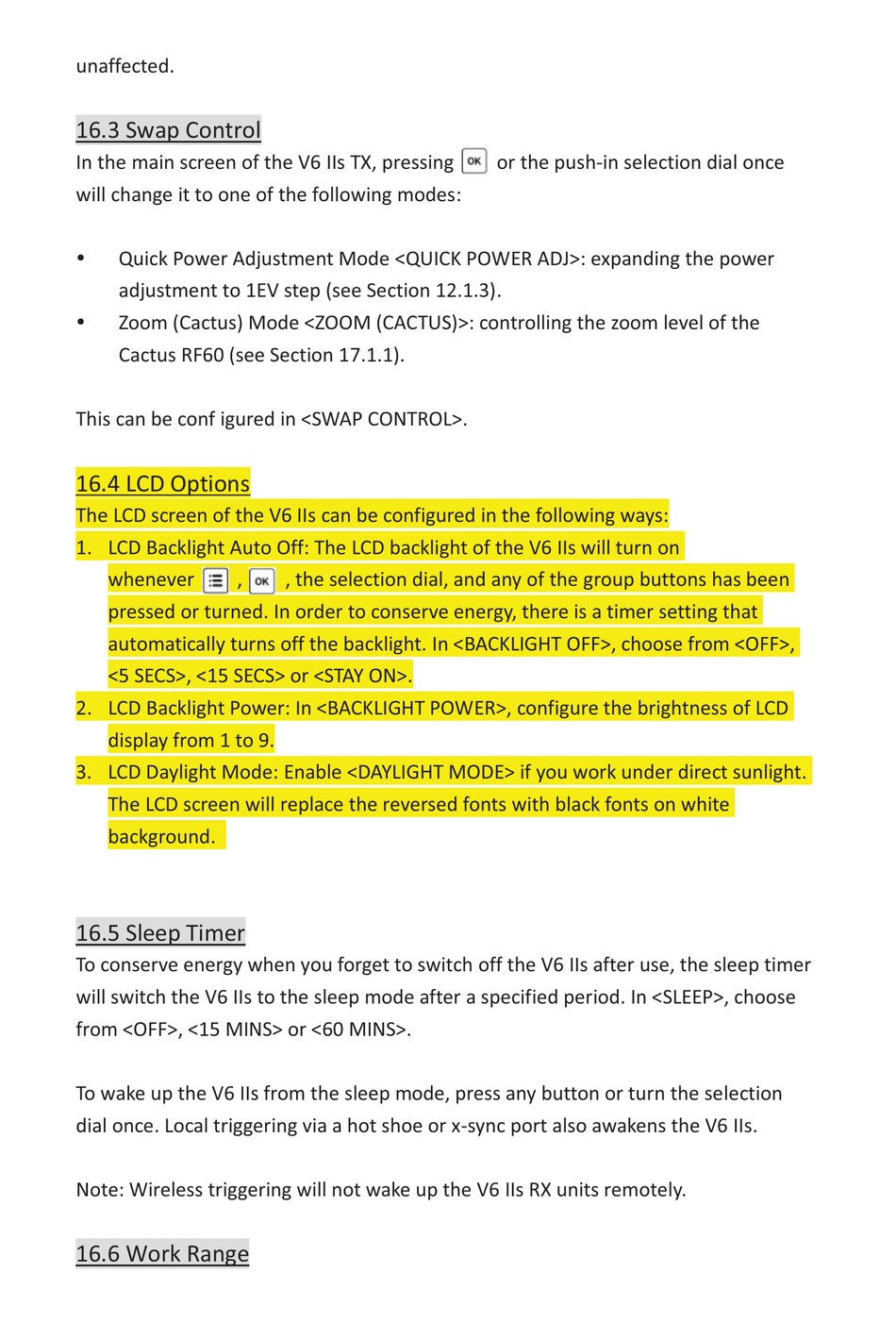

Cactus V6 IIs User Manual page 30

unaffected.
16.3 Swap Control
In the main screen of the V6 IIs TX, pressing
will change it to one of the following modes:
y
Quick Power Adjustment Mode <QUICK POWER ADJ>: expanding the power
adjustment to 1EV step (see Section 12.1.3).
y
Zoom (Cactus) Mode <ZOOM (CACTUS)>: controlling the zoom level of the
Cactus RF60 (see Section 17.1.1).
This can be conf igured in <SWAP CONTROL>.
16.4 LCD Options
The LCD screen of the V6 IIs can be configured in the following ways:
1. LCD Backlight Auto Off: The LCD backlight of the V6 IIs will turn on
whenever ,
pressed or turned. In order to conserve energy, there is a timer setting that
automatically turns off the backlight. In <BACKLIGHT OFF>, choose from <OFF>,
<5 SECS>, <15 SECS> or <STAY ON>.
2. LCD Backlight Power: In <BACKLIGHT POWER>, configure the brightness of LCD
display from 1 to 9.
3. LCD Daylight Mode: Enable <DAYLIGHT MODE> if you work under direct sunlight.
The LCD screen will replace the reversed fonts with black fonts on white
background.
16.5 Sleep Timer
To conserve energy when you forget to switch off the V6 IIs after use, the sleep timer
will switch the V6 IIs to the sleep mode after a specified period. In <SLEEP>, choose
from <OFF>, <15 MINS> or <60 MINS>.
To wake up the V6 IIs from the sleep mode, press any button or turn the selection
dial once. Local triggering via a hot shoe or x-sync port also awakens the V6 IIs.
Note: Wireless triggering will not wake up the V6 IIs RX units remotely.
16.6 Work Range
, the selection dial, and any of the group buttons has been
or the push-in selection dial once
