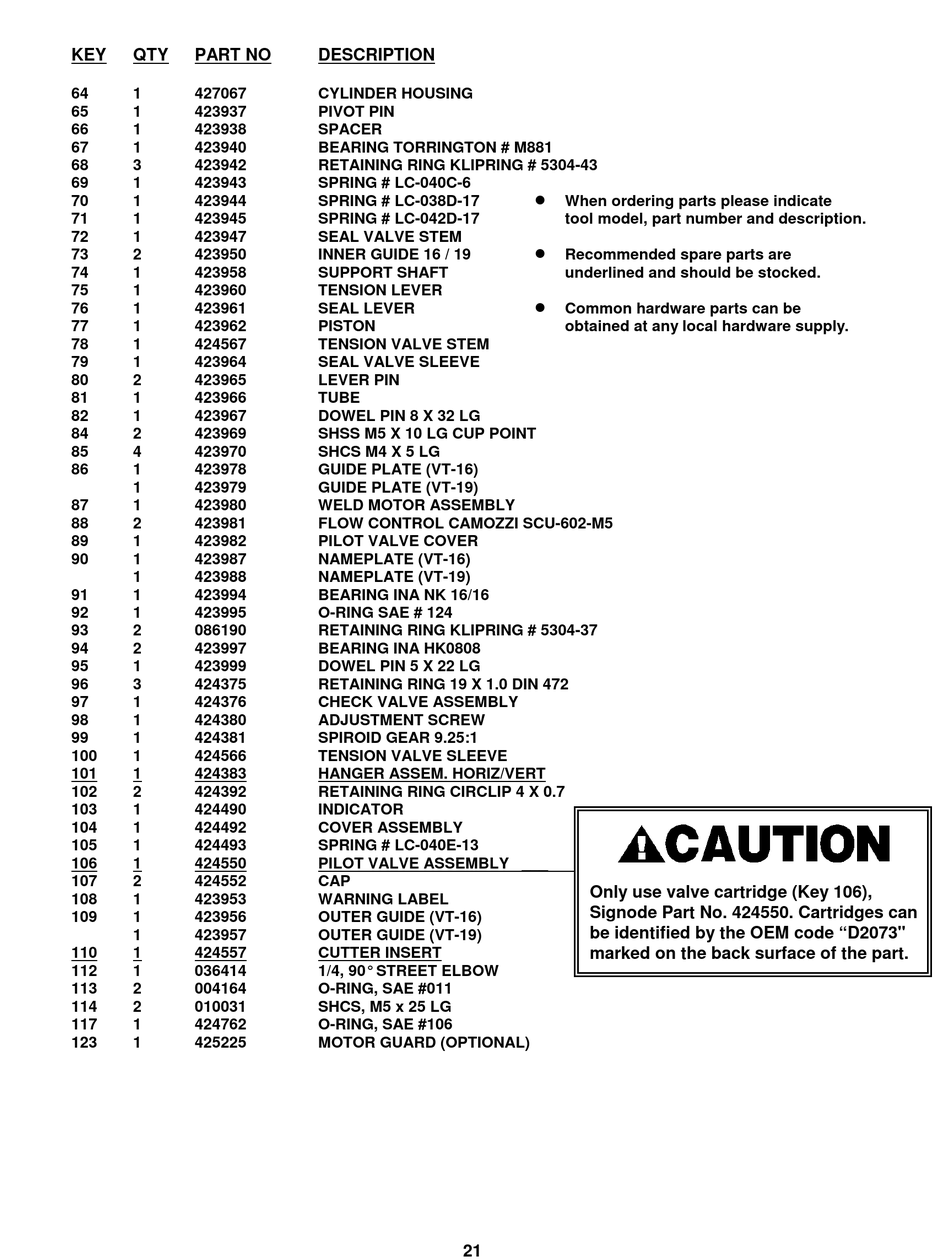

KEY
QTY
PART NO
64
1
427067
65
1
423937
66
1
423938
67
1
423940
68
3
423942
69
1
423943
70
1
423944
71
1
423945
72
1
423947
73
2
423950
74
1
423958
75
1
423960
76
1
423961
77
1
423962
78
1
424567
79
1
423964
80
2
423965
81
1
423966
82
1
423967
84
2
423969
85
4
423970
86
1
423978
1
423979
87
1
423980
88
2
423981
89
1
423982
90
1
423987
1
423988
91
1
423994
92
1
423995
93
2
086190
94
2
423997
95
1
423999
96
3
424375
97
1
424376
98
1
424380
99
1
424381
100
1
424566
101
1
424383
102
2
424392
103
1
424490
104
1
424492
105
1
424493
106
1
424550
107
2
424552
108
1
423953
109
1
423956
1
423957
110
1
424557
112
1
036414
113
2
004164
114
2
010031
117
1
424762
123
1
425225
DESCRIPTION
CYLINDER HOUSING
PIVOT PIN
SPACER
BEARING TORRINGTON # M881
RETAINING RING KLIPRING # 5304-43
SPRING # LC-040C-6
SPRING # LC-038D-17
SPRING # LC-042D-17
SEAL VALVE STEM
INNER GUIDE 16 / 19
SUPPORT SHAFT
TENSION LEVER
SEAL LEVER
PISTON
TENSION VALVE STEM
SEAL VALVE SLEEVE
LEVER PIN
TUBE
DOWEL PIN 8 X 32 LG
SHSS M5 X 10 LG CUP POINT
SHCS M4 X 5 LG
GUIDE PLATE (VT-16)
GUIDE PLATE (VT-19)
WELD MOTOR ASSEMBLY
FLOW CONTROL CAMOZZI SCU-602-M5
PILOT VALVE COVER
NAMEPLATE (VT-16)
NAMEPLATE (VT-19)
BEARING INA NK 16/16
O-RING SAE # 124
RETAINING RING KLIPRING # 5304-37
BEARING INA HK0808
DOWEL PIN 5 X 22 LG
RETAINING RING 19 X 1.0 DIN 472
CHECK VALVE ASSEMBLY
ADJUSTMENT SCREW
SPIROID GEAR 9.25:1
TENSION VALVE SLEEVE
HANGER ASSEM. HORIZ/VERT
RETAINING RING CIRCLIP 4 X 0.7
INDICATOR
COVER ASSEMBLY
SPRING # LC-040E-13
PILOT VALVE ASSEMBLY ___
CAP
WARNING LABEL
OUTER GUIDE (VT-16)
OUTER GUIDE (VT-19)
CUTTER INSERT
1/4, 90° STREET ELBOW
O-RING, SAE #011
SHCS, M5 x 25 LG
O-RING, SAE #106
MOTOR GUARD (OPTIONAL)
21
!
When ordering parts please indicate
tool model, part number and description.
!
Recommended spare parts are
underlined and should be stocked.
!
Common hardware parts can be
obtained at any local hardware supply.
Only use valve cartridge (Key 106),
Signode Part No. 424550. Cartridges can
be identified by the OEM code "D2073"
marked on the back surface of the part.
