This "Quick Start Guide" provides the essential information to set up your bike. For detailed information
about the Shimano STEPS E8000 System and bike set up, please refer to the full owner's manual.

Bike Set-up

• Before riding, reference the chart below as a rough guide on how to set the bike's components.
Shock Air Pressure
(by Body Weight)
Fork Air Pressure
Shock Compression Damping
Shock Rebound Damping
Fork Compression Damping
Fork Rebound Damping
Front Tire Pressure
Rear Tire Pressure
Adjusting Saddle Height
• The seat post collar on the Shuttle can be loosened and tightened with a 4mm hex wrench.
• Before raising or lowering the seat height, using a 2mm hex wrench, loosen the head tube cable port
securing the dropper post housing. Be sure to re-tighten the cable clamp after adjusting the saddle height.

Charging the Battery

• The battery does not come charged and must be charged completely before the first use.
• The charging port is located on the non-driveside of the downtube near the bottom of the battery.

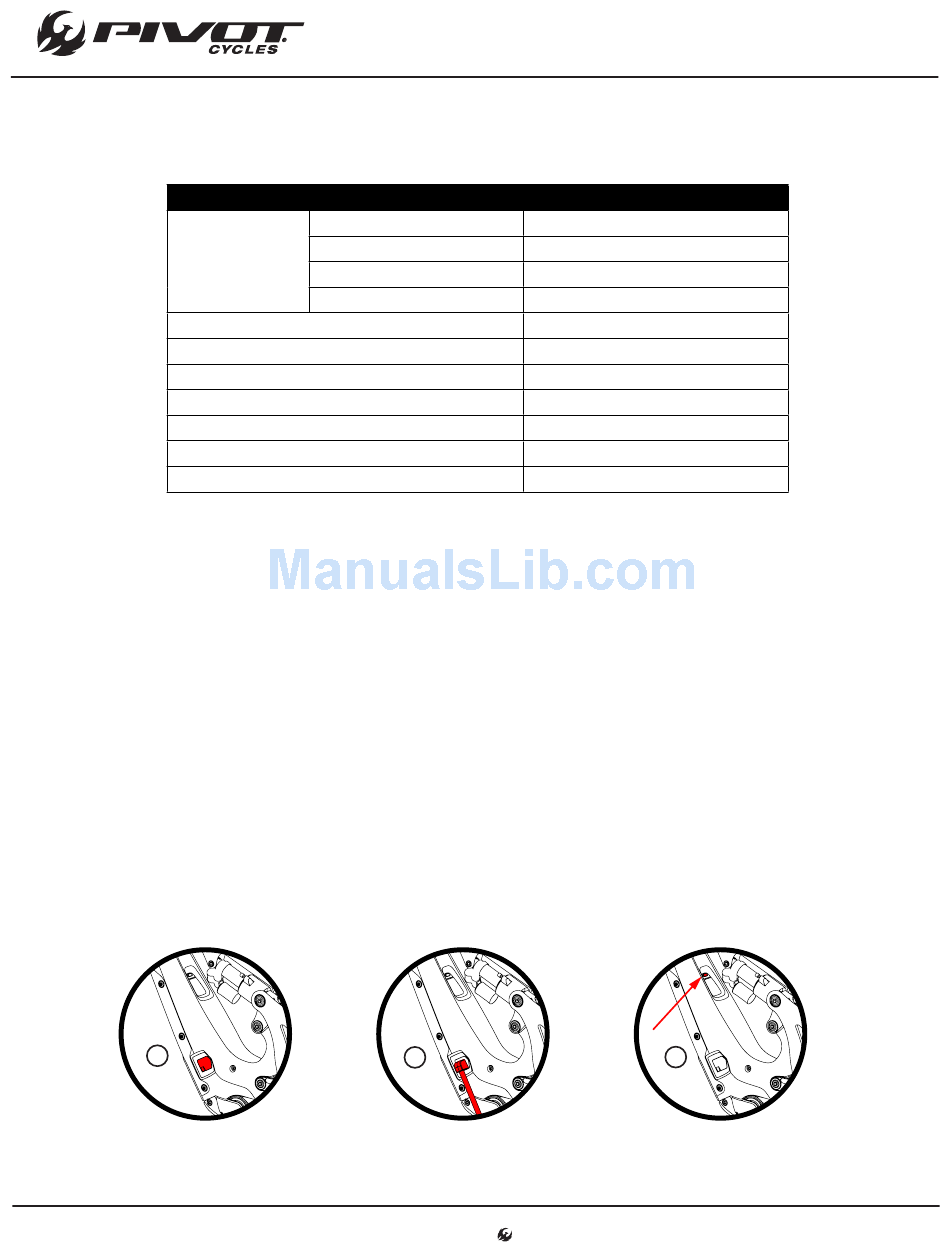

• The battery has a sealing cover (fig. 1) that needs to be removed for charging.
• The charging cable (fig. 2) is plugged into the battery through the charging window in the frame. The
battery can also be charged off the bike. For battery removal instructions, see the full owner's manual.
• Make sure the the charger is securely attached. To verify that the bike is charging, the light on the charger
will illuminate and lights on the battery power panel will light up to indicate the charging level. For
additional information regarding the battery power indicator lights, see the full owner's manual.

Powering the System ON and OFF

• When powering the system ON or OFF, do not have your feet on the pedals; a system fault may result.
• The power button (fig. 3) on the battery can be accessed through the window in the top of the downtube.
• Power cannot be turned on while the battery is charging.
• If the bike has not moved for 10 minutes, the power will shut off automatically.
1

Assist Mode Operation

• On start-up, the assist mode will be off. There are three levels of assistance: Eco, Trail, and Boost.
• The switch on the left side of the handle bar controls the level of assistance provided by the system.
COMPONENT
Body Weight in [kg] to [bar]
Body Weight in [kg] to [psi]
Body Weight in [lbs] to [bar]
Body Weight in [lbs] to [psi]
2
www.pivotcycles.com

QUICK START GUIDE

QUICK START SETTING
0.15 × Body Weight [kg] + 2.4 [bar]
2.2 × Body Weight [kg] + 35 [psi]
0.07 × Body Weight [lbs] + 2.4 [bar]
Body Weight [lbs] + 35 [psi]
70 [psi] / 4.83 [bar]
7 clicks in (clockwise) from OPEN
7 clicks in (clockwise) from OPEN
6 clicks in (clockwise) from OPEN
8 clicks in (clockwise) from OPEN
18 [psi] / 1.24 [bar]
22 [psi] / 1.52 [bar]
3
