Shuttle Wiring Diagram
• The diagrams below will help illustrate how the wires are to be routed through the internal cable guides
and how the handlebar switches are attached to the cycle computer.
• The routing shown below will help minimize the likelihood of pinching a wire when removing and installing
the motor for maintenance purposes.

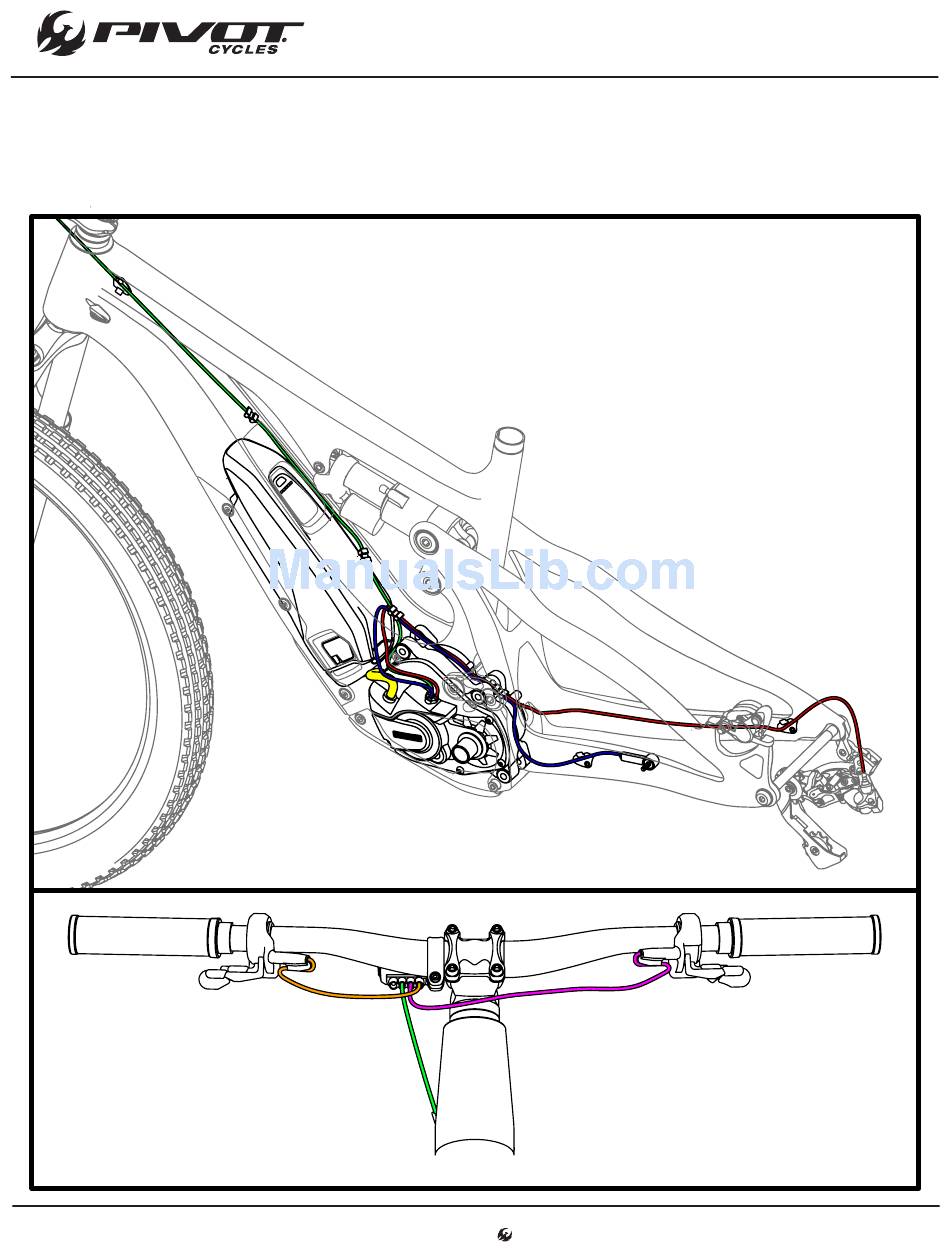

Frame Wiring Diagram
Cycle Computer Wiring Diagram
www.pivotcycles.com
-----------------
Cycle Computer Wire / EW-SD50 (1000mm)
-----------------
Assist Switch Wire / EW-SD50 (400mm)
----------------
Shifter Wire / EW-SD50 (300mm)
-----------------
Rear Derailleur Wire / EW-SD50 (900mm)
-----------------
Speed Sensor Wire / SM-DUE10
-----------------
Battery Cable / BM-E8010
