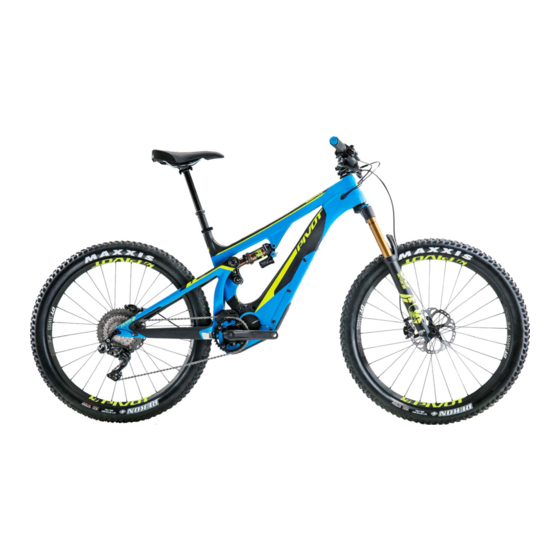

PIVOT SHUTTLE
Owner's Manual
This manual is intended to provide you with the information
needed to get you on the trail. This guide will walk you through the
steps necessary to set up all the components and become familiar
with the Shimano STEPS E8000 System. This document contains
some helpful diagrams and reference material to make sure you
have everything necessary to maintain your Shuttle and enjoy it to
the fullest.
Performance. Redefined.
www.pivotcycles.com
1.877.857.4868
Advertisement
Table of Contents
Related Manuals for Pivot SHUTTLE
Summary of Contents for Pivot SHUTTLE
- Page 1 Shimano STEPS E8000 System. This document contains some helpful diagrams and reference material to make sure you have everything necessary to maintain your Shuttle and enjoy it to the fullest. Performance. Redefined.
-
Page 2: Table Of Contents
- Cycle Computer Error Codes - Battery LED Warning Codes 6. Schematics - Shimano STEPS E8000 Schematic - Small Parts Schematic - Small Parts Table - Wiring Diagram 7. Reference Material - Shimano STEPS E8000 System - Pivot Shuttle Performance. Redefined. www.pivotcycles.com 1.877.857.4868... -
Page 3: Quick Start Guide
Adjusting Saddle Height • The seat post collar on the Shuttle can be loosened and tightened with a 4mm hex wrench. • Before raising or lowering the seat height, using a 2mm hex wrench, loosen the head tube cable port securing the dropper post housing. -
Page 4: Basic Operation
BASIC OPERATION Assist and Shifter Switch Function • The operation procedure detailed below refers to the cycle computer default setting. • Refer to the Shimano STEPS E8000 System Schematic for the switches part names. (Z1) Y1 X1 BUTTON CYCLE COMPUTER (A) FUNCTION Switch display modes (Current Speed is default and will return after 60 seconds) (Display Modes: Distance, Odometer, Range1,3, Travel Time , Avg. -
Page 5: Bike Set-Up
BIKE SET-UP Setting Proper Sag • Pivot uses different sag indicators depending upon the bike model. The Pivot Shuttle uses Sag Indicator B. OPEN 1. Always set sag with the blue compression damping MEDIUM adjust lever turned to the open position. (fig. 1) FIRM 2. -
Page 6: Setting Rebound Damping On The Fox Dpx2
280-300 Setting Air Pressure on the Fox 36 Fork • Fox recommends setting sag between 15% and 20% of the total fork travel. The Shuttle comes with a 150mm fork, so the proper sag measurement is 22.5 - 30.0mm. •... -
Page 7: Setting Compression Damping On The Fox 36 Fork
Adjusting Saddle Height • The seat post collar on the Shuttle can be loosened and tightened with a 4mm hex wrench. • Before raising or lowering the seat height, using a 2mm hex wrench, loosen the head tube cable port securing the dropper post housing. -
Page 8: Shimano Steps E8000 System
Connecting via a computer with the E-Tube Project software: 1. Connect a USB cable from the computer to the Communication Box (SM-PCE1). The Communication Box is not included with Shuttle and must be purchased separately. 2. Connect the Communication Box to the open port in the cycle computer. -
Page 9: Customize Menu In E-Tube Project
SHIMANO STEPS E8000 SYSTEM Customize Menu in E-Tube Project • The Customize menu is sub-divided into menus for individual units: Drive Unit, Display Unit, Switch Setting, and Multi Shift Setting • The tables below show the available options within the Customize menu. DRIVE UNIT SETTING DESCRIPTION Light... -
Page 10: Battery Charging Notes
SHIMANO STEPS E8000 SYSTEM Battery Charging Notes • The battery does not come charged and must be charged completely before the first use. • Only charge the battery with a desginated charger, such as the one included with the bike. •... -
Page 11: Removing The Battery
SHIMANO STEPS E8000 SYSTEM Removing the Battery • The battery may need to be removed to swap batteries or charge the battery if there is no power supply near the bike. • When the battery is removed, the cover will stay attached to the bike, and the front battery bracket will stay attached to the battery. -
Page 12: Troubleshooting
TROUBLESHOOTING Cycle Computer Warning Codes • Warnings may appear on the cycle computer display if the system detects an issue. • The warning code will clear once the issue is resolved. • If any issues persist after the suggestions below, contact the place of purchase. -
Page 13: Battery Led Warning Codes
TROUBLESHOOTING Battery LED Warning Codes • System errors and warnings can be indicated by various lighting patterns on the battery's power panel. • If any issues persist after the suggestions below, contact the place of purchase. ERROR TYPE ISSUE LIGHTING PATTERN* REMEDY Communication error with Make sure the battery cable is not... -
Page 14: Schematics
SCHEMATICS Shimano STEPS E8000 System Schematic LETTER PART DESCRIPTION PART NAME Cycle Computer SC-E8000 Assist Switch SW-E8000-L Shifting Switch SW-M8050-R Front Chainring SM-CRE80-B Chain Device SM-CDE80 Crank Arm FC-E8050 Drive Unit DU-E8000 Speed Sensor SM-DUE10 Battery / Mount BT-E8010 / BM-E8010 Battery Charger EC-E6000 Rear Derailleur (Di2) -
Page 15: Small Parts Schematic
SCHEMATICS Small Parts Schematic www.pivotcycles.com 1.877.857.4868... -
Page 16: Small Parts Table
SCHEMATICS Small Parts Table = grease = anti-seize = anti-seize or grease = loctite 243 (applied to female threads) NUMBER PART NAME DESCRIPTION TORQUE FP-CVR-EBIKE-BATT Battery Cover FP-CVR-EBIKE-SKD-PLT Skid Plate FP-MNT-FRNT-BATT-V1 Front Battery Mount FP-SCW-BTN-M2.5*12-SLFTAP M2.5x12 Self-tapping Torx Screws FP-GKT-BATT-CVR-DS-V1 E-Bike Carbon DS Battery Cover Gasket E-Bike Carbon NDS Battery Cover Gasket FP-GKT-BATT-CVR-NDS-V1... -
Page 17: Wiring Diagram
SCHEMATICS Shuttle Wiring Diagram • The diagrams below will help illustrate how the wires are to be routed through the internal cable guides and how the handlebar switches are attached to the cycle computer. • The routing shown below will help minimize the likelihood of pinching a wire when removing and installing the motor for maintenance purposes. -
Page 18: Reference Material
To download the E-tubes Project software to fully utilize the connectivity of the Shimano STEPS E8000 System visit: http://e-tubeproject.shimano.com/ Pivot Shuttle • For FAQs and additional technical documents regarding the maintenance of the Pivot Shuttle can be found http://www.pivotcycles.com/bike/shuttle/ www.pivotcycles.com 1.877.857.4868...
