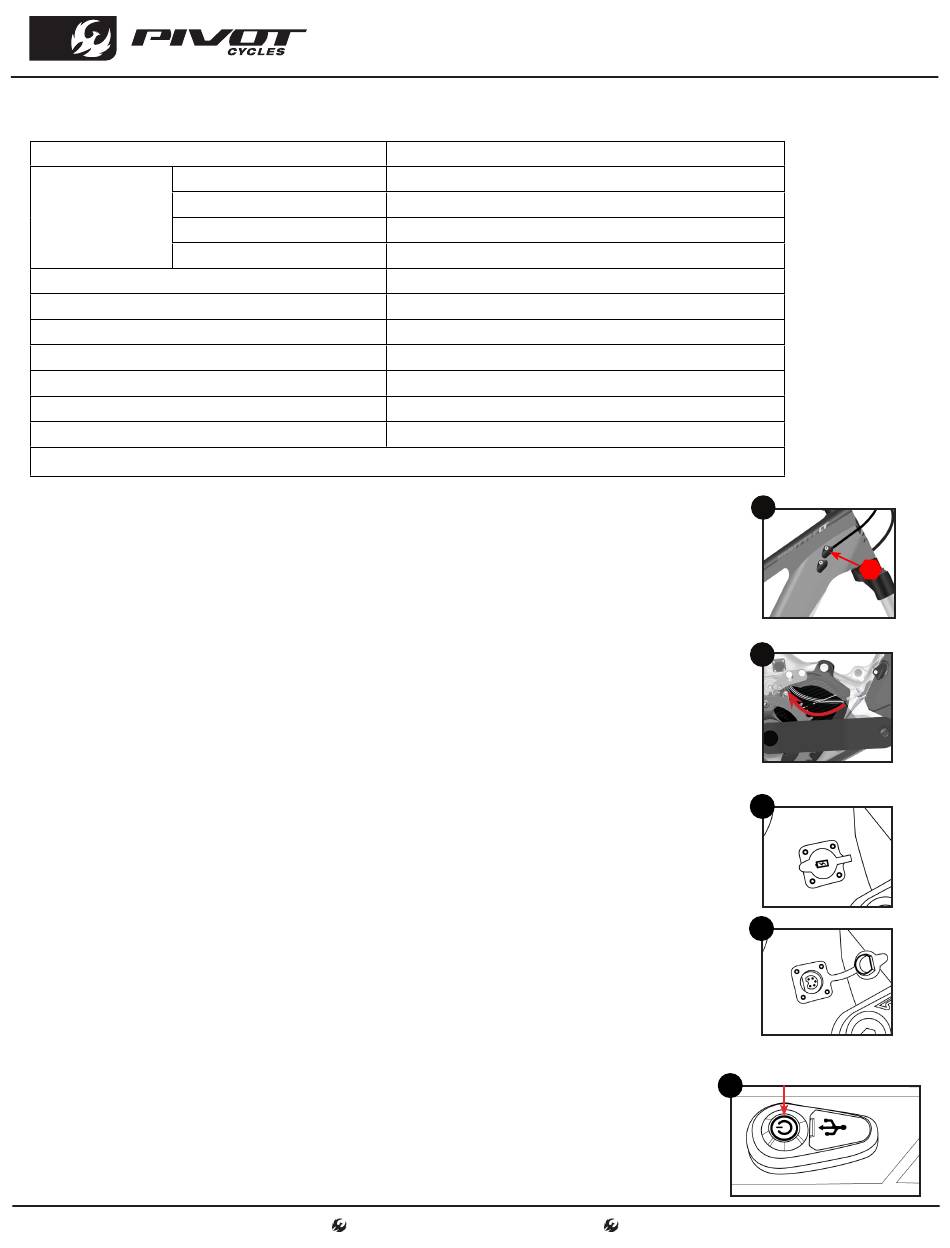

Quick Start Guide; Suspension/Tire Set-Up; Adjusting Saddle Height; Charging The Battery - Pivot SHUTTLE LT Operational Instructions

This "Quick Start Guide" provides the essential information to set up your bike.

Suspension/Tire Set-up

COMPONENT
Body Weight in [kg] to [bar]
Shock Air Pressure
Body Weight in [kg] to [psi]
(by Body Weight)
Body Weight in [lbs] to [bar]
*Always Check Sag
Body Weight in [lbs] to [psi]
Shock Compression Damping
Shock Rebound Damping
Fork Air Pressure
Fork Compression Damping
Fork Rebound Damping
Front Tire Pressure
Rear Tire Pressure
* These Adjustments are not available on all builds.

Adjusting Saddle Height

1. Use a 2mm hex wrench, loosen the drive side cable port cap securing the dropper
post housing. (fig. 1)
2. Using a 4mm hex wrench, loosen the seat post clamp bolt and raise/lower
the saddle to the preferred height.
3. Using a 4mm hex wrench, tighten the seat post clamp bolt to 5 Nm.
4. Tighten the cable port cap screw with a 2mm hex wrench to secure the
dropper post housing.
NOTE: If making a large adjustment to saddle height you may need to help feed
the housing up past the drive unit into the seat tube. (fig. 2)

Charging the Battery

NOTE: The battery does not come fully charged and must be charged
completely before the first use.
1. Locate the rubber charging port on the non-drive side of the seat tube. (fig.3)
Pull back the sealing cover to access the charging terminal.
2. Locate the alignment pin in the charger. Insert the charging cable into the
charging terminal, ensuring the cable and terminal are properly aligned. (fig. 4)
3. The display will illuminate briefly when the charger is properly connected.
The charger LED lamp will glow red while charging, and glow green when
charging is complete.
4. When done charging, remove the cable from the terminal and close the
sealing cover.

Powering the System ON and OFF

• The power button is located on the top of the top tube. (fig. 5)
• Power the system on by pressing on the power symbol.
• Power cannot be turned on while the battery is charging.
• If the bike has not moved for 10 minutes, the power will shut off automatically.
www.pivotcycles.com
QUICK START SETTING
0.15 × Body Weight [kg] + 0.7 [bar]
2.2 × Body Weight [kg] + 10 [psi]
0.07 × Body Weight [lbs] + 0.7 [bar]
Body Weight [lbs] + 10 [psi]
8 clicks in from OPEN*
6 clicks in from OPEN
80 [psi] / 5.52 [bar]
HSC: 2 clicks in from OPEN*; LSC: 5 clicks in from OPEN
HSR: 3 clicks in from OPEN*; LSR: 7 clicks in from OPEN
23 [psi] / 1.58 [bar]
28 [psi] / 1.93 [bar]
info@pivotcycles.com

QUICK START GUIDE

1
2
3
4
5
1.877.857.4868
2mm
1
